SFI System

DIAGNOSTIC TROUBLE CODE CHART

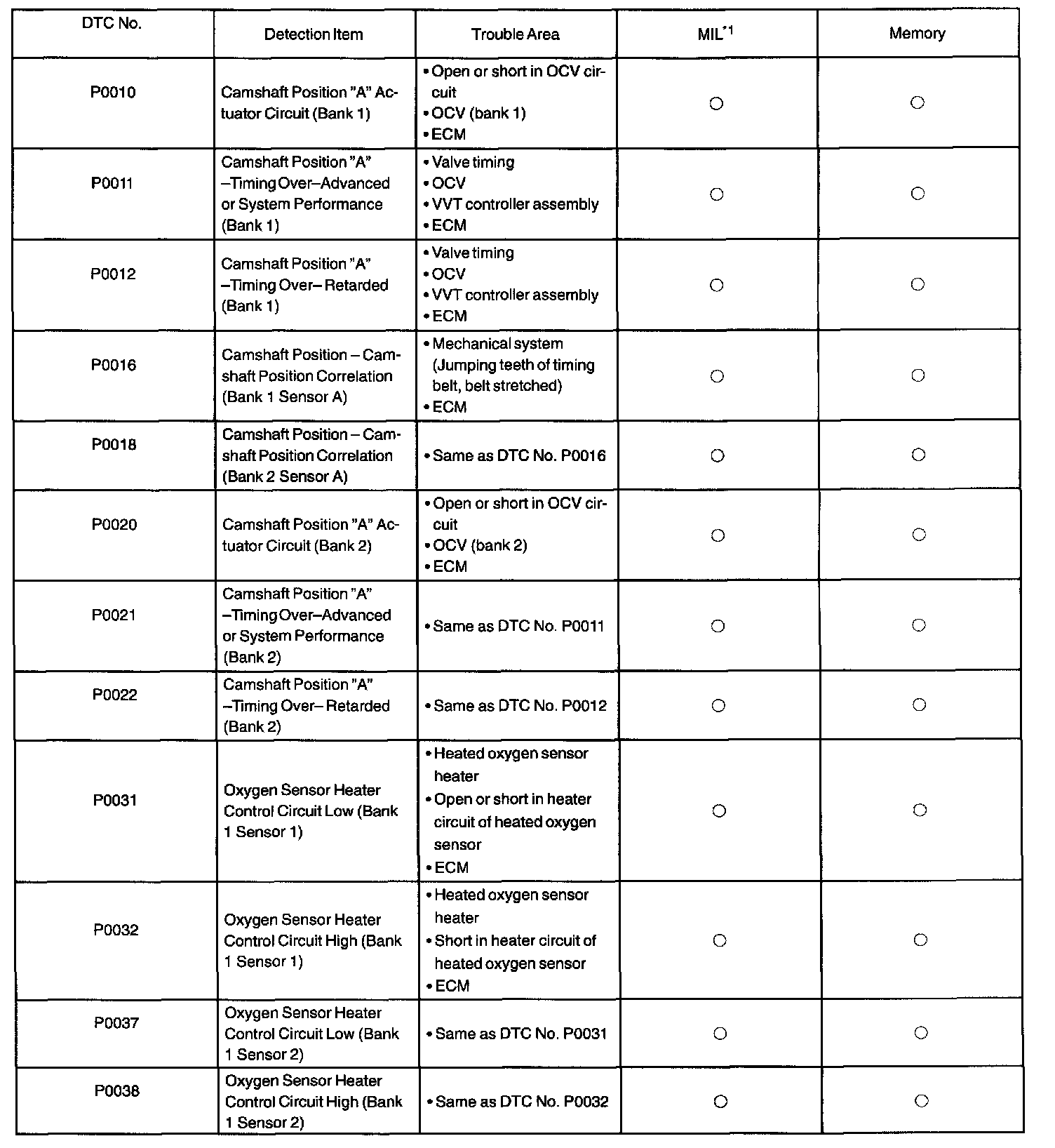

DTC P0010 - P0038:

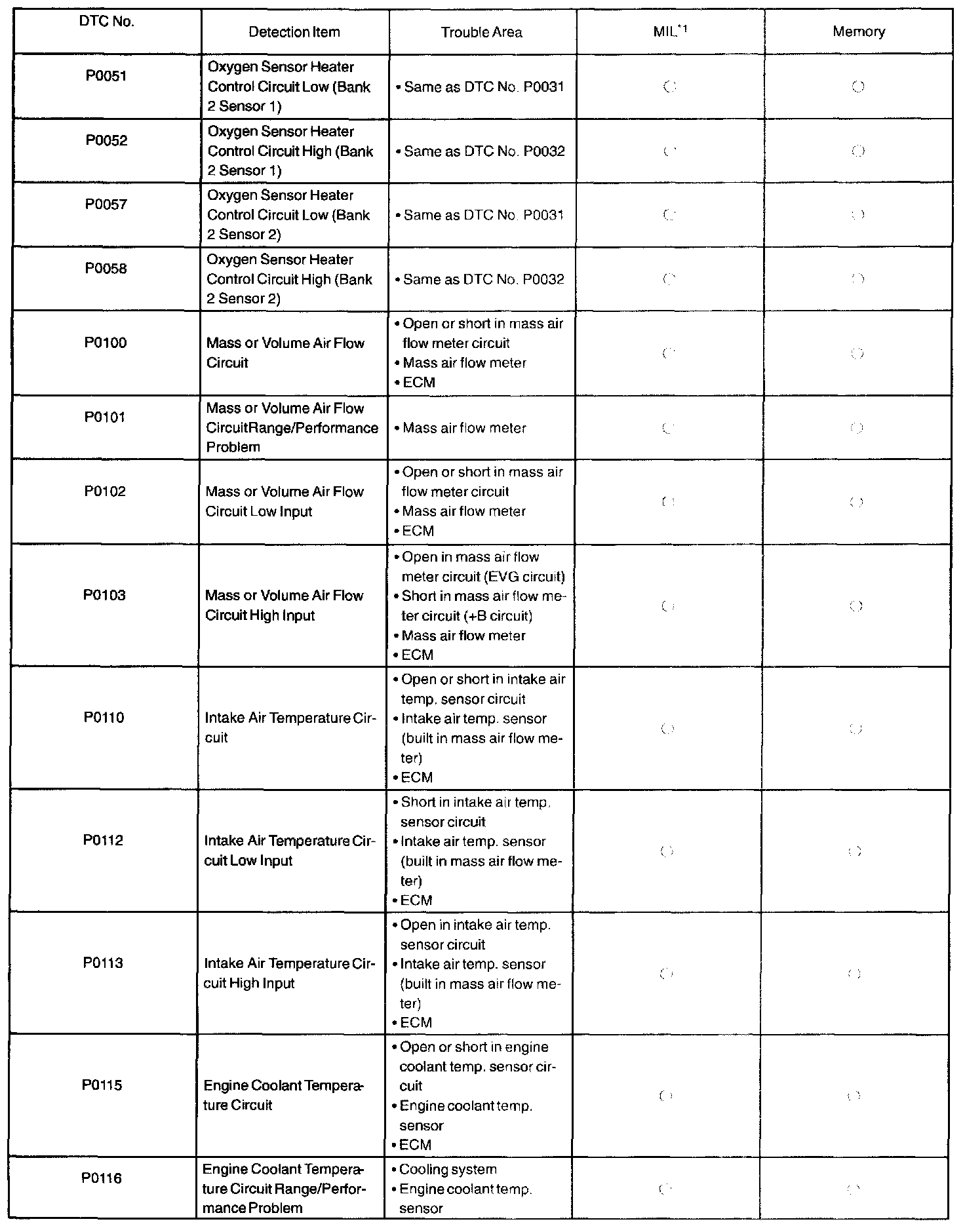

DTC P0051 - P0116:

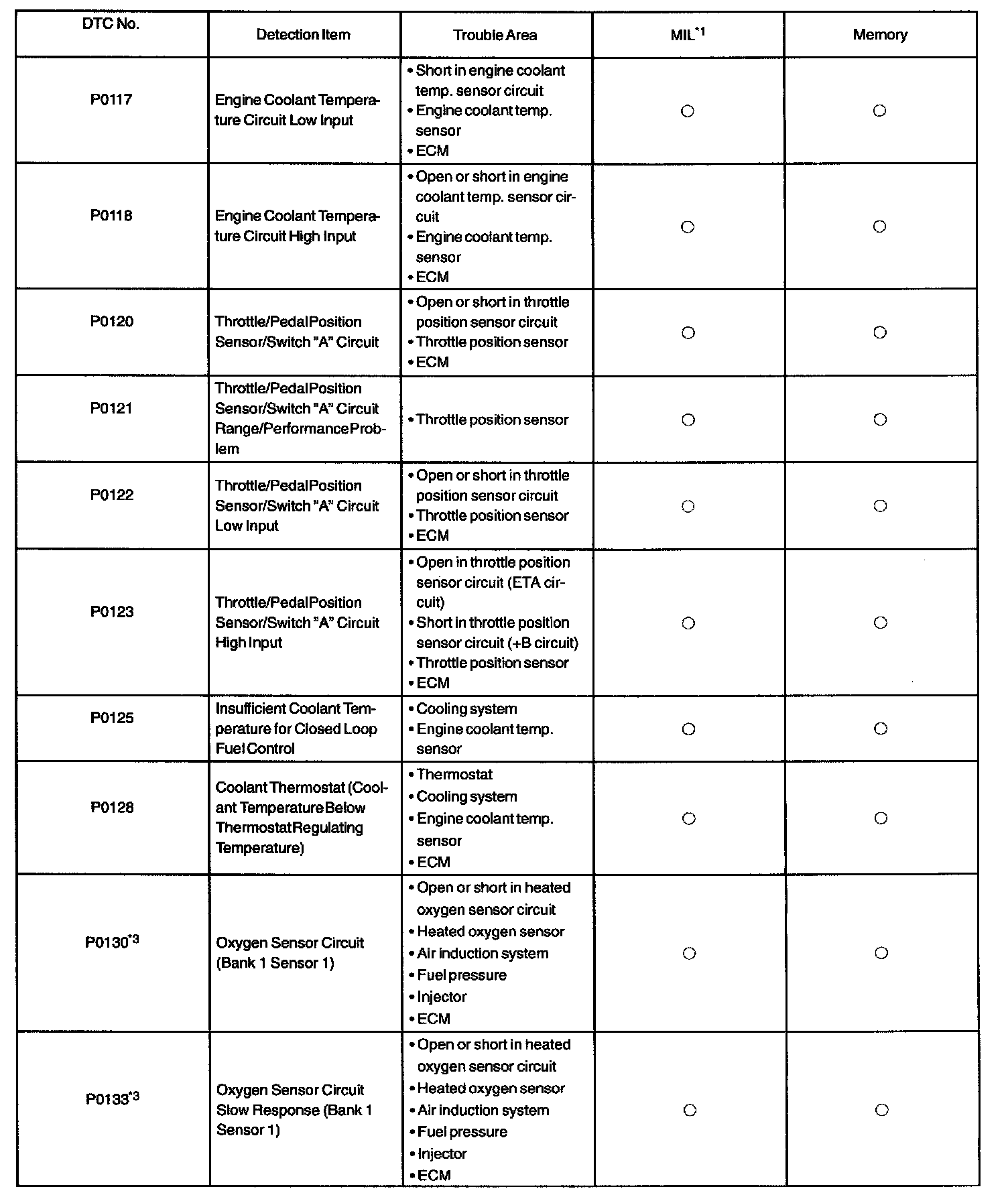

DTC P0117 - P0133:

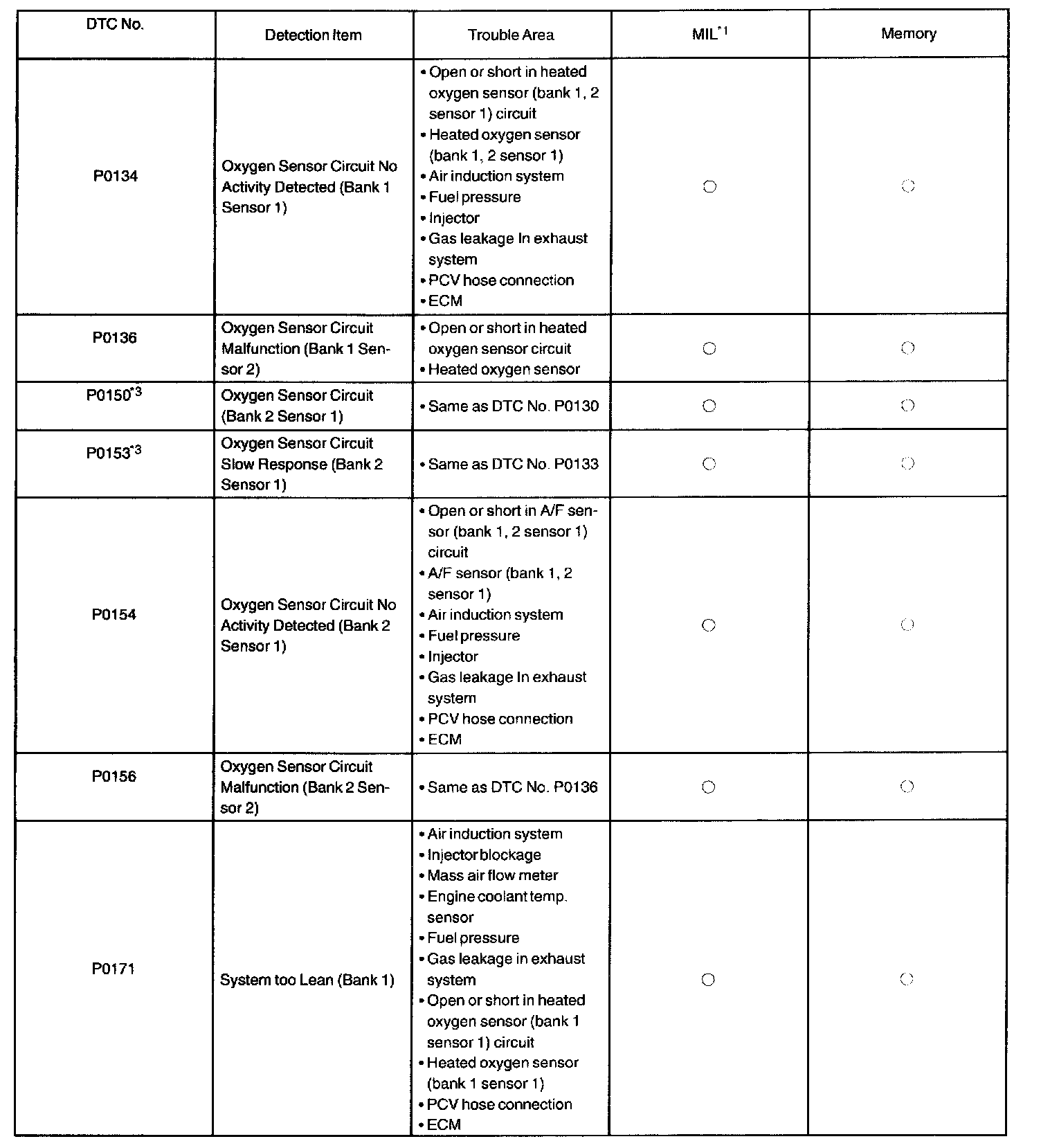

DTC P0134 - P0171:

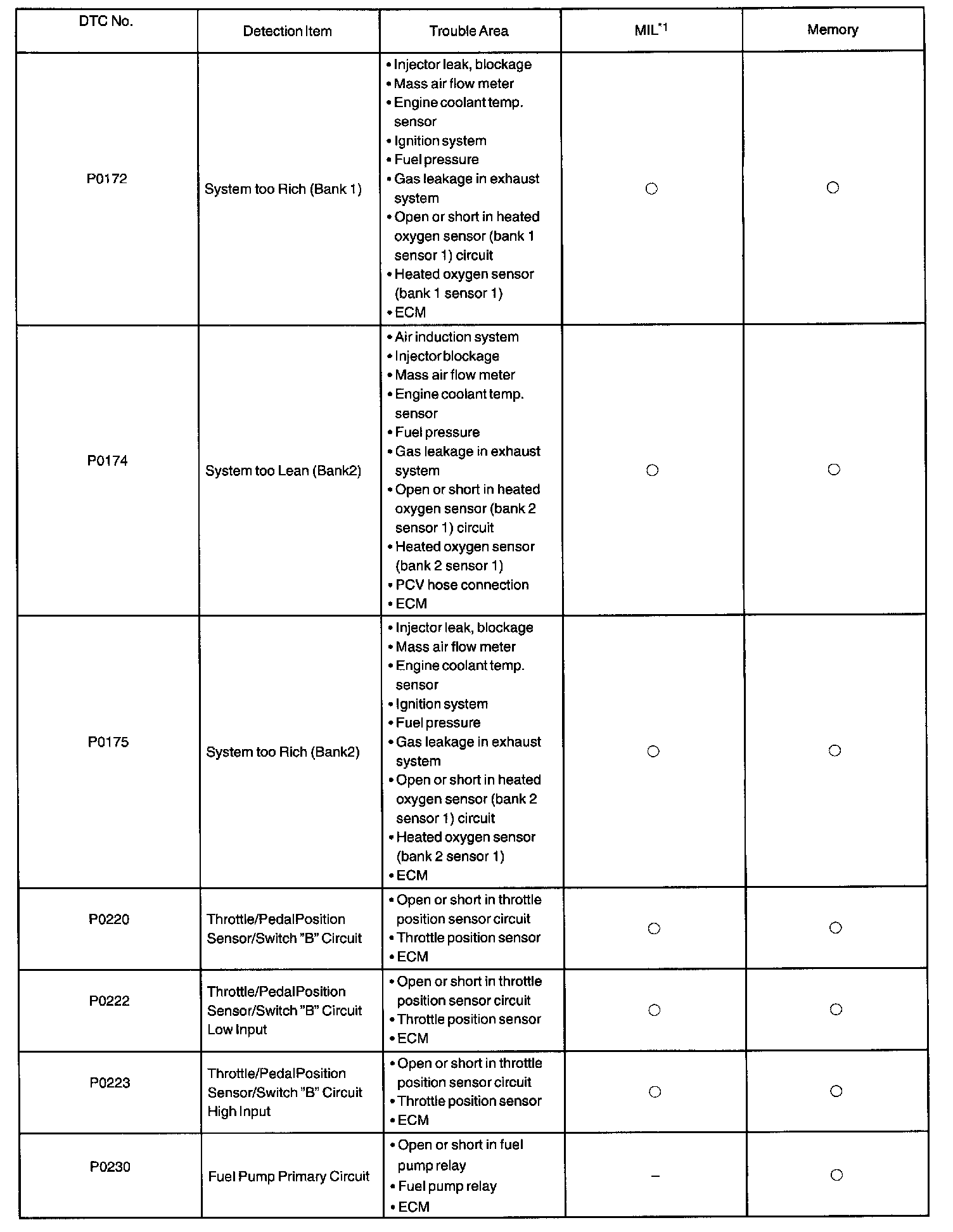

DTC P0172 - P0230:

DTC P0300 - P0303:

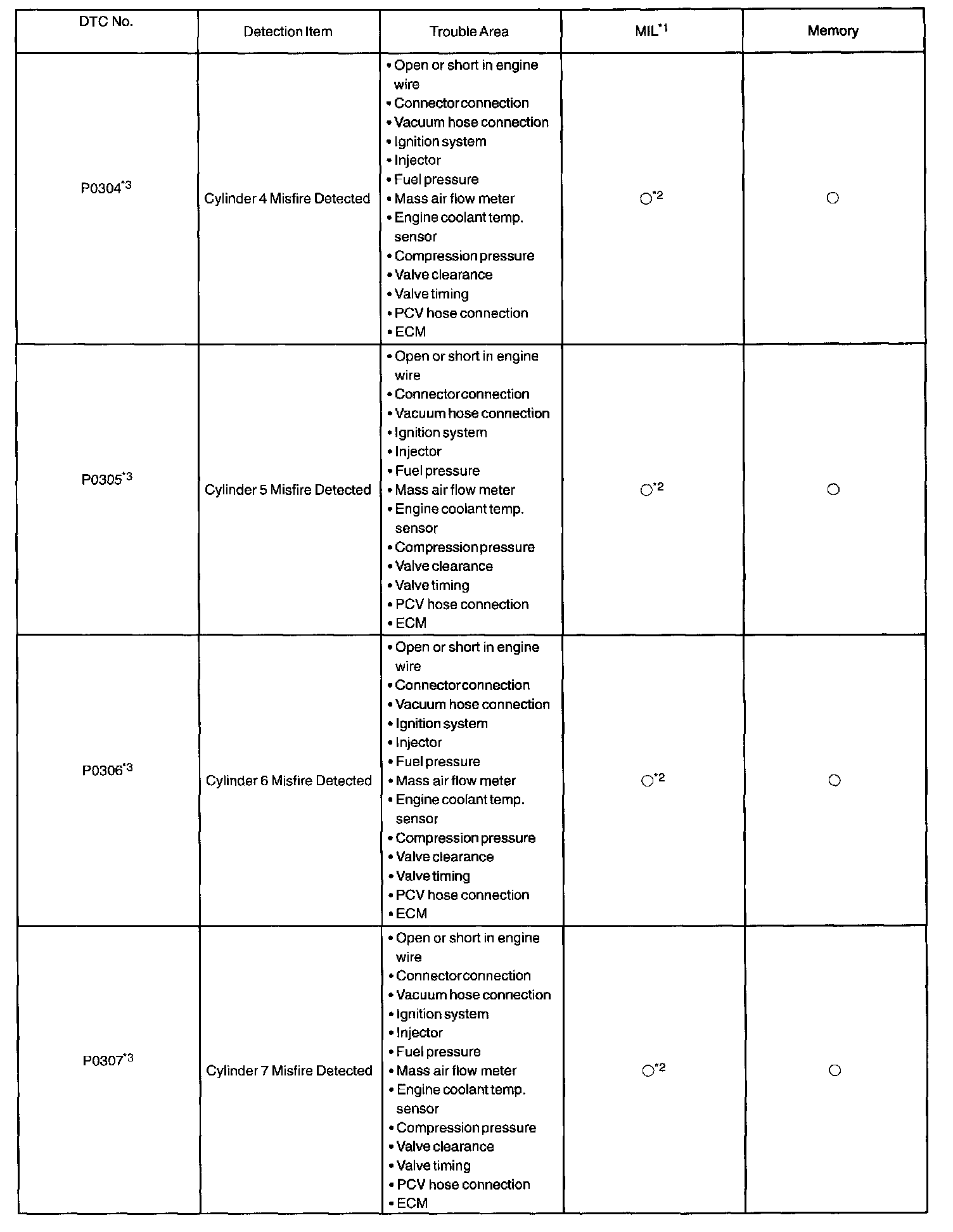

DTC P0304 - P0307:

DTC P0308 - P0346:

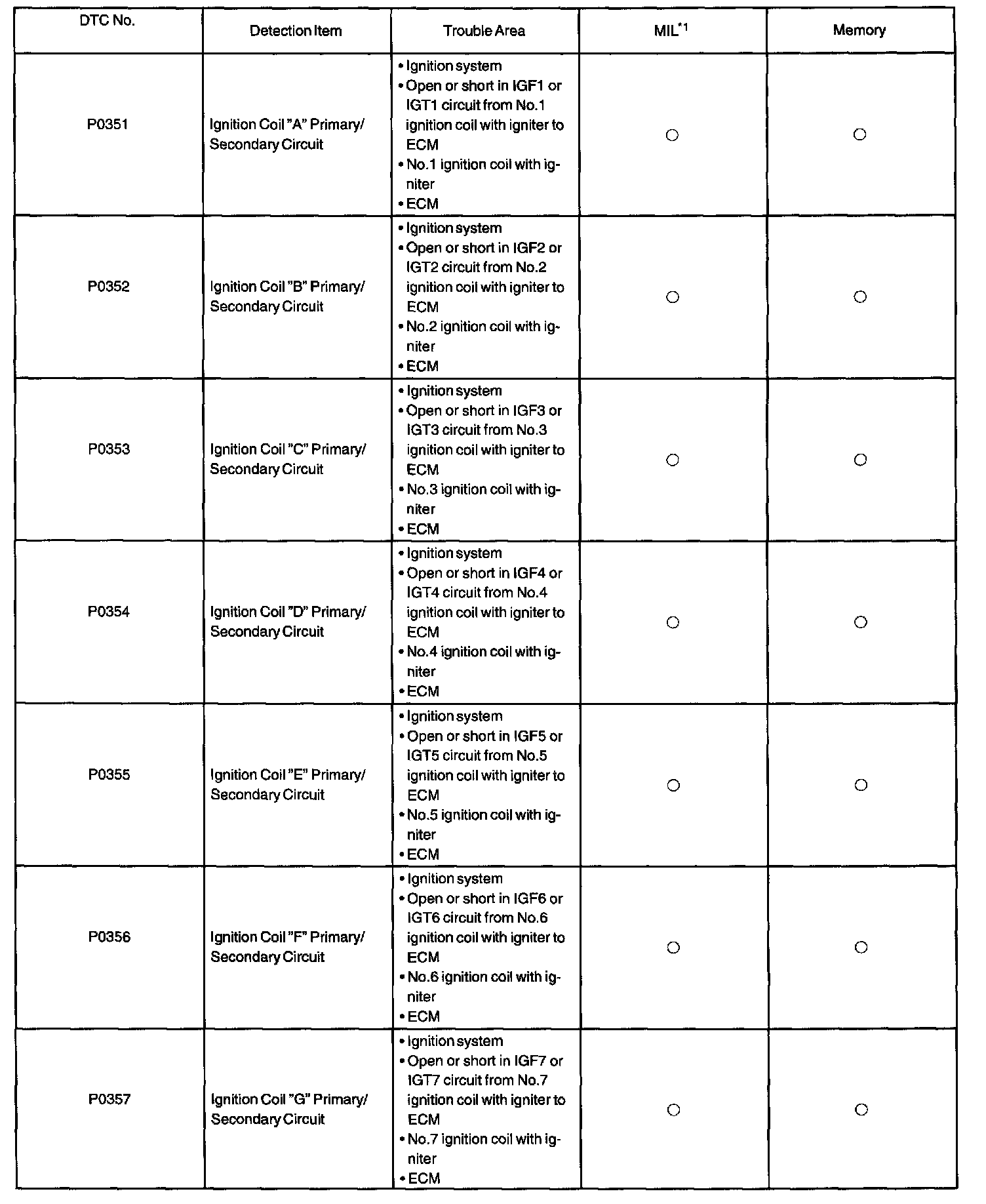

DTC P0351 - P0357:

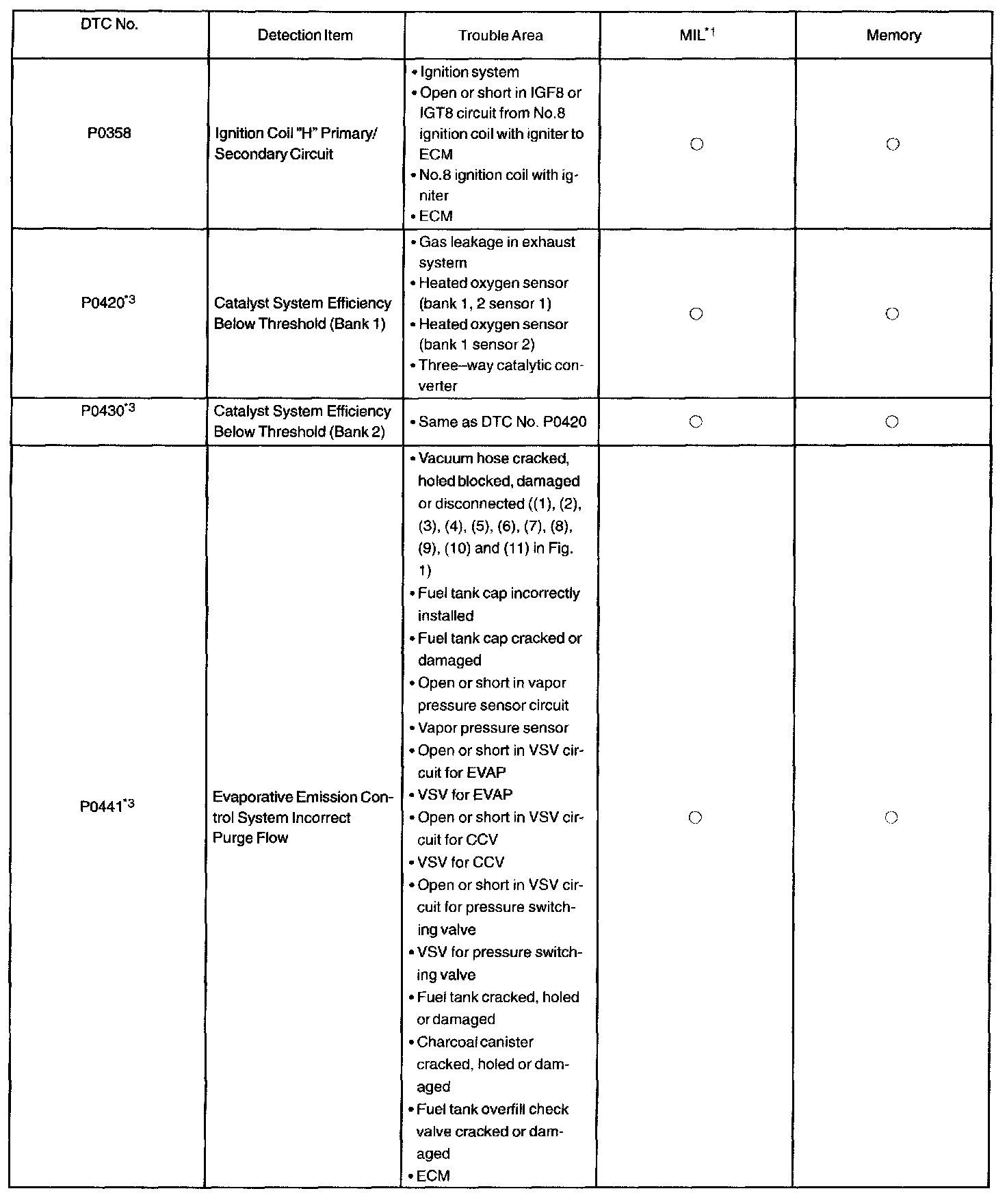

DTC P0358 - P0441:

DTC P0442 - P0453:

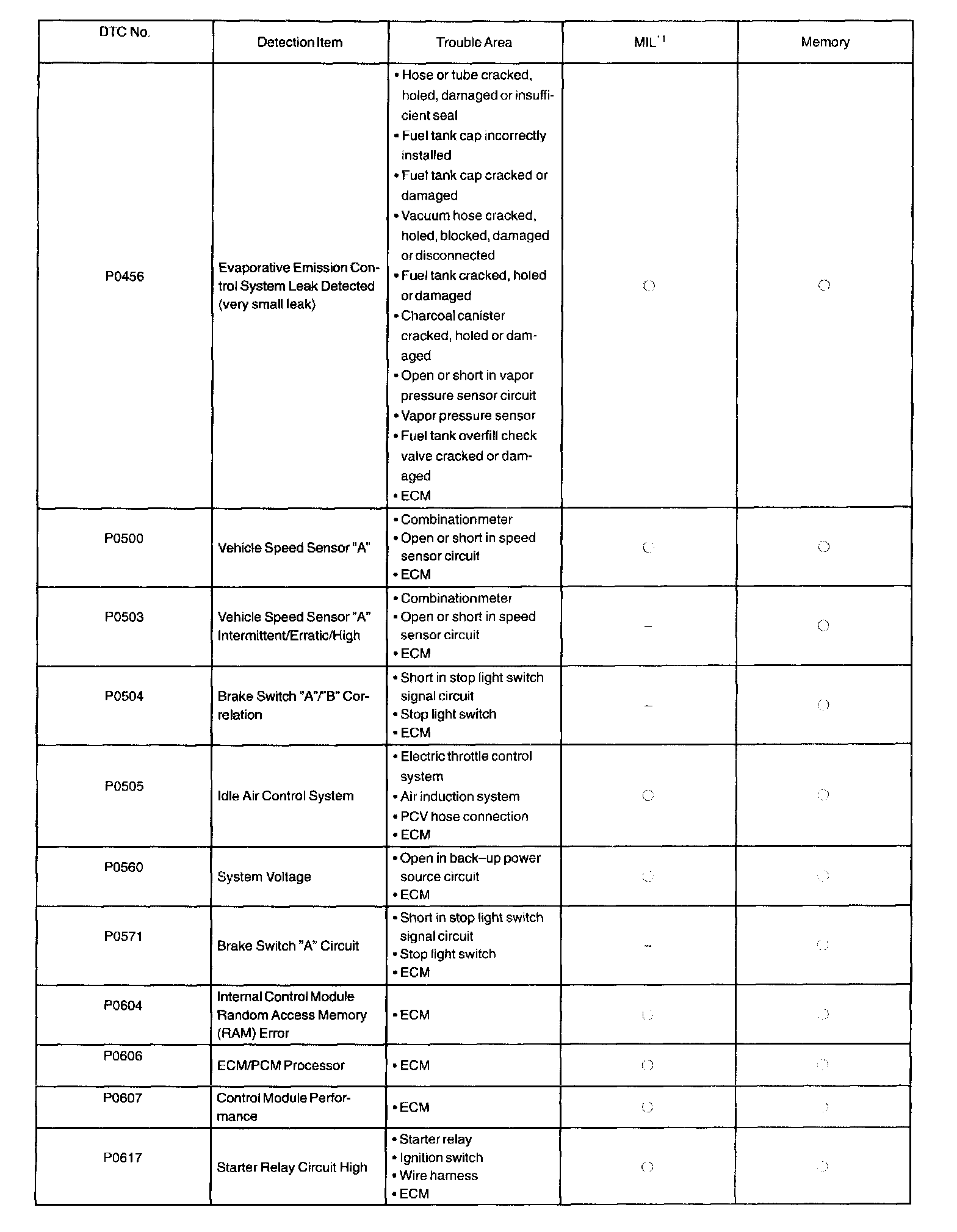

DTC P0456 - P0617:

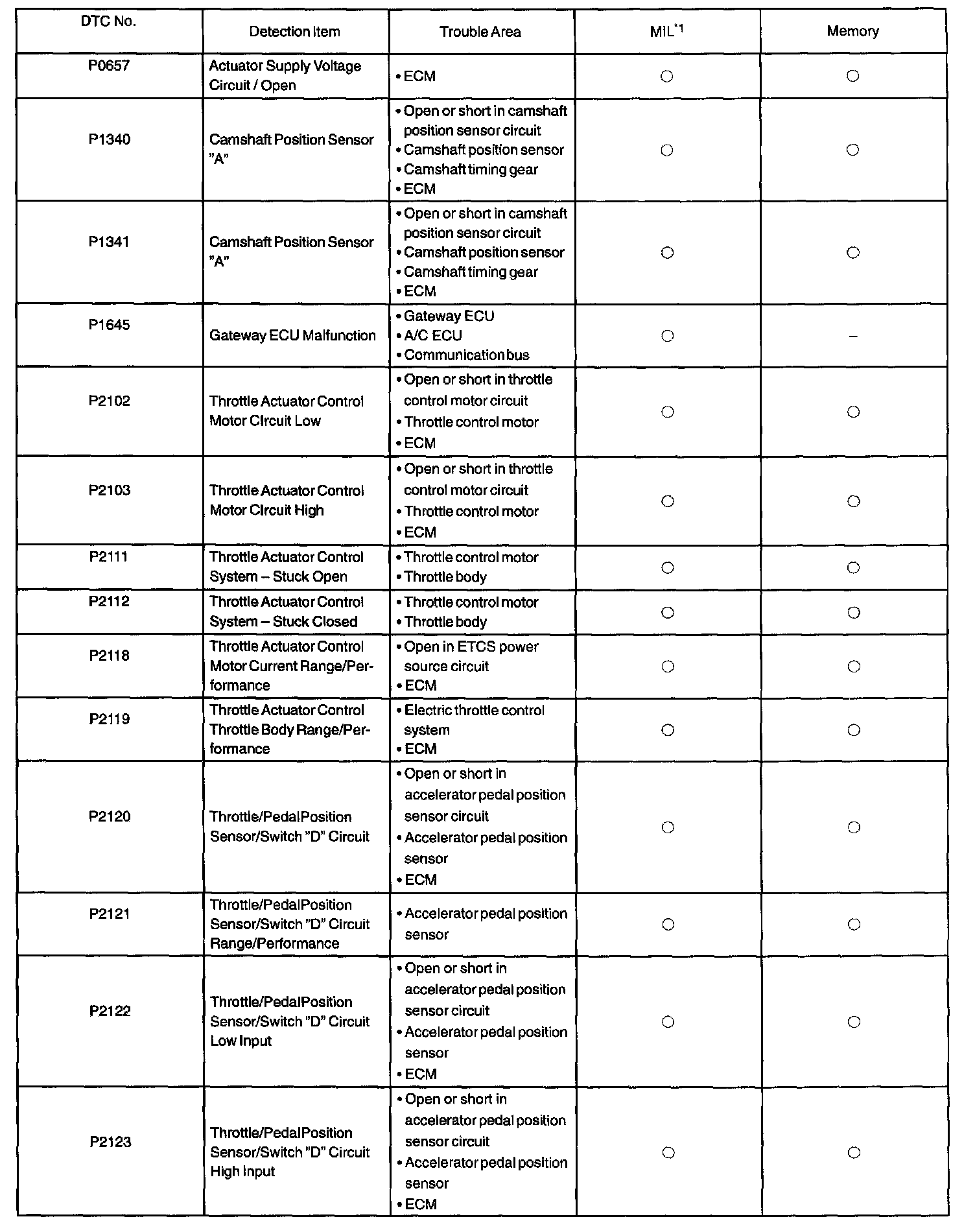

DTC P0657 - P2123:

DTC P2125 - P2799:

HINT: Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.

If a malfunction code is displayed during the DTC check in the check mode, check the circuit for the codes listed in the table. For details of each code, refer to the respective "DTC No." in the DTC chart.
