Lighting System

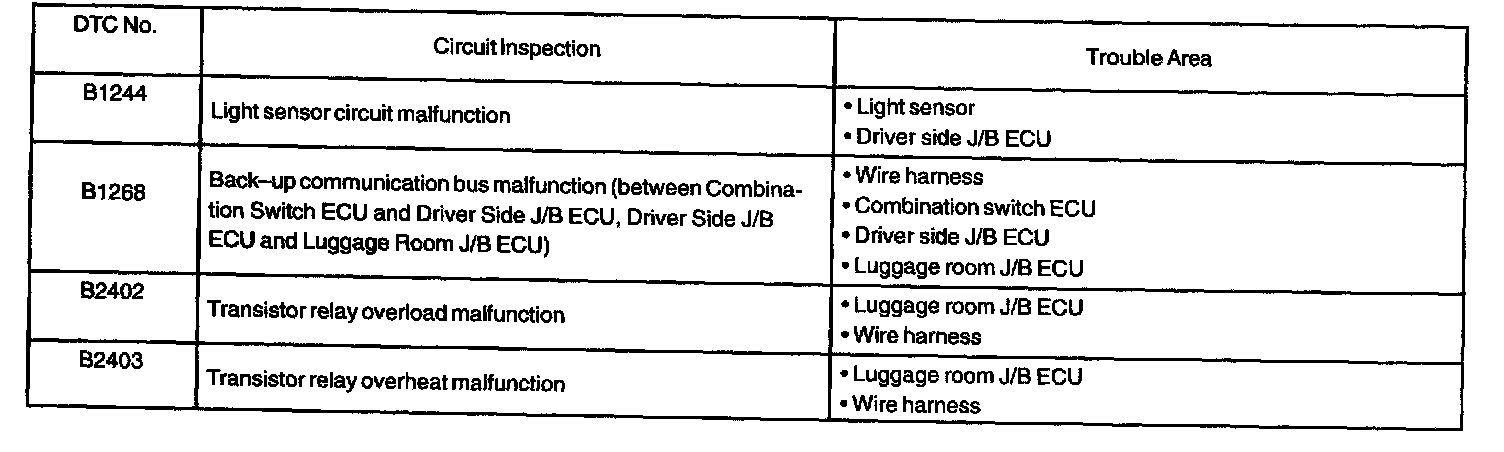

DIAGNOSTIC TROUBLE CODE CHART

DTC B1244 - B2403:

If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the table and proceed to the appropriate troubleshooting.
