Engine Immobiliser System

DIAGNOSTIC TROUBLE CODE CHART

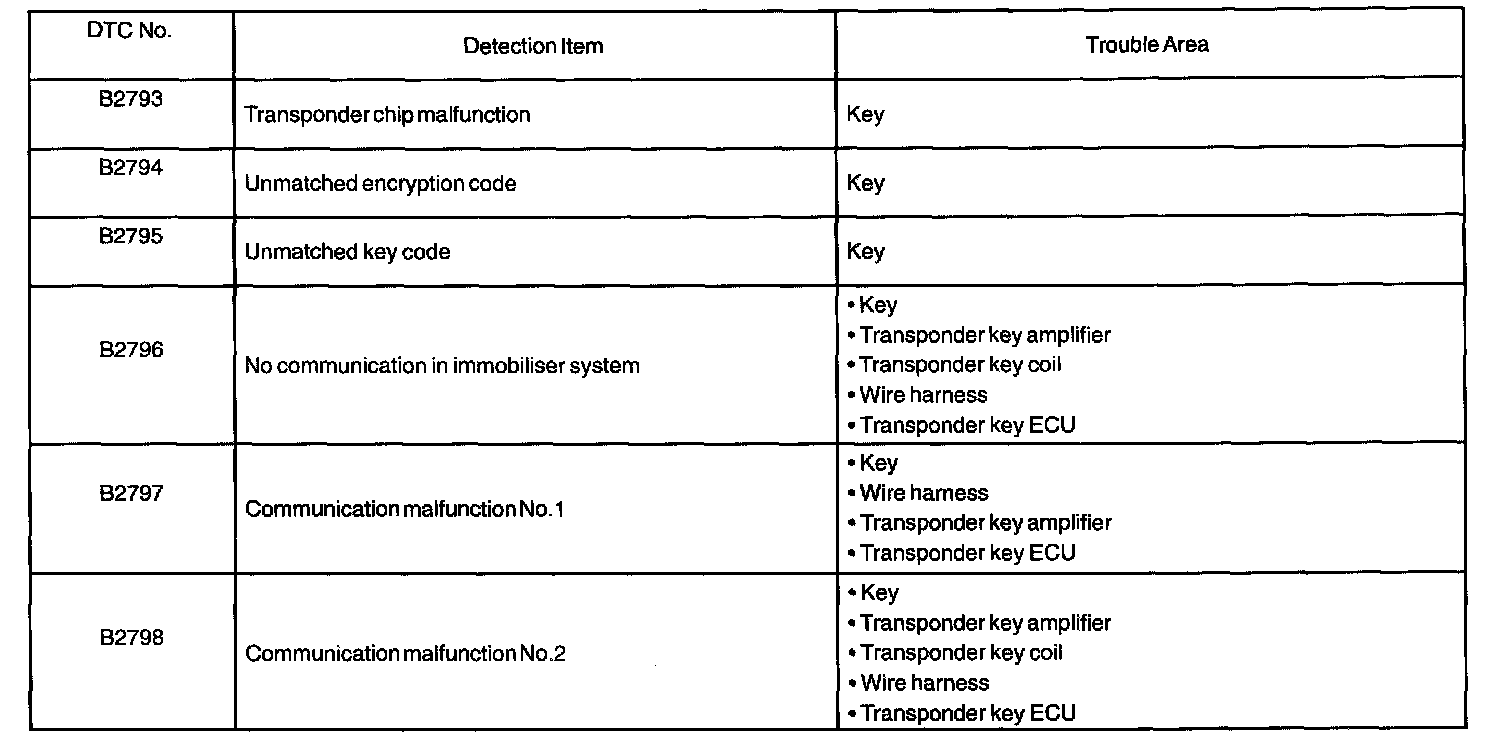

DTC B2793 - B2798:

1. TRANSPONDER KEY ECU DIAGNOSTIC TROUBLE CODE CHART

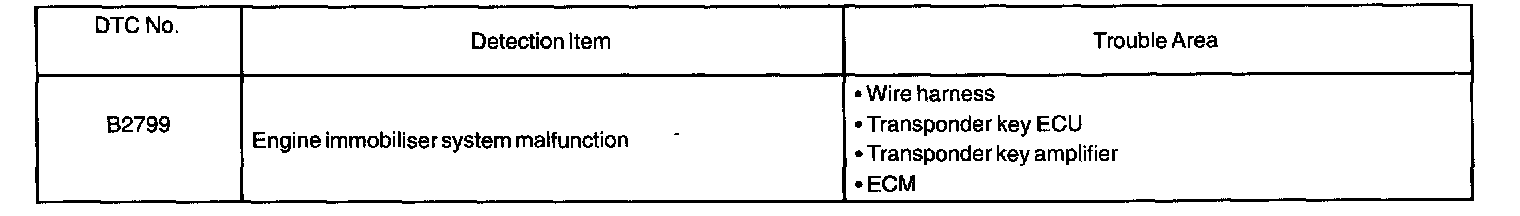

DTC B2799:

2. ECM DIAGNOSTIC TROUBLE CODE CHART

NOTE: The diagnostic trouble code for the immobilizer system is specified. If other codes are output, make a check in the diagnostic trouble code chart of the engine control system.
