ABS W/EBD & BA & TRAC & VSC System

DIAGNOSTIC TROUBLE CODE CHART

NOTE: When removing the part, turn the ignition switch OFF.

HINT:
- Using SST 09843-18040, connect the terminals Tc and CG of DLC3.
- If any abnormality is not found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed that code. For details of each code refer to the respective "DTC No." in the DTC chart.

DTC C0200/31 - C1241/41:

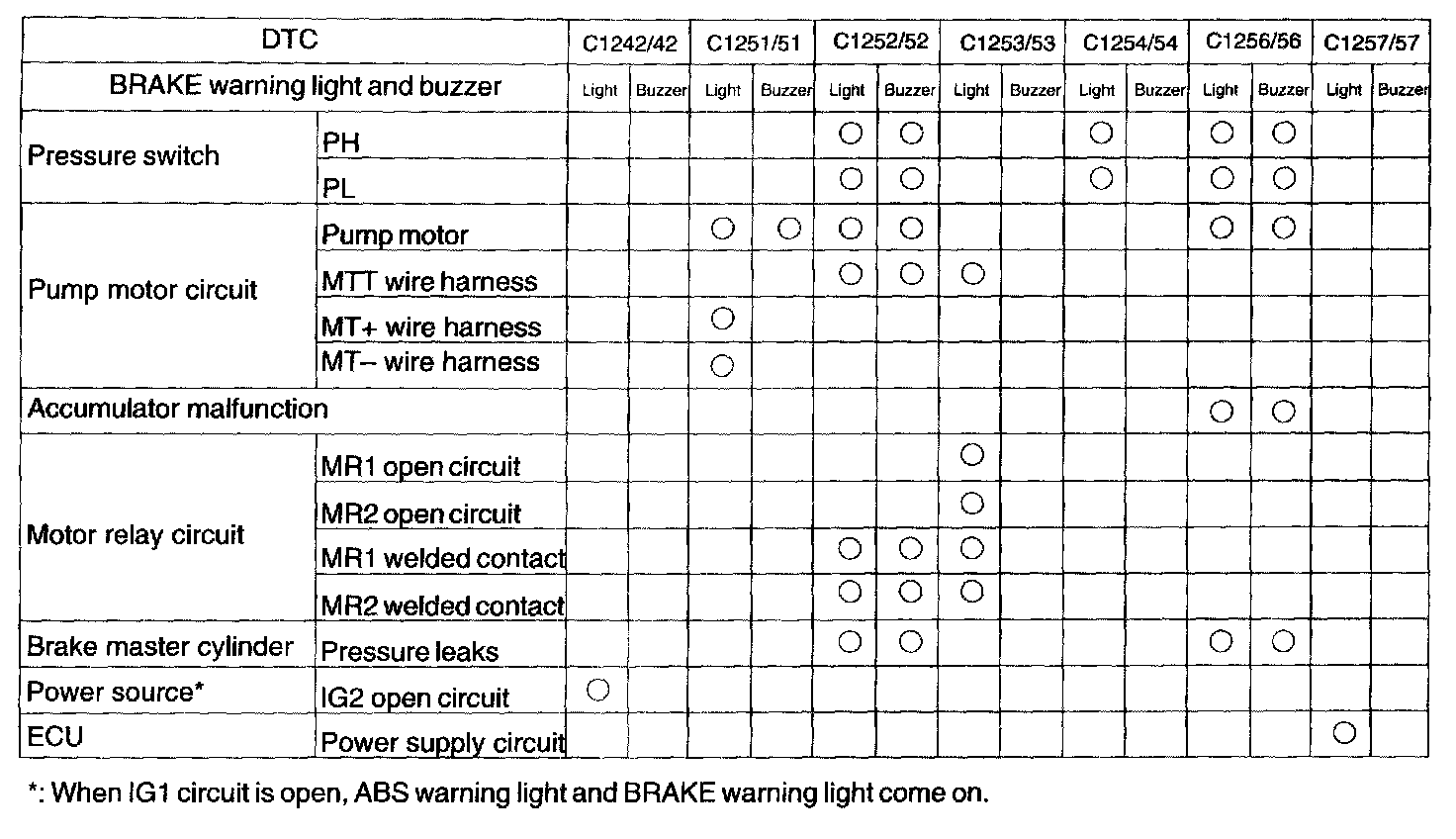

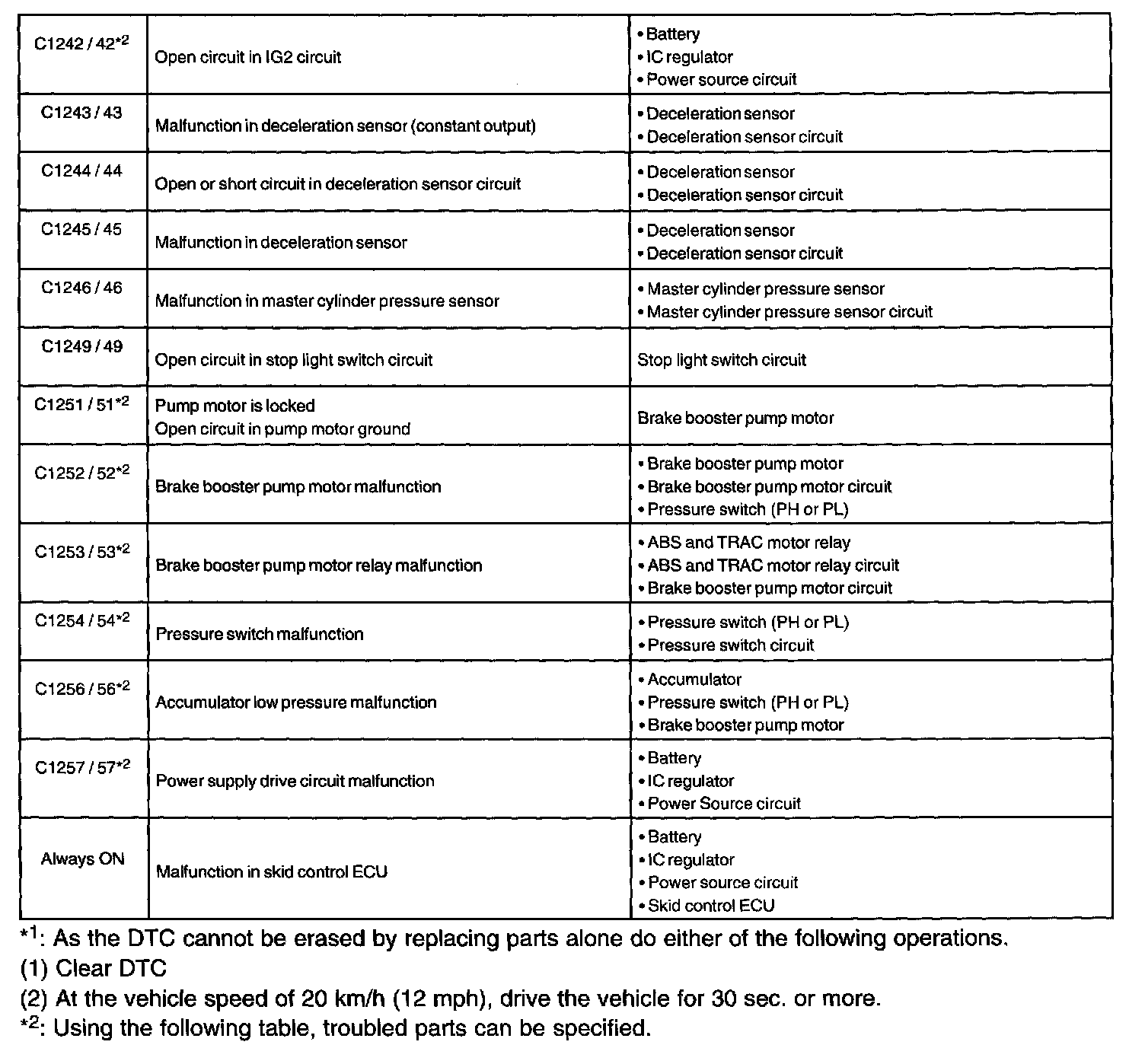

DTC C1242/42 - C1257/57:

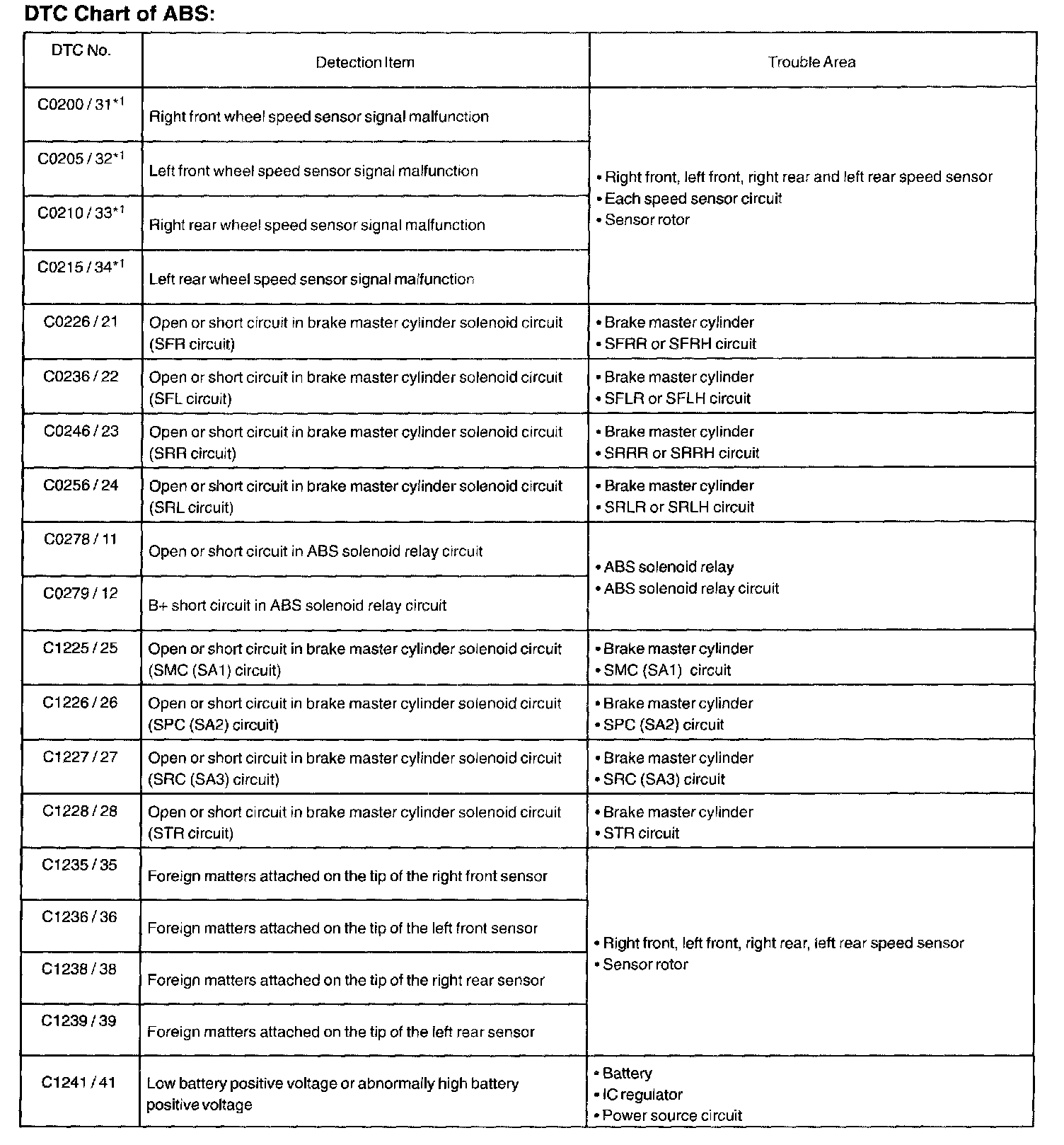

DTC Chart of ABS

DTC C1201/51 - C1336/39:

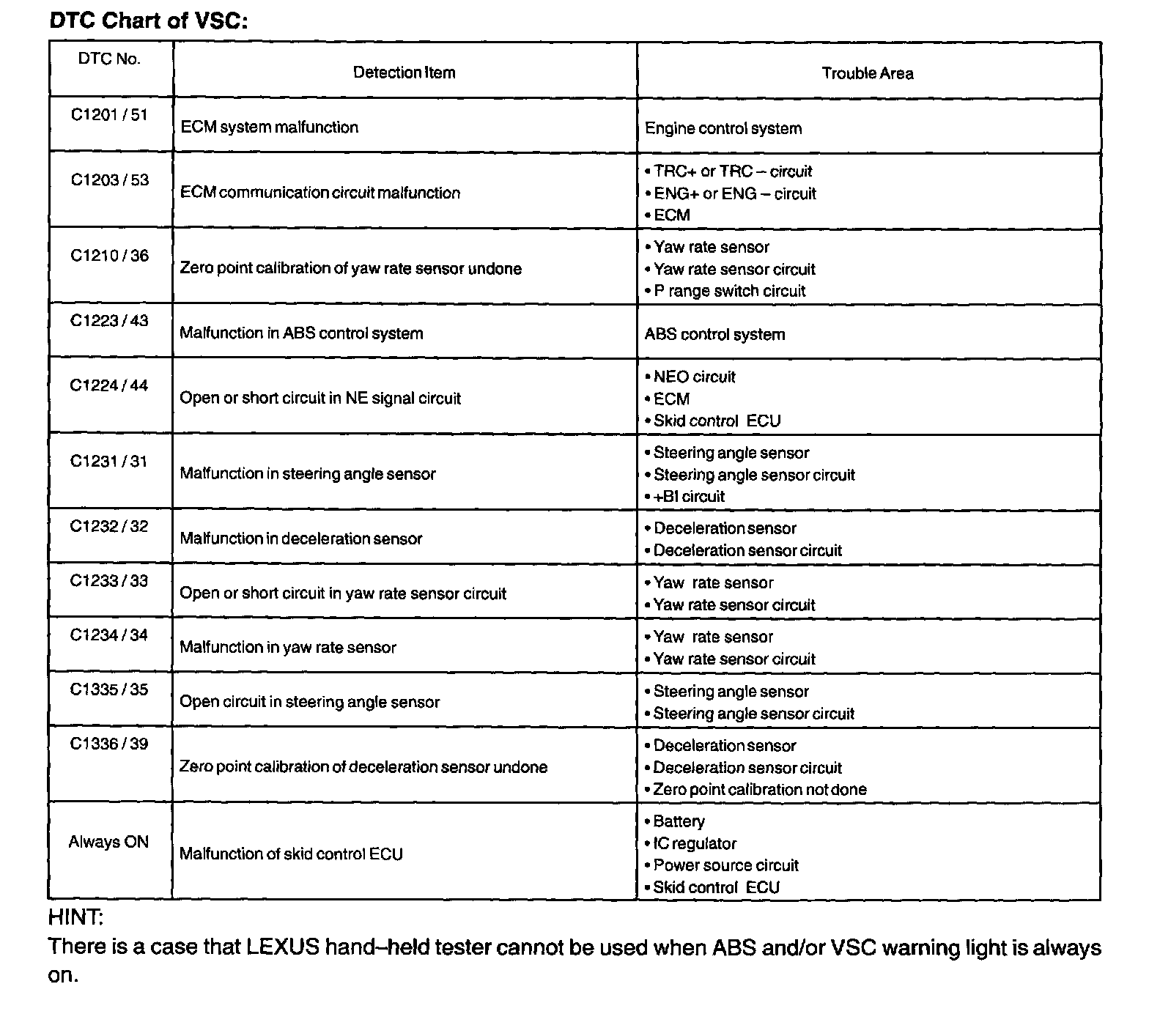

DTC Chart of VSC

DTC C1271/71 - C1281/81:

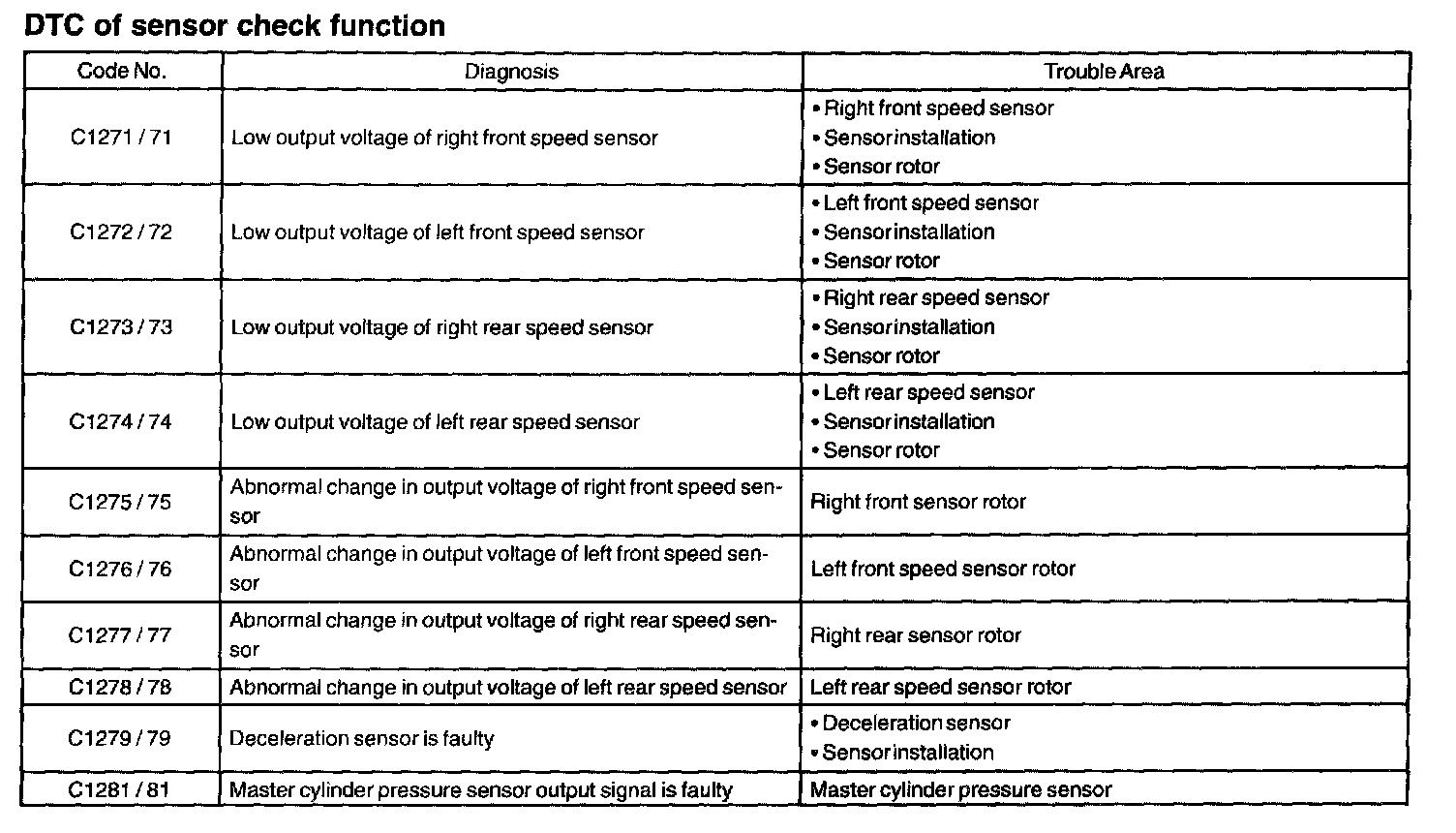

DTC of Sensor Check Function
