B1272

DTC B1272 POWER SEAT ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

DTC Detecting Condition:

B1272 will be output when the communication between the position control ECU assy (driver side) and gateway ECU stops for more than 10 seconds.

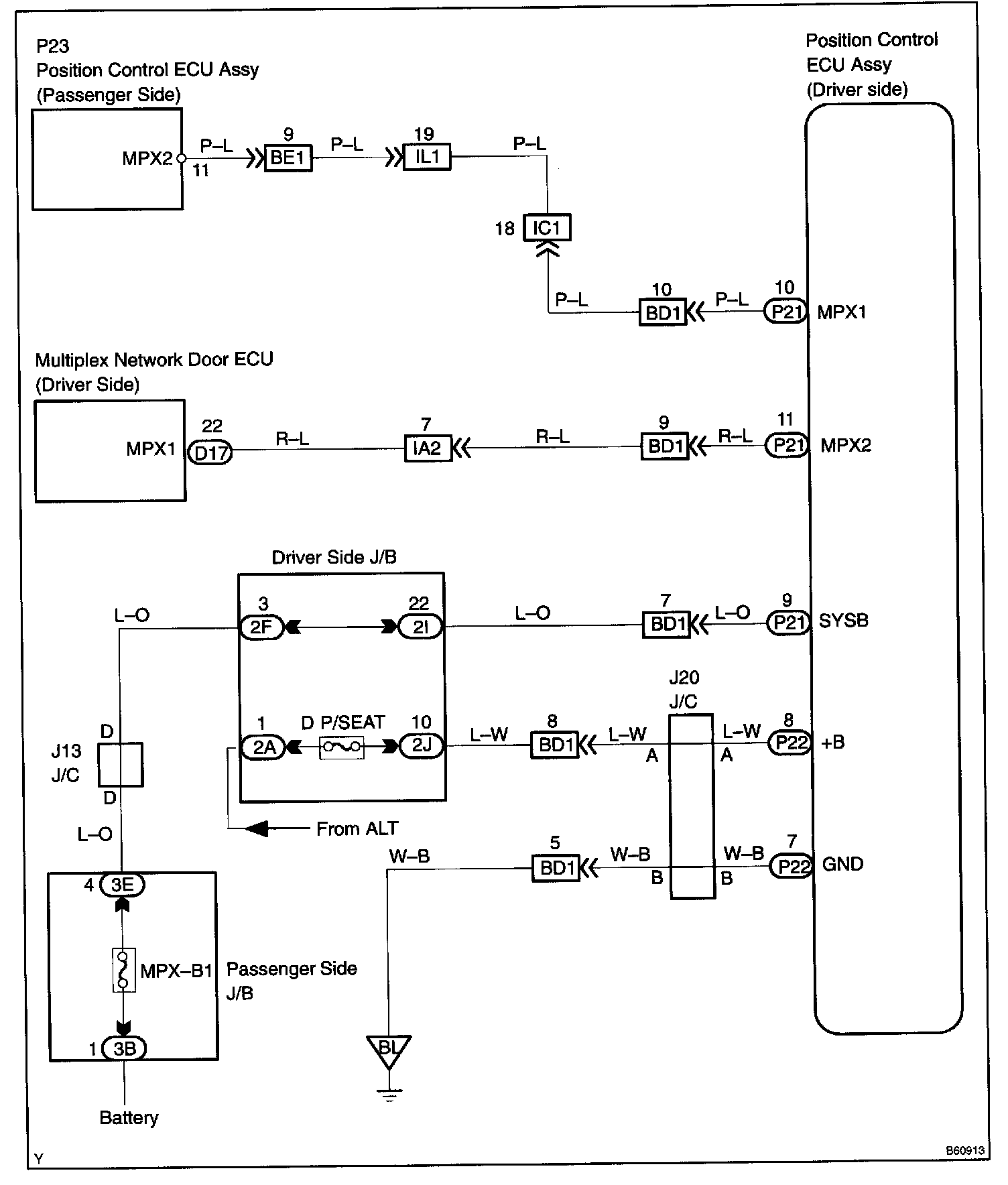

Wiring Diagram:

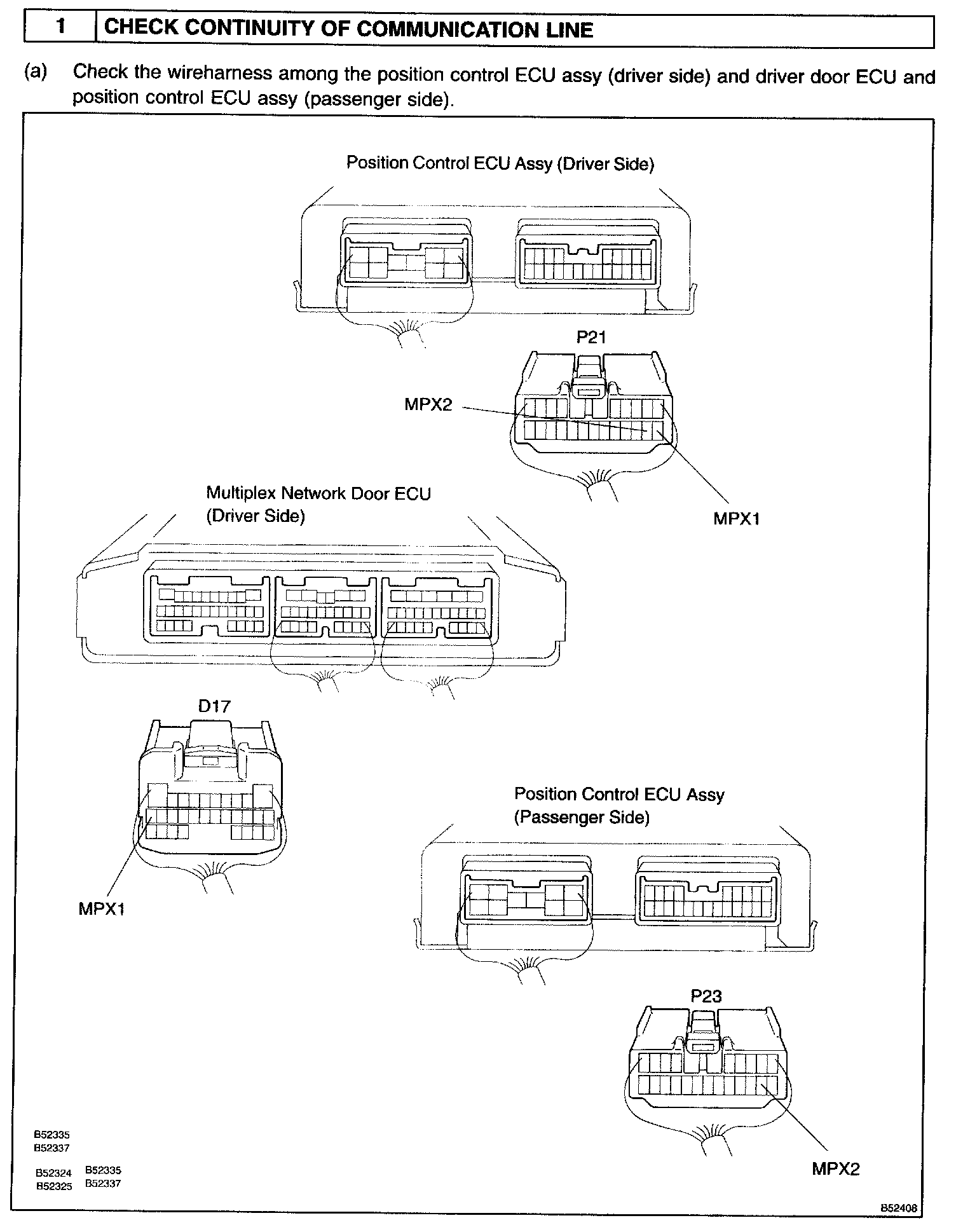

Step 1:

Step 1(Continued) - 2:

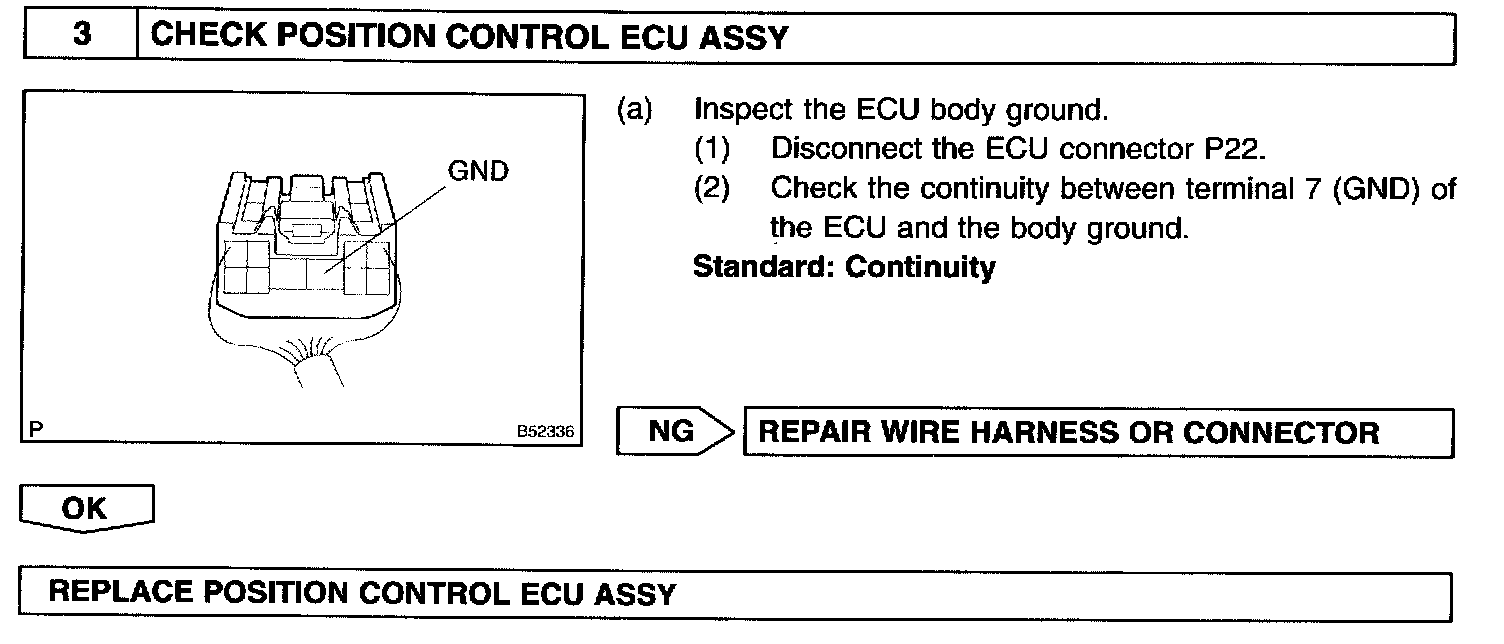

Step 3:

INSPECTION PROCEDURE
