B1271

DTC B1271 COMBINATION METER ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

DTC Detecting Condition:

B1271 will be output when the communication between the combination meter assy and gateway ECU stops or more than 10 seconds.

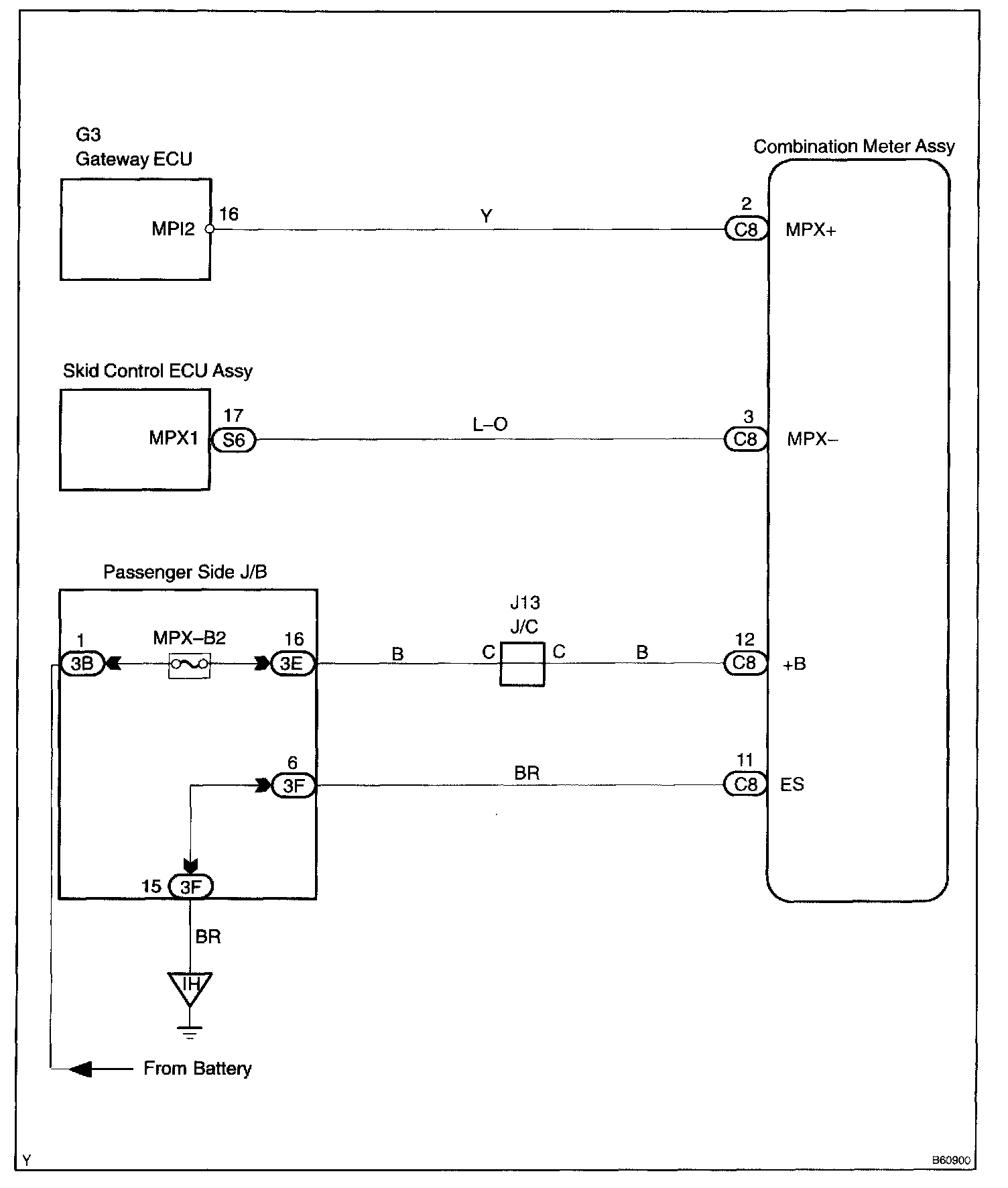

Wiring Diagram:

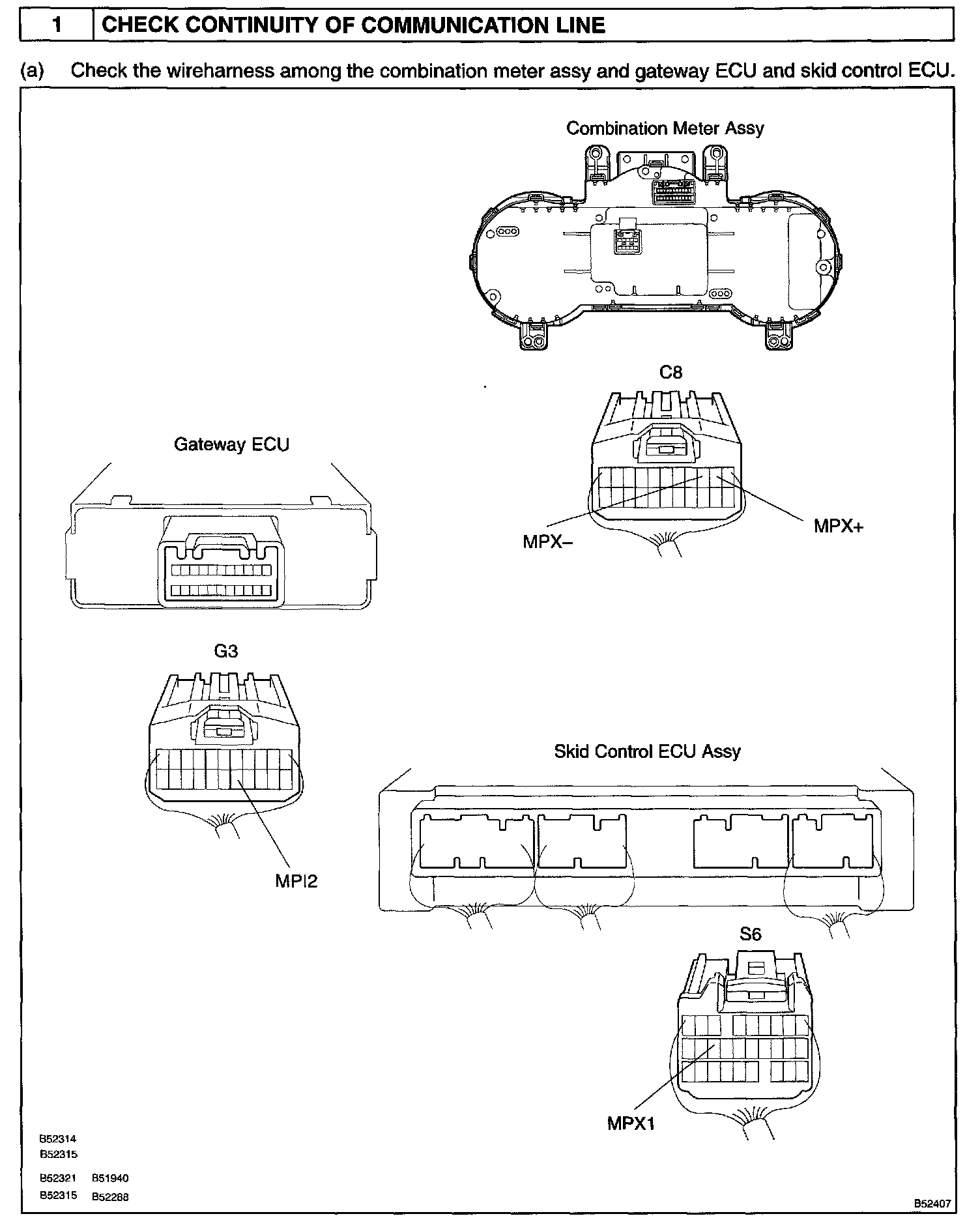

Step 1:

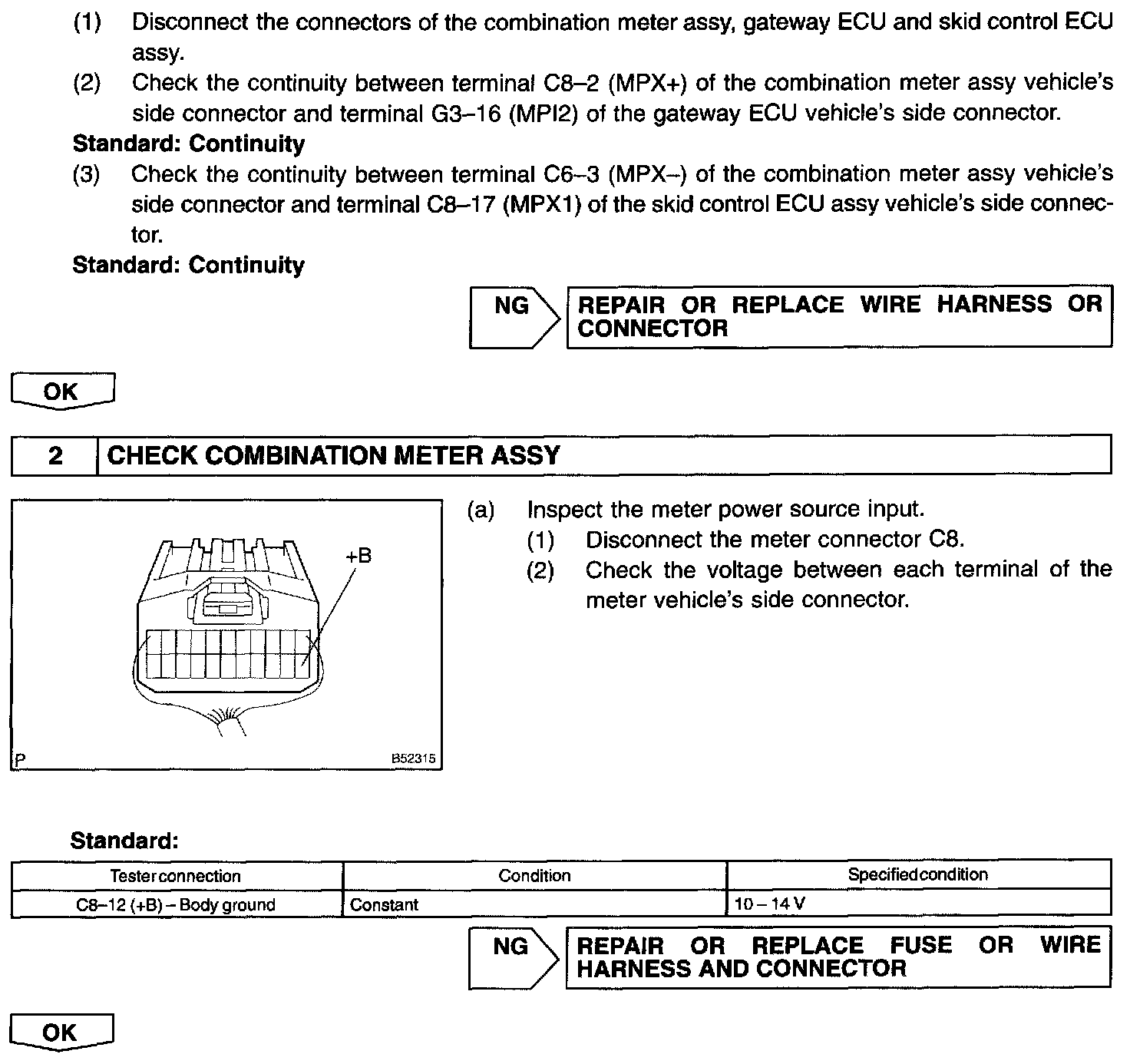

Step 1(Continued) - 2:

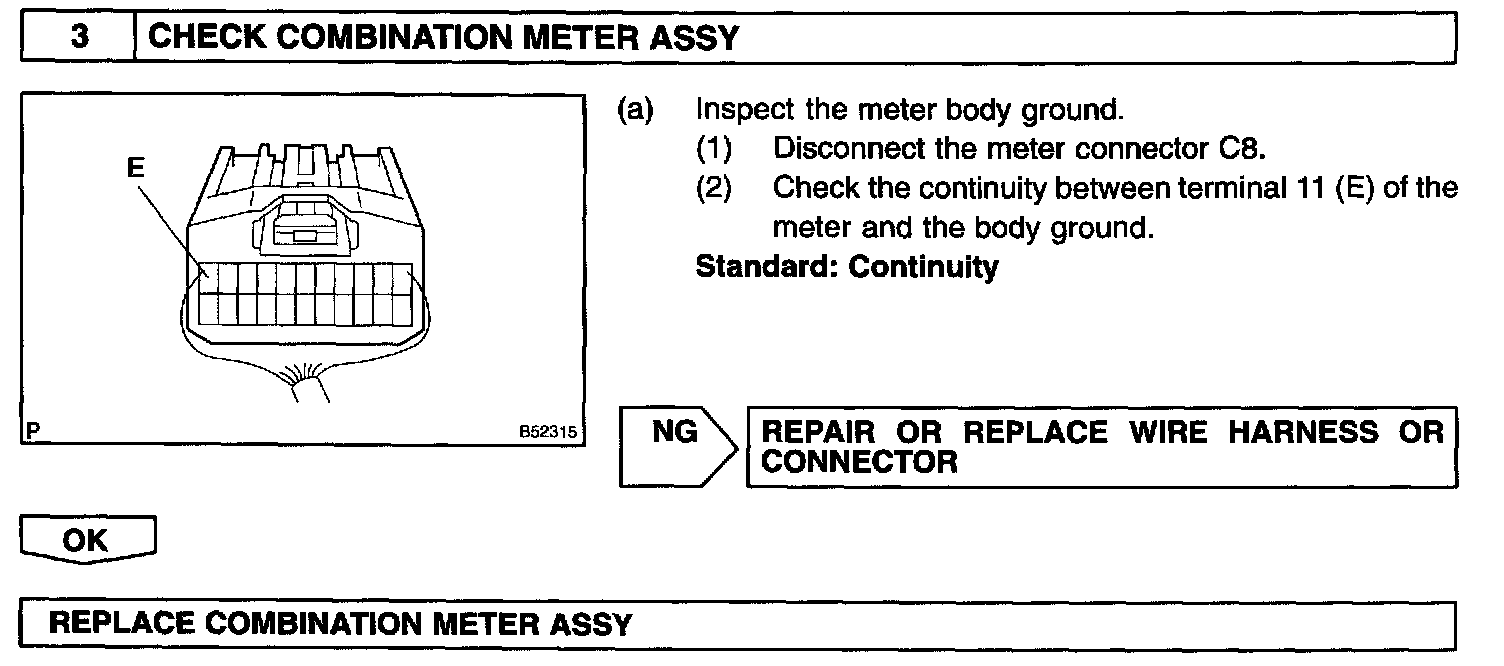

Step 3:

INSPECTION PROCEDURE
