B1234

DTC B1234 JAM PROTECTION PULSE SWITCH CIRCUIT ON PASSENGER DOOR

CIRCUIT DESCRIPTION

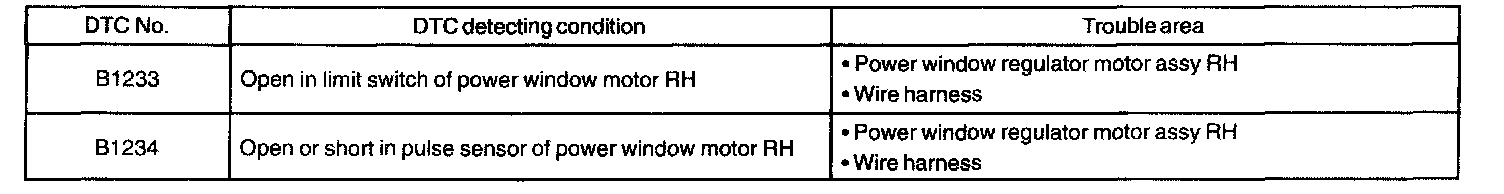

DTC Detecting Condition:

This DTCs are output when the power window motor malfunctions.

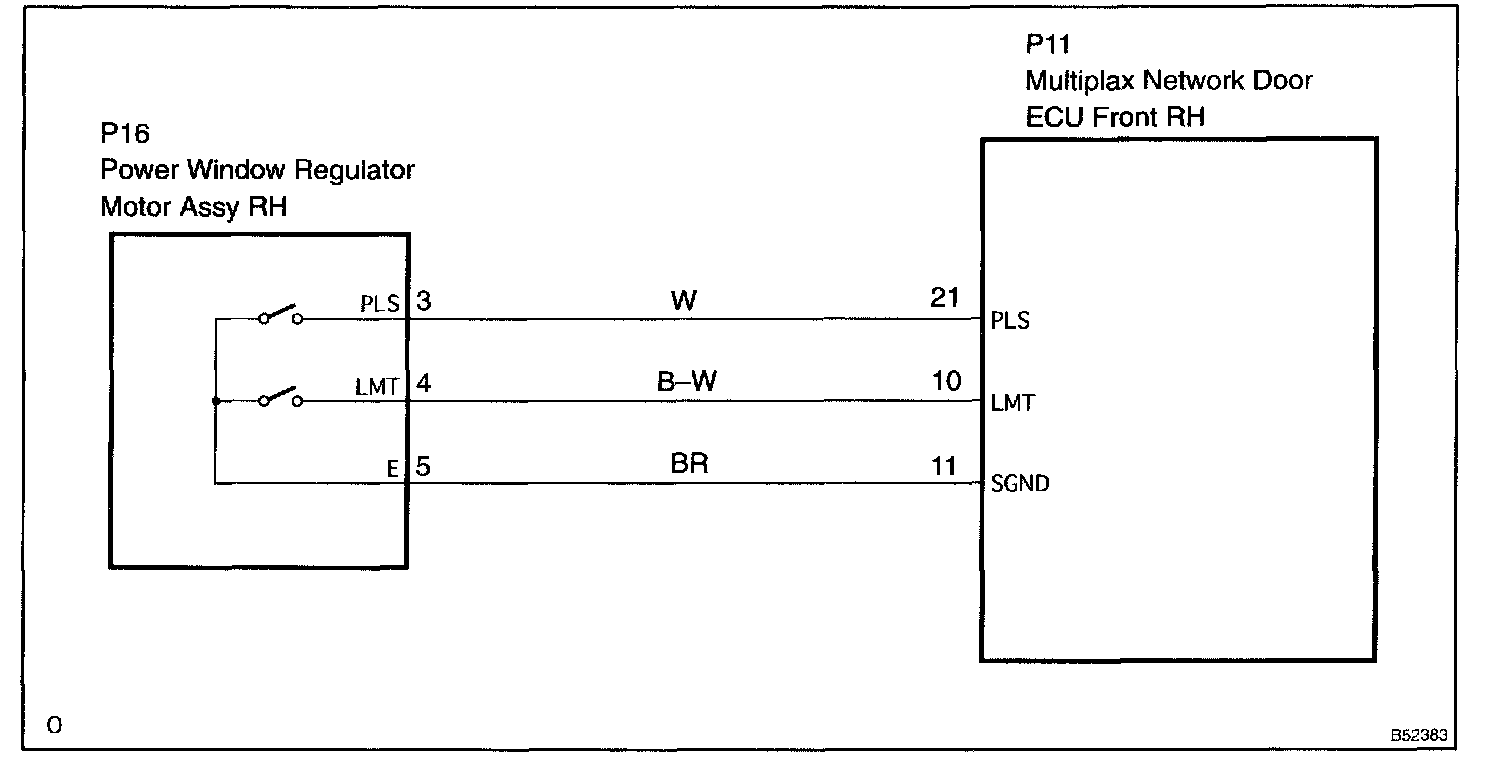

Wiring Diagram:

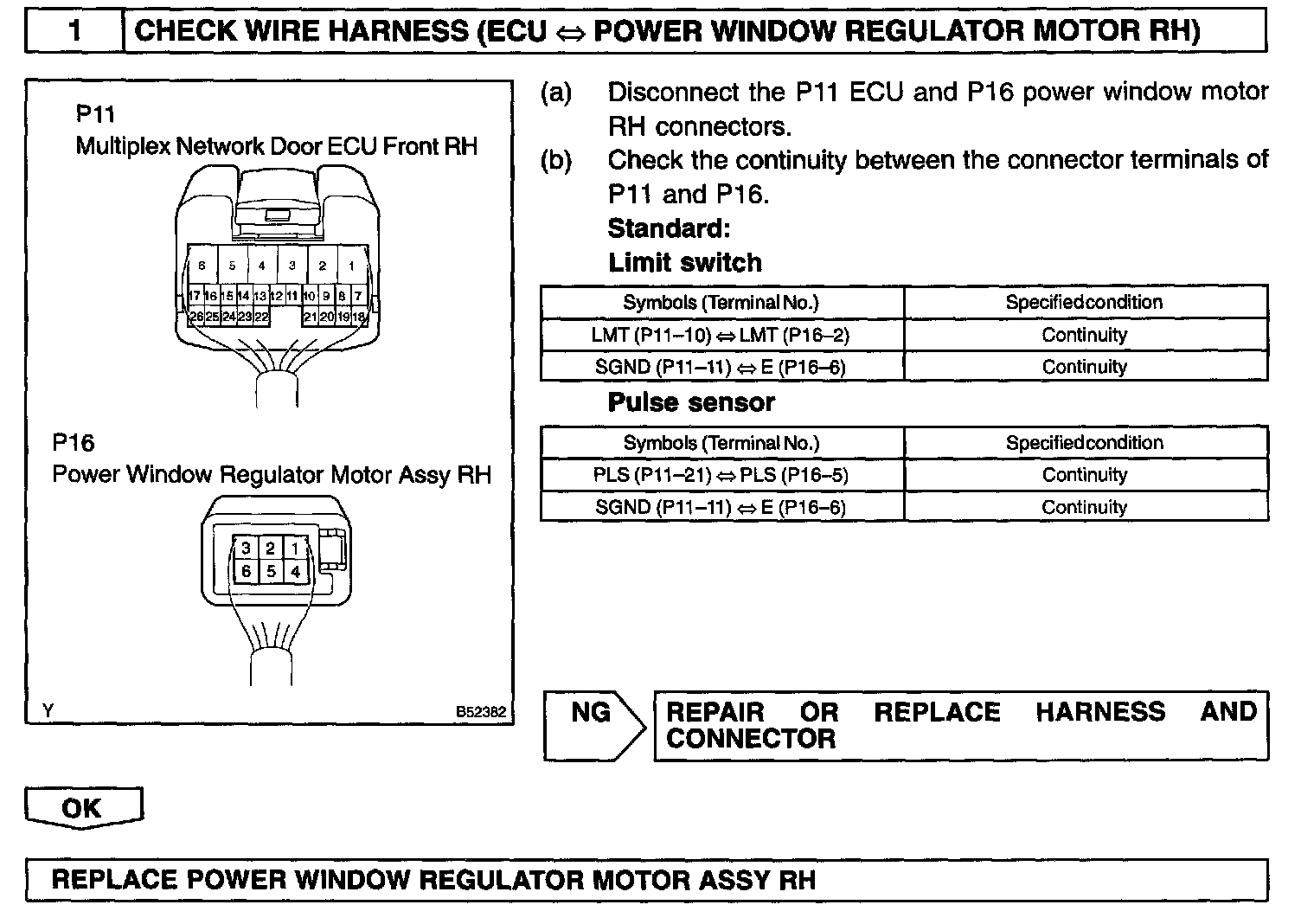

Step 1:

INSPECTION PROCEDURE
