B1232

DTC B1232 - JAM PROTECTION PULSE SWITCH CIRCUIT ON DRIVER DOOR

CIRCUIT DESCRIPTION

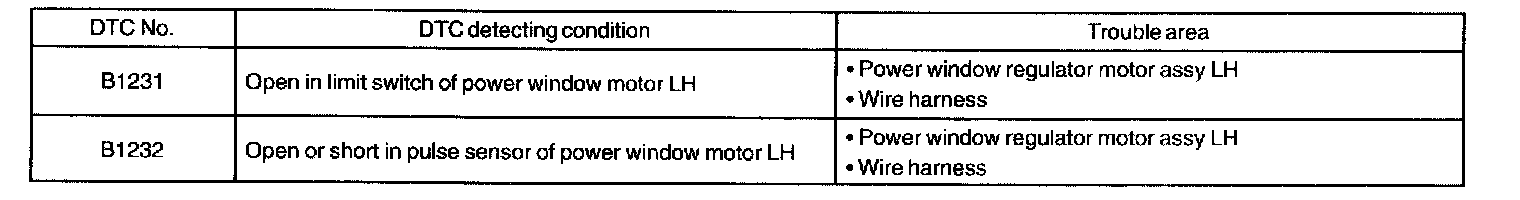

DTC Detecting Condition:

This DTCs are output when the power window motor malfunctions.

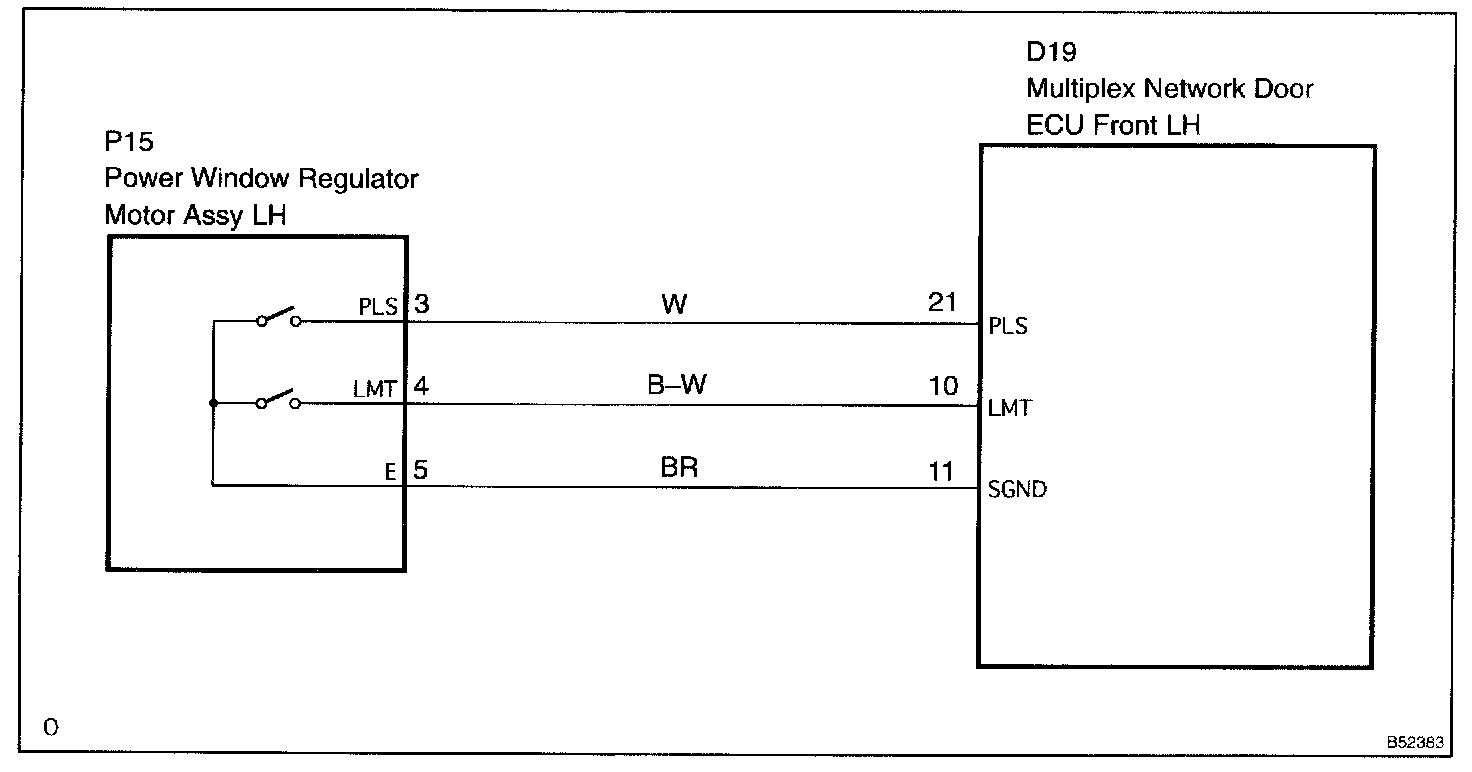

Wiring Diagram:

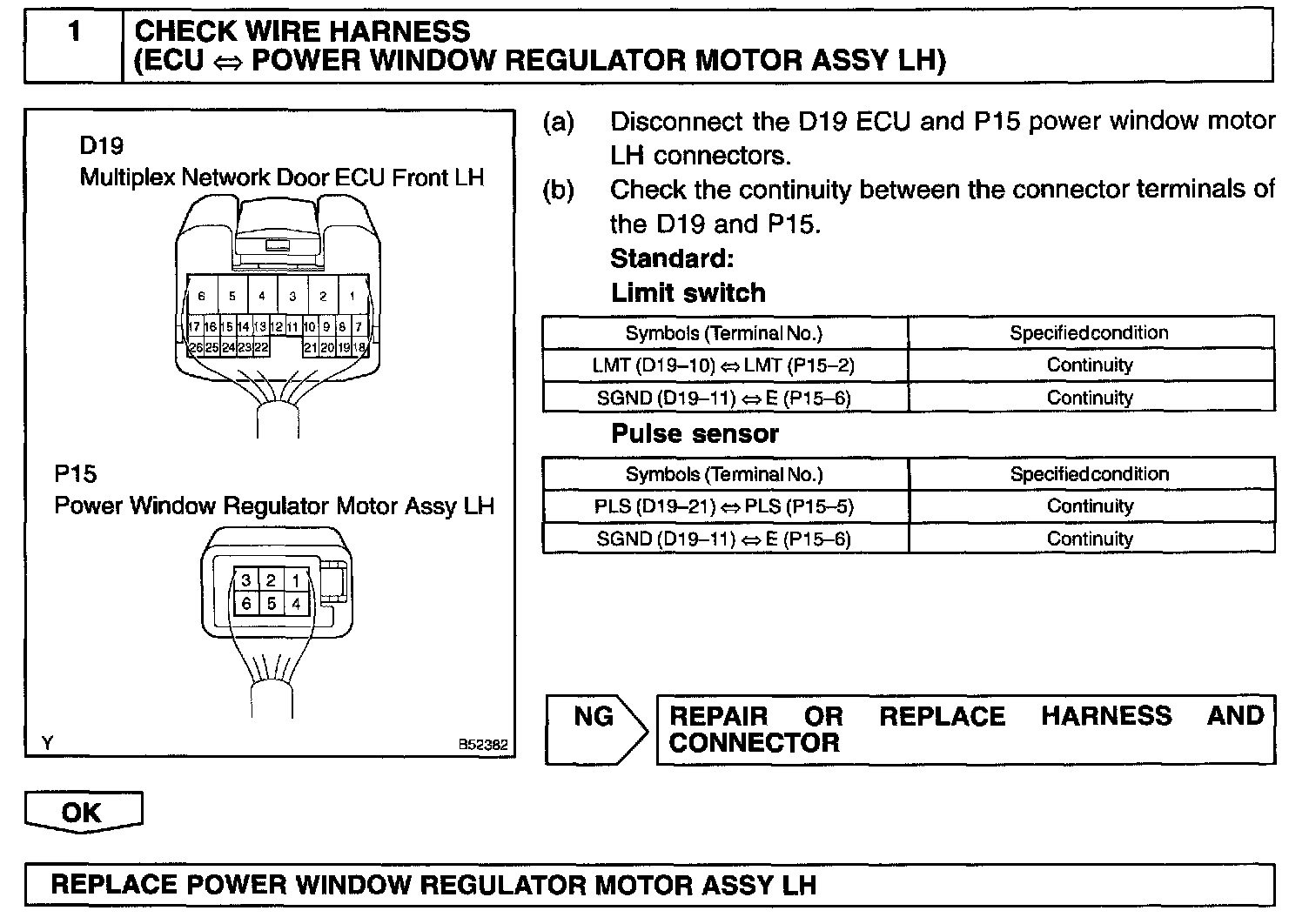

Step 1:

INSPECTION PROCEDURE
