B1212

DTC B1212 FRONT PASSENGER DOOR ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

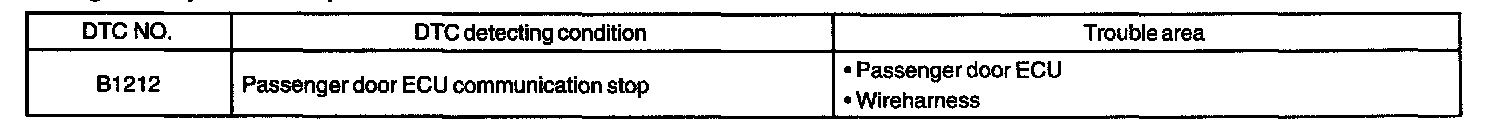

DTC Detecting Condition:

B1212 will be output when the communication between the multiplex network door ECU (passenger side) and gateway ECU stops for more than 10 seconds.

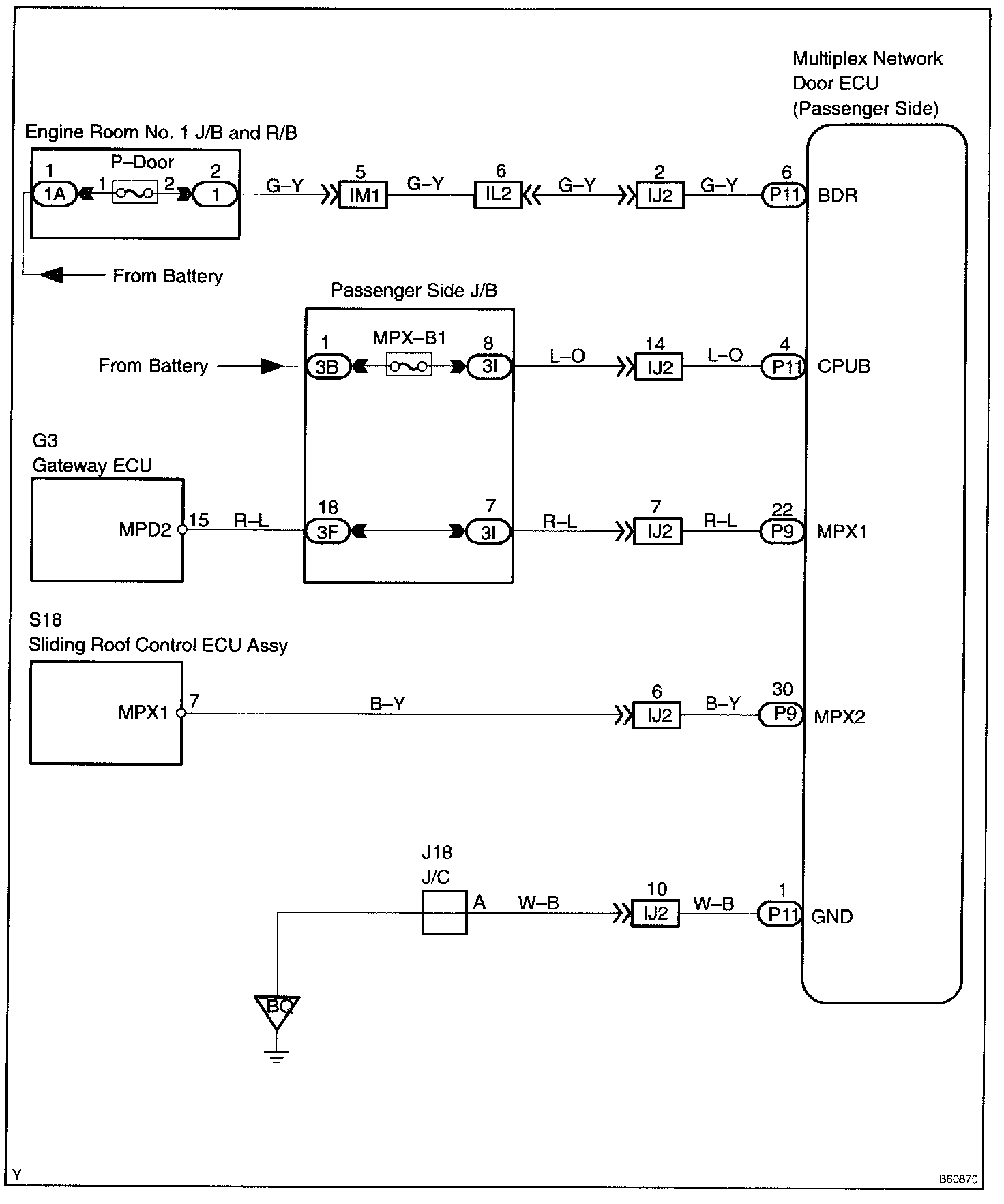

Wiring Diagram:

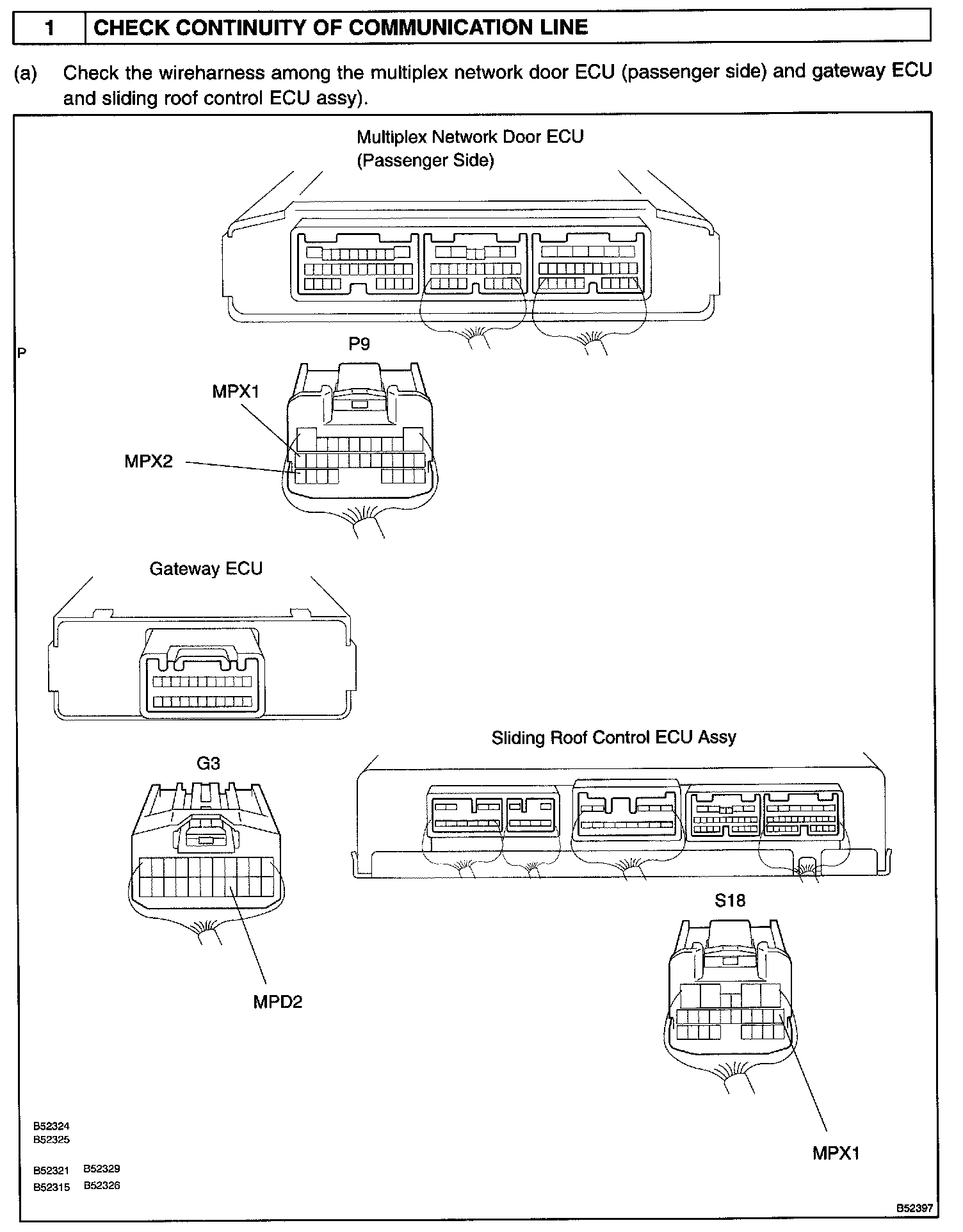

Step 1:

Step 1(Continued) - 2:

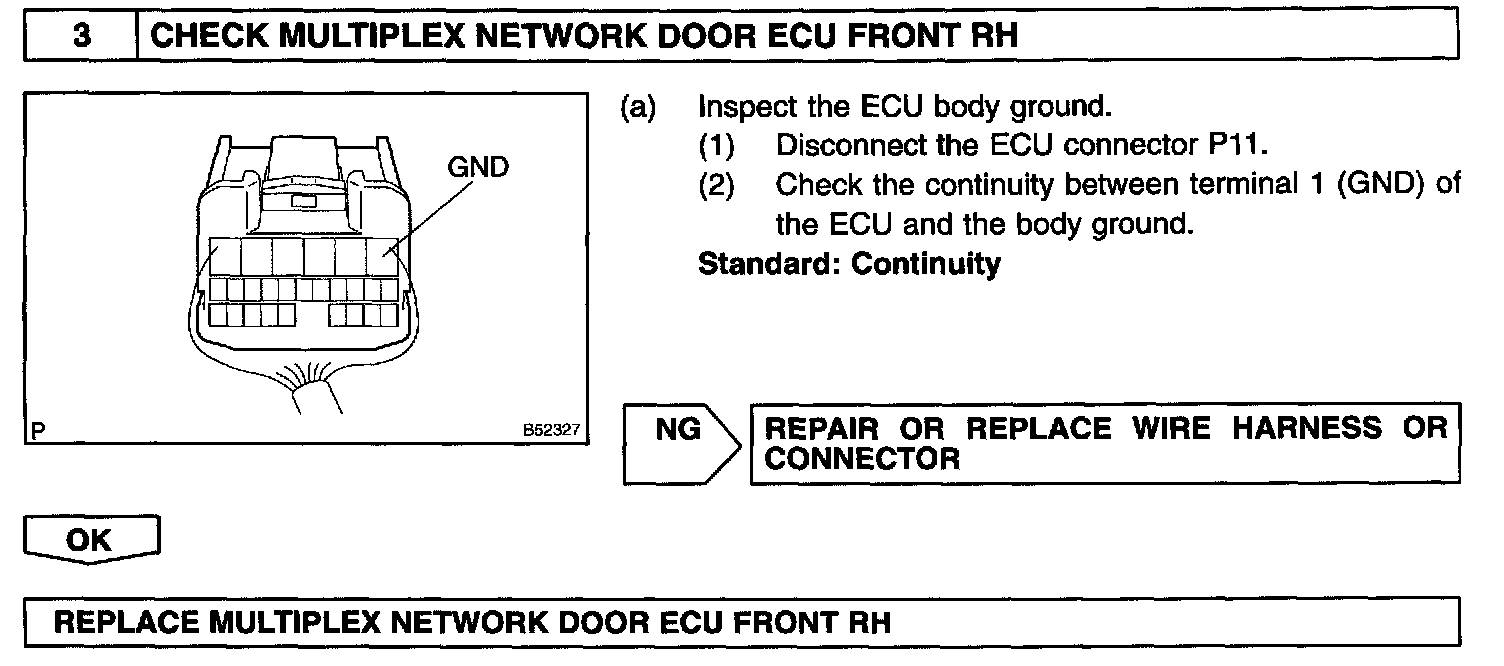

Step 3:

INSPECTION PROCEDURE
