B1211

DTC B1211 DRIVER DOOR ECU COMMUNICATION STOP


CIRCUIT DESCRIPTION

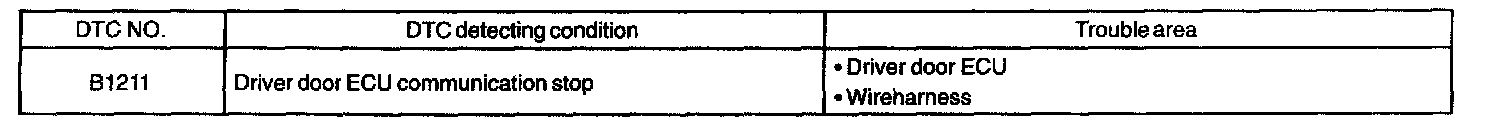

DTC Detecting Condition:

B1211 will be output when the communication between the multiplex network door ECU (driver side) and gateway ECU stops for more than 10 seconds.

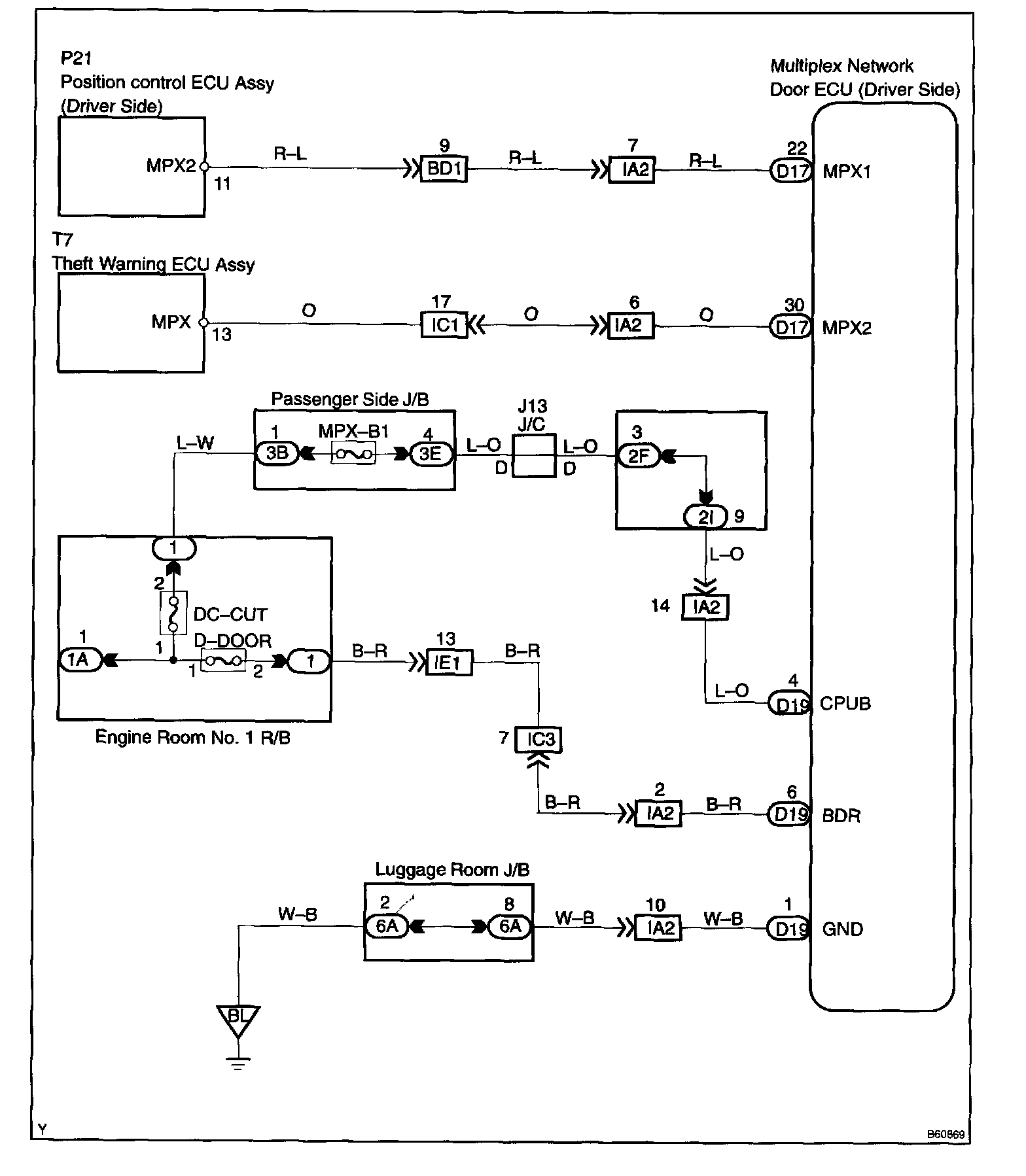

Wiring Diagram:

Step 1:

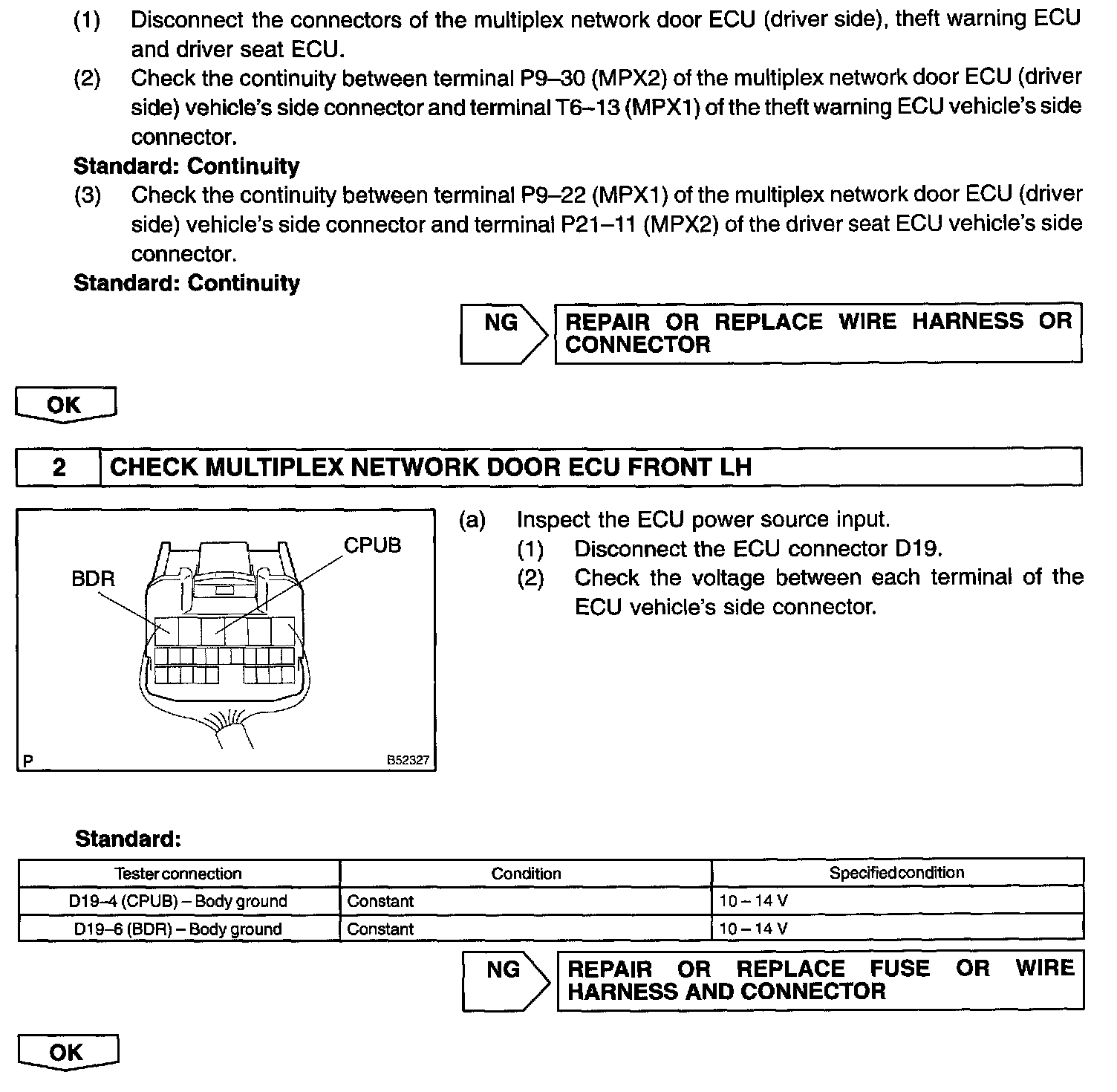

Step 1(Continued) - 2:

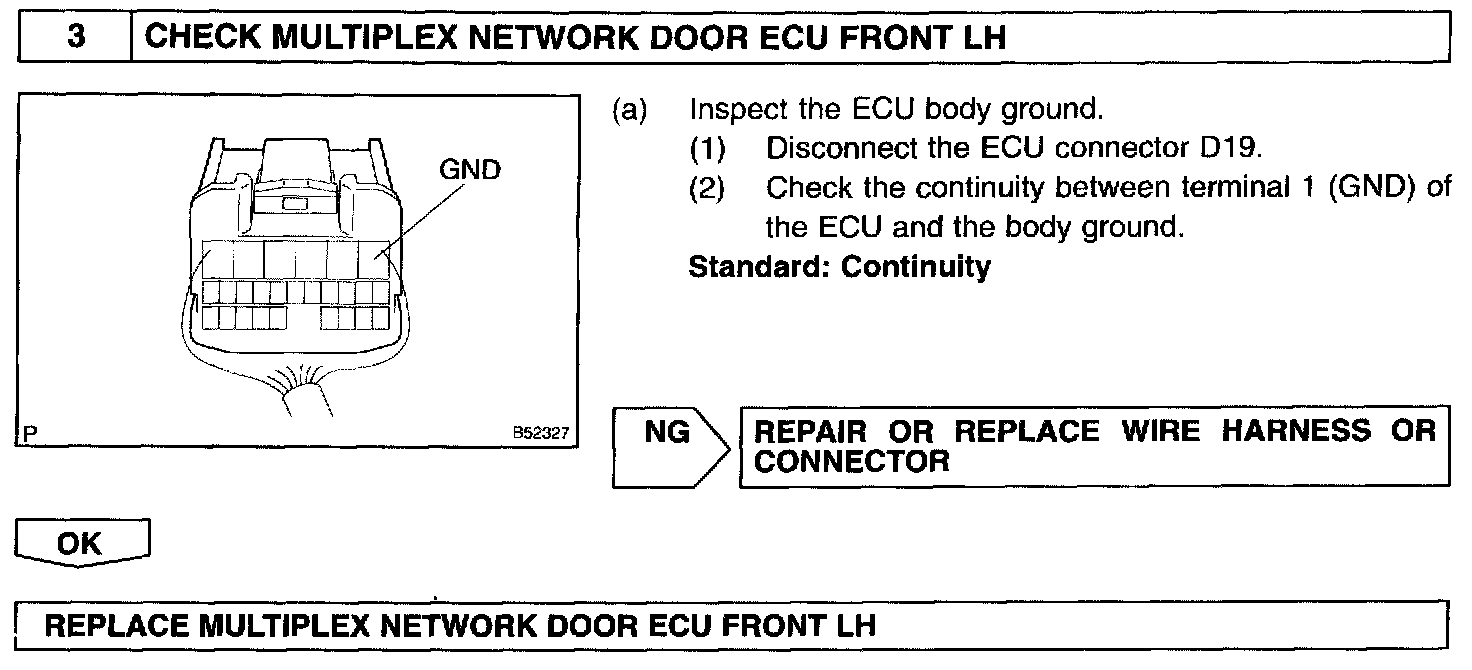

Step 3:

INSPECTION PROCEDURE
