B1185

DTC B1185 SHORT IN P SQUIB (2ND STEP) CIRCUIT

CIRCUIT DESCRIPTION

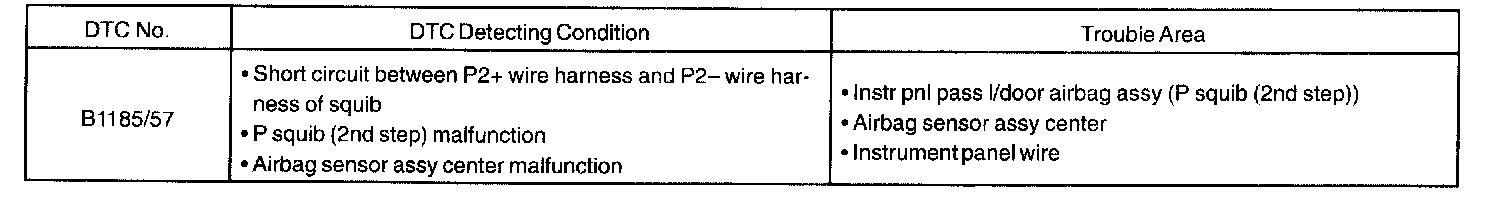

DTC Detecting Condition:

The P squib (2nd step) circuit consists of the airbag sensor assy center and the instr pnl pass I/door airbag assy.

It causes the SRS to deply when the SRS deplyment conditions are satisfied.

DTC B1185/57 is recorded when a short is detected in the P squib(2nd step) circuit.

Wiring Diagram:

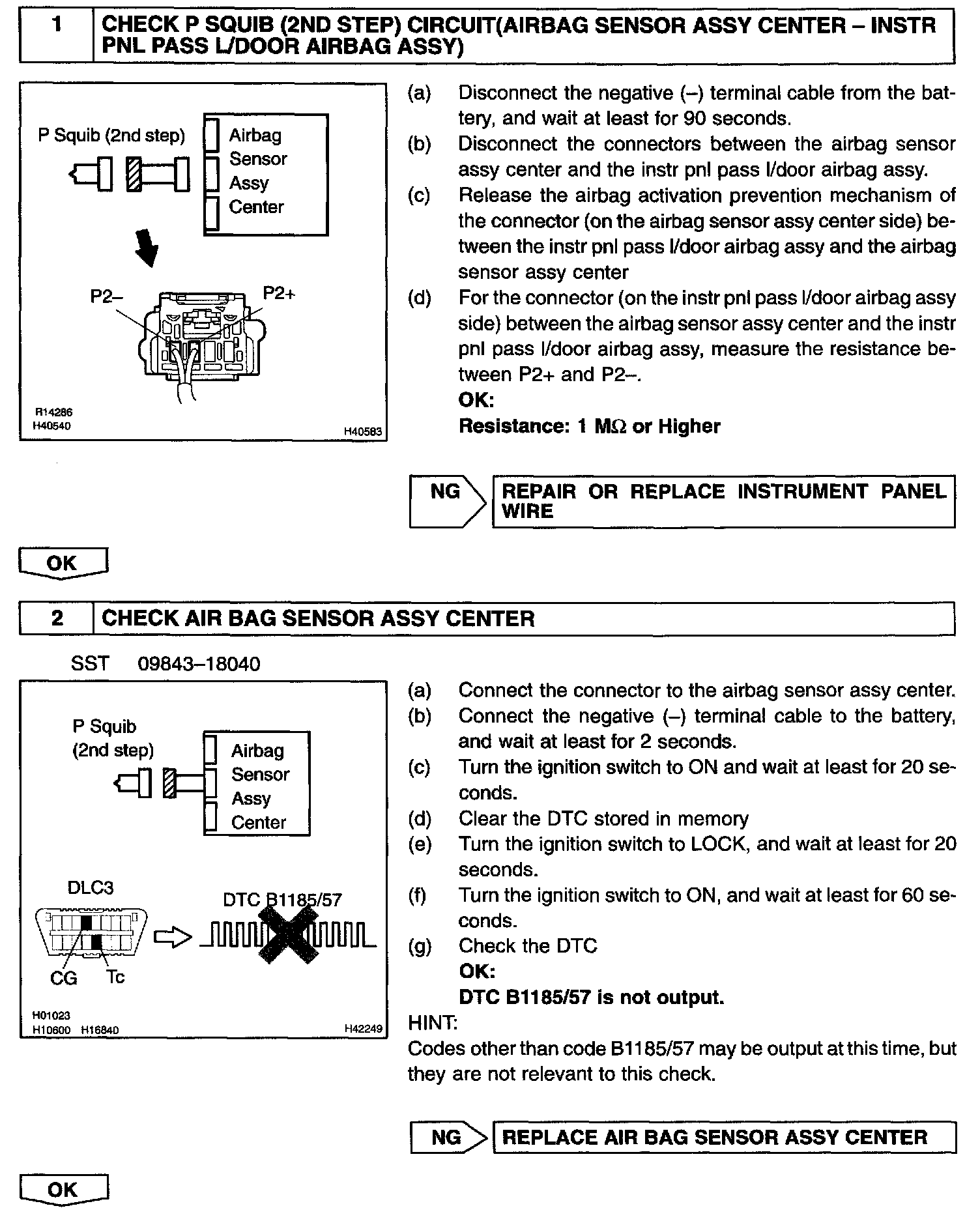

Step 1 - 2:

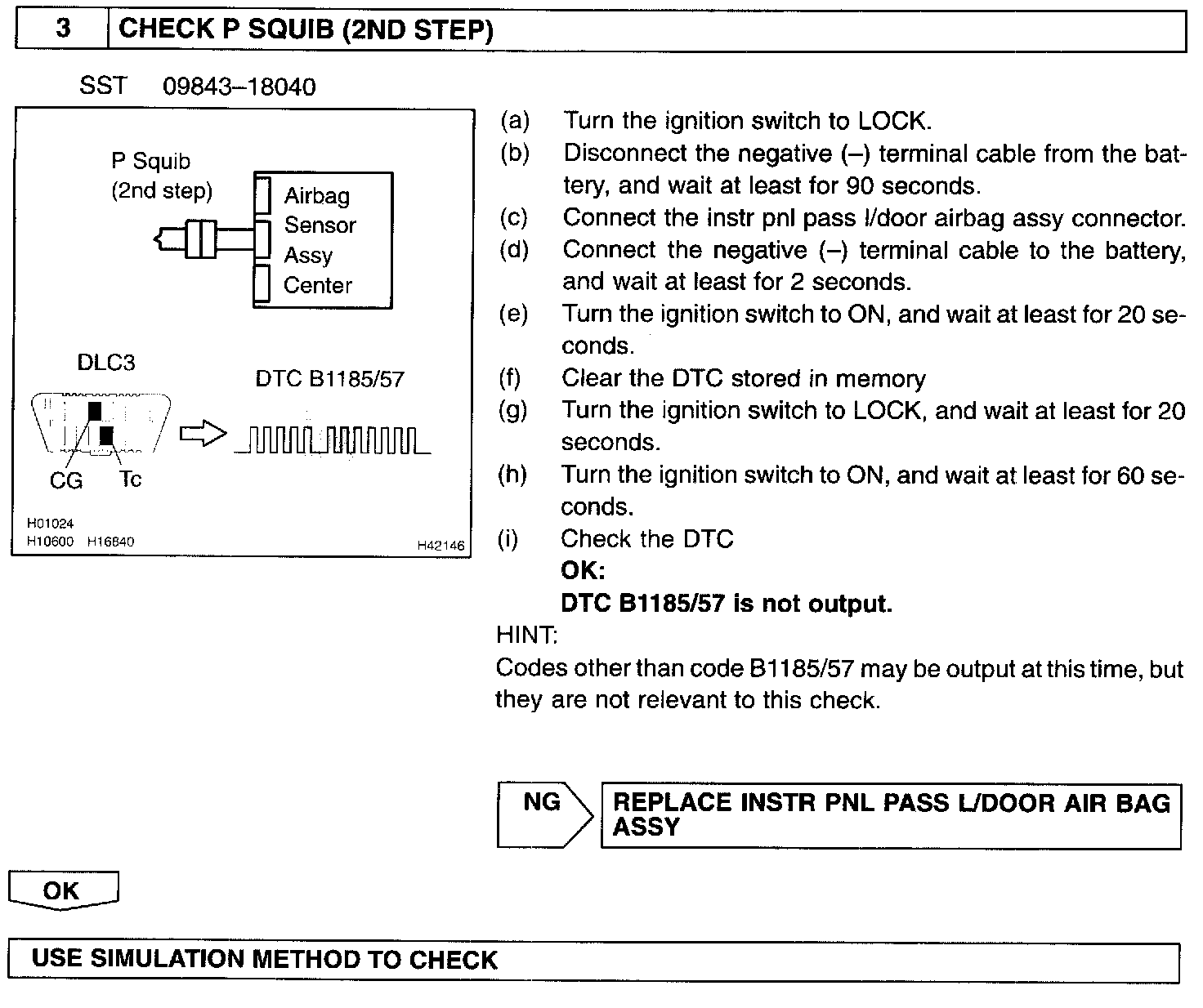

Step 3:

INSPECTION PROCEDURE
