B1142

DTC B1142 DOOR SIDE AIRBAG SENSOR (RH) MALFUNCTION

CIRCUIT DESCRIPTION

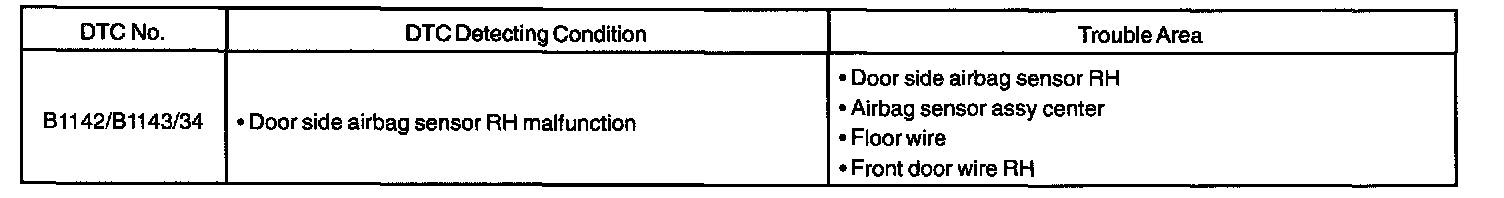

DTC Detecting Condition:

The door side airbag sensor RH circuit consists of the airbag sensor assy center and the door side airbag sensor RH.

DTC B1142/B1143/34 is recorded when a malfunction is detected in the door side airbag sensor RH circuit.

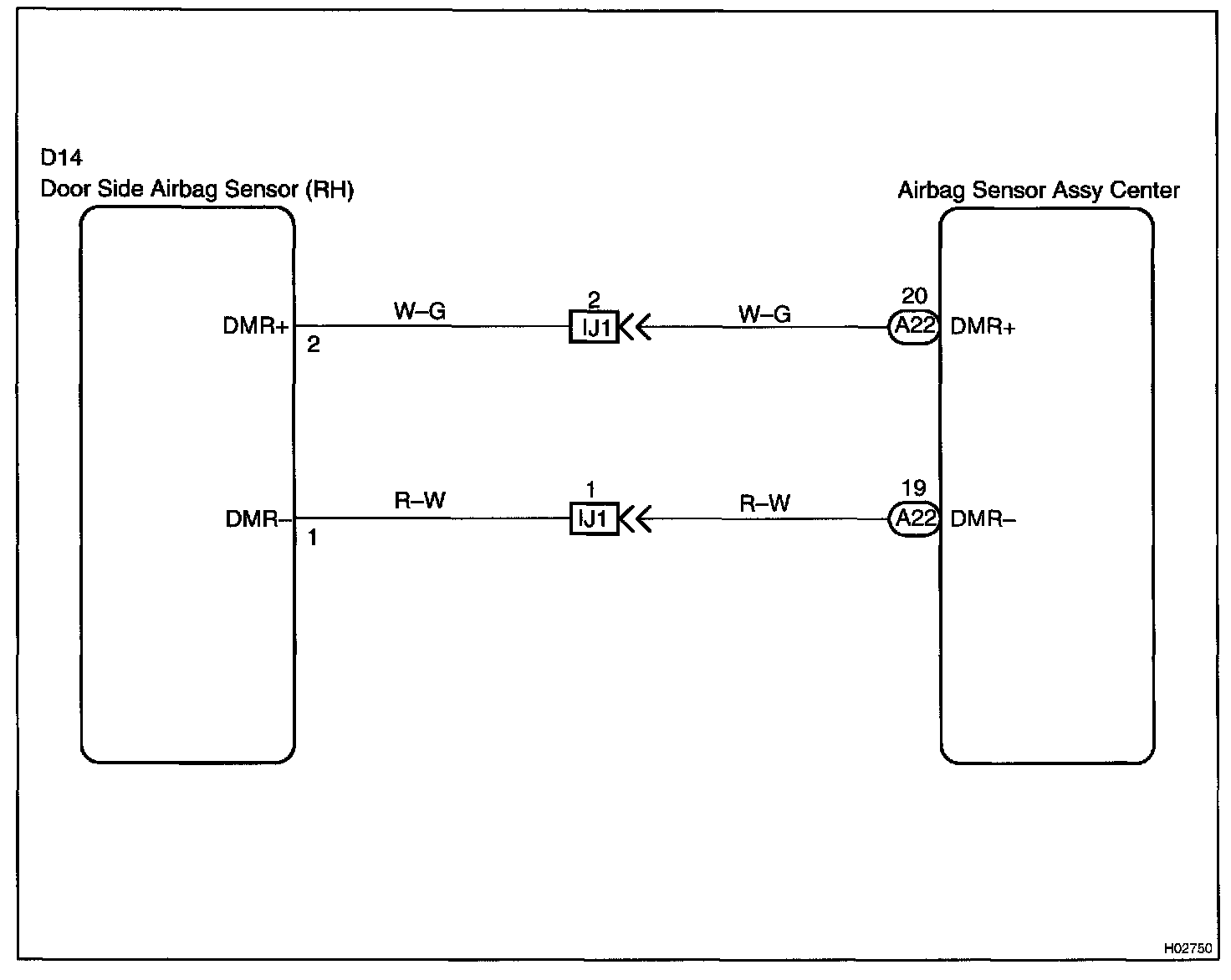

Wiring Diagram:

Step 1 - 2:

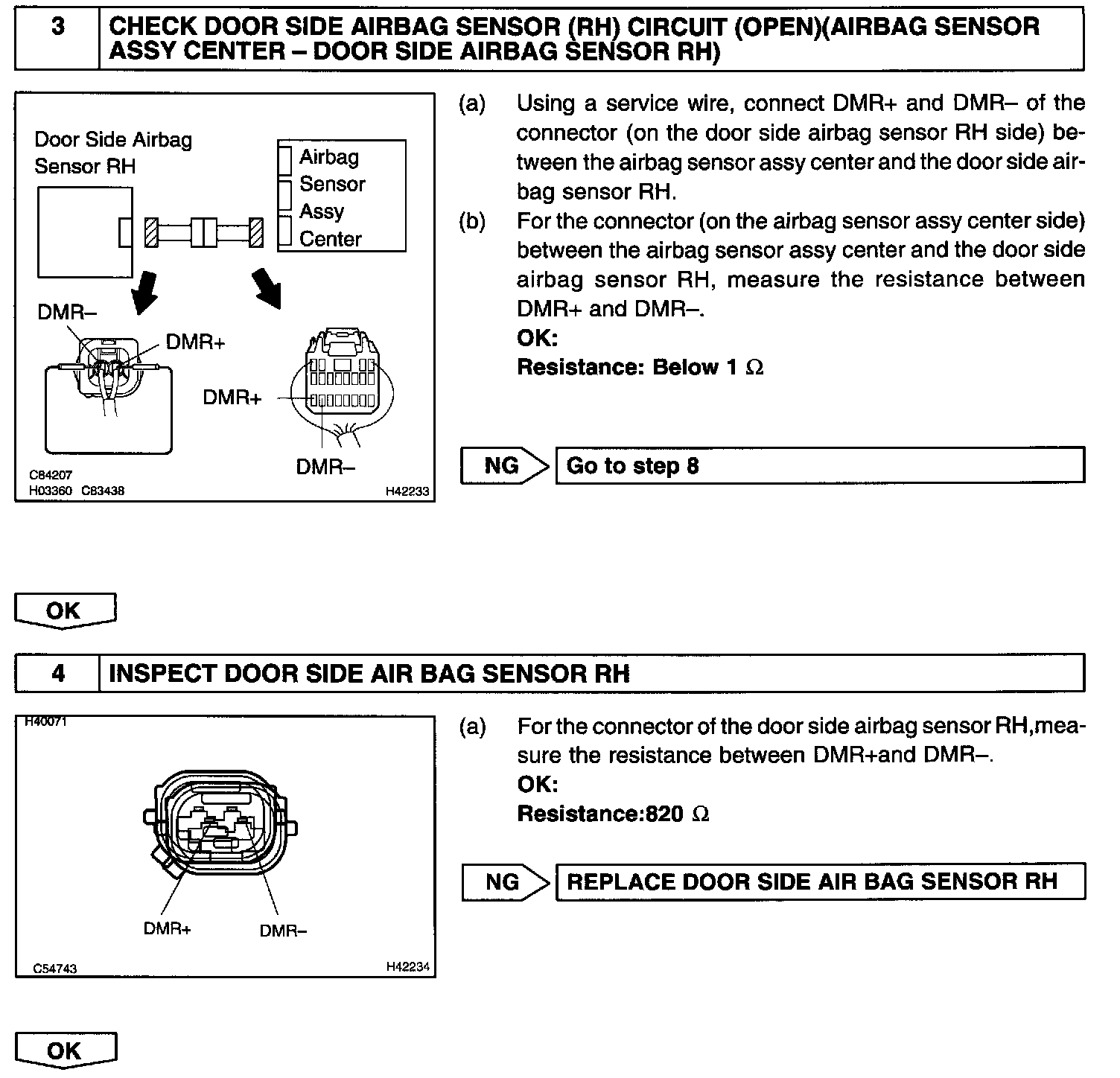

Step 3 - 4:

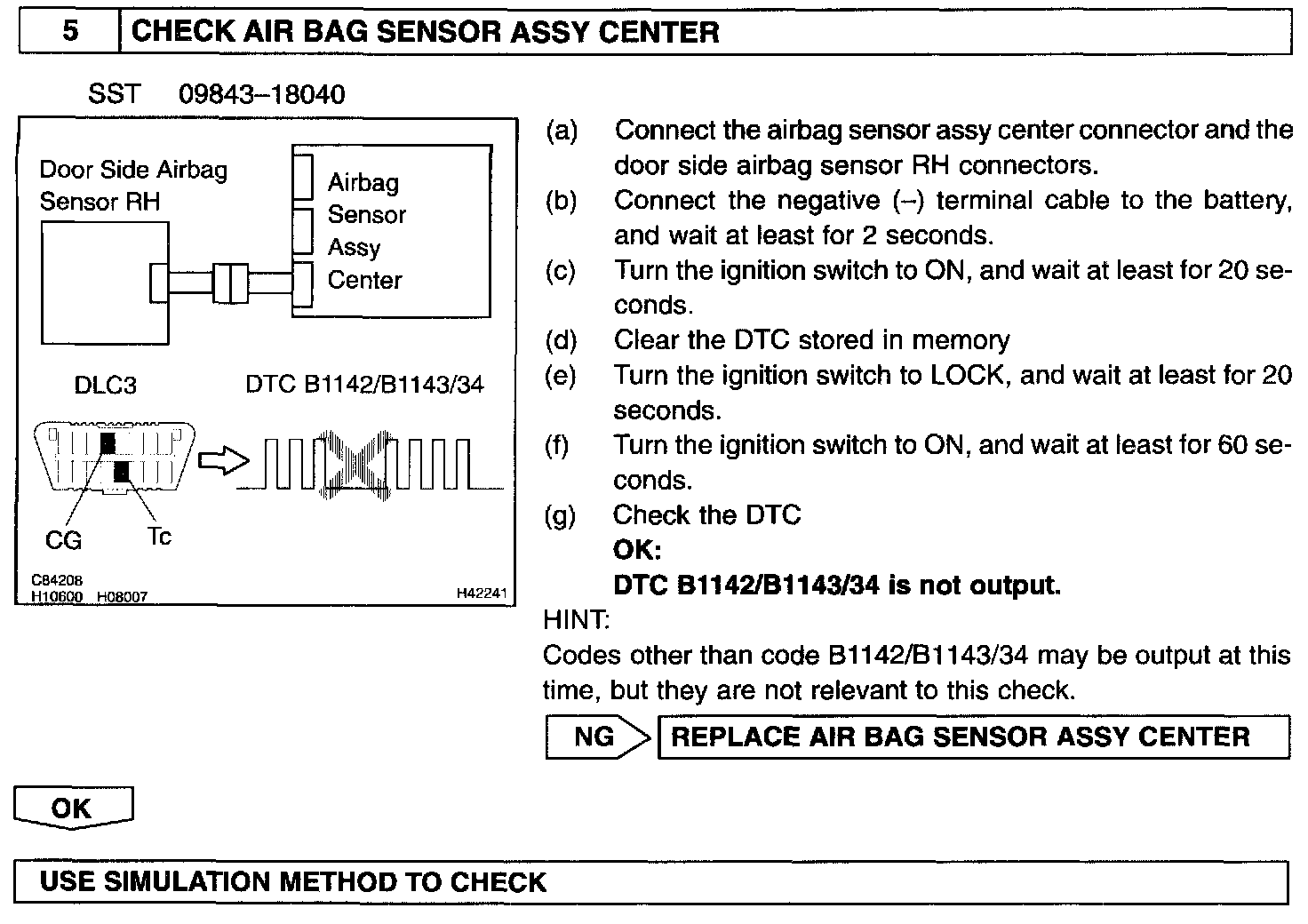

Step 5:

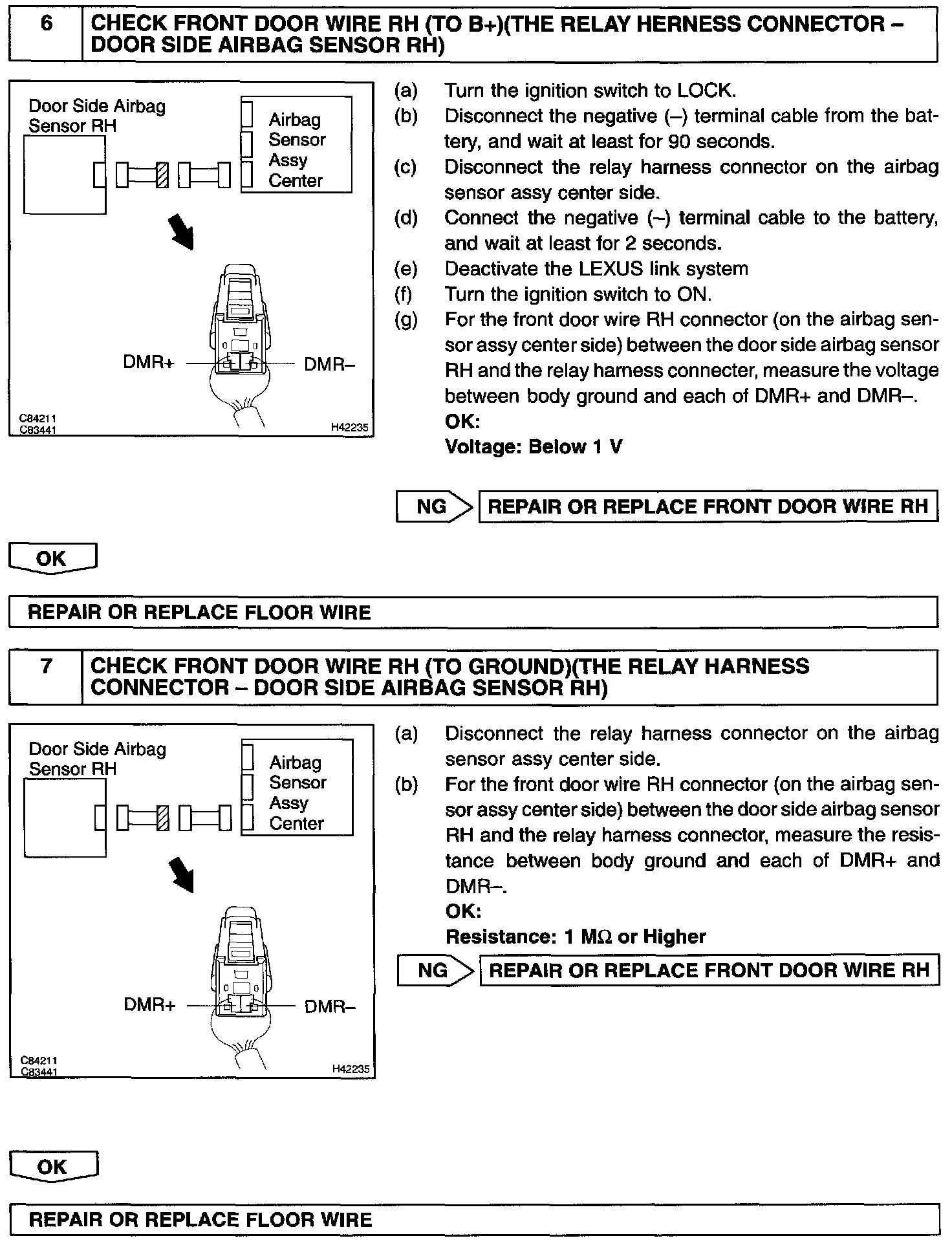

Step 6 - 7:

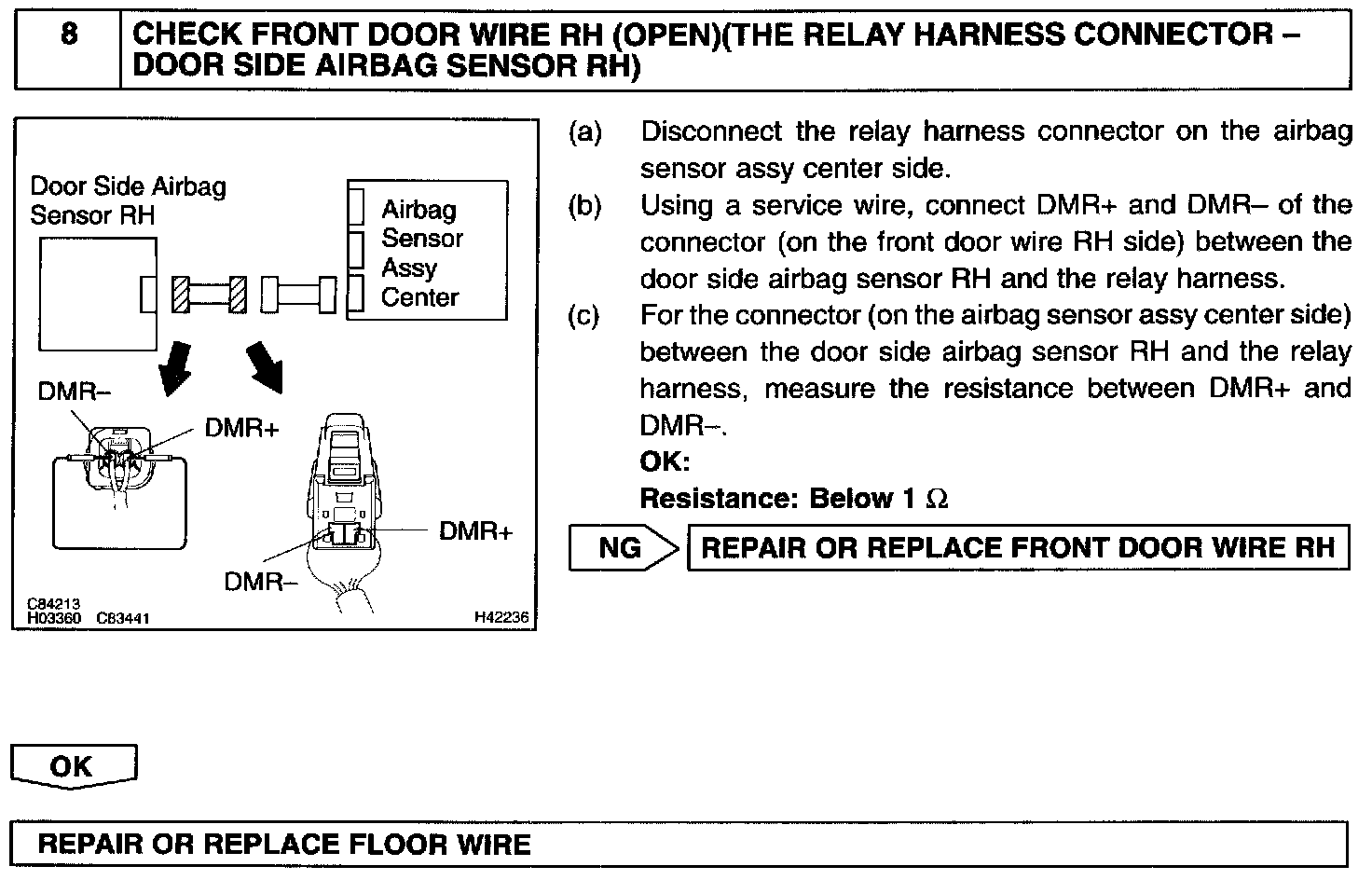

Step 8:

INSPECTION PROCEDURE
