B1135

DTC B1135 HARF CONNECTION IN AIRBAG SENSOR ASSY CONNECTOR

CIRCUIT DESCRIPTION

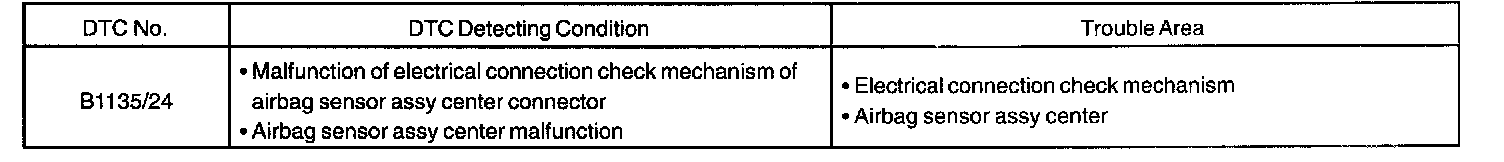

DTC Detecting Condition:

The airbag sensor assy center detects partial connection of connector.

DTC B1135/24 is recorded when a open is detected in the electrical connection check mechanism of the airbag sensor assy center connector or in the airbag sensor assy center circuit.

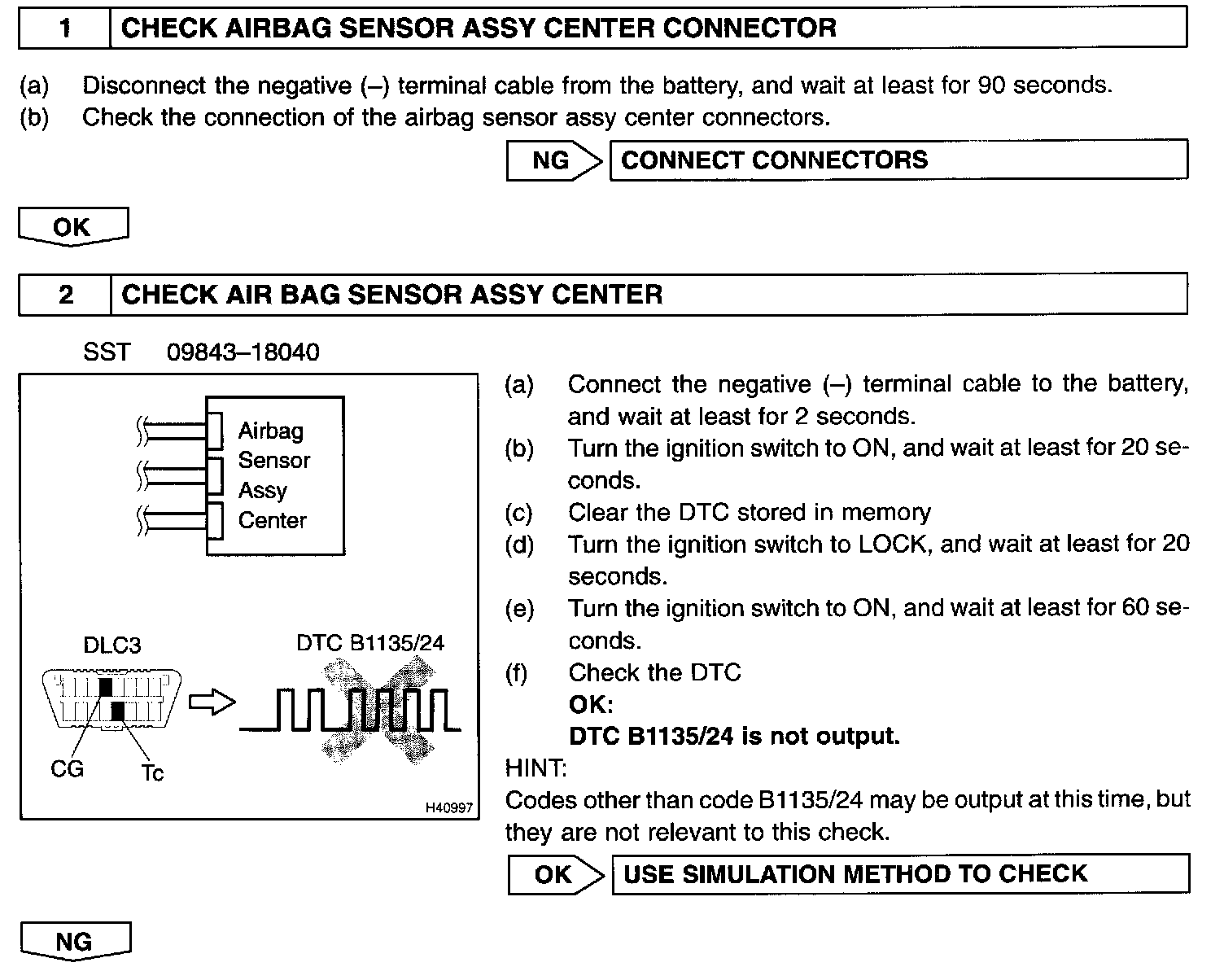

Step 1 - 2:

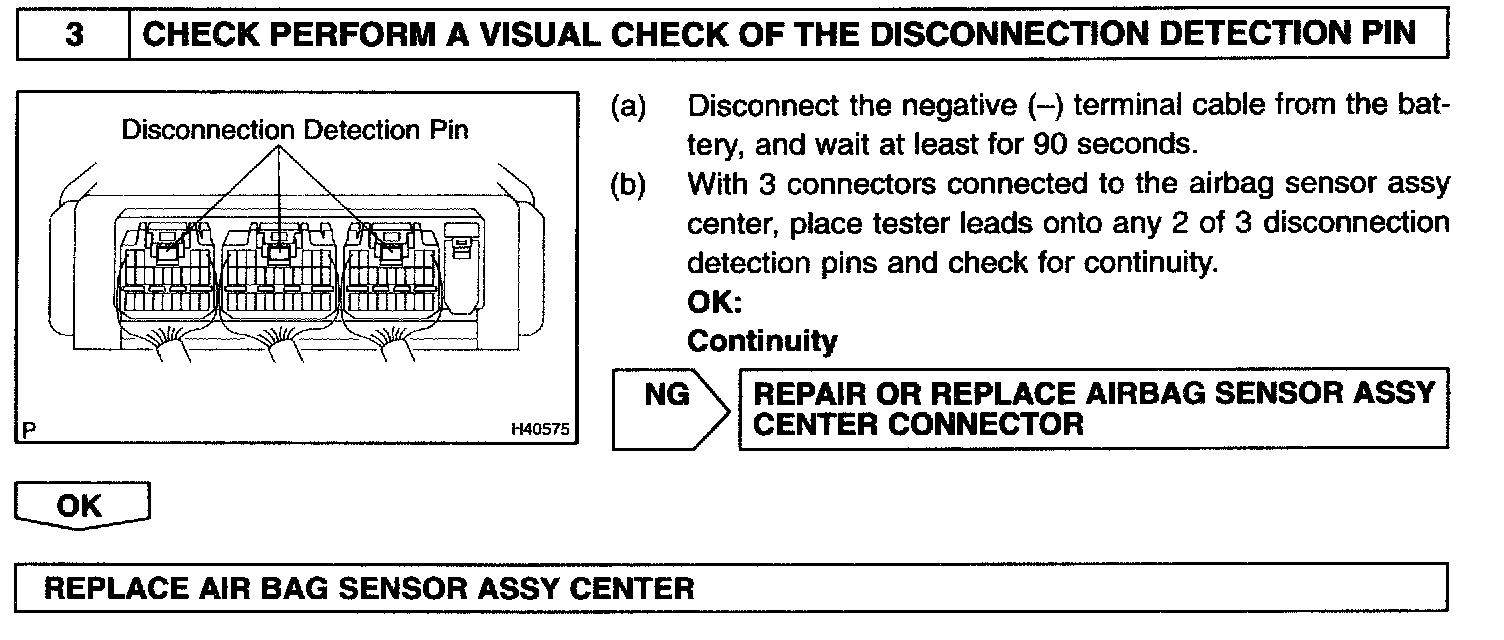

Step 3:

INSPECTION PROCEDURE
