B0132

DTC B0132 SHORT IN P/T SQUIB (RH) CIRCUIT (TO GROUND)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The P/T squib (RH) circuit consists of the airbag sensor assy center and the front seat outer belt assy RH (seat belt pretensioner RH).

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

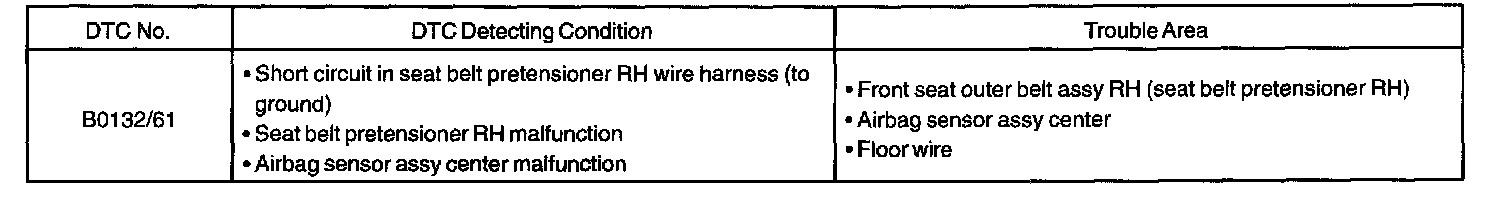

DTC B0132/61 is recorded when a ground short is detected in the P/T squib (RH) circuit.

Wiring Diagram:

Step 1:

Step 2:

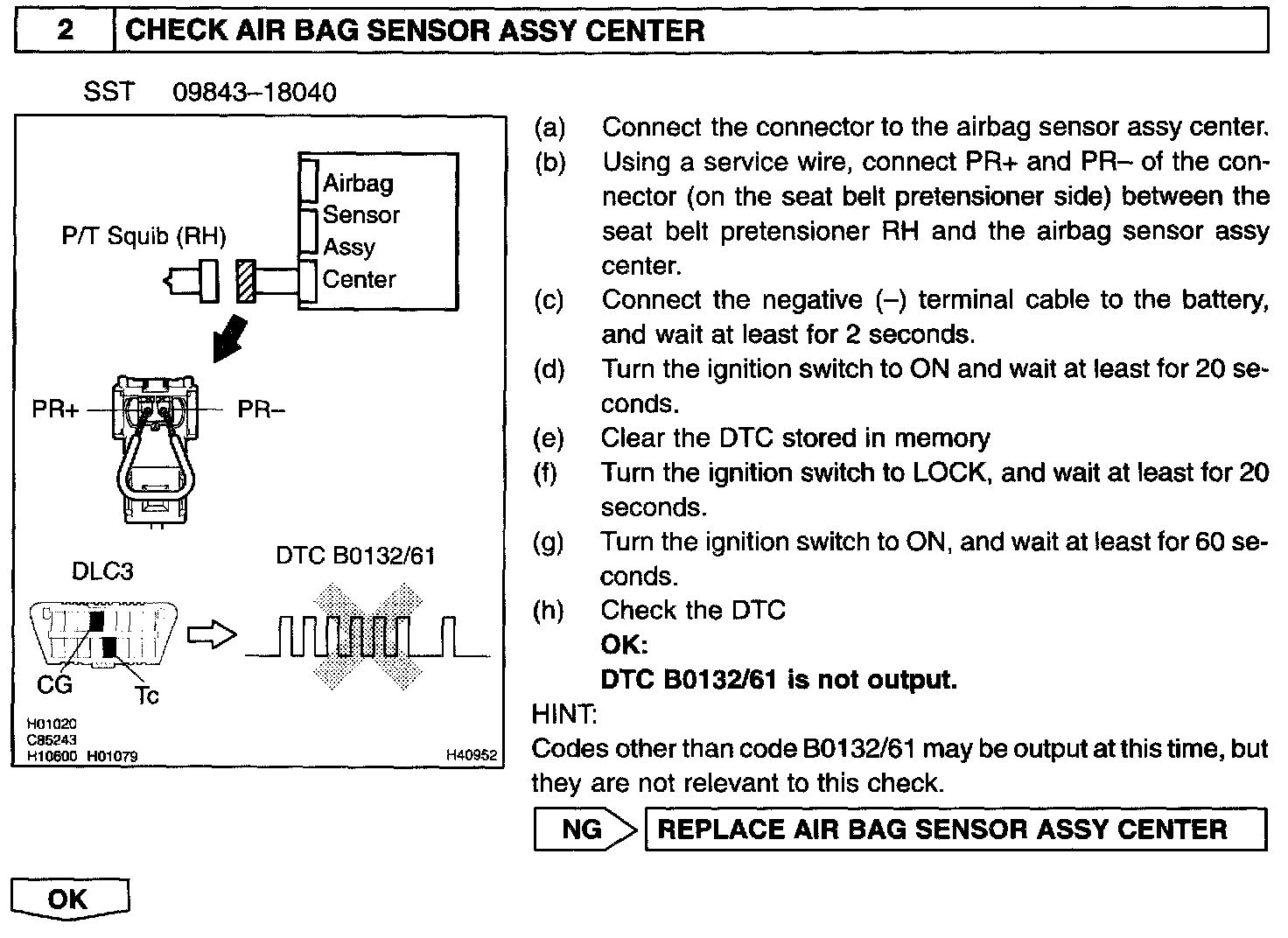

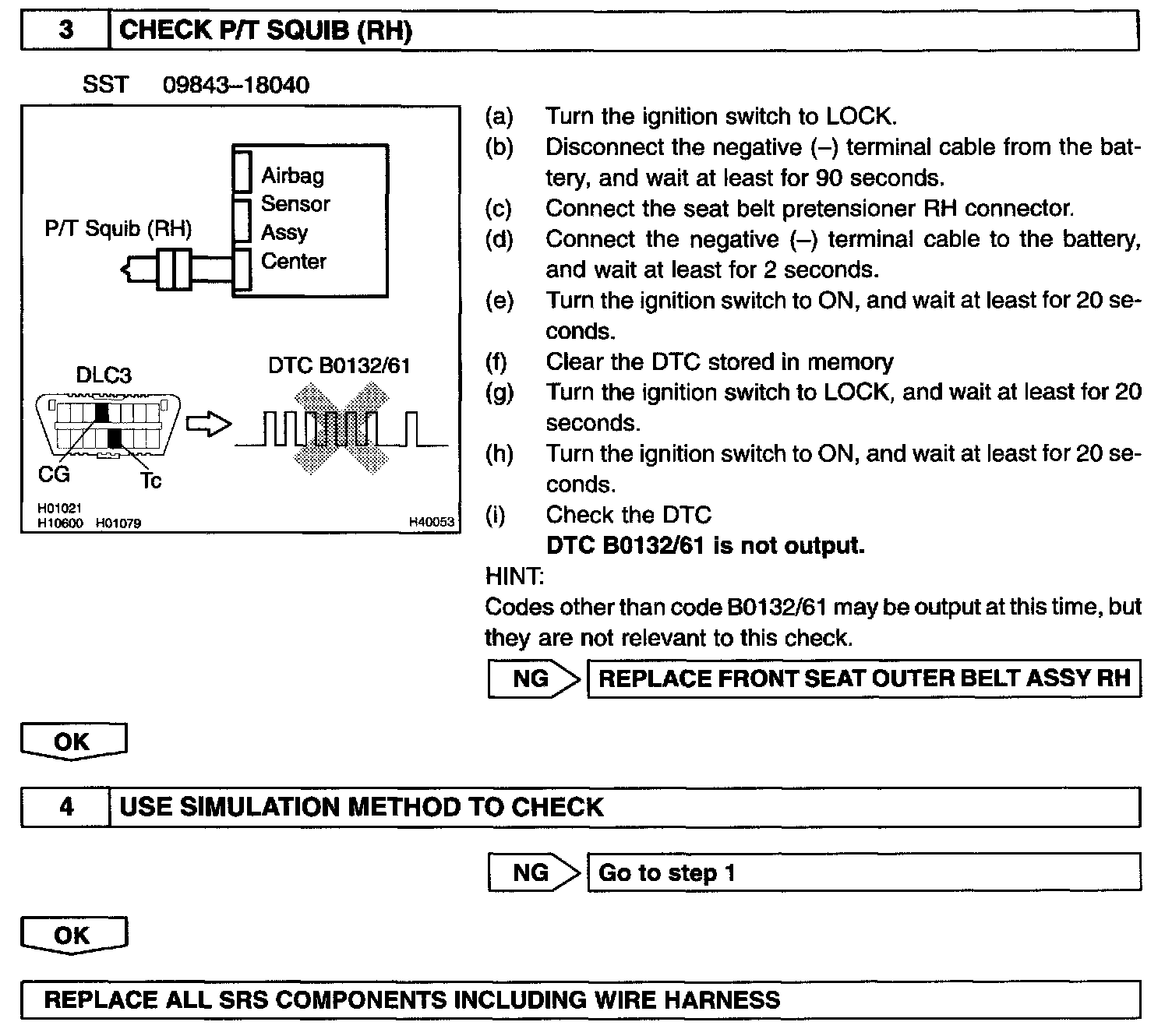

Step 3 - 4:

INSPECTION PROCEDURE
