B0131

DTC B0131 OPEN IN P/T (RH) CIRCUIT

CIRCUIT DESCRIPTION

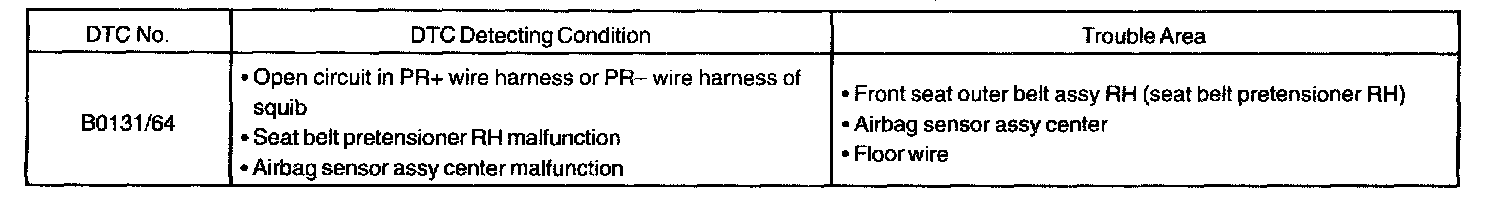

DTC Detecting Condition:

The P/T squib circuit (RH) consists of the airbag sensor assy center and the front seat outer belt assy RH (seat belt pretensioner RH).

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0131/64 is recorded when an open is detected in the P/T squib (RH) circuit.

Wiring Diagram:

Step 1:

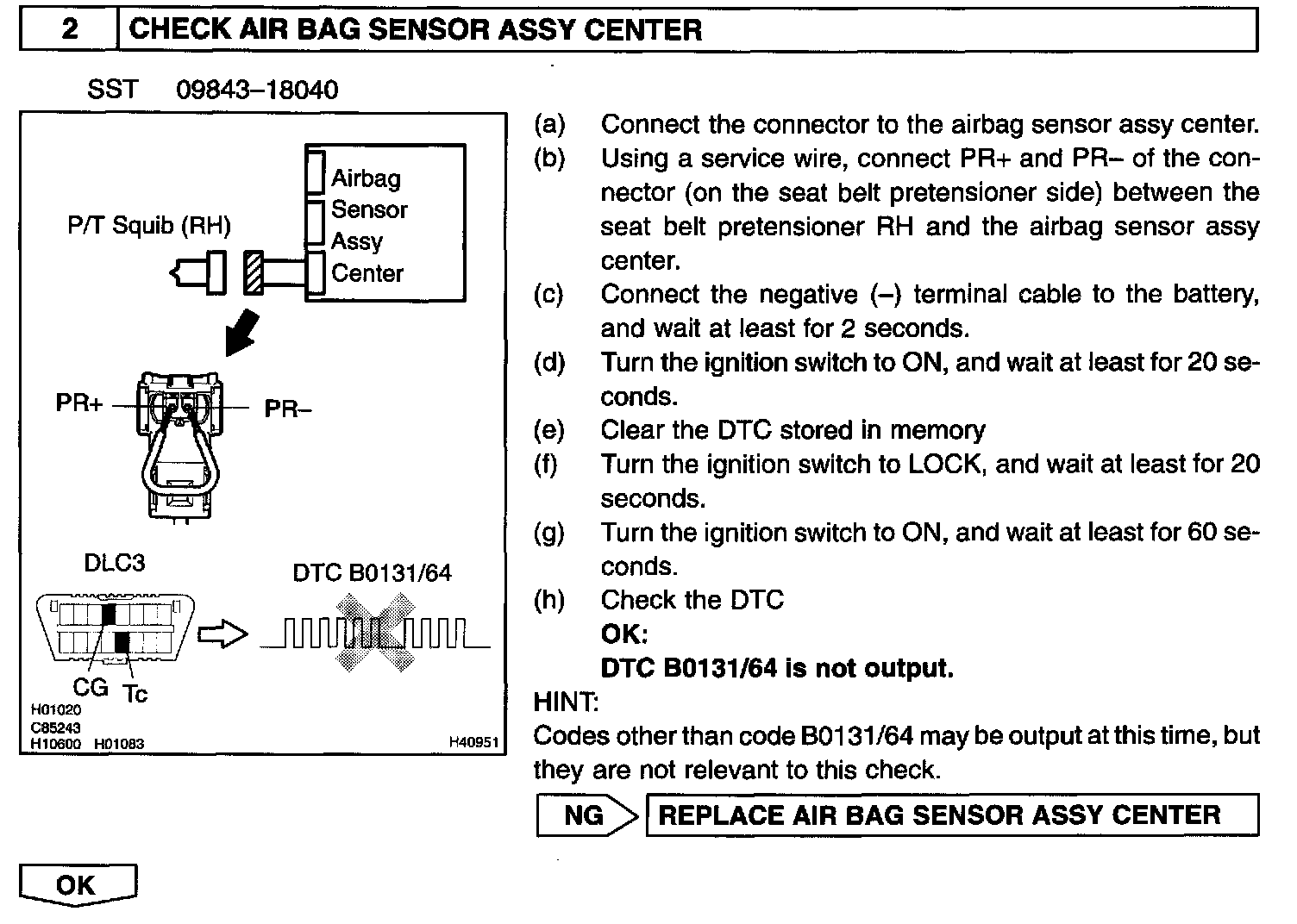

Step 2:

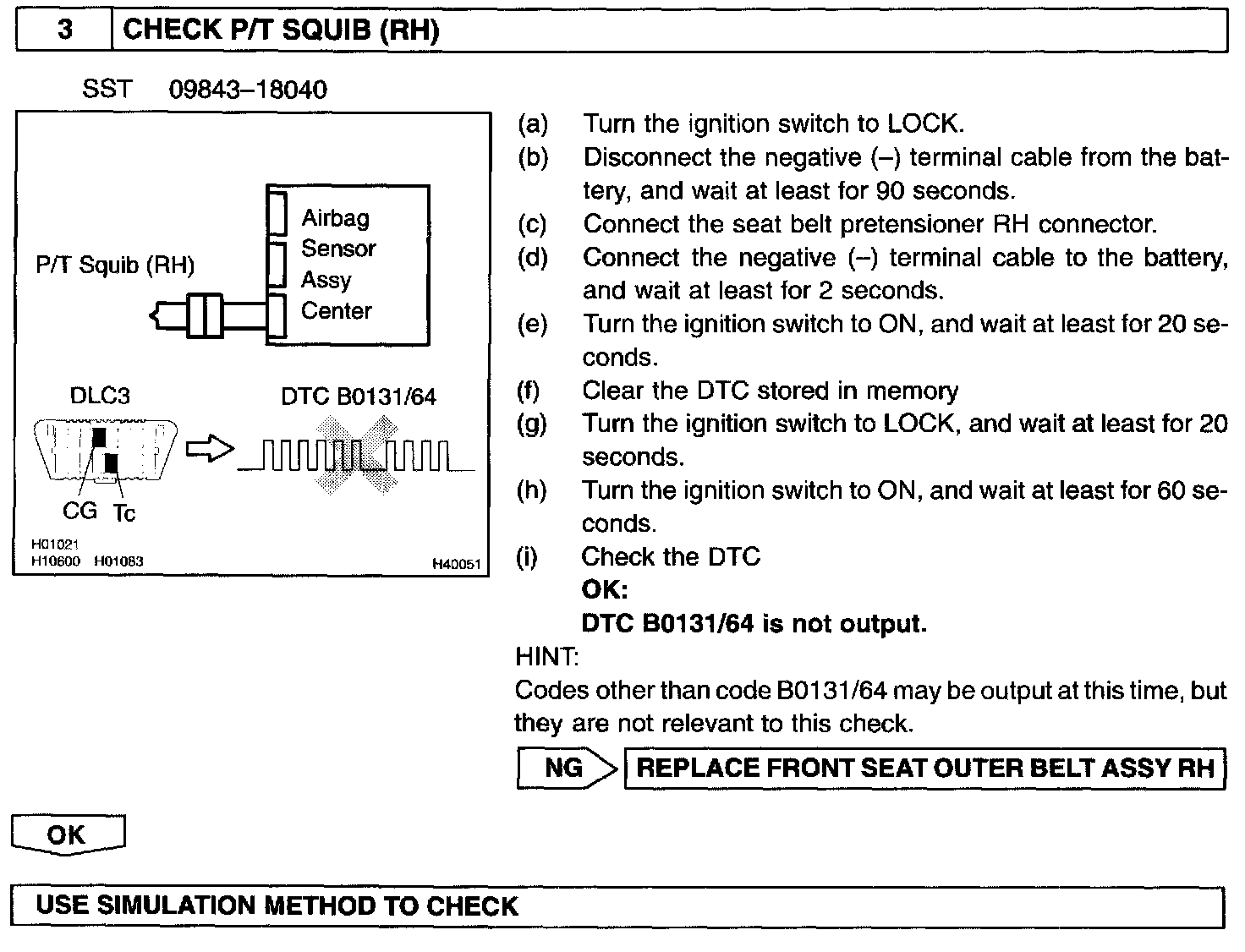

Step 3:

INSPECTION PROCEDURE
