B0130

DTC B0130 SHORT IN P/T SQUIB (RH) CIRCUIT

CIRCUIT DESCRIPTION

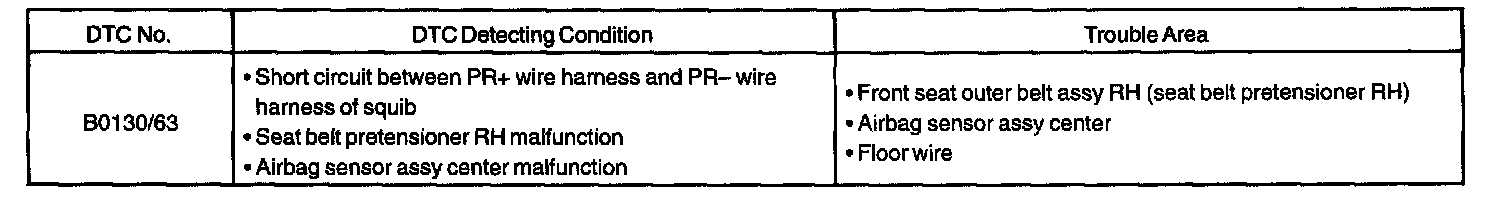

DTC Detecting Condition:

The P/T squib (RH) circuit consists of the airbag sensor assy center and the front seat outer belt assy RH (seat belt pretensioner RH).

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0130/63 is recorded when a short is detected in the P/T squib (RH) circuit.

Wiring Diagram:

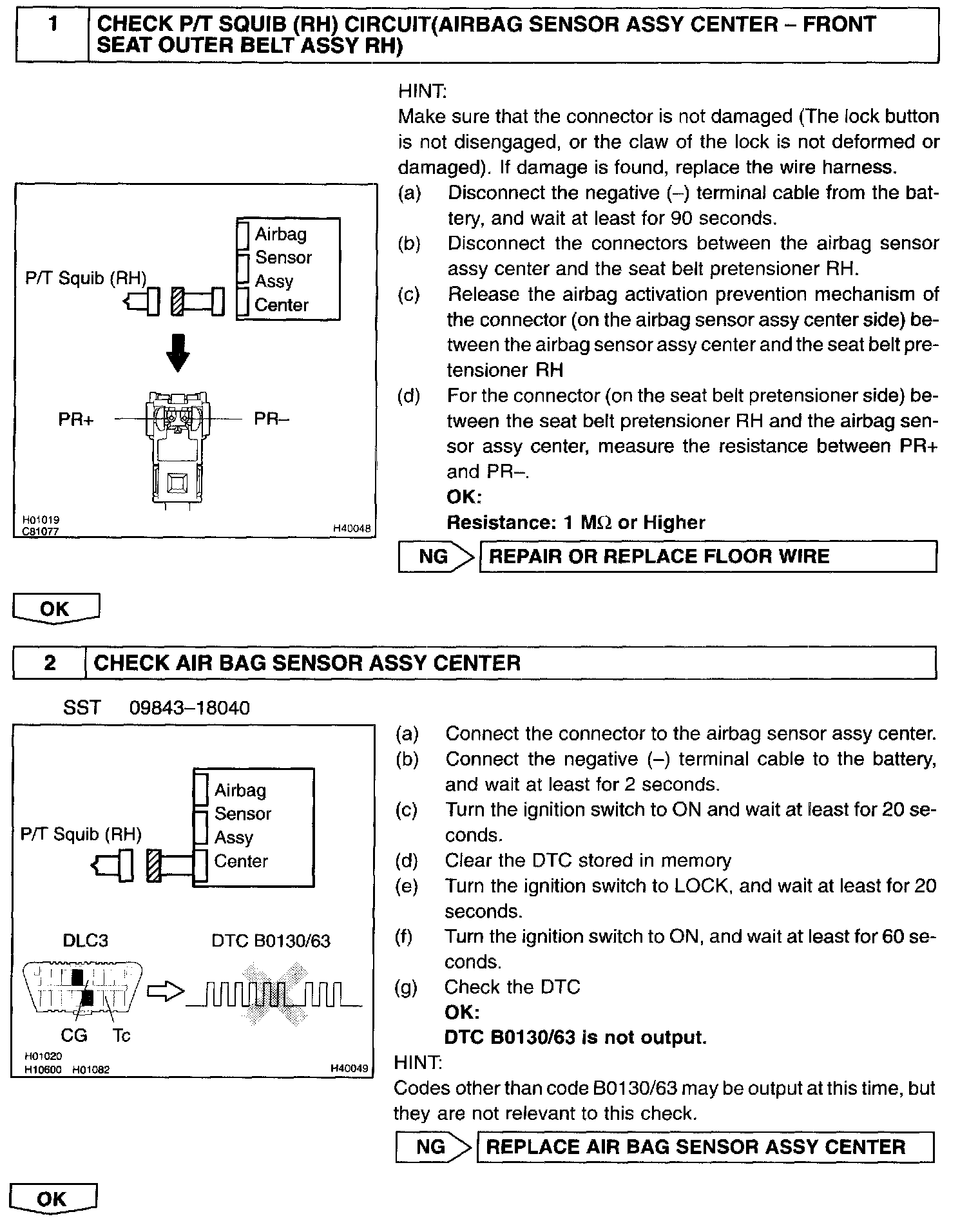

Step 1 - 2:

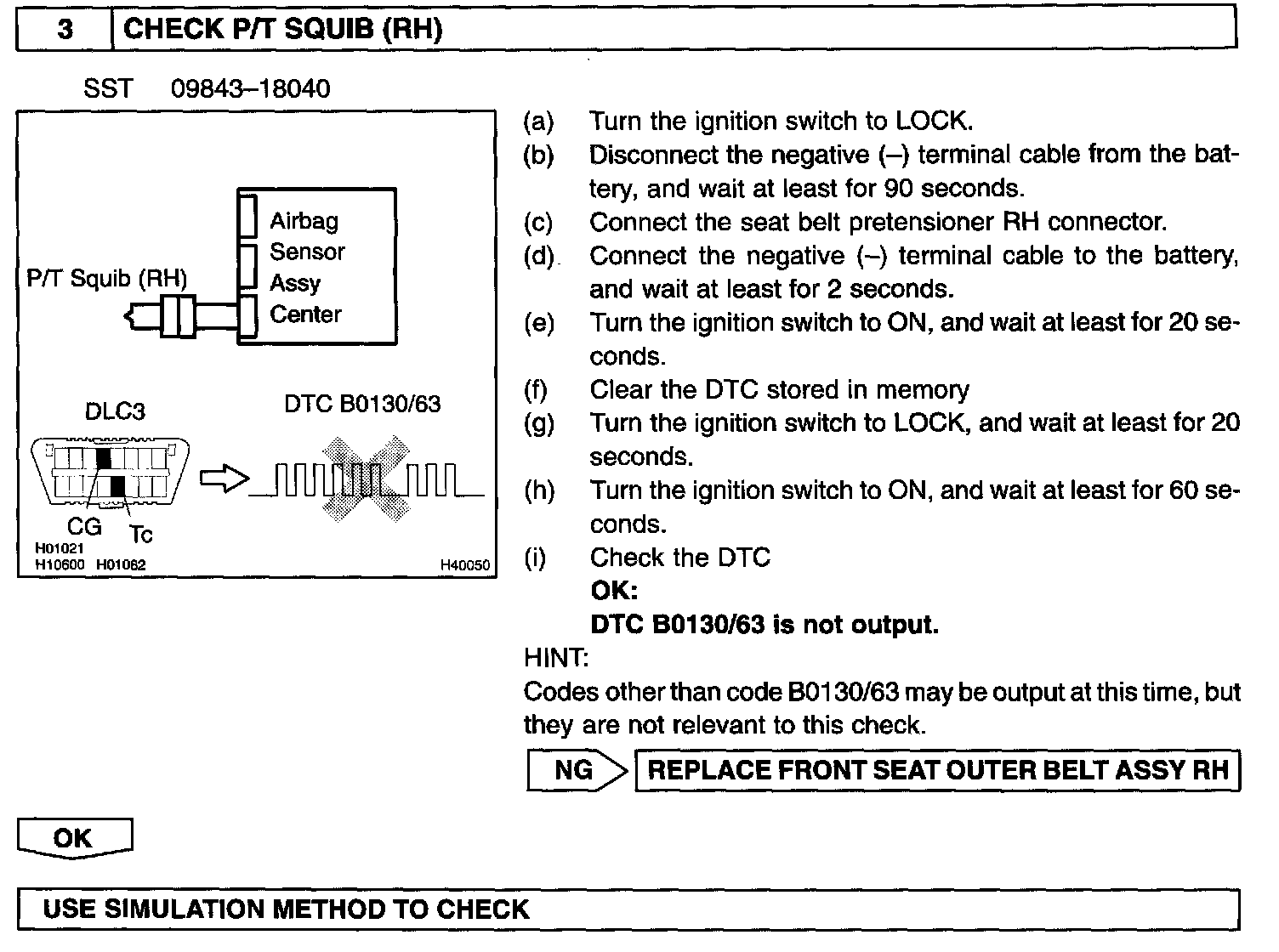

Step 3:

INSPECTION PROCEDURE
