B0117

DTC B0117 SHORT IN SIDE SQUIB (LH) CIRCUIT (TO GROUND)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The side squib (LH) circuit consists of the airbag sensor assy center and the front seat airbag assy LH.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0117/45 is recorded when ground short is detected in the side squib (LH) circuit.

Wiring Diagram:

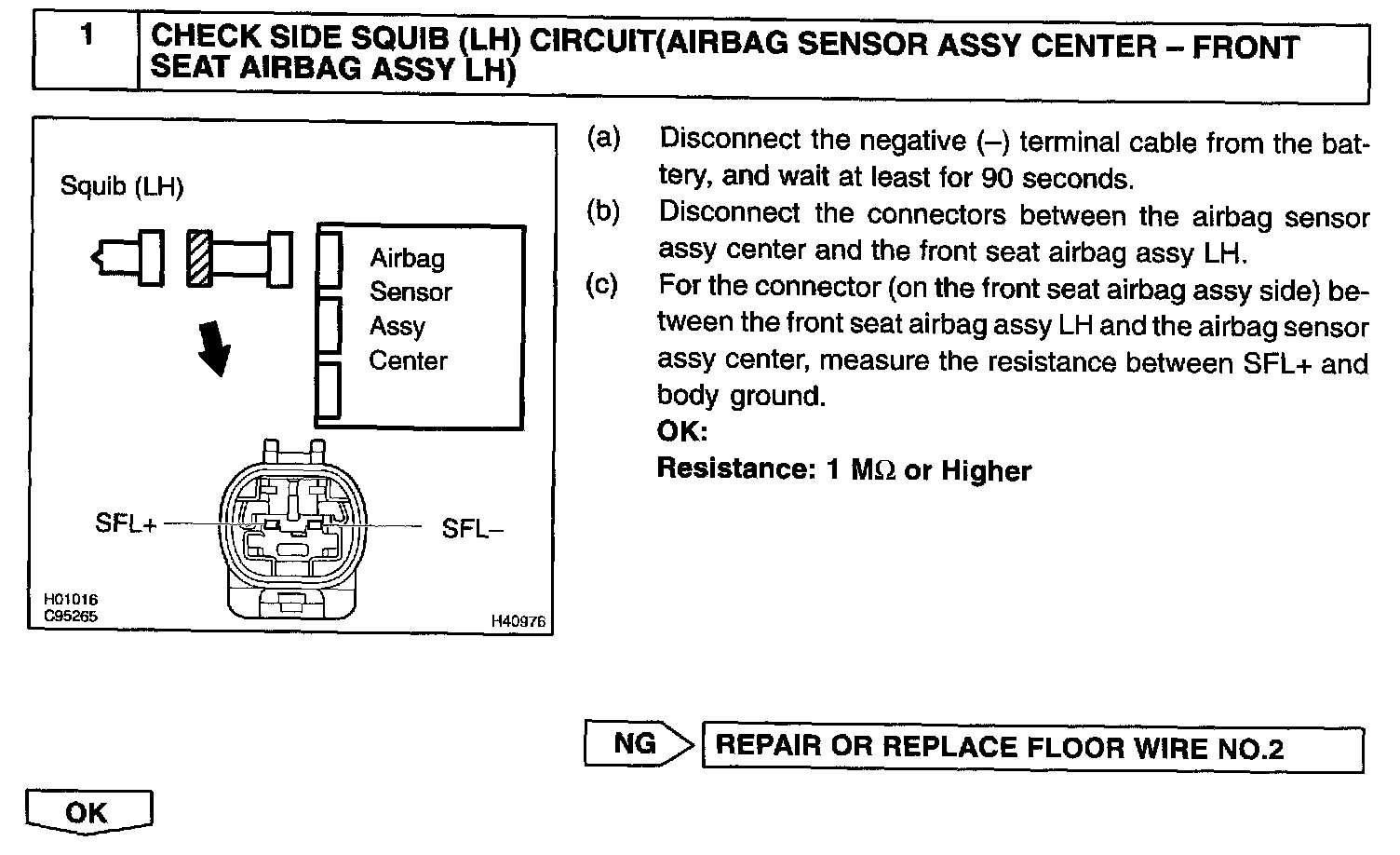

Step 1:

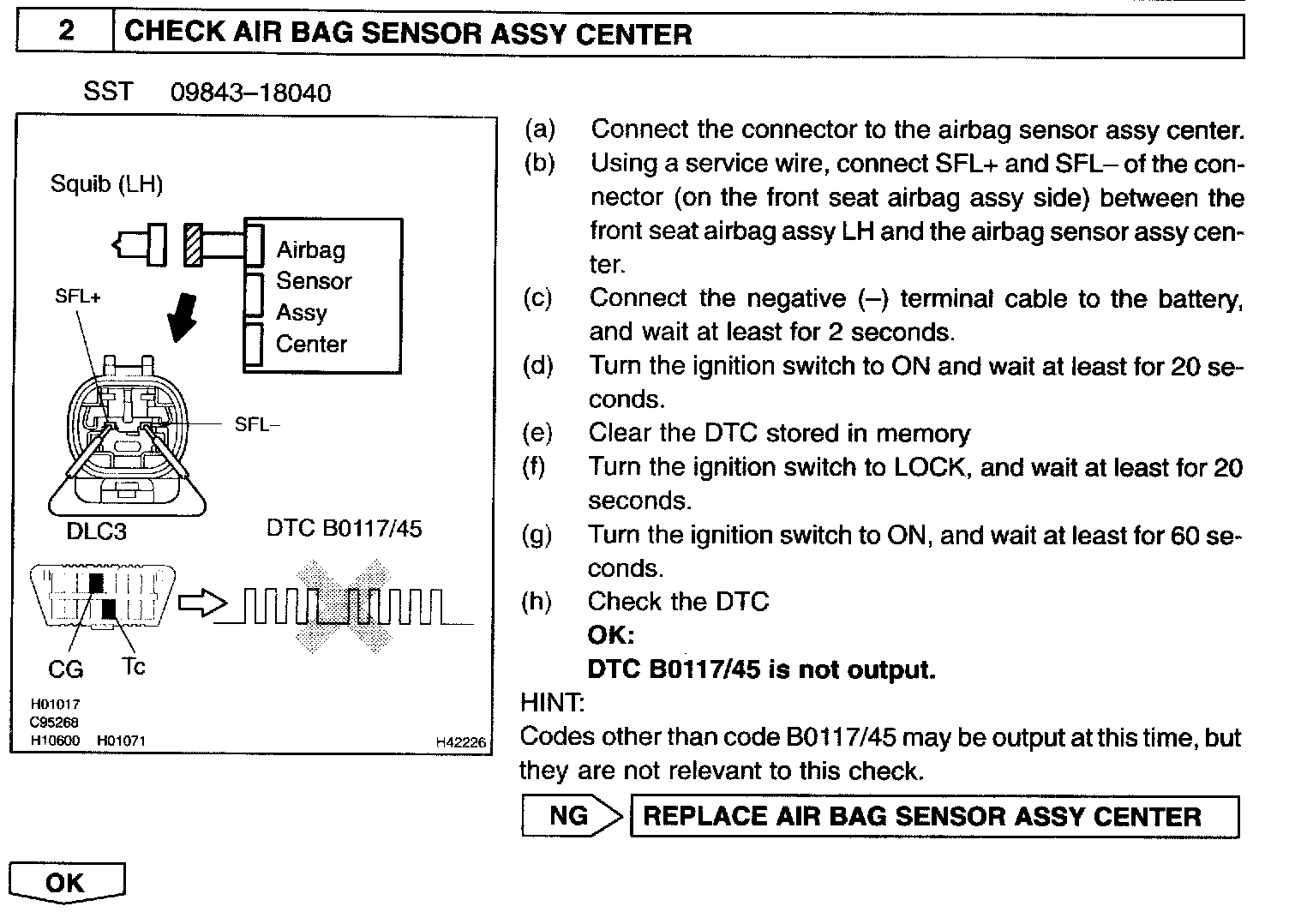

Step 2:

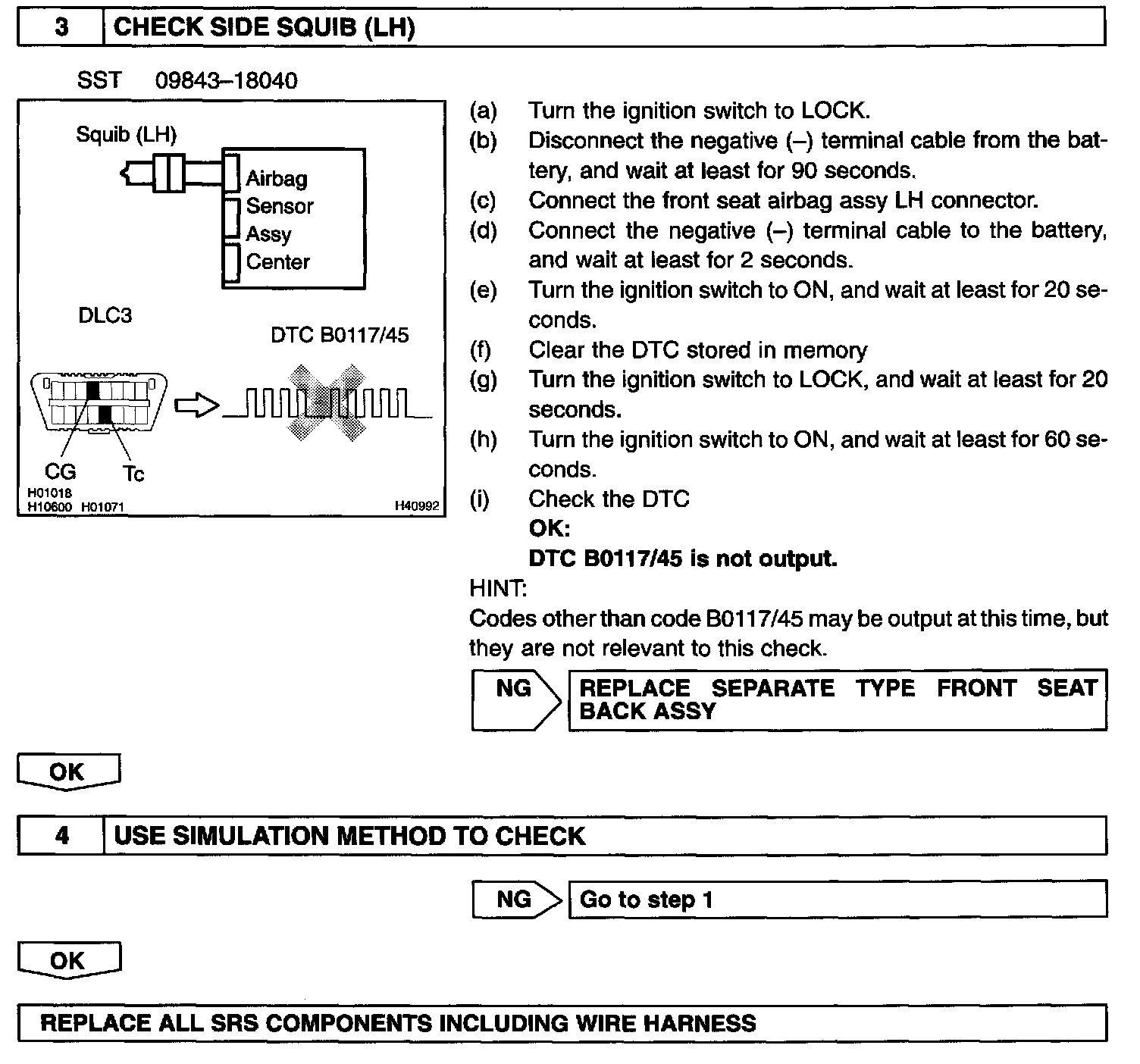

Step 3 - 4:

INSPECTION PROCEDURE
