B0112

DTC B0112 SHORT IN SIDE SQUIB (RH) CIRCUIT (TO GROUND)

CIRCUIT DESCRIPTION

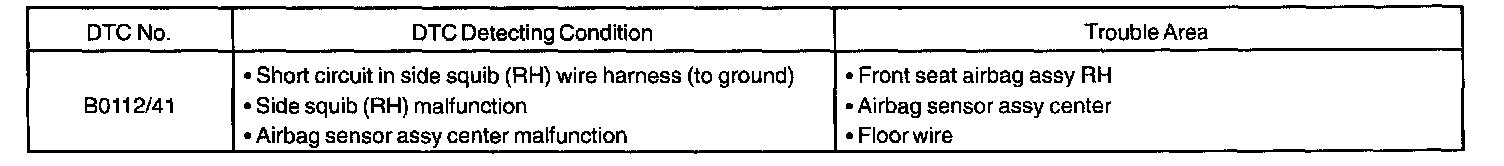

DTC Detecting Condition:

The side squib (RH) circuit consists of the airbag sensor assy center and the front seat airbag assy RH.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0112/41 is recorded when ground short is detected in the side squib (RH) circuit.

Wiring Diagram:

Step 1:

Step 2:

Step 3 - 4:

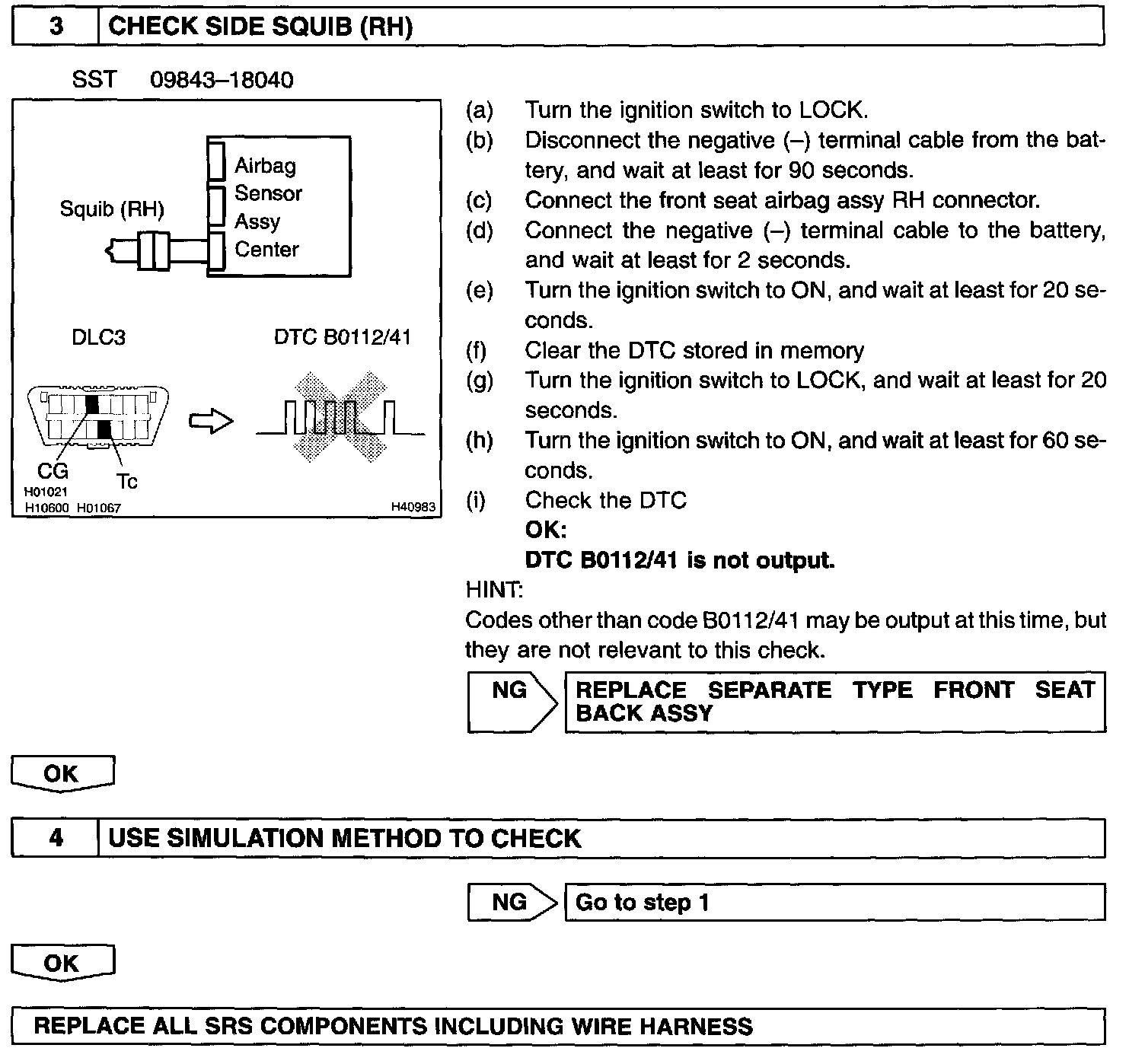

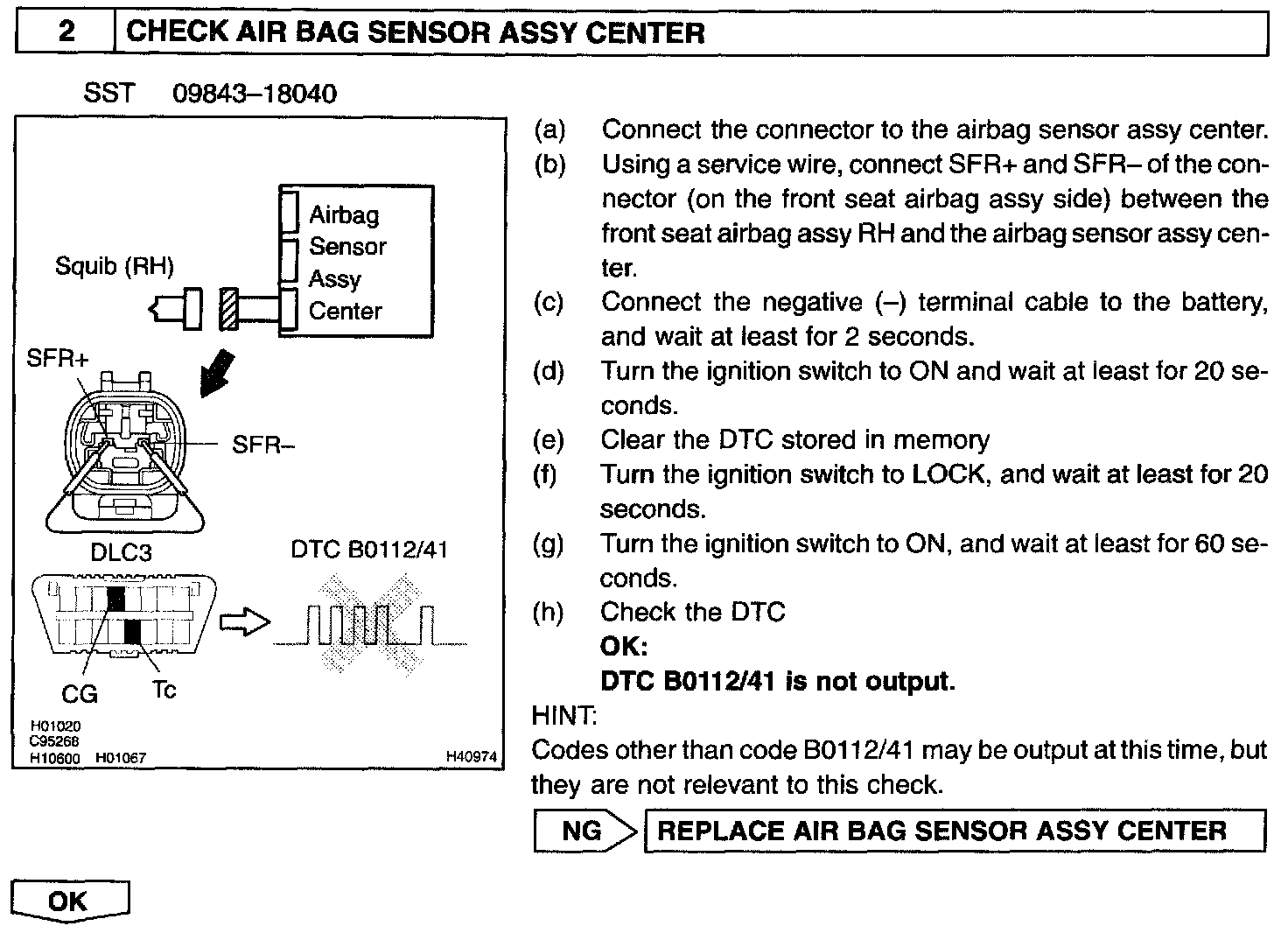

INSPECTION PROCEDURE
