B0108

DTC B0108 SHORT IN P SQUIB CIRCUIT (TO B+)

CIRCUIT DESCRIPTION

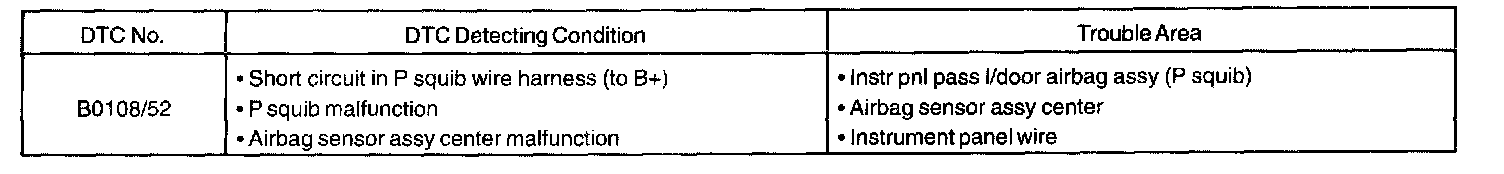

DTC Detecting Condition:

The P squib circuit consists of the airbag sensor assy center and the instr pnl pass I/door airbag assy.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0108/52 is recorded when a B+ short is detected in the P squib circuit.

Wiring Diagram:

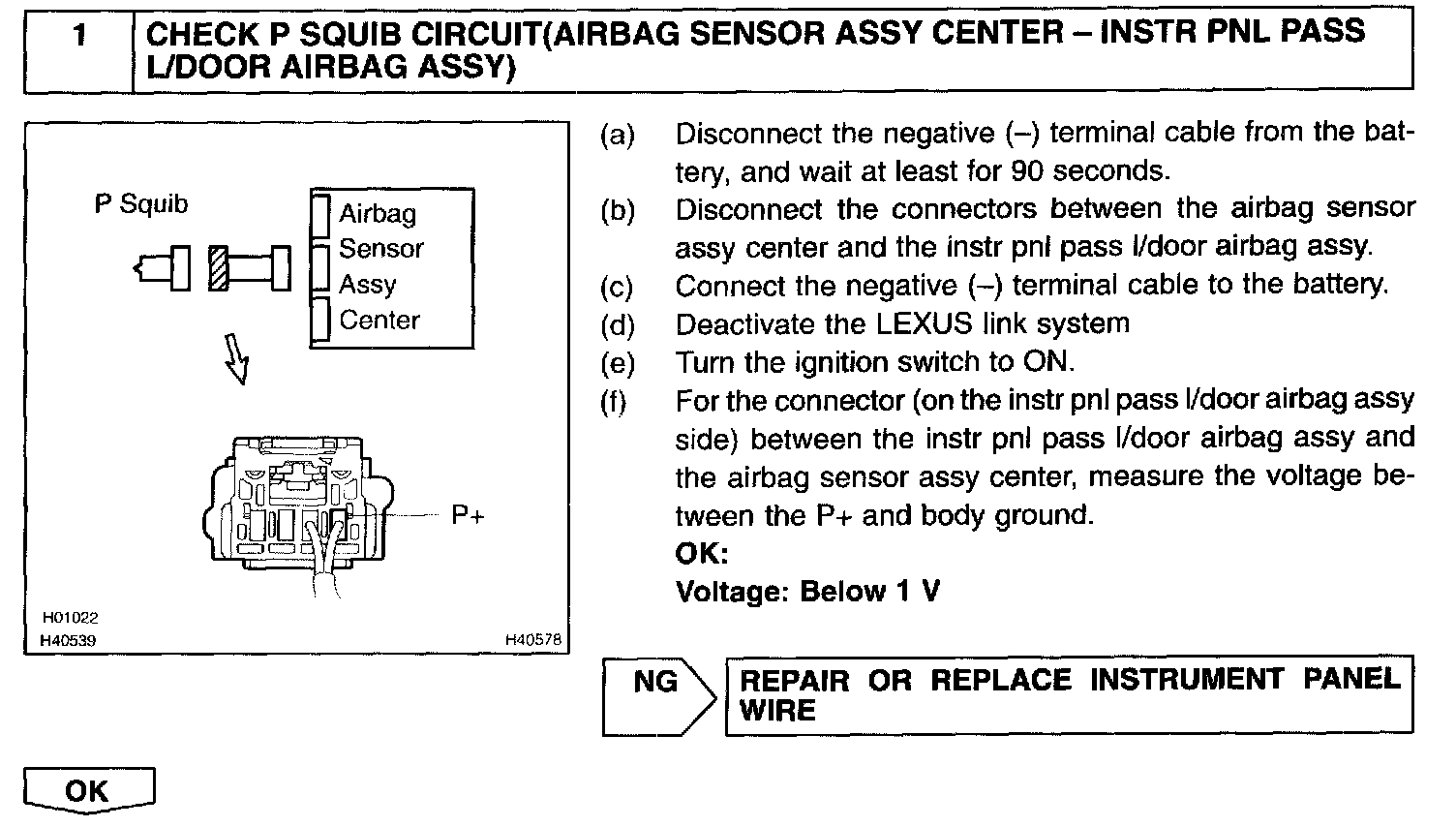

Step 1:

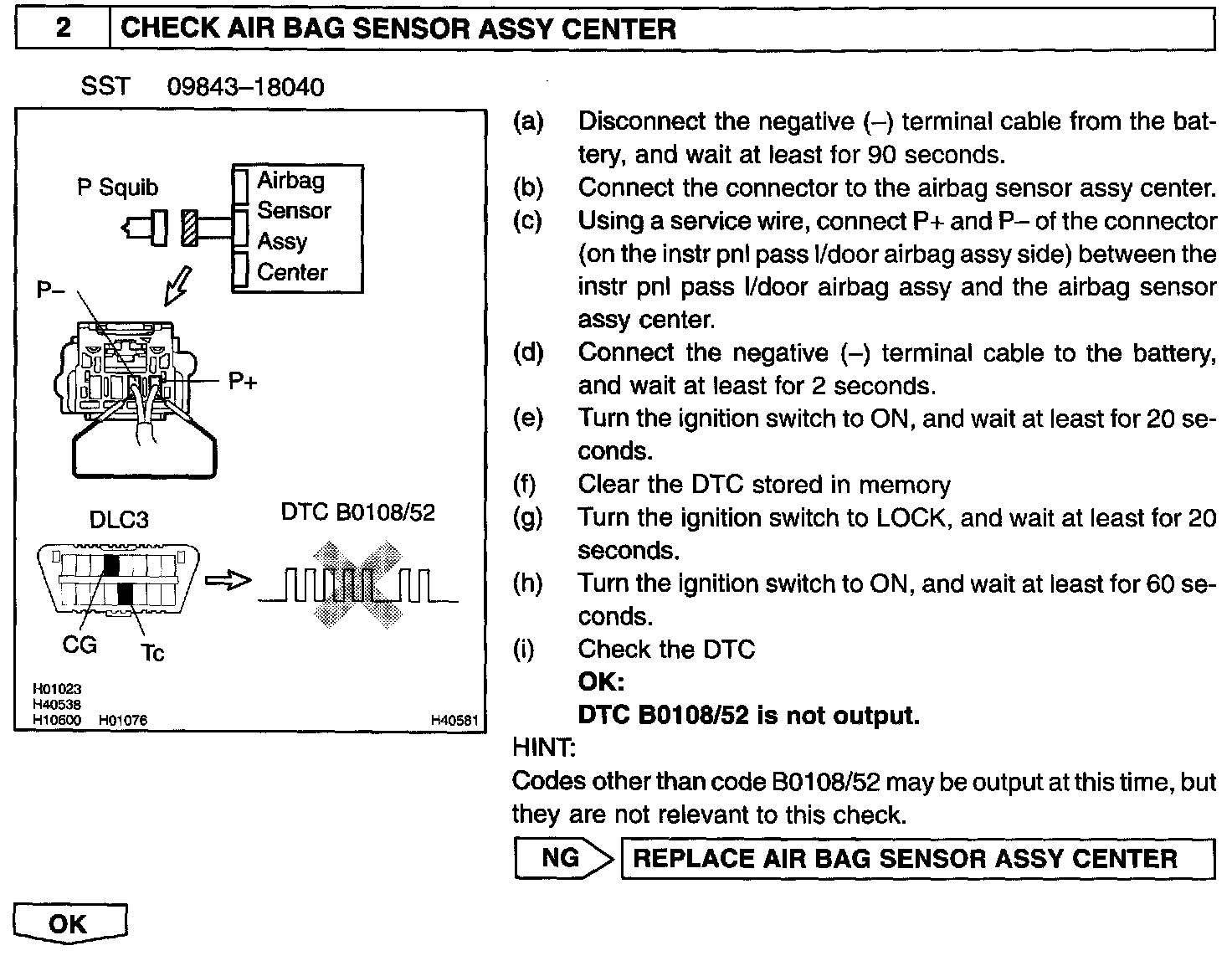

Step 2:

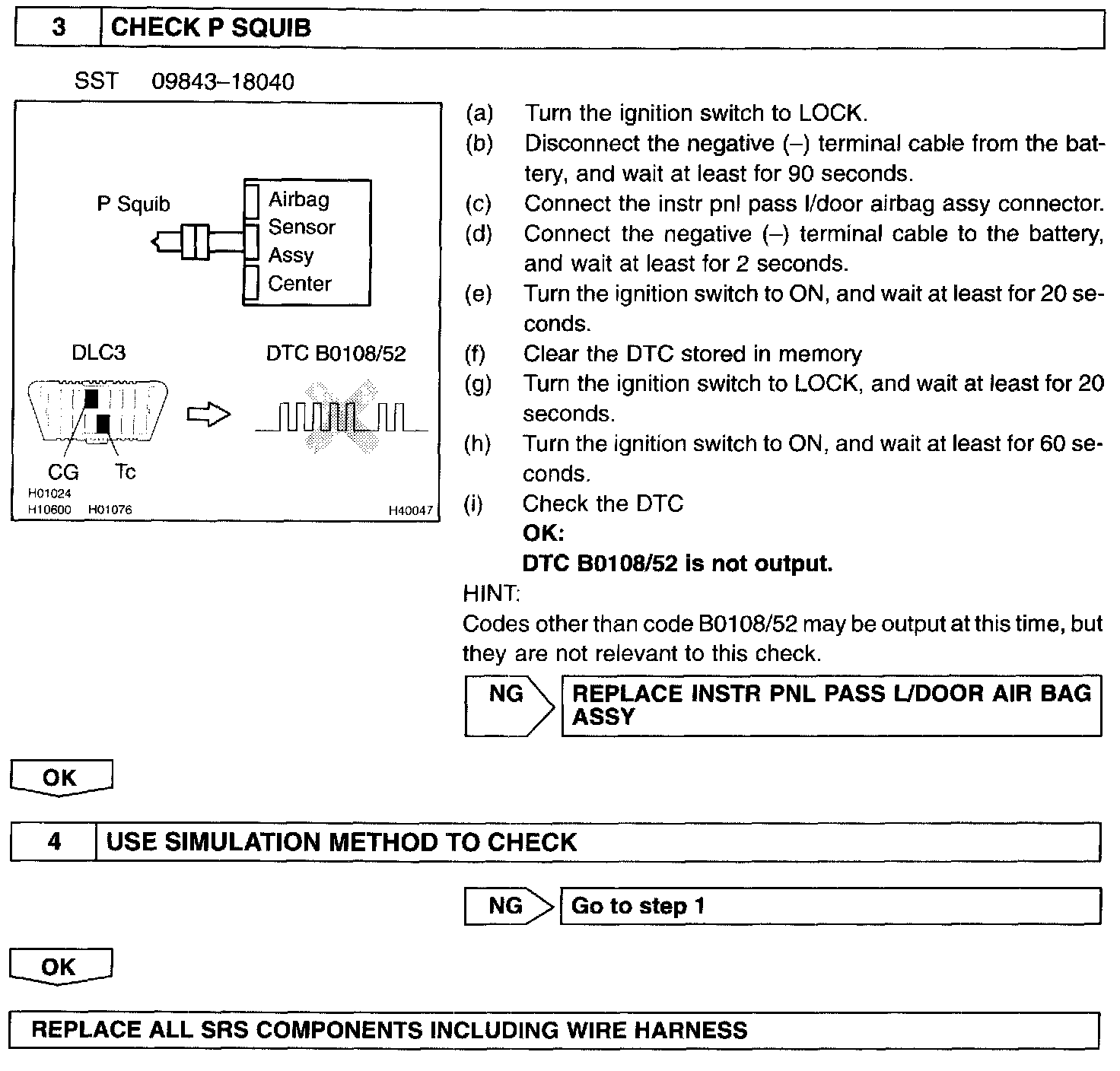

Step 3 - 4:

INSPECTION PROCEDURE
