B0107

DTC B0107 SHORT IN P SQUIB CIRCUIT (TO GROUND)

CIRCUIT DESCRIPTION

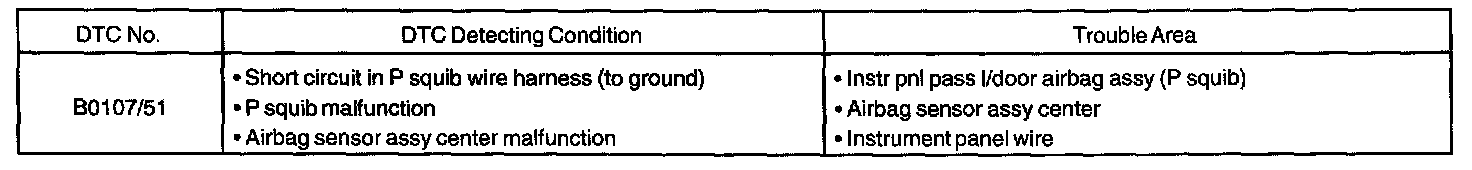

DTC Detecting Condition:

The P squib circuit consists of the airbag sensor assy center and the instr pnl pass I/door airbag assy.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0107/51 is recorded when ground short is detected in the P squib circuit.

Wiring Diagram:

Step 1:

Step 2:

Step 3 - 4:

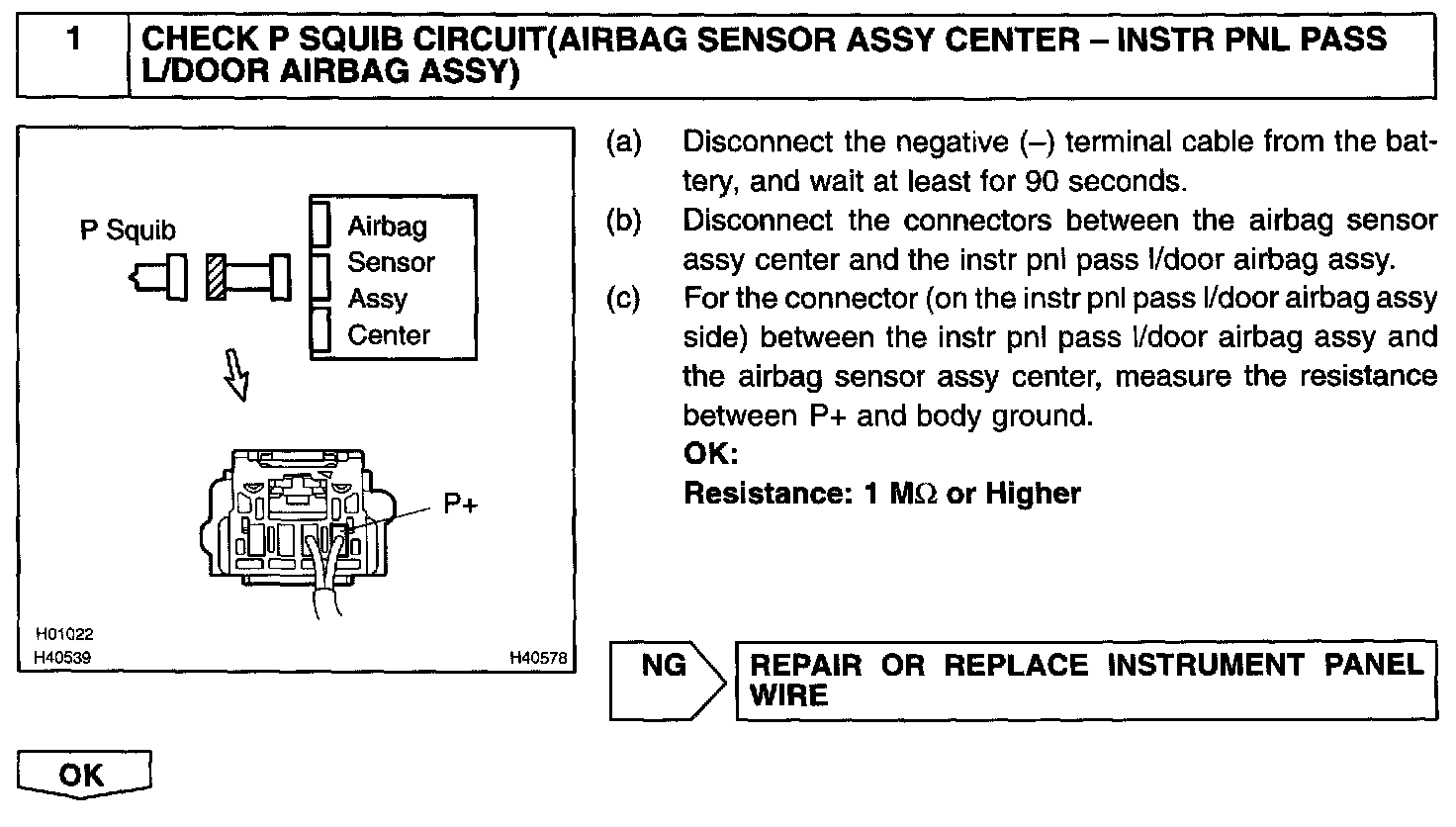

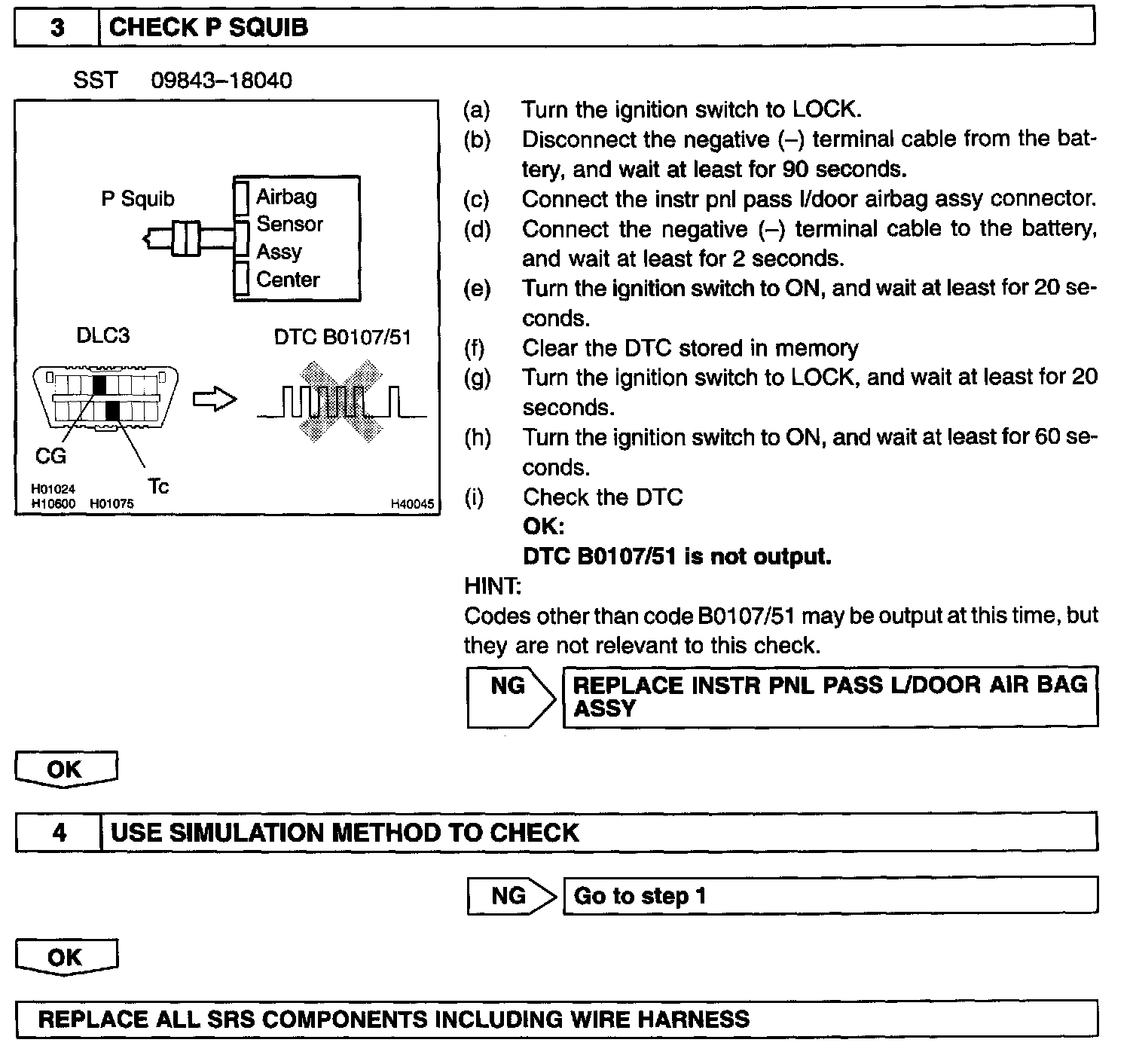

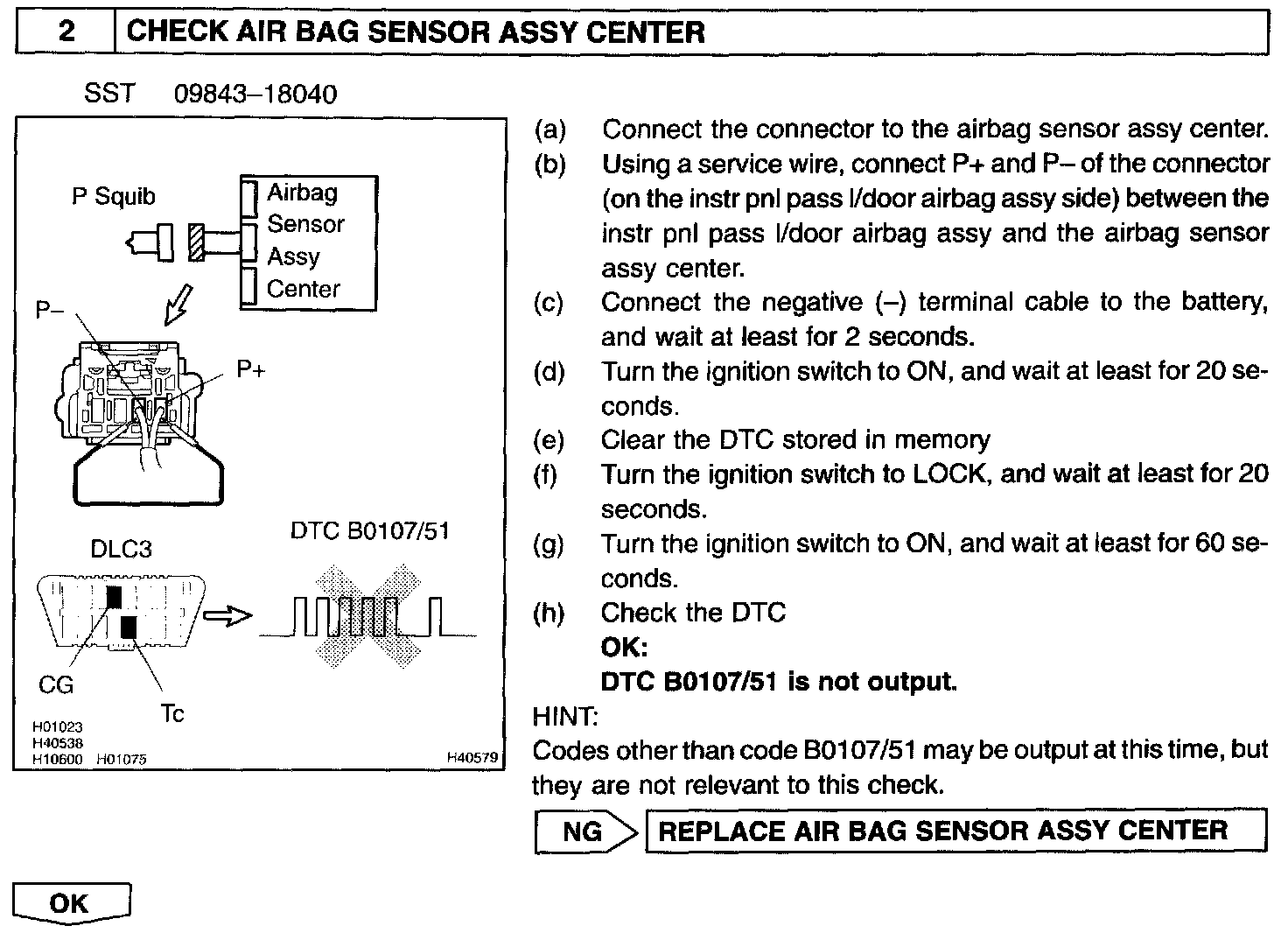

INSPECTION PROCEDURE
