B0105

DTC B0105 SHORT IN P SQUIB CIRCUIT

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The P squib circuit consists of the airbag sensor assy center and the instrument pass I/door airbag assy.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0105/53 is recorded when a short is detected in the P squib circuit.

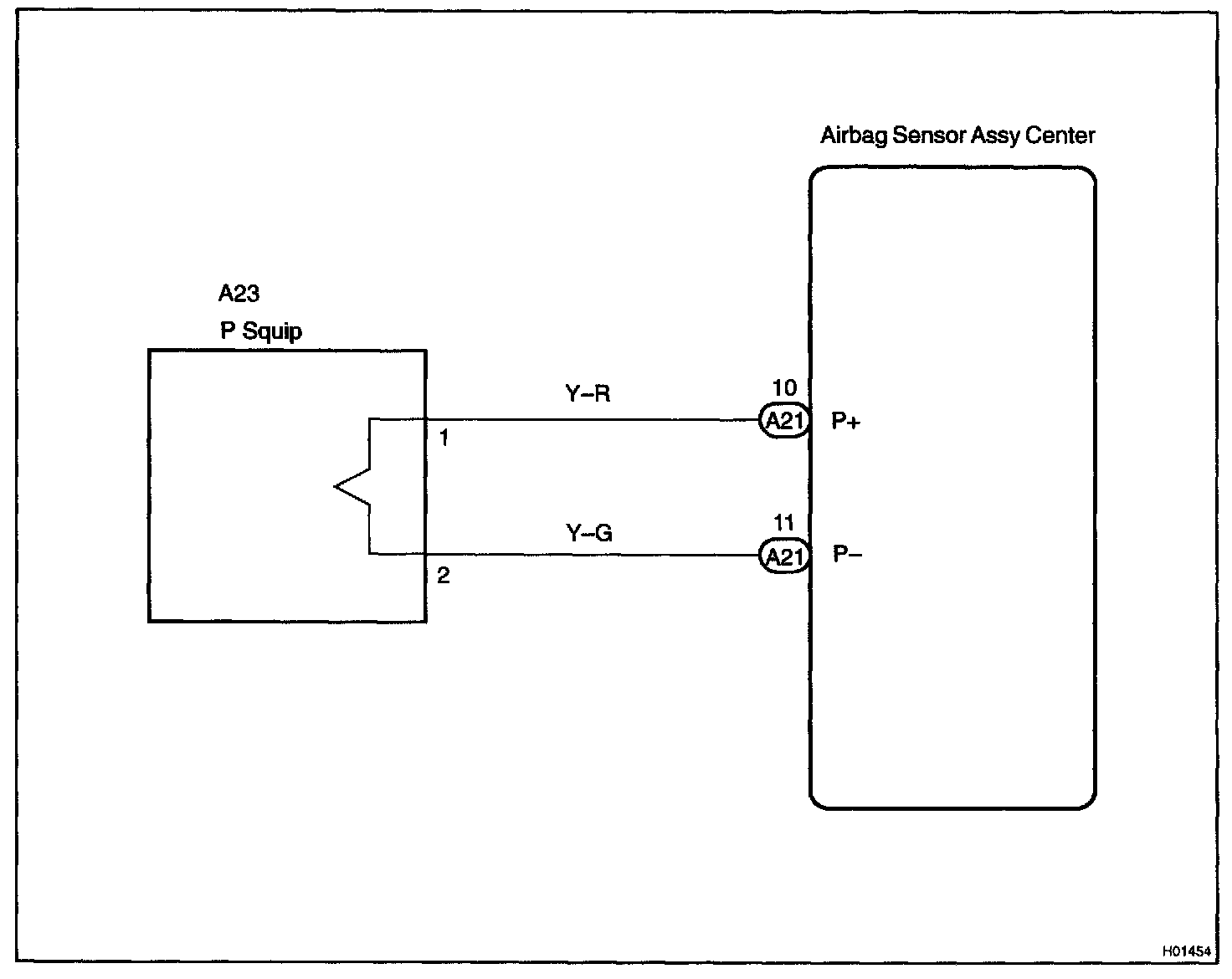

Wiring Diagram:

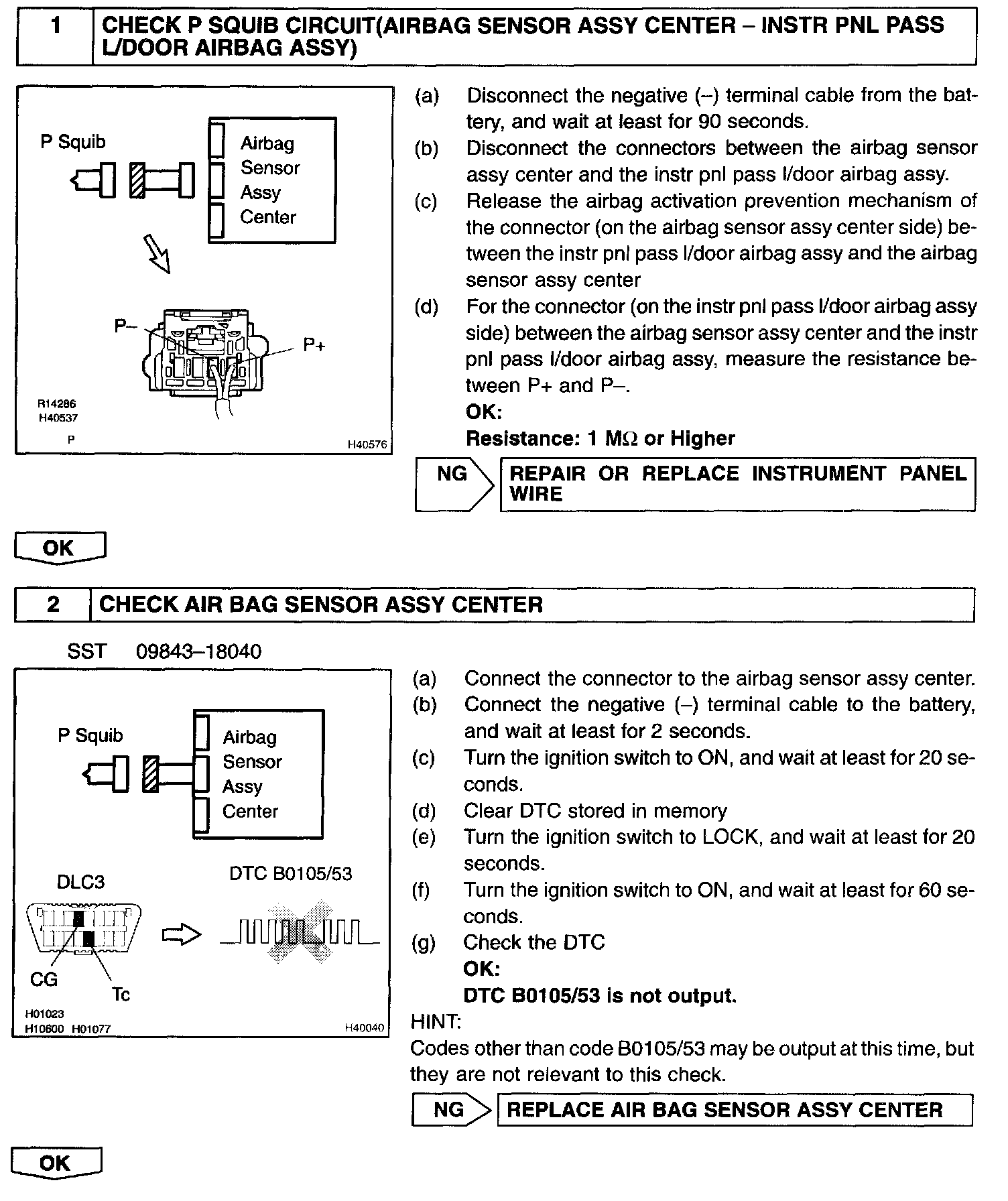

Step 1 - 2:

Step 3:

INSPECTION PROCEDURE
