B0102

DTC B0102 SHORT IN D SQUIB CIRCUIT (TO GROUND)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assy center, the spiral cable sub-assy and the horn button assy.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
DTC B0102/11 is recorded when a ground short is detected in the D squib circuit.

Wiring Diagram:

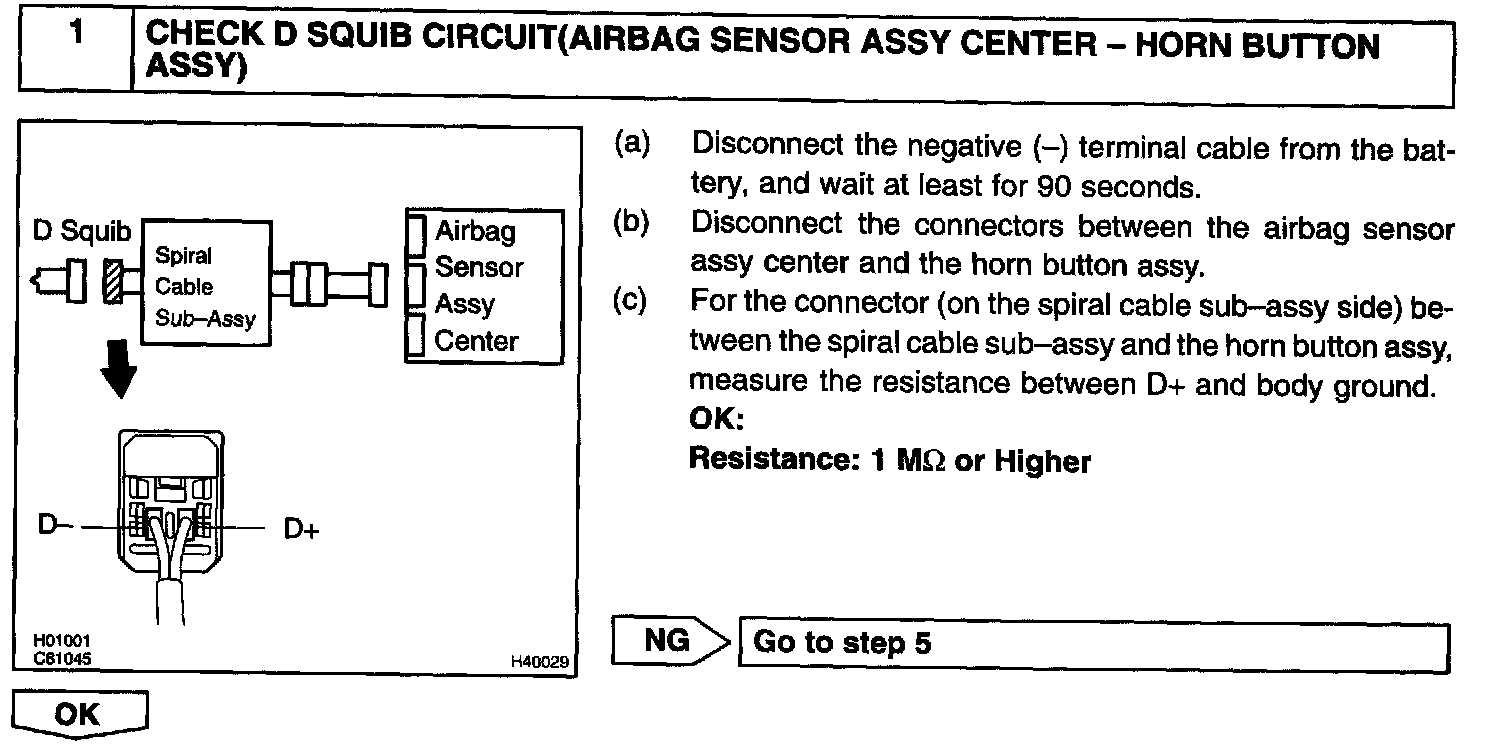

Step 1:

Step 2:

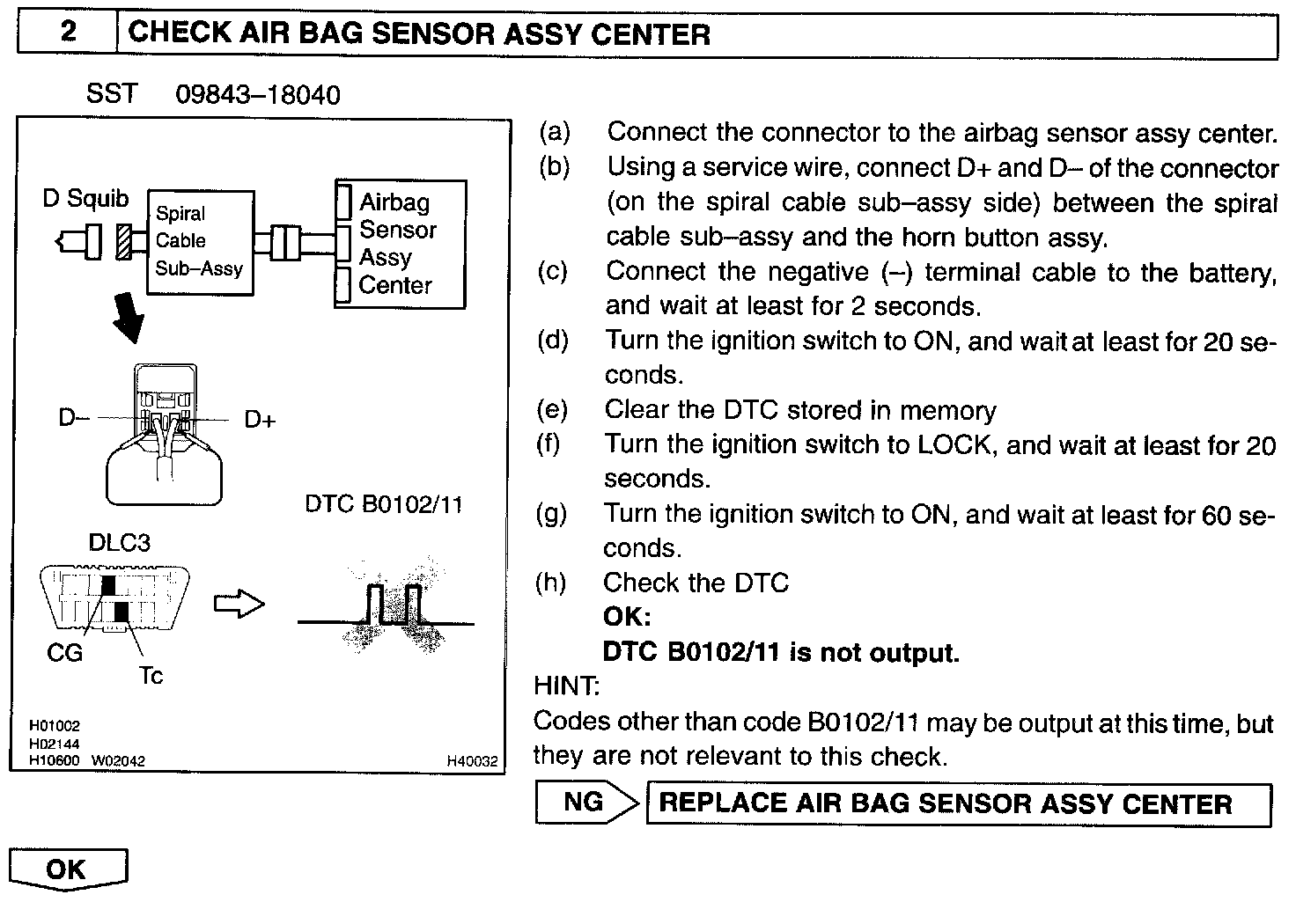

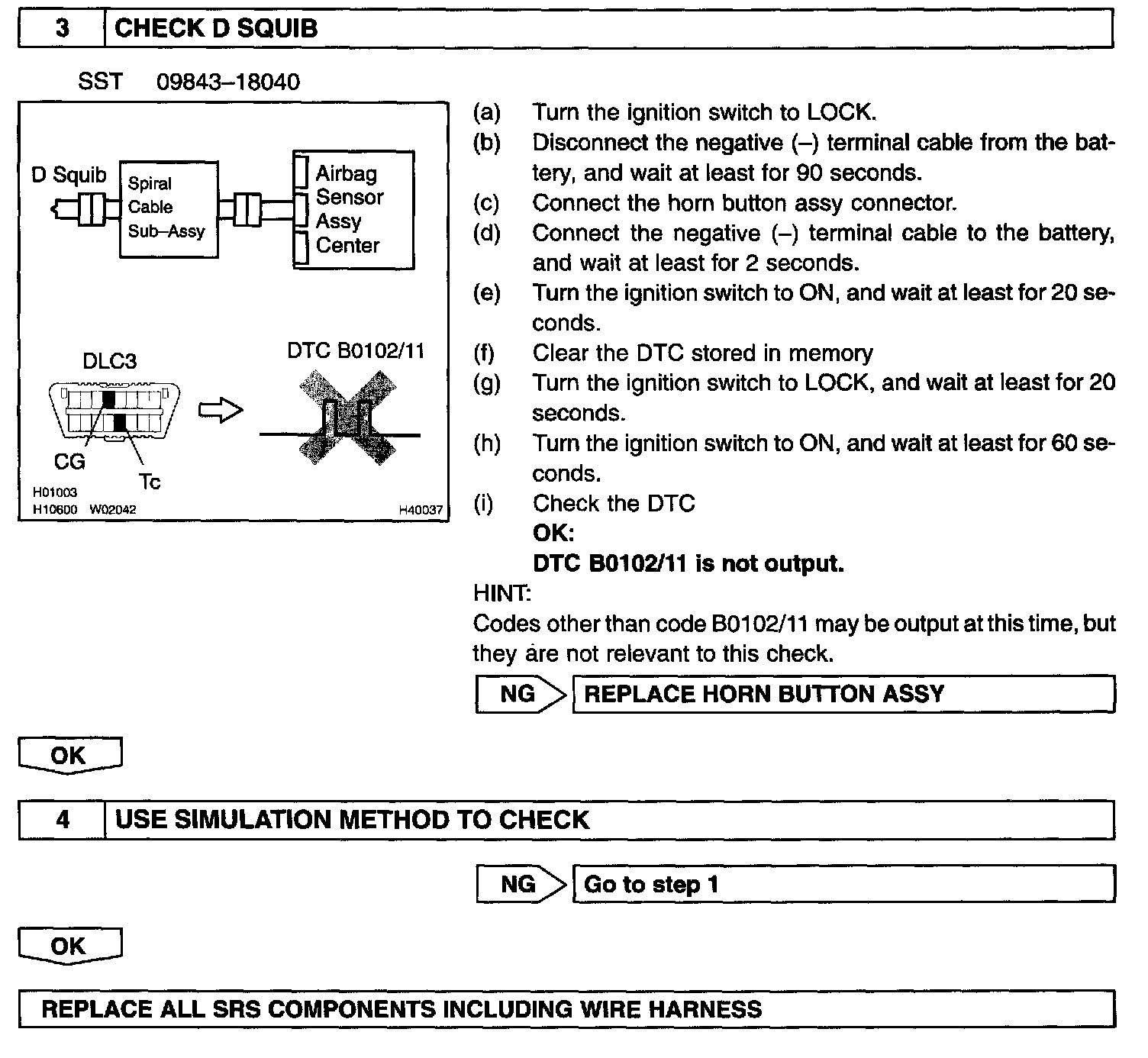

Step 3 - 4:

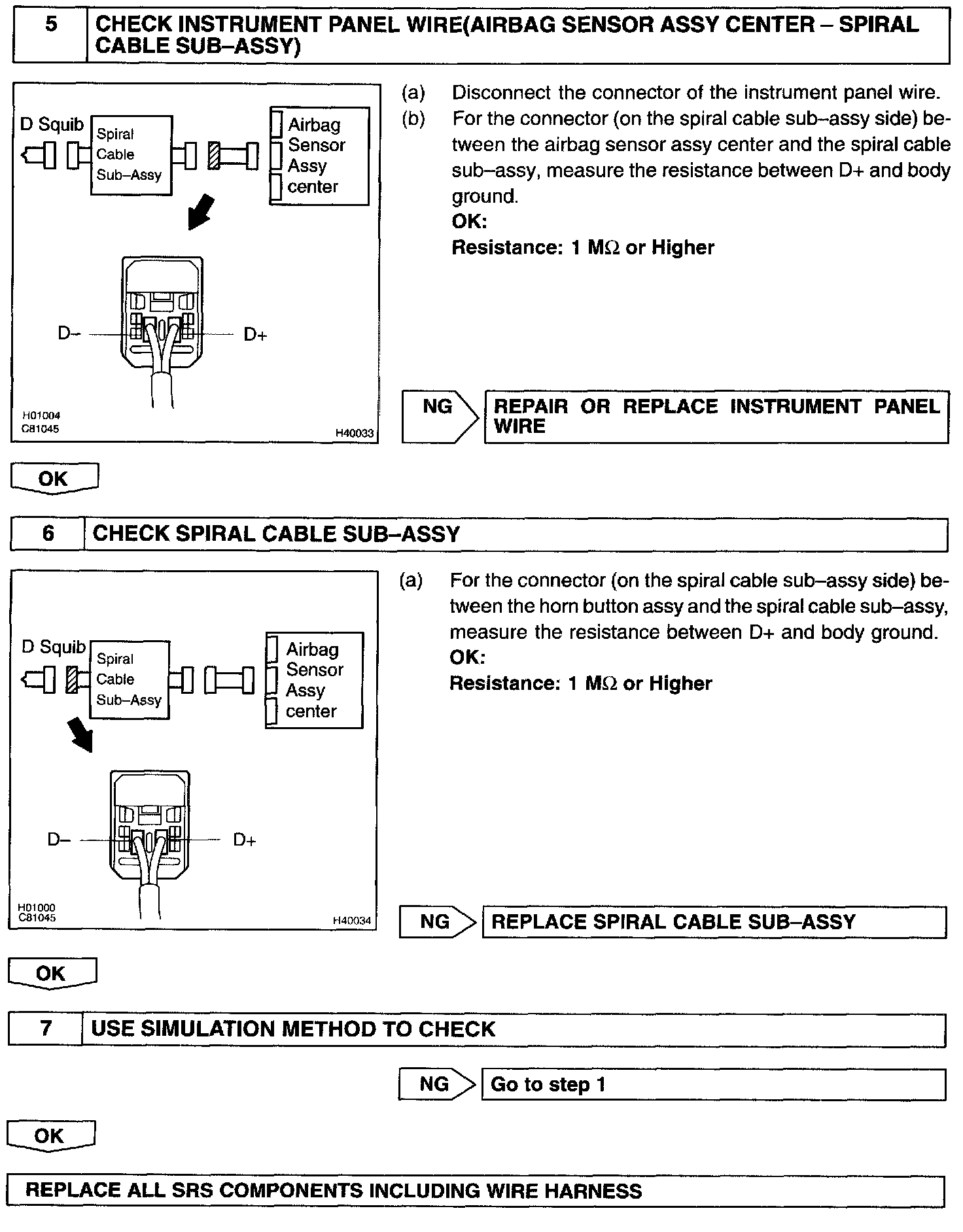

Step 5 - 7:

INSPECTION PROCEDURE
