Without Scan Tool

Clear the DTC

In case of not using LEXUS hand-held tester
Clear the DTC.

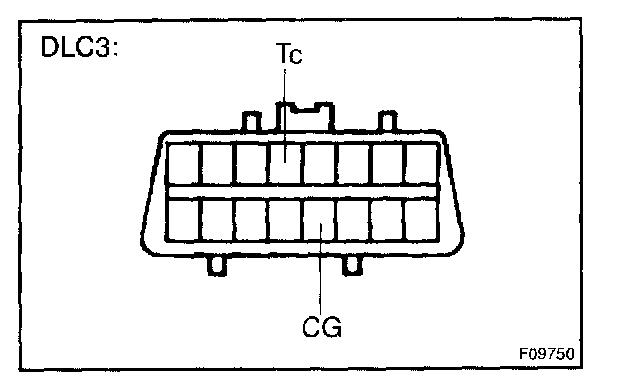

1. Using SST, connect terminals Tc and CG of the DLC3.

SST 09843-18040

2. Turn the ignition switch ON.

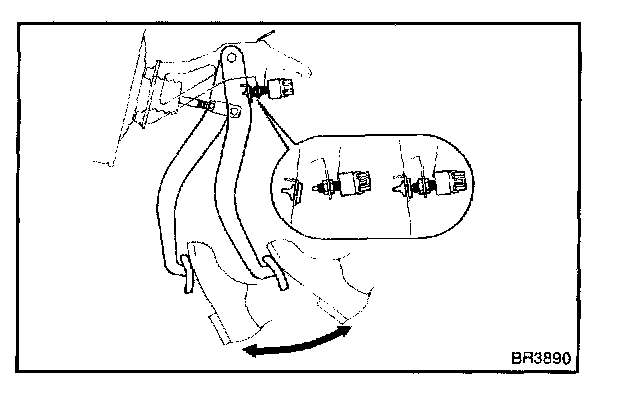

3. Clear the DTC stored in ECU by depressing the brake pedal 8 or more times within 5 seconds.

NOTE: By completing the above operation, the DTC of the ABS, TRAC and VSC will be cancelled out.

4. Check that the indicator light shows the normal code.
5. Remove the SST from the terminals of the DLC3.

SST 09843-18040
