Damping Force Controlling Condition Check

DAMPING FORCE CONTROLLING CONDITION CHECK

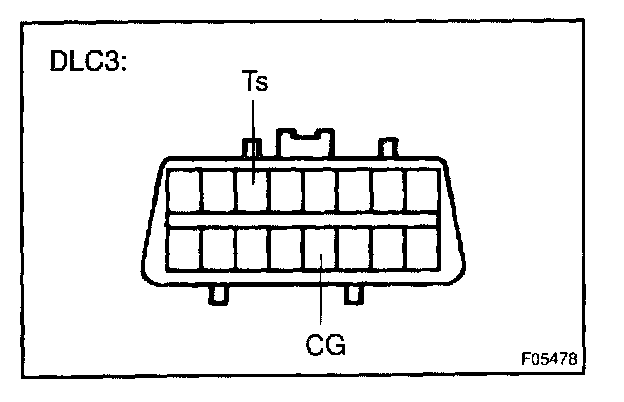

a. Using SST connect terminals Ts and CG of the DLC3.

SST 09843-18040

b. Turn the ignition switch ON.
c. Check that the damping force changes from soft to hard, when the absorber control switch is turned ON and OFF, while each corner of the vehicle is swung up and down.

HINT:
- When terminals Ts and CG of the DLC3 are connected the absorber control indicator light blinks by 1 Hz.
- When the absorber control indicator light does not flash, check the Ts terminal of DLC3 circuit.

d. Turn the ignition switch OFF, remove SST from the terminals of the DLC3.
