Home >> Lexus >> 2003 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Component Tests and General Diagnostics >> Absorber Control Indicator Light Circuit

Absorber Control Indicator Light Circuit

CIRCUIT DESCRIPTION

If the ECU detects trouble, it lights the absorber control indicator and at the same time prohibits suspension control At this time, ECU records DTC in memory.

Wiring Diagram:

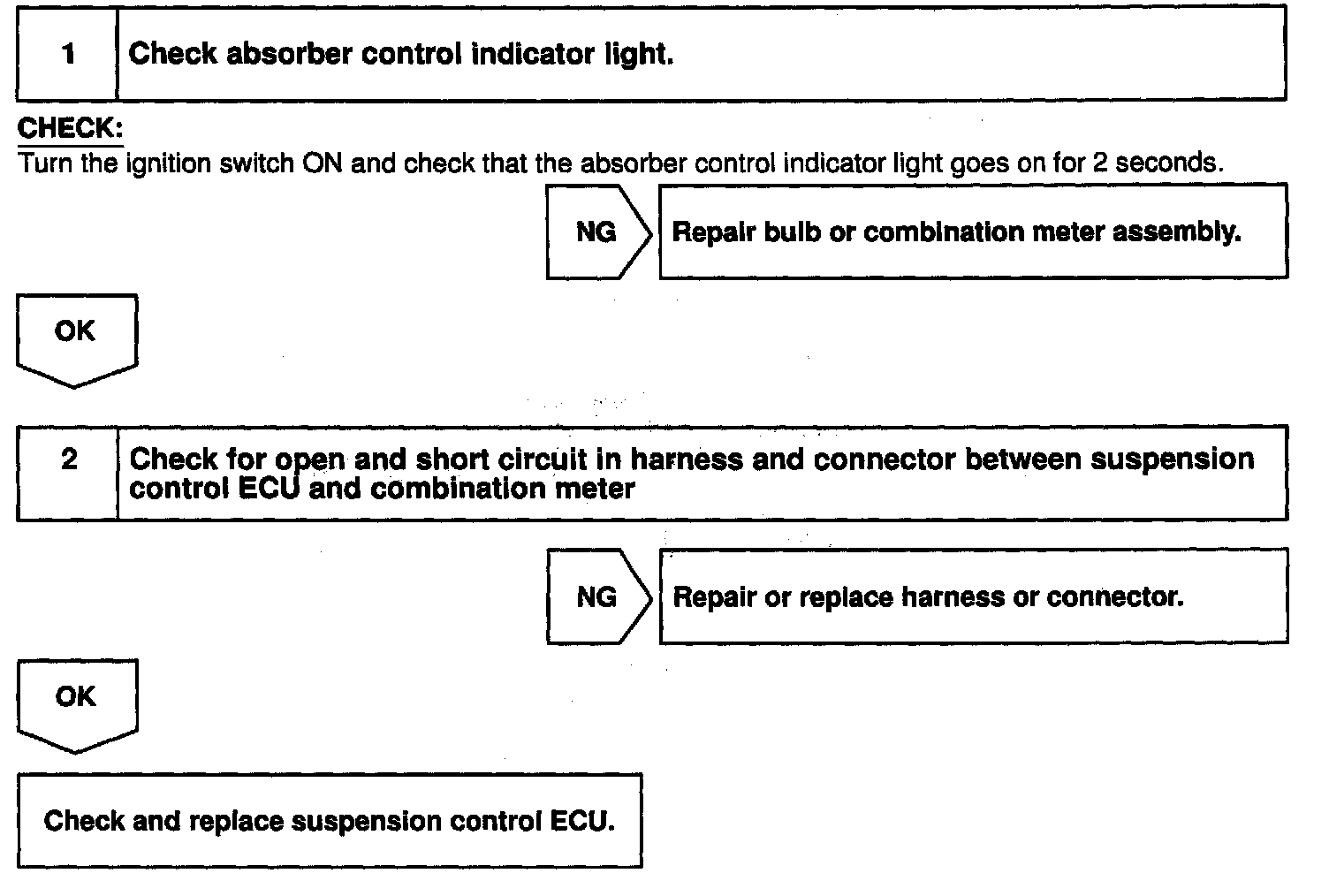

Step 1 - 2:




INSPECTION PROCEDURE
