Home >> Lexus >> 2003 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Parking Assist Control Module >> Locations

Parking Assist Control Module: Locations

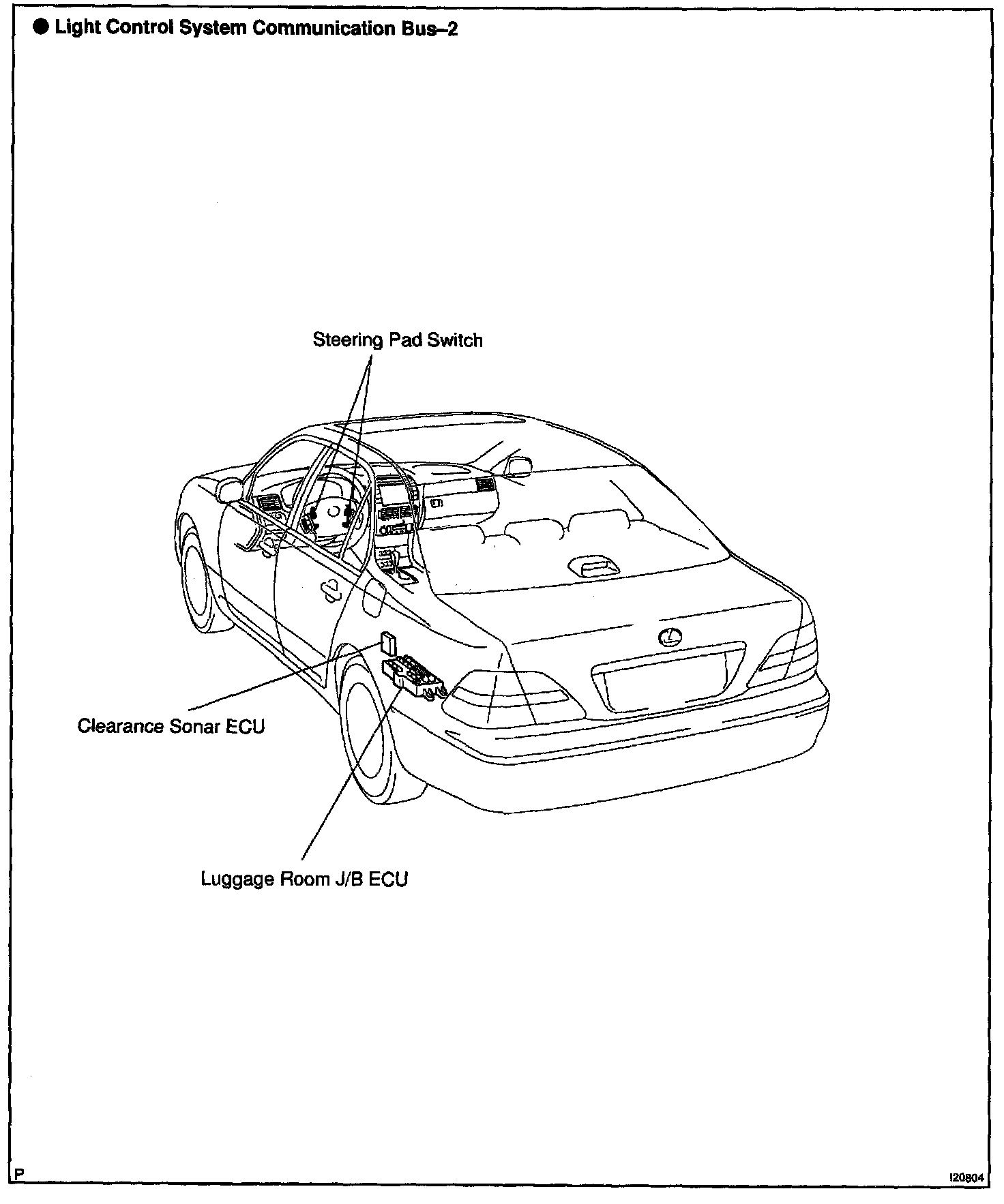

Gateway System:

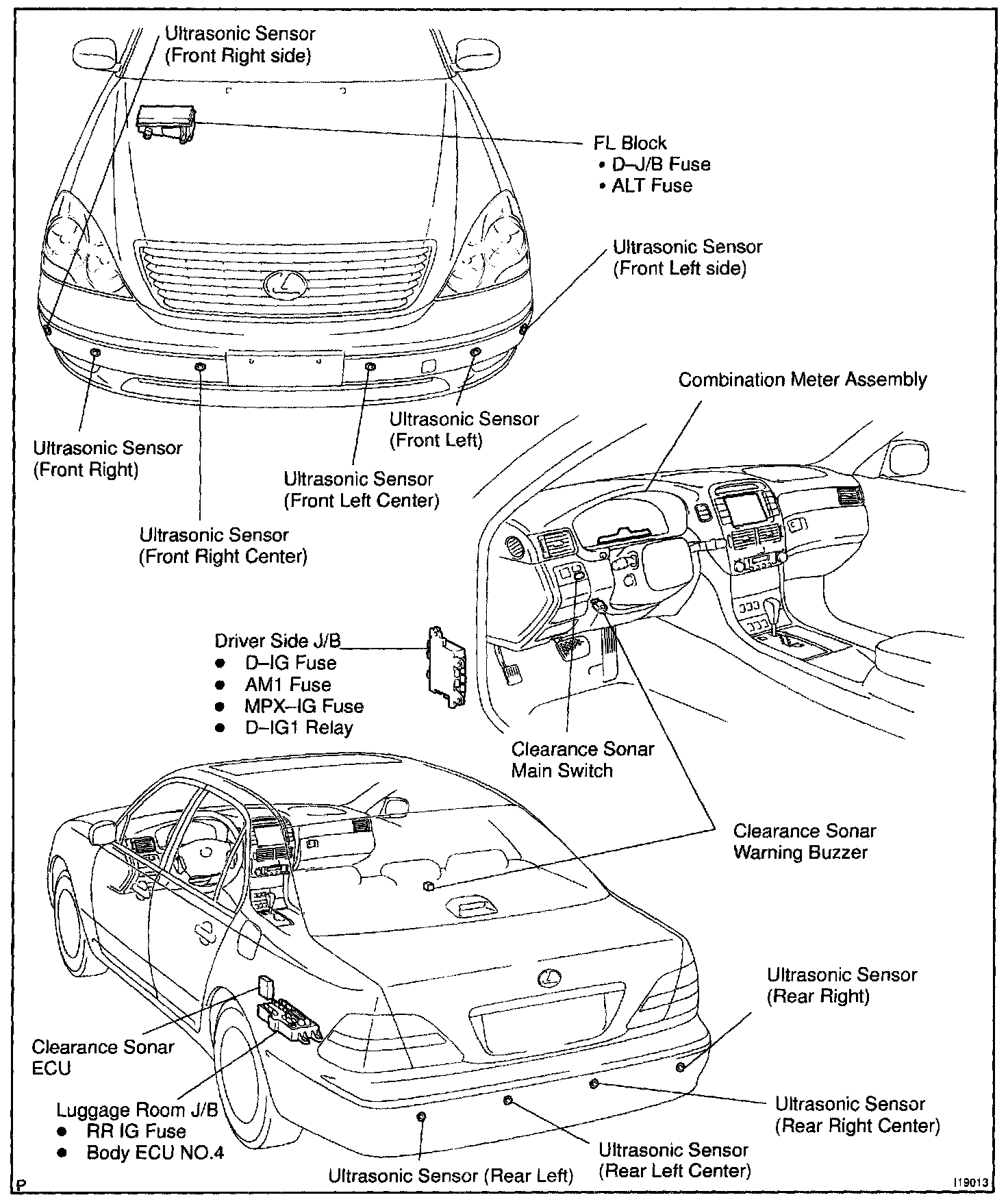

Lexus Park Assist System:



Body:



A/C - Fu:
