Variable Induction Control Valve: Locations

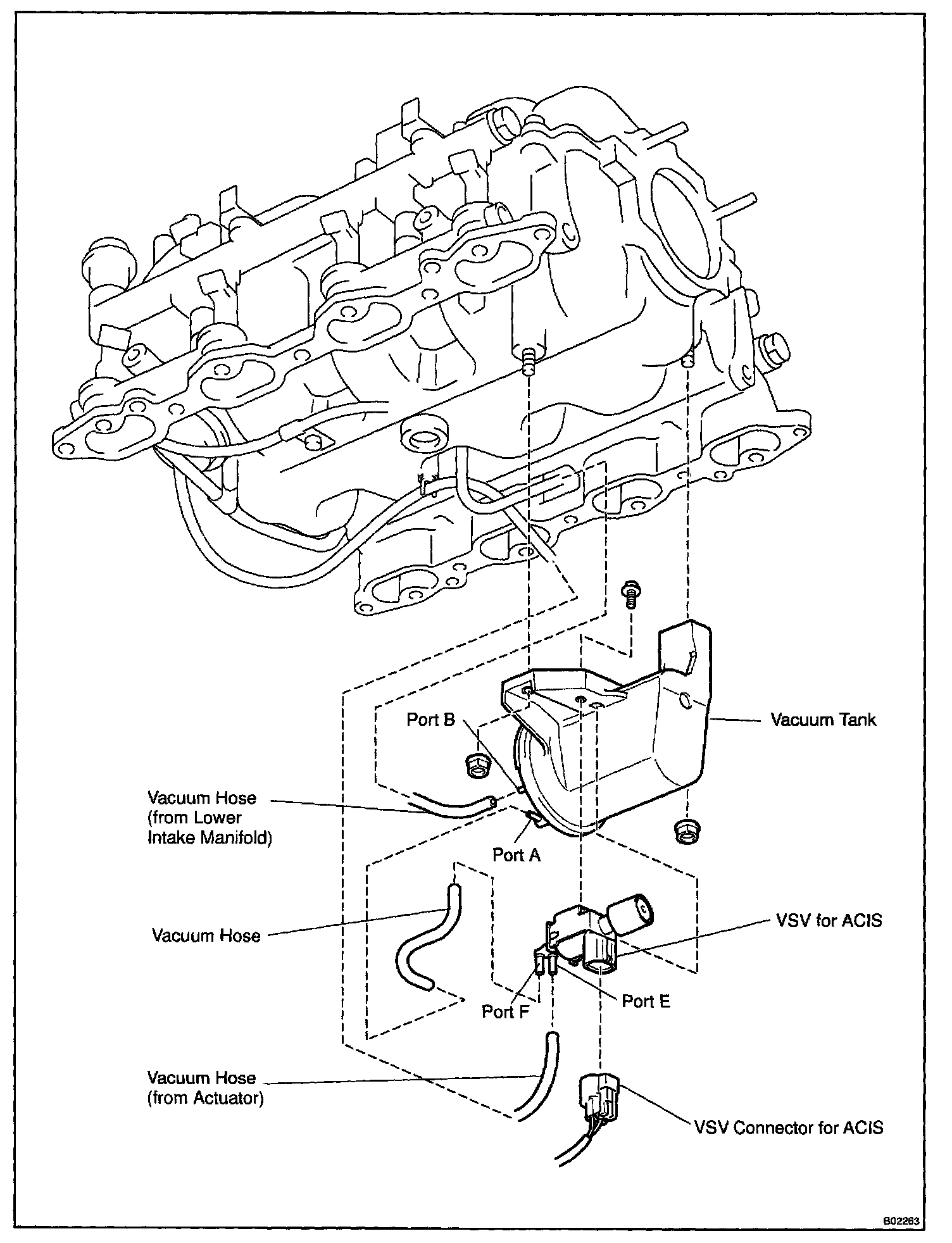

Acoustic Control Induction System (ACIS) Part 1:

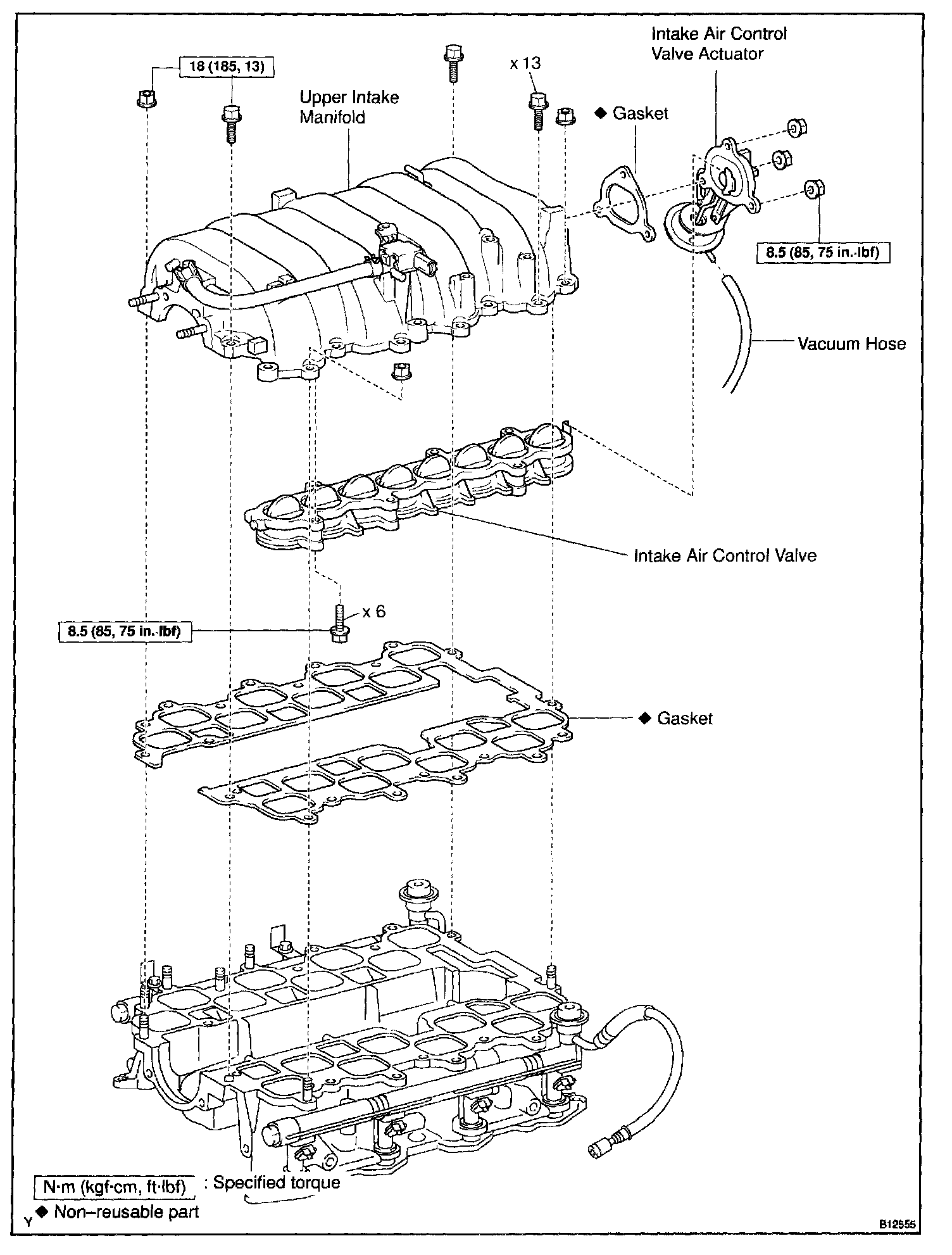

Acoustic Control Induction System (ACIS) Part 2:

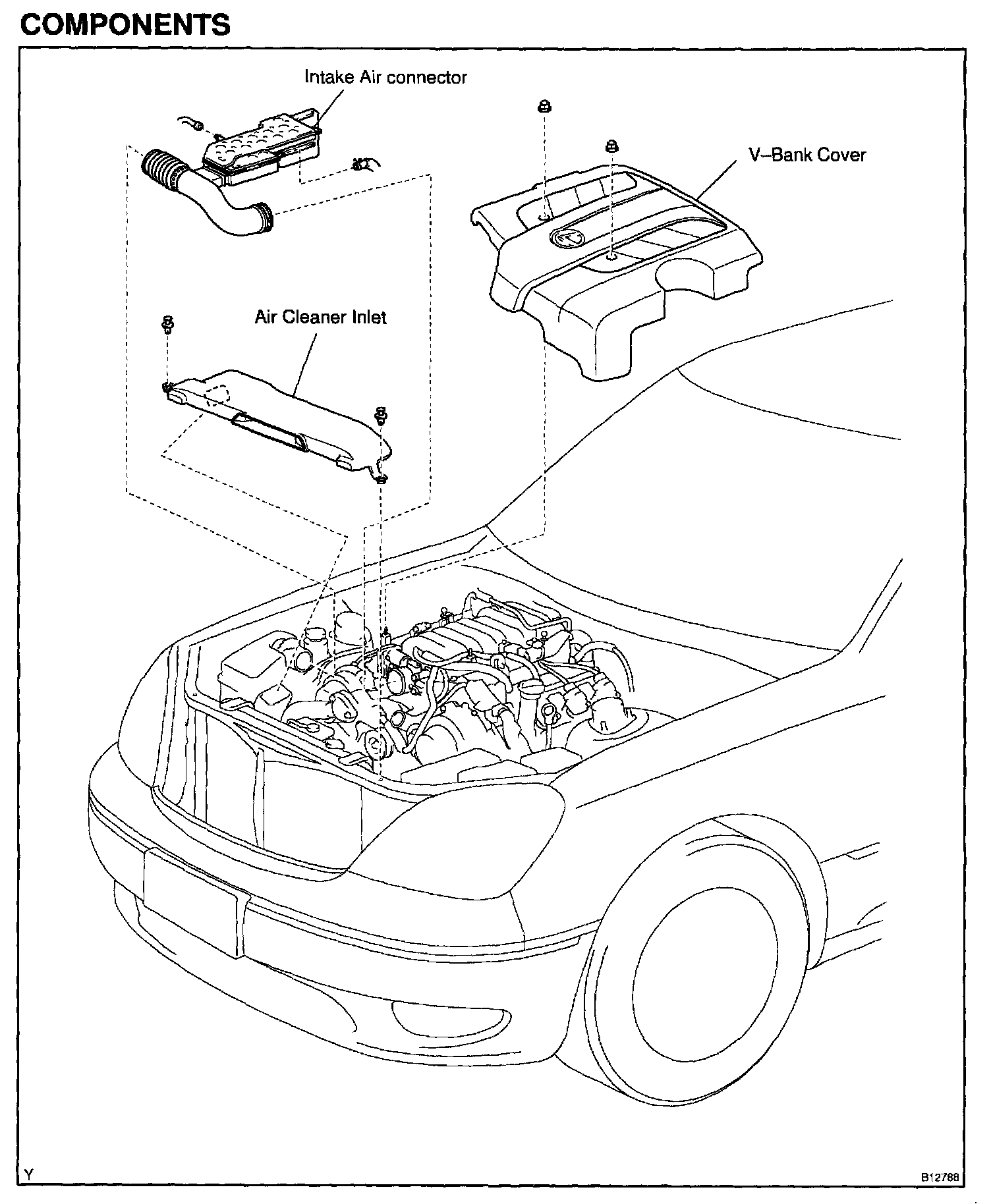

Acoustic Control Induction System (ACIS) Part 3:



Acoustic Control Induction System (ACIS) Part 4:
