Fail-Safe Operation
Fail-Safe Operation

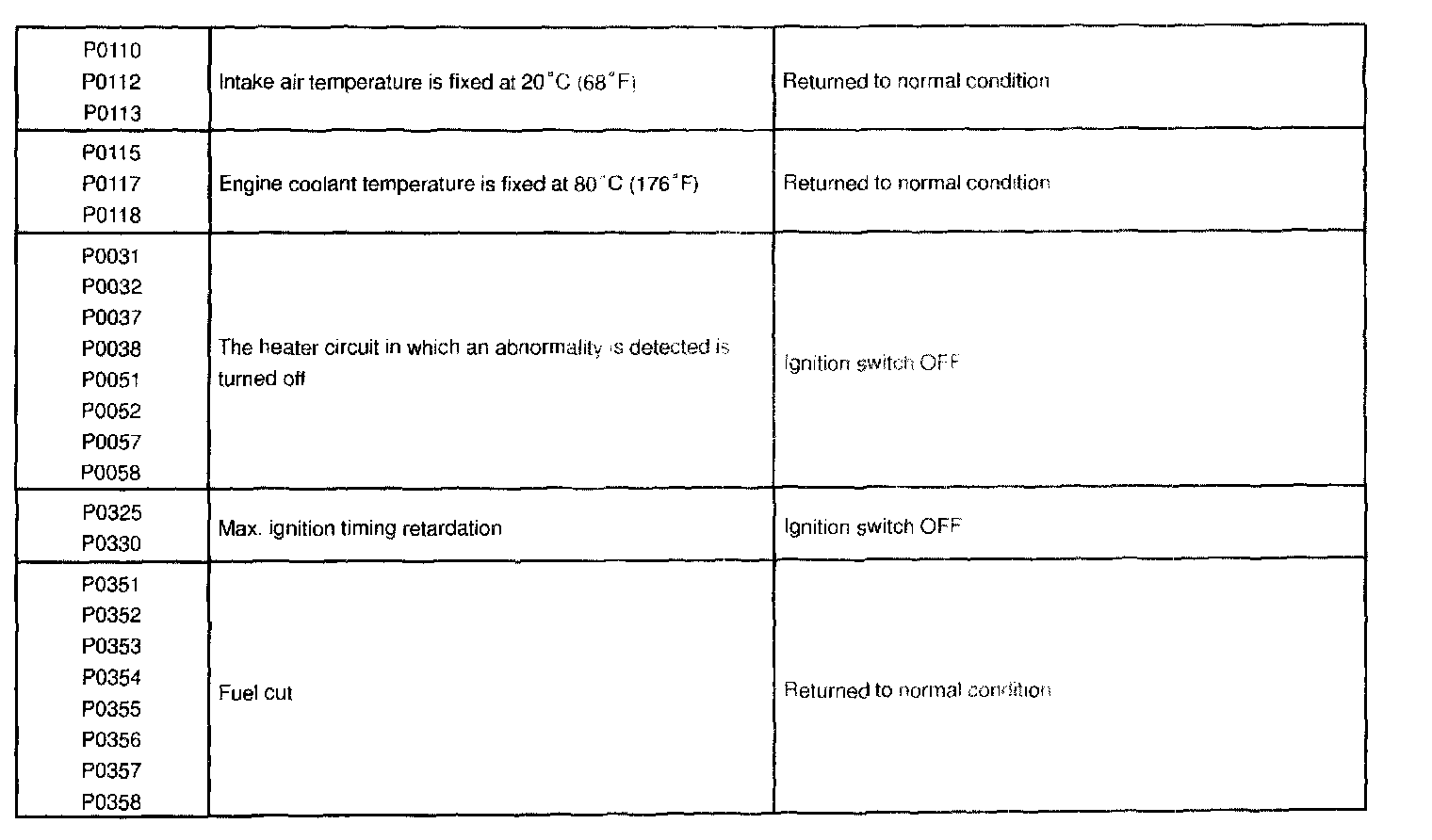

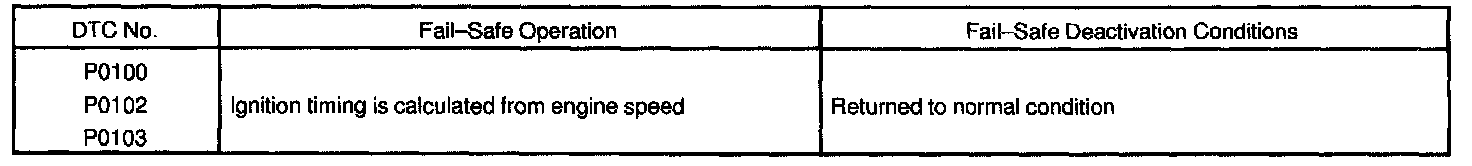

FAIL-SAFE CHART
Part 1:
Part 2:
If any of the given codes is recorded, the ECM enters fail-safe mode.
