Home >> Lexus >> 2003 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Related Tests, Information and Procedures

Related Tests, Information and Procedures

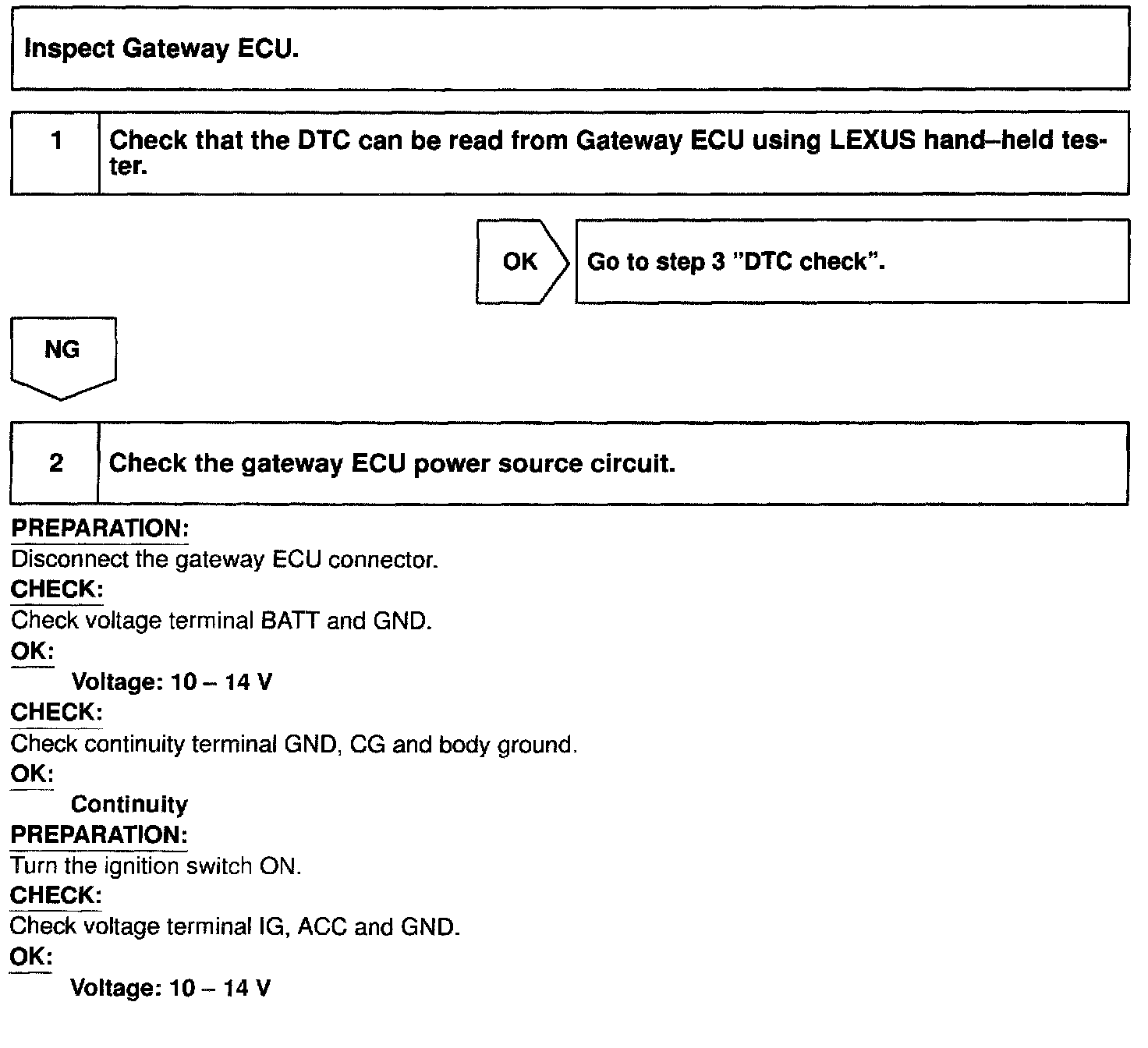

Step 1 - 2:

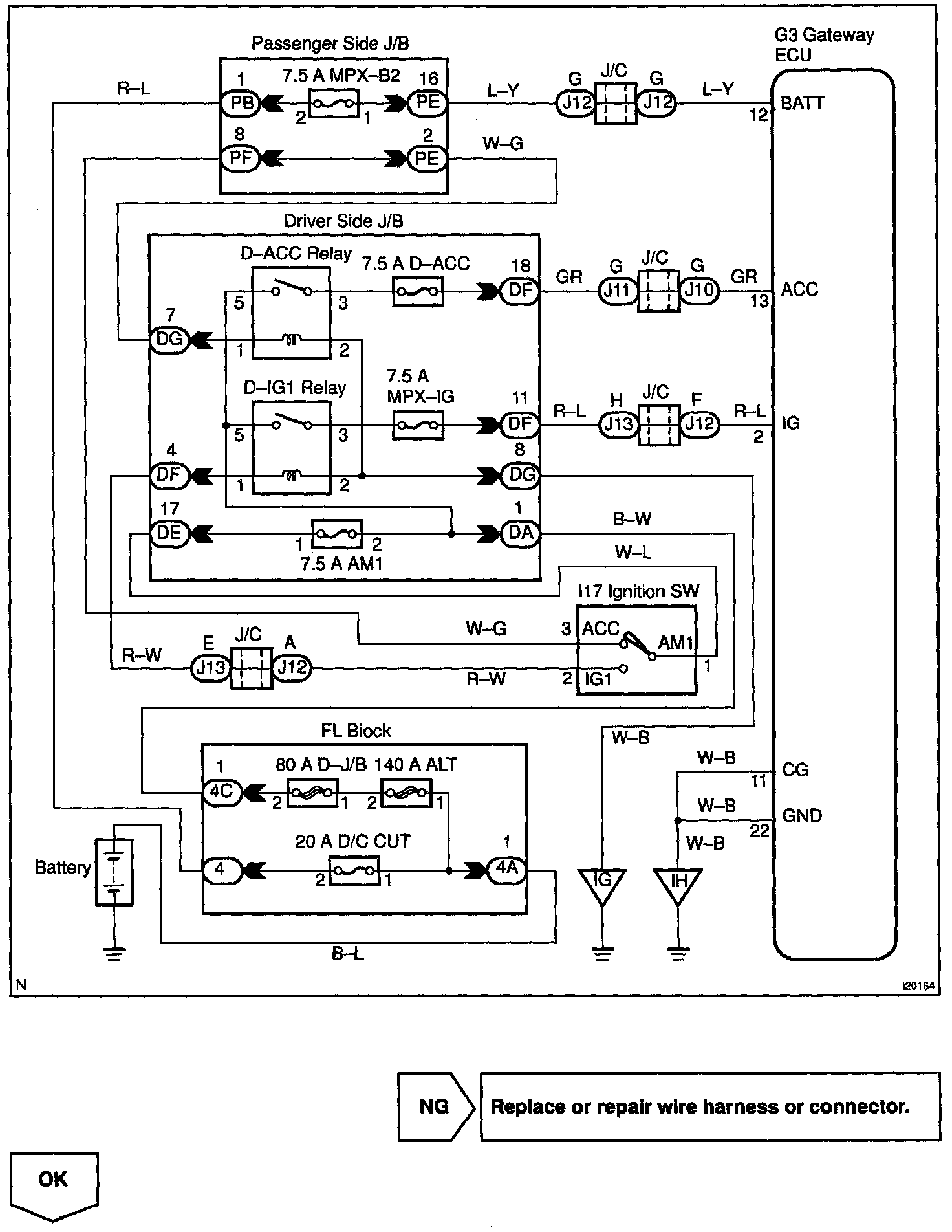

Step 2 (Cont'd):

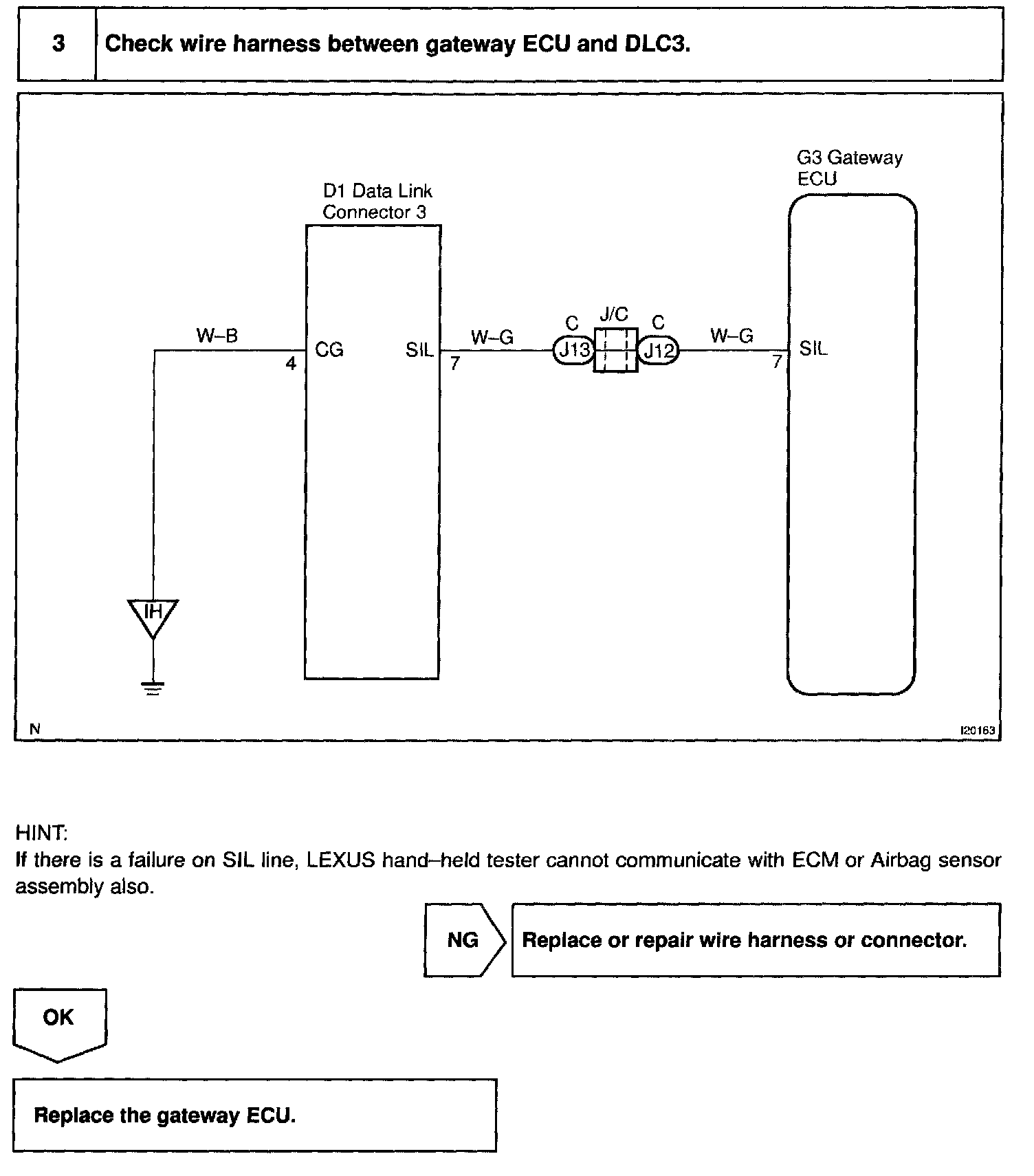

Step 3:




BASIC INSPECTION
