Speedometer

CIRCUIT DESCRIPTION

The combination meter is connected to the skid control ECU with the multiplex communication circuit

It receives the speed sensor signal from the skid control ECU to operate the speedometer

Step 1 - 2:

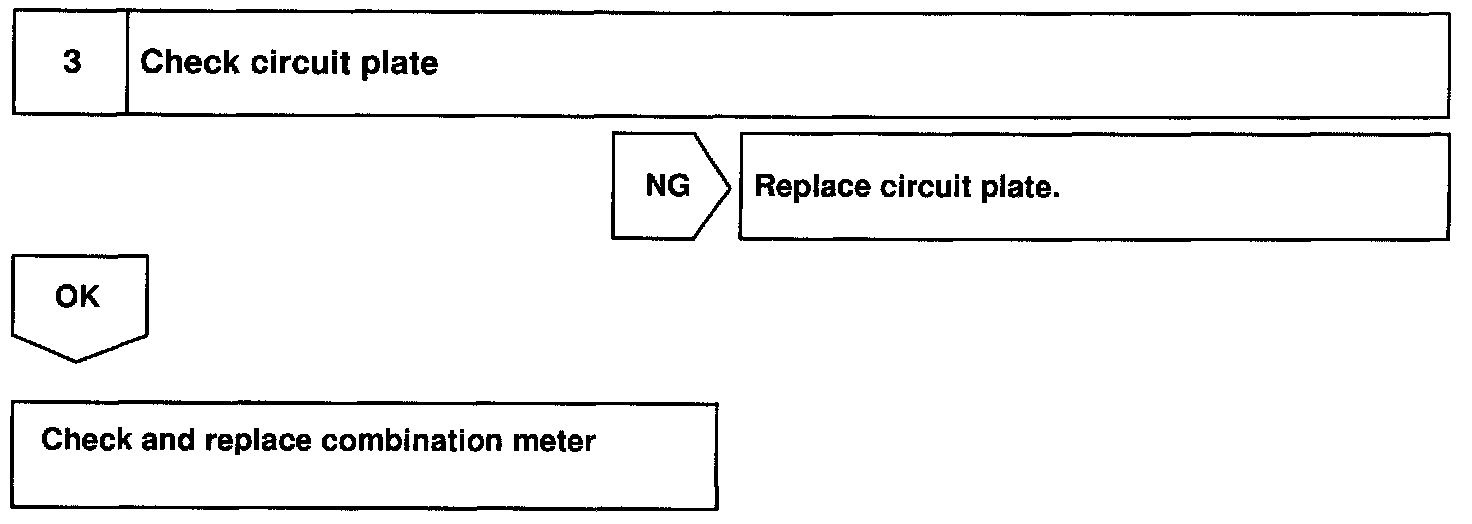

Step 3:

INSPECTION PROCEDURE

HINT: If there is not the LEXUS hand-held tester, begin with STEP 2.
