Water Valve Control Servomotor Circuit
CIRCUIT DESCRIPTIONThis circuit turns the servomotor and changes each mode damper position by the signals from the A/C ECU.

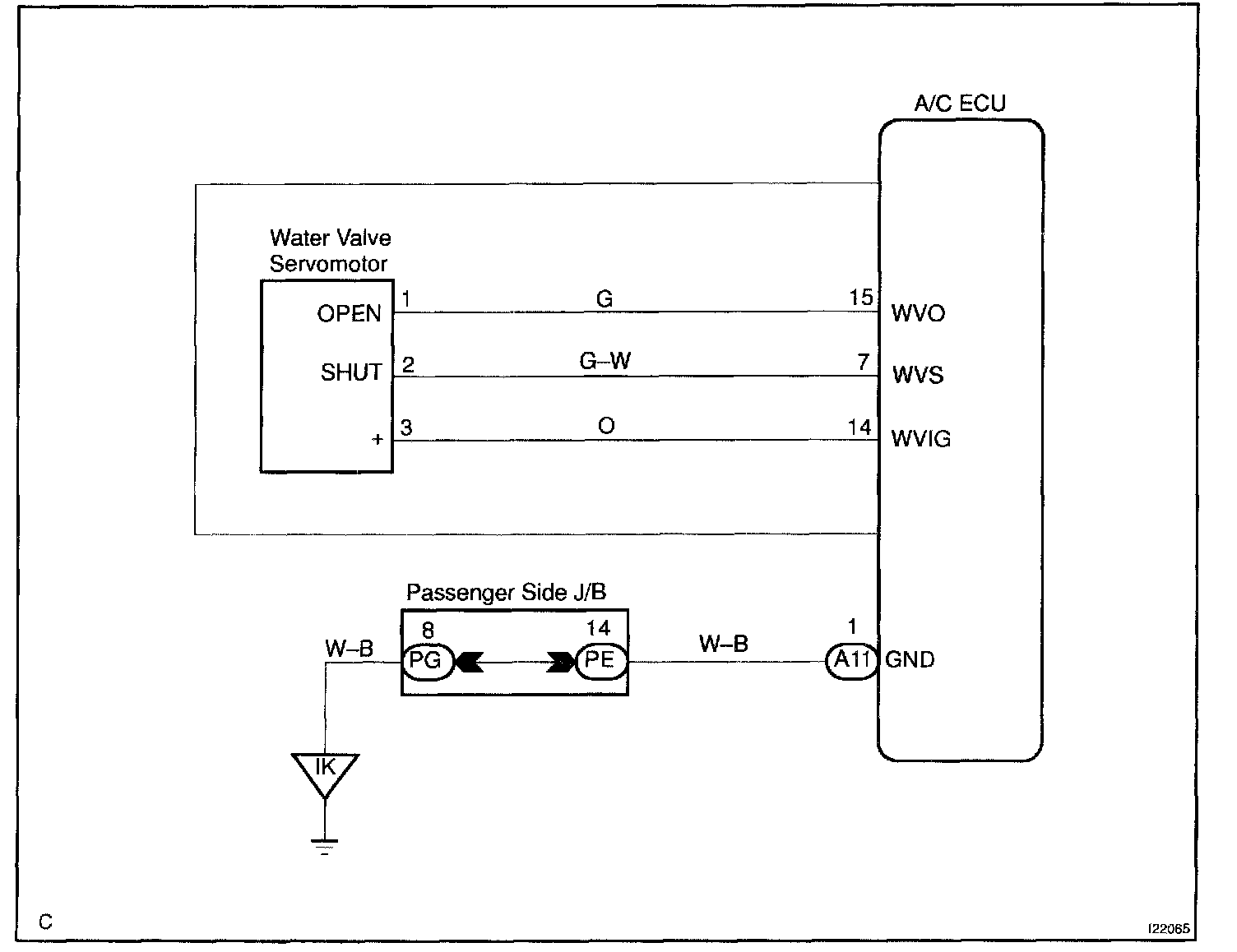

Wiring Diagram:

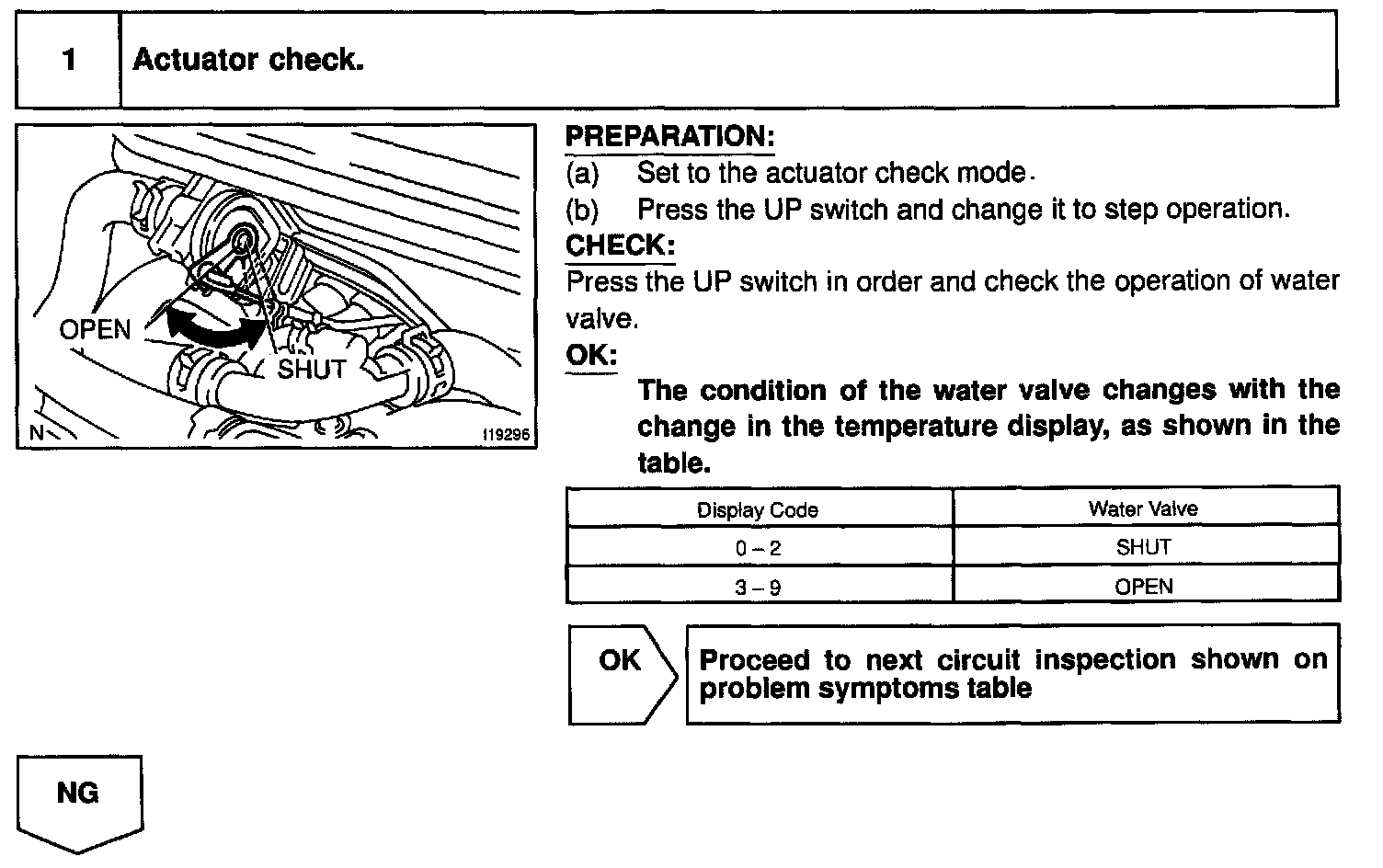

Step 1:
Step 2 - 3:

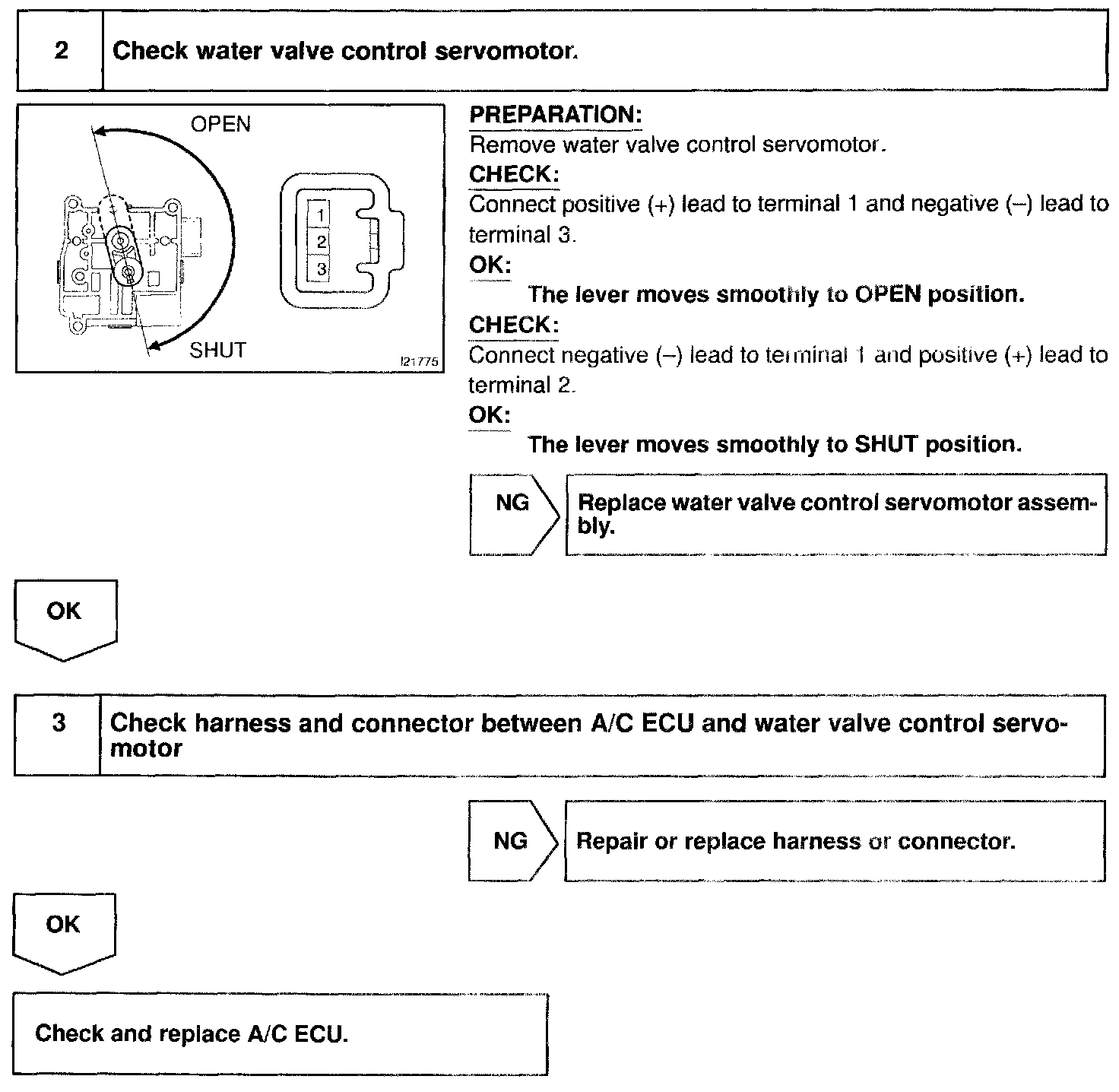

INSPECTION PROCEDURE
This circuit turns the servomotor and changes each mode damper position by the signals from the A/C ECU.
INSPECTION PROCEDURE
