Exhaust Damper Control Servomotor Circuit

CIRCUIT DESCRIPTION

The exhaust damper control servomotor is controlled by luggage room J/B ECU and moves the rear exhaust damper to the desired position.

Wiring Diagram:

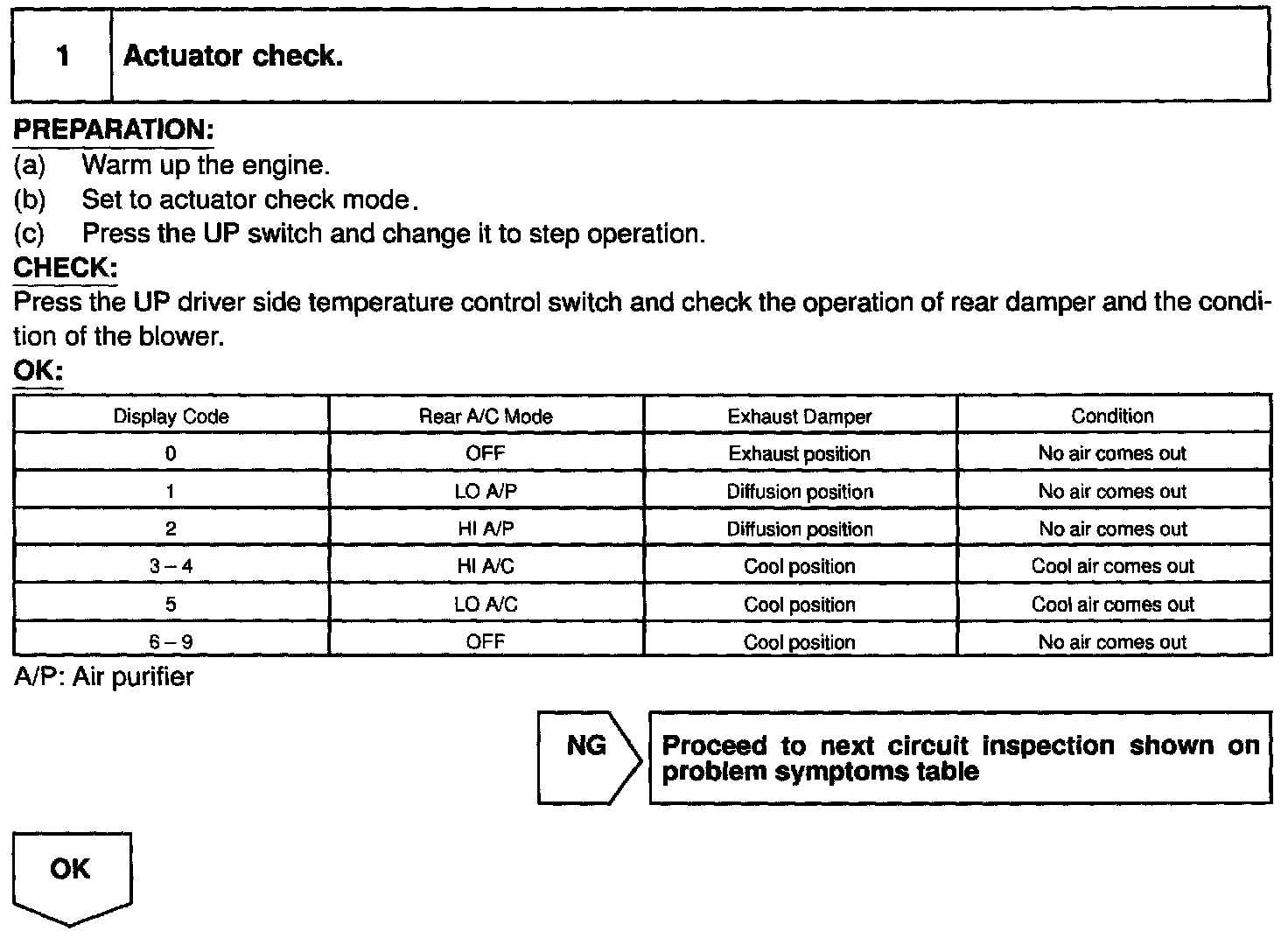

Step 1:

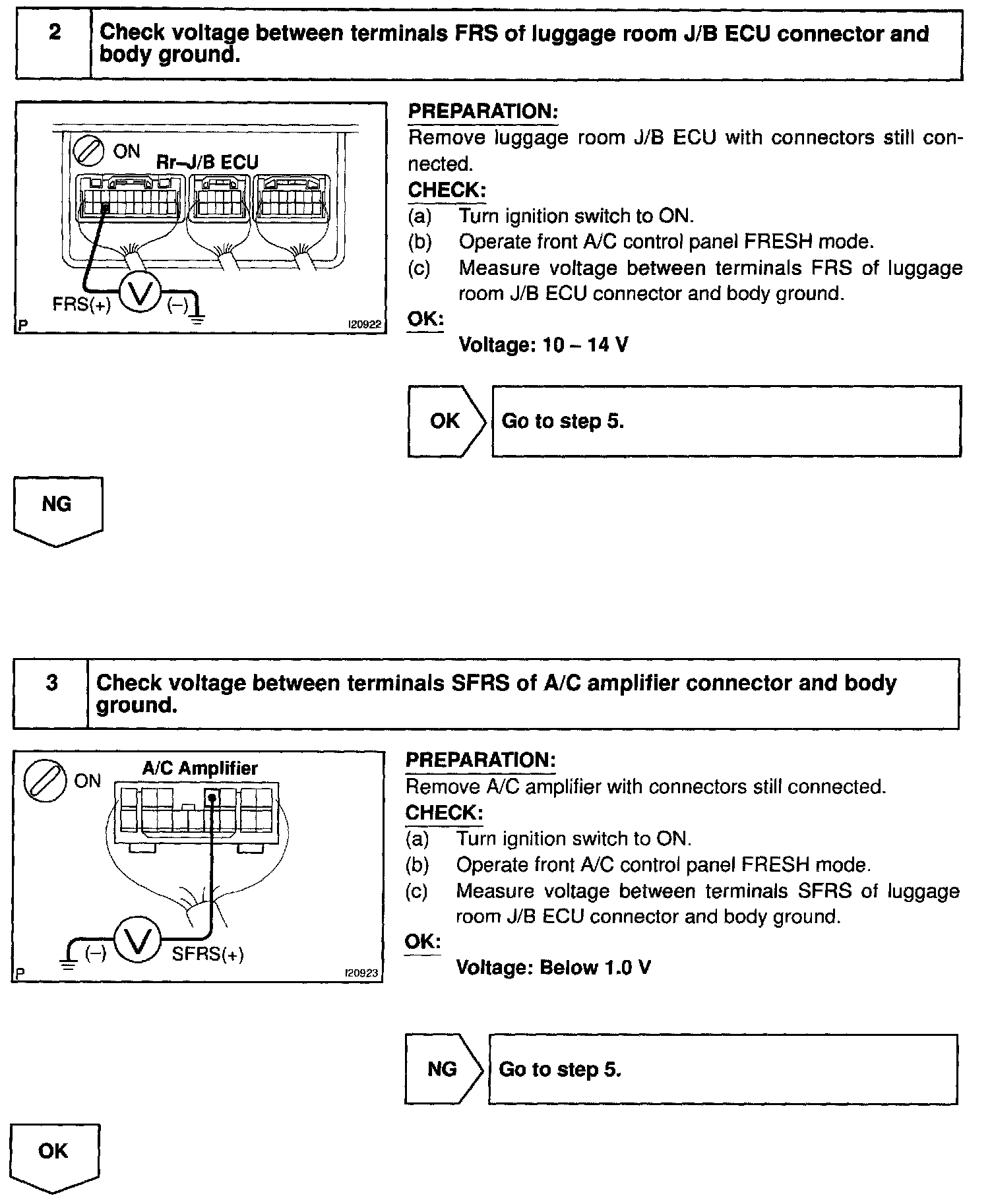

Step 2 - 3:

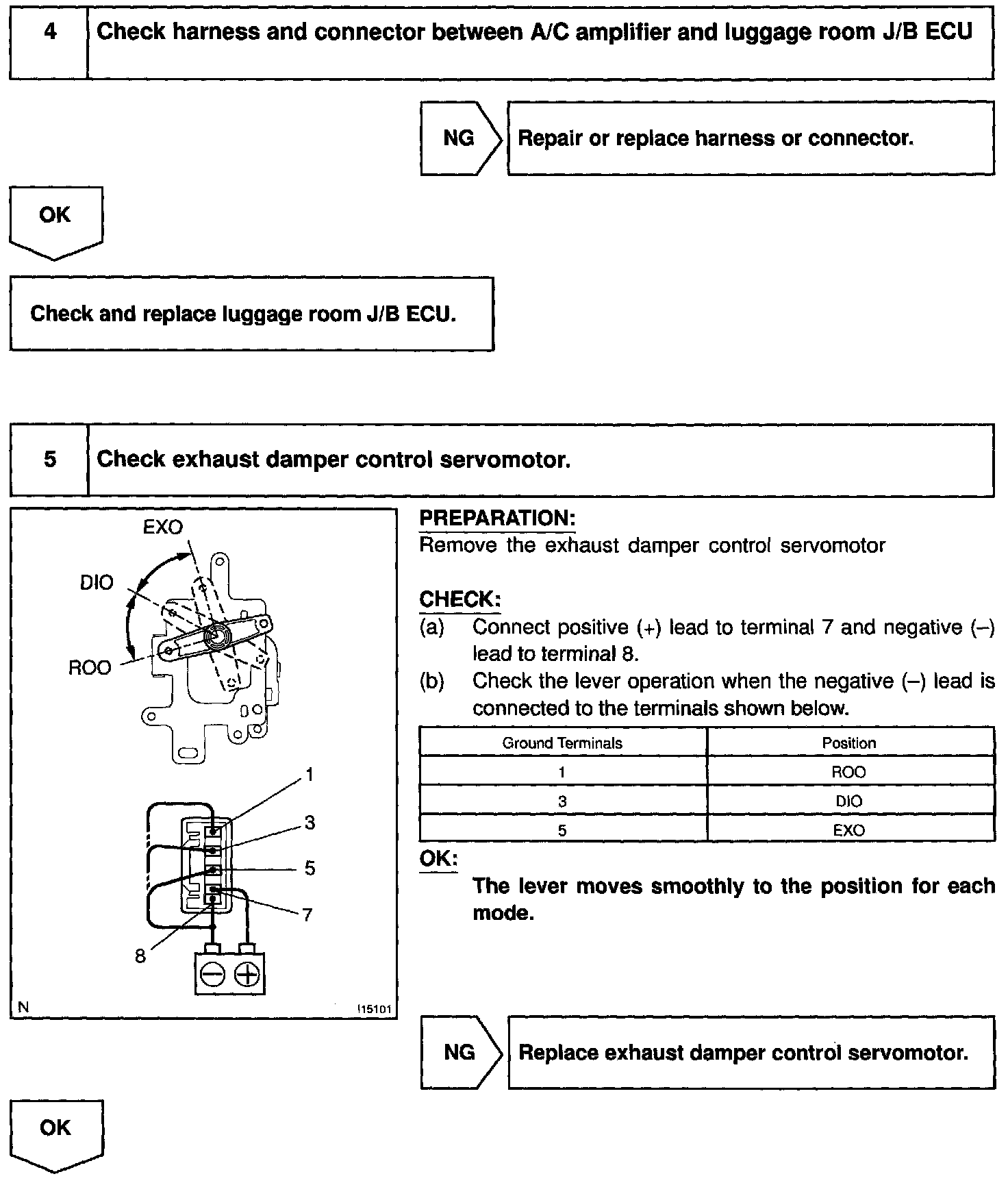

Step 4 - 5:

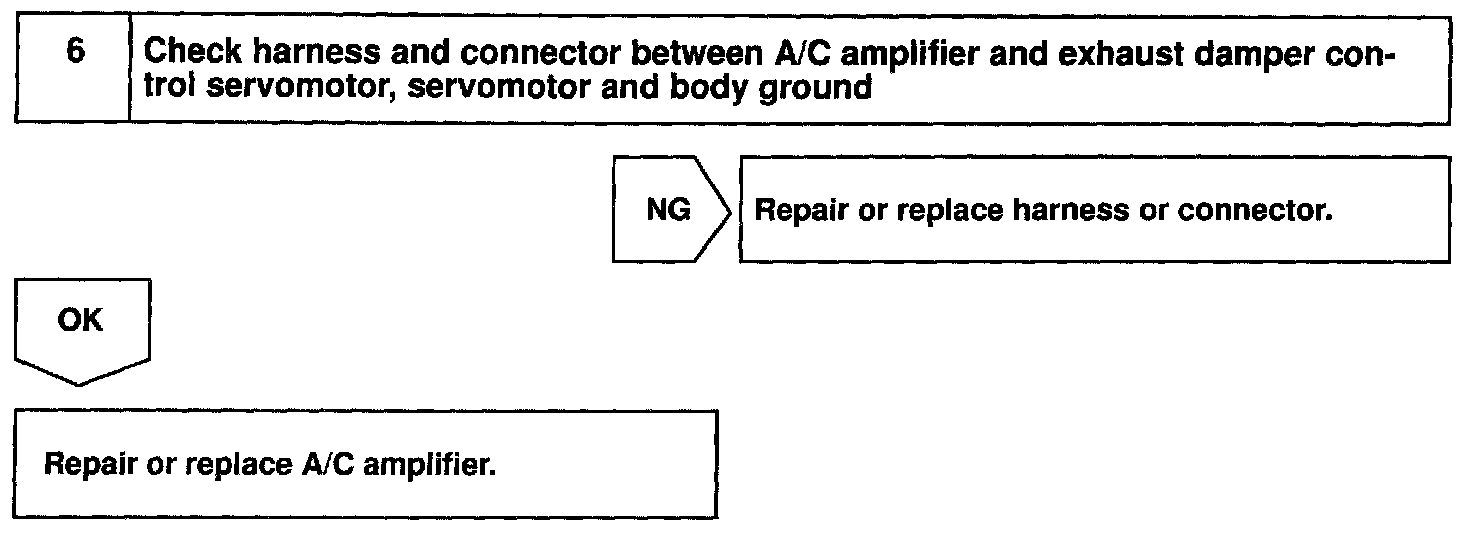

Step 6:

INSPECTION PROCEDURE
