Home >> Lexus >> 2003 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power and Ground Distribution >> Multiple Junction Connector

Multiple Junction Connector

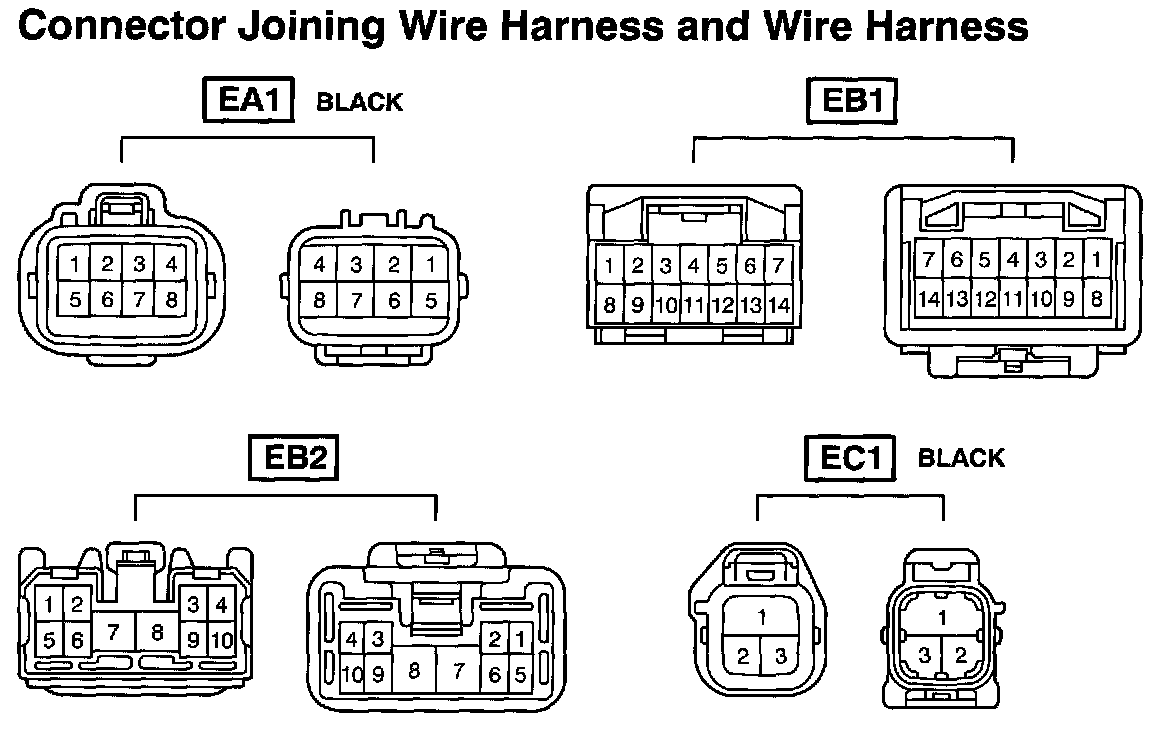

EA1 - EC1:

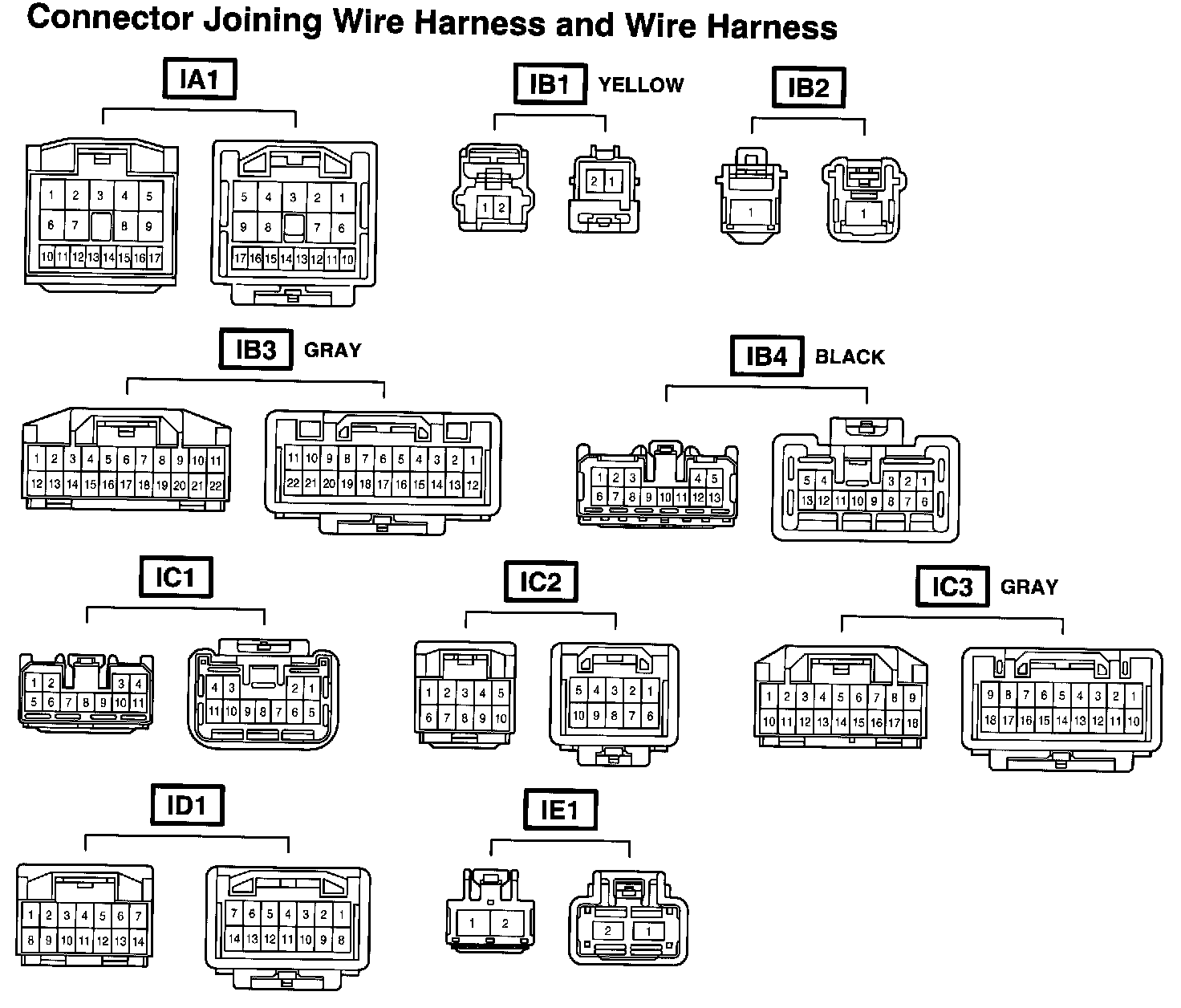

IA1 - IE1:

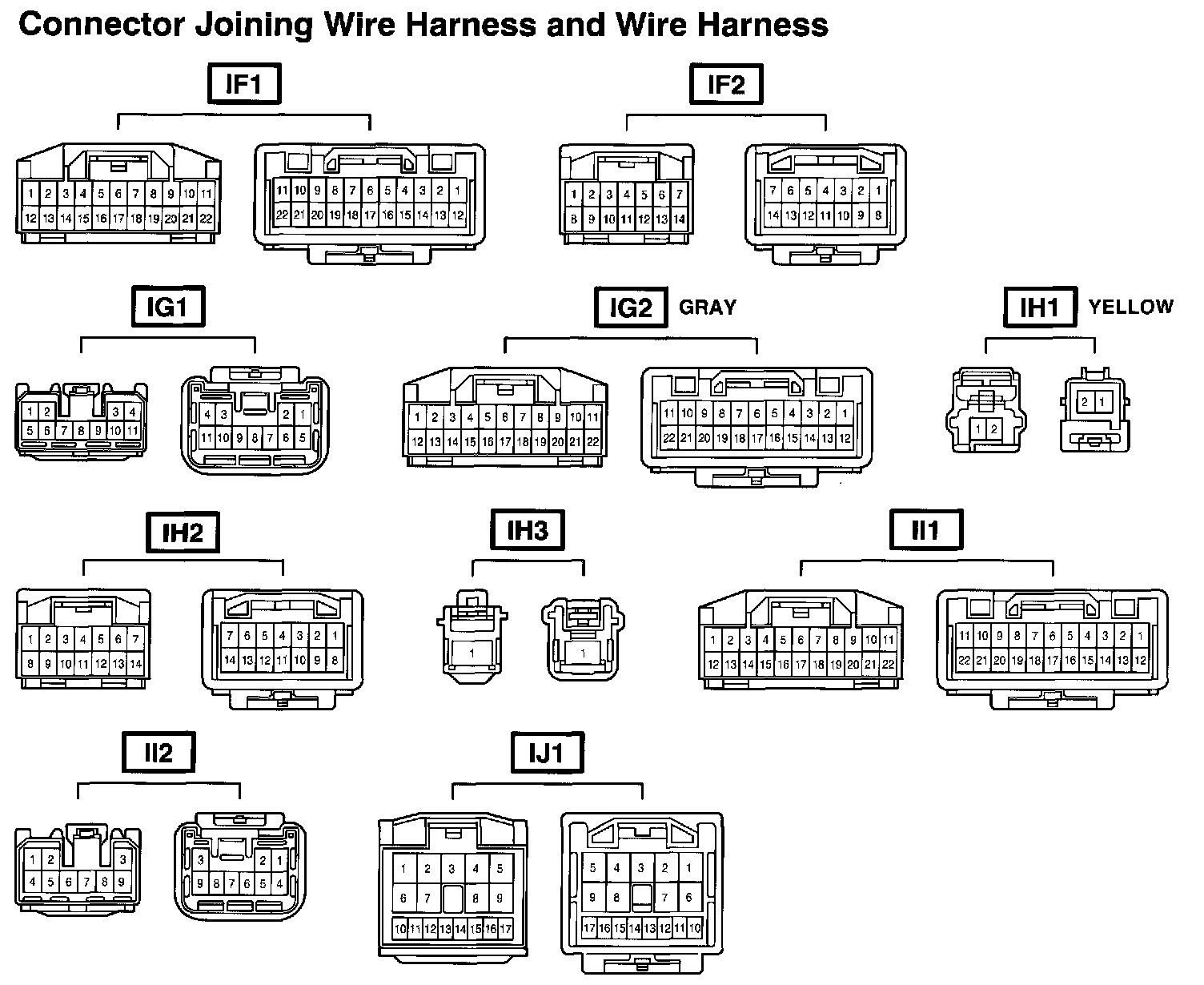

IF1 - IJ1:

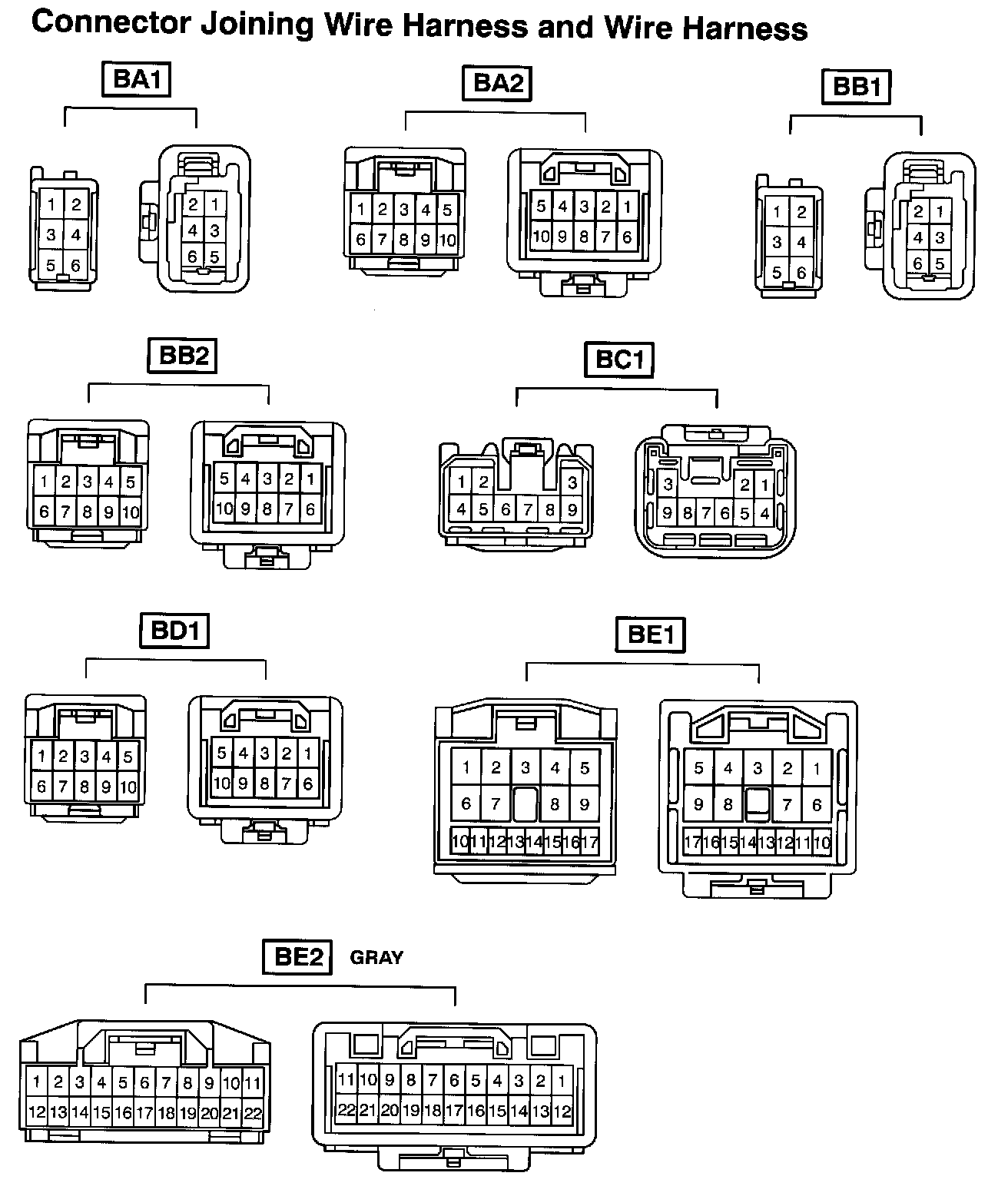

BA1 - BE2:

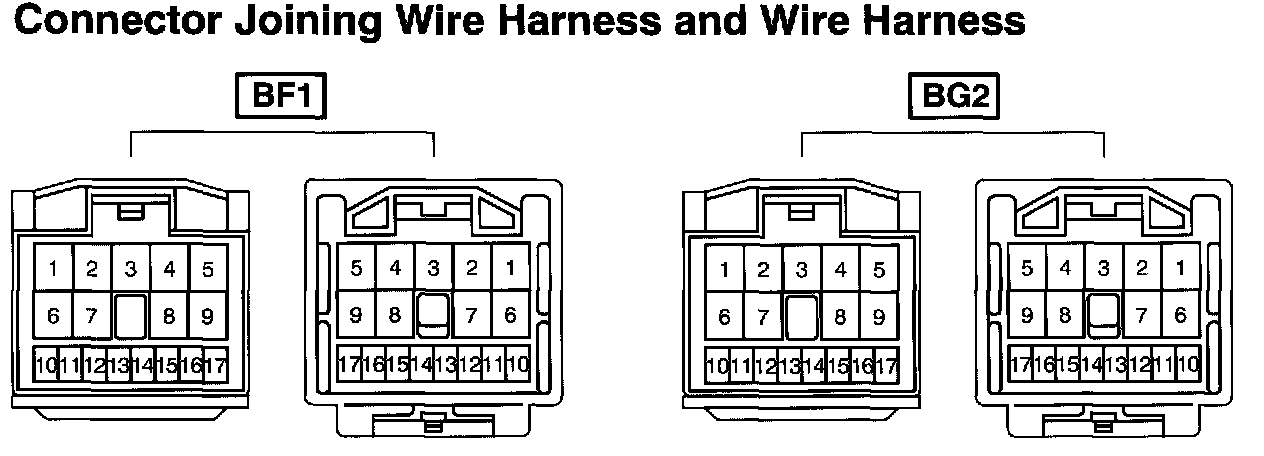

BF1 - BG2:

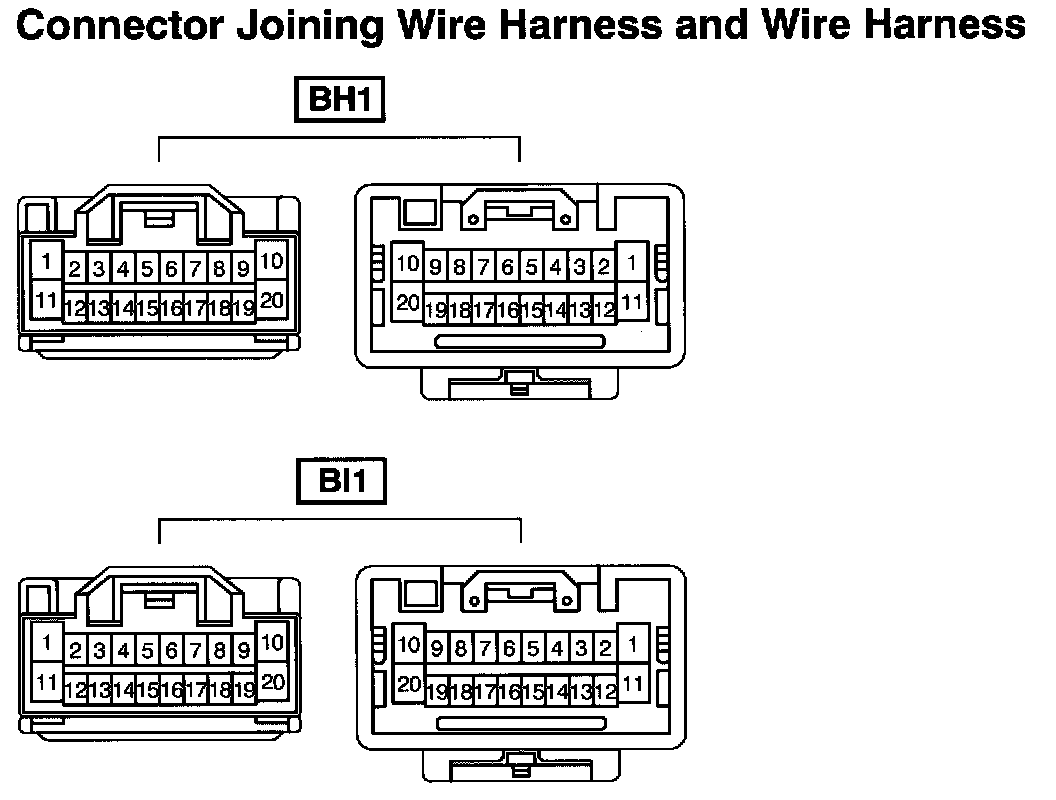

BH1 - BI1:
