Seats: Locations

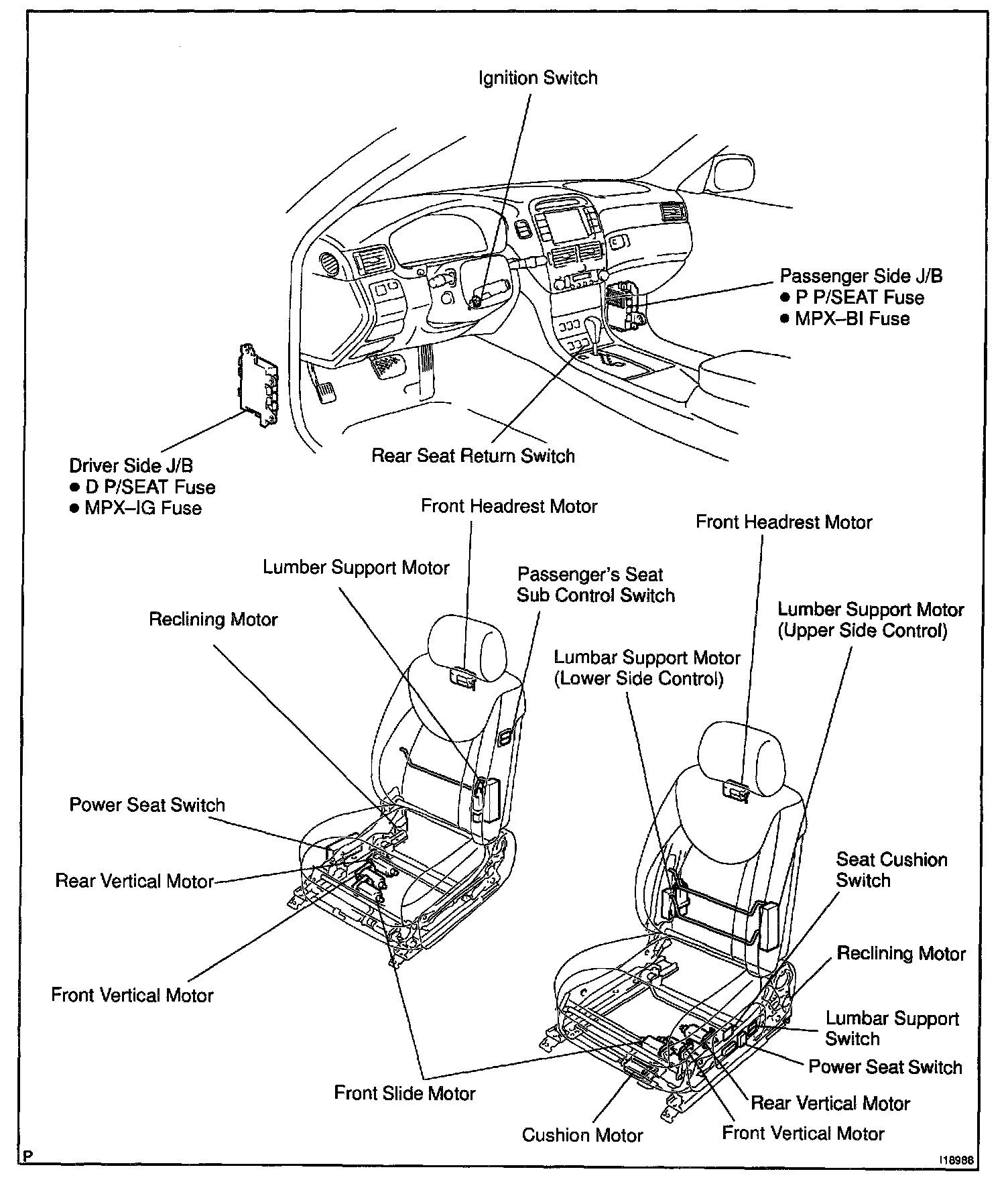

Power Seat Control System (Part 1):

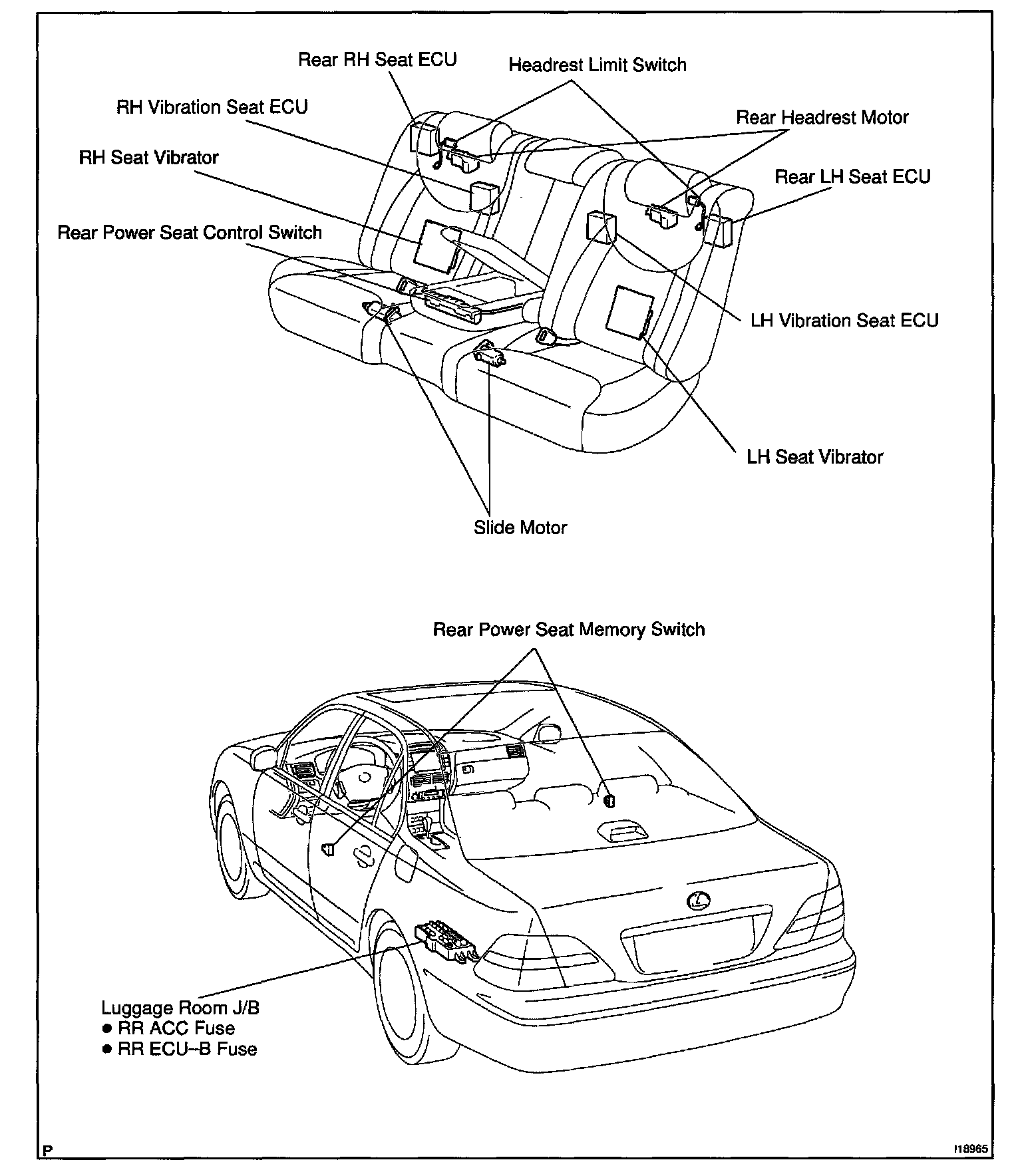

Power Seat Control System (Part 2):

Climate Control Seat System:
