Rear Seat Memory Switch Circuit (W/ Memory)

CIRCUIT DESCRIPTION

Each terminal receives the following switch signals.

M: Memory switch signal
SET: Memorized positions reproduction switch signal
CAN: Cancel switch signal

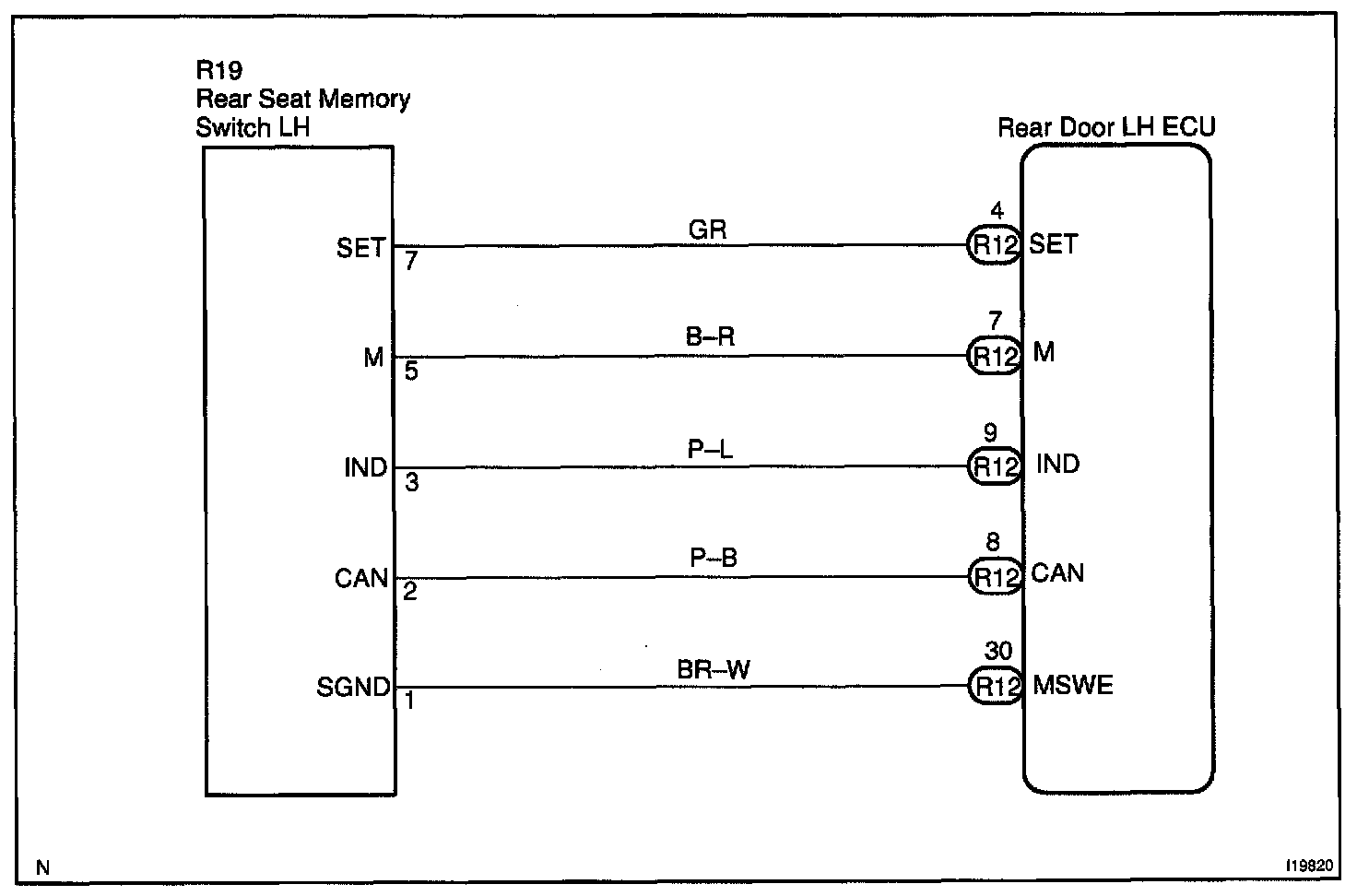

Wiring Diagram:

Step 1 - 3:

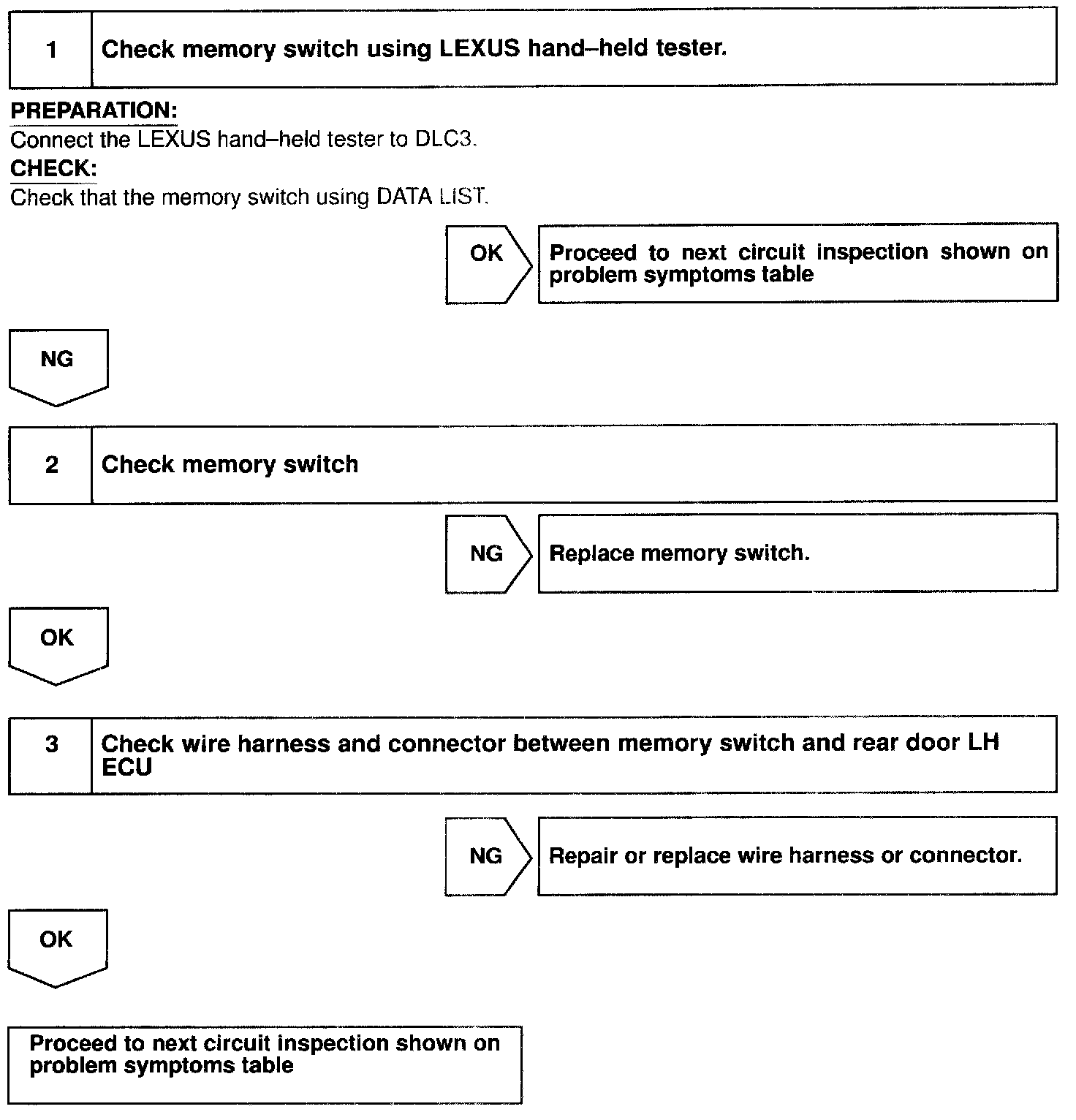

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
