Power Window Switch And Door Lock Control Switch Circuit

CIRCUIT DESCRIPTION

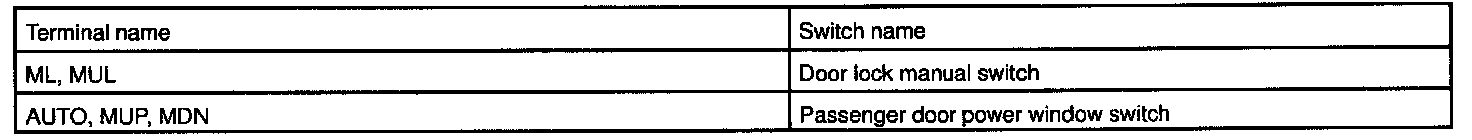

Each terminal sends the given information to Passenger door ECU.

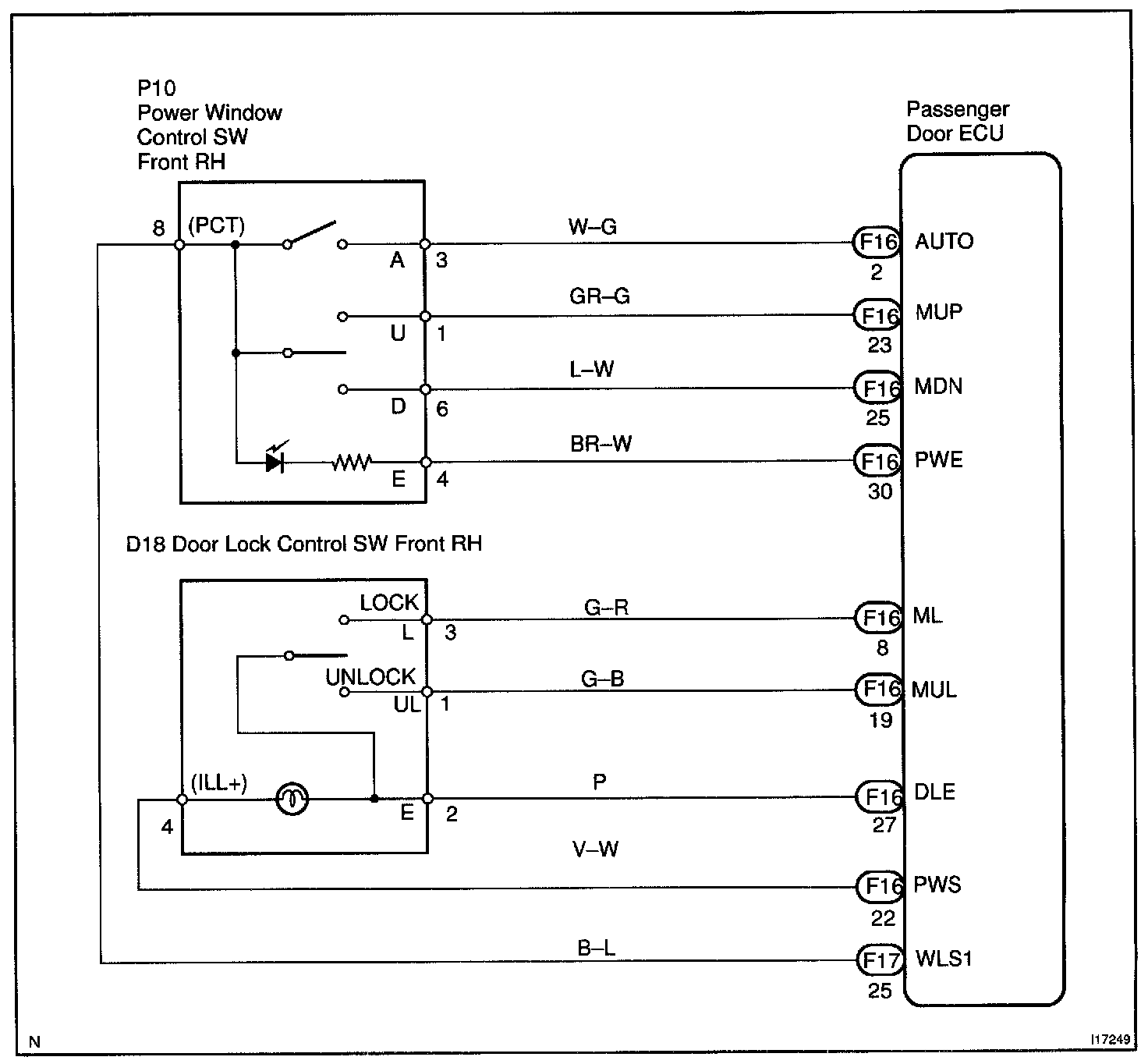

Wiring Diagram:

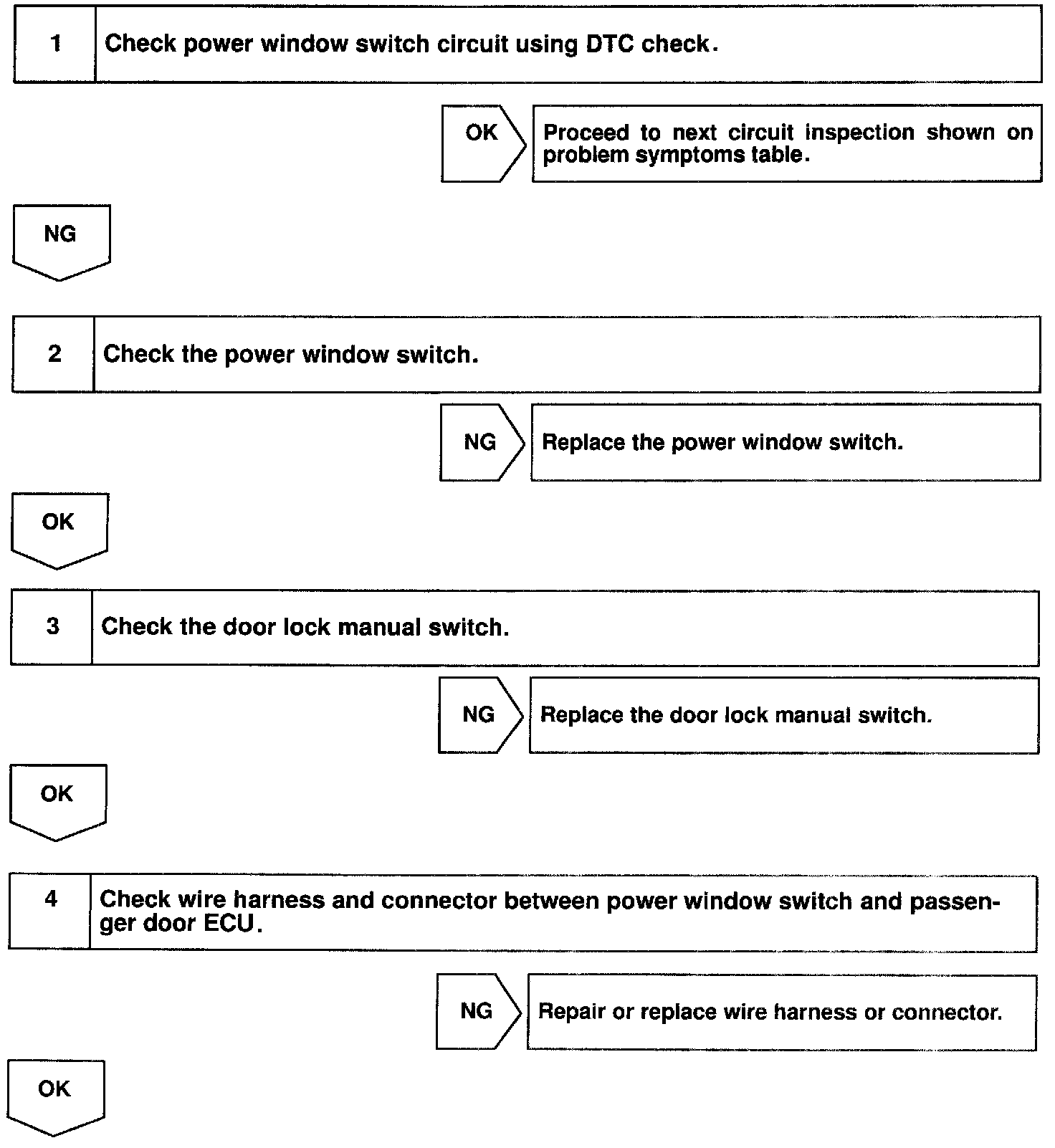

Step 1 - 4:

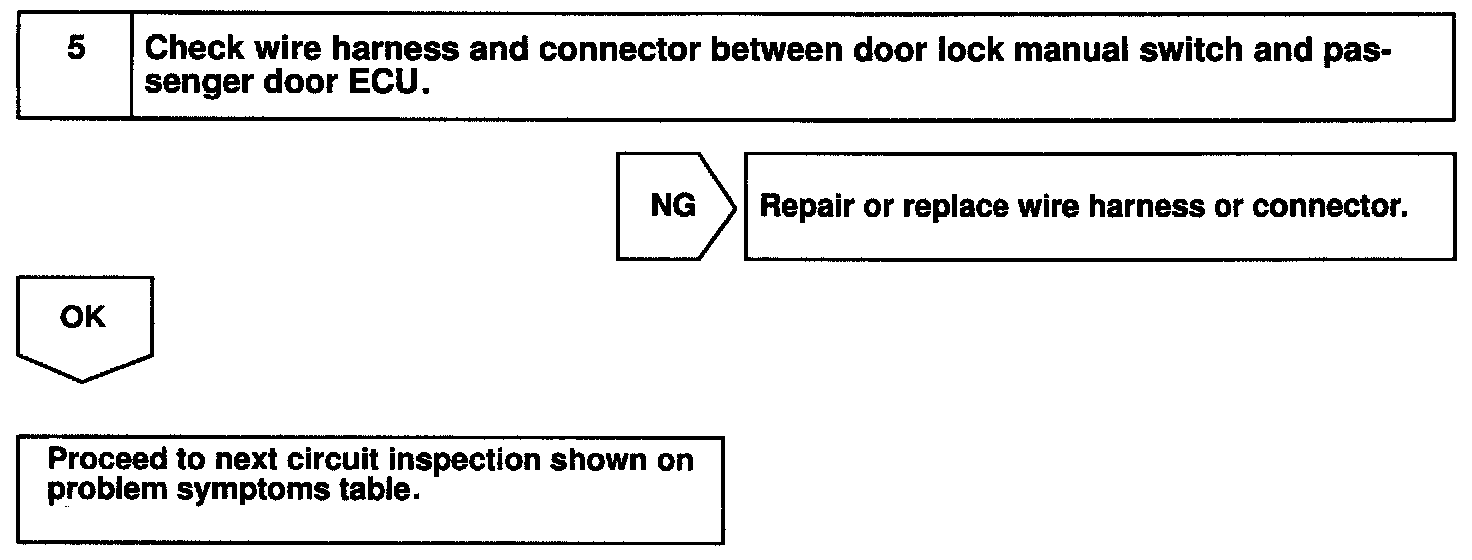

Step 5:

INSPECTION PROCEDURE
