Home >> Lexus >> 2003 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Luggage Room Junction Block (Body No. 4) Control System >> Symptom Diagnostic Procedures >> Taillight Circuit

Taillight Circuit

CIRCUIT DESCRIPTION

Receiving the light control switch TAIL signal from either of the luggage room J/B ECU makes the taillight come on.

Wiring Diagram:

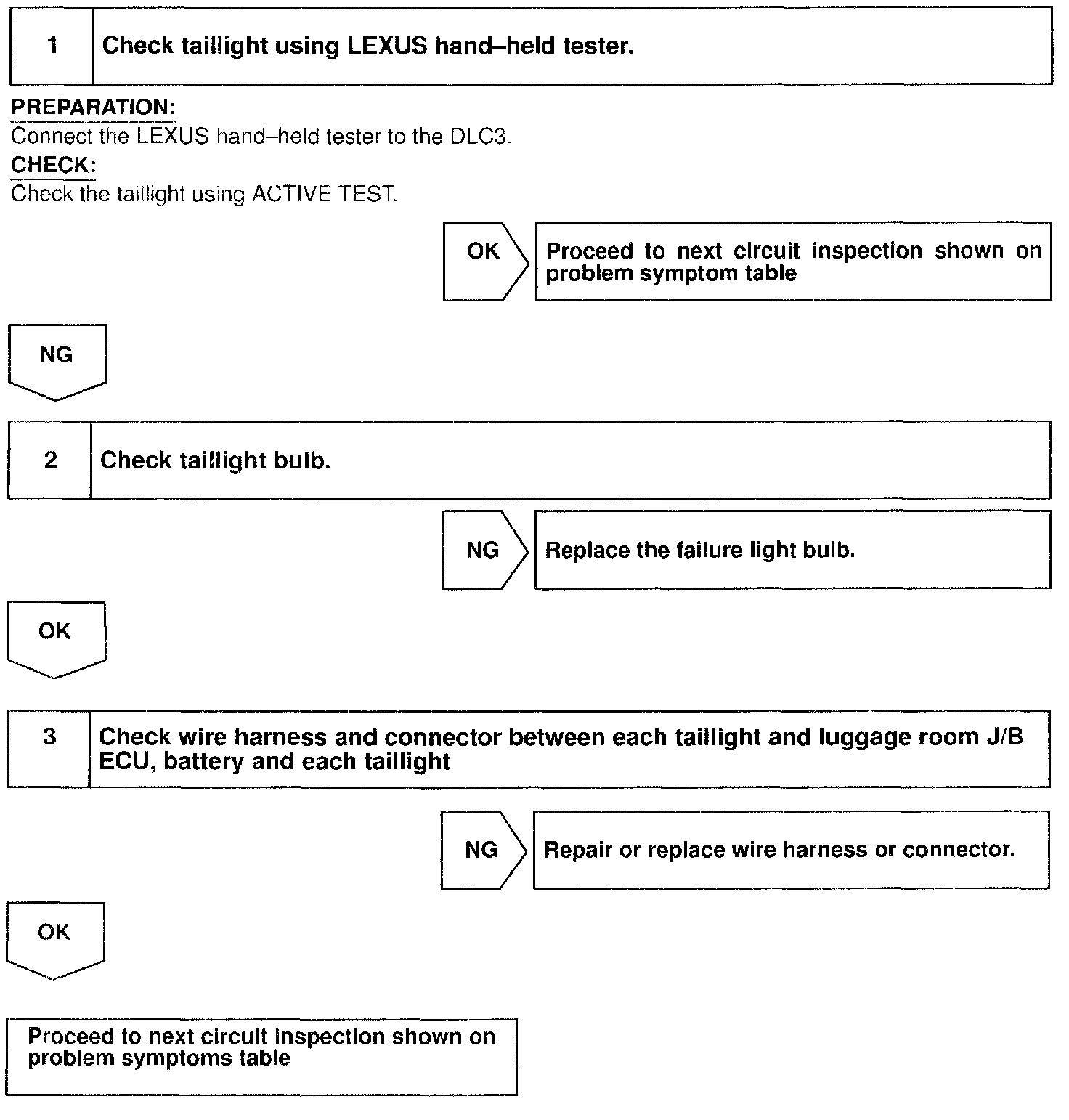

Step 1 - 3:




INSPECTION PROCEDURE
