With Manufacturer's Scan Tool

DTC CHECK (Using LEXUS hand-held tester)

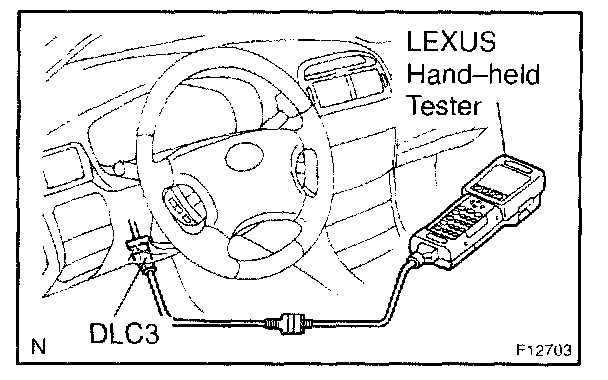

a. Prepare the LEXUS hand-held tester.
b. Connect the LEXUS hand-held to DLC3.
c. Turn the ignition switch ON and the LEXUS hand-held tester main switch ON.
d. Use the LEX US hand-held tester to check the DTCs. and note them down. (For operational instructions, see the LEXUS hand-held tester's instruction book)
e. See Trouble Code Description to confirm the details of DLC3.
