14 - System Cannot Be Operated With Switches on Rear Controller

14. Audio System Cannot Be Operated With Air Conditioner Switches on the Rear Controller. (It can be operated with Panel/ Touch switches.)

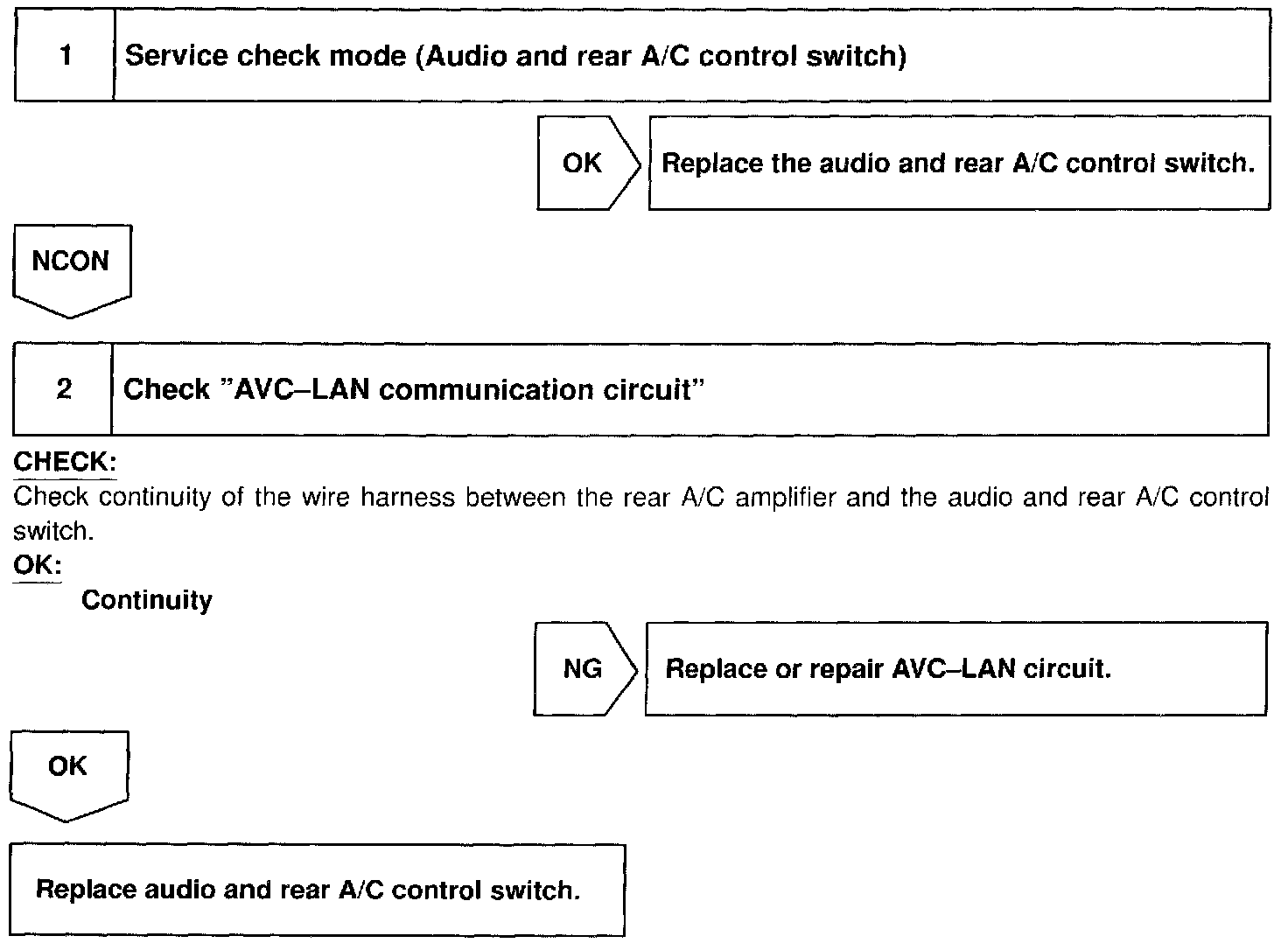

Step 1 - 2:




INSPECTION PROCEDURE
