Pinout Values and Diagnostic Parameters
TERMINALS OF ECUTerminals Of ECU/Pinouts Part 1:
Terminals Of ECU/Pinouts Part 2:

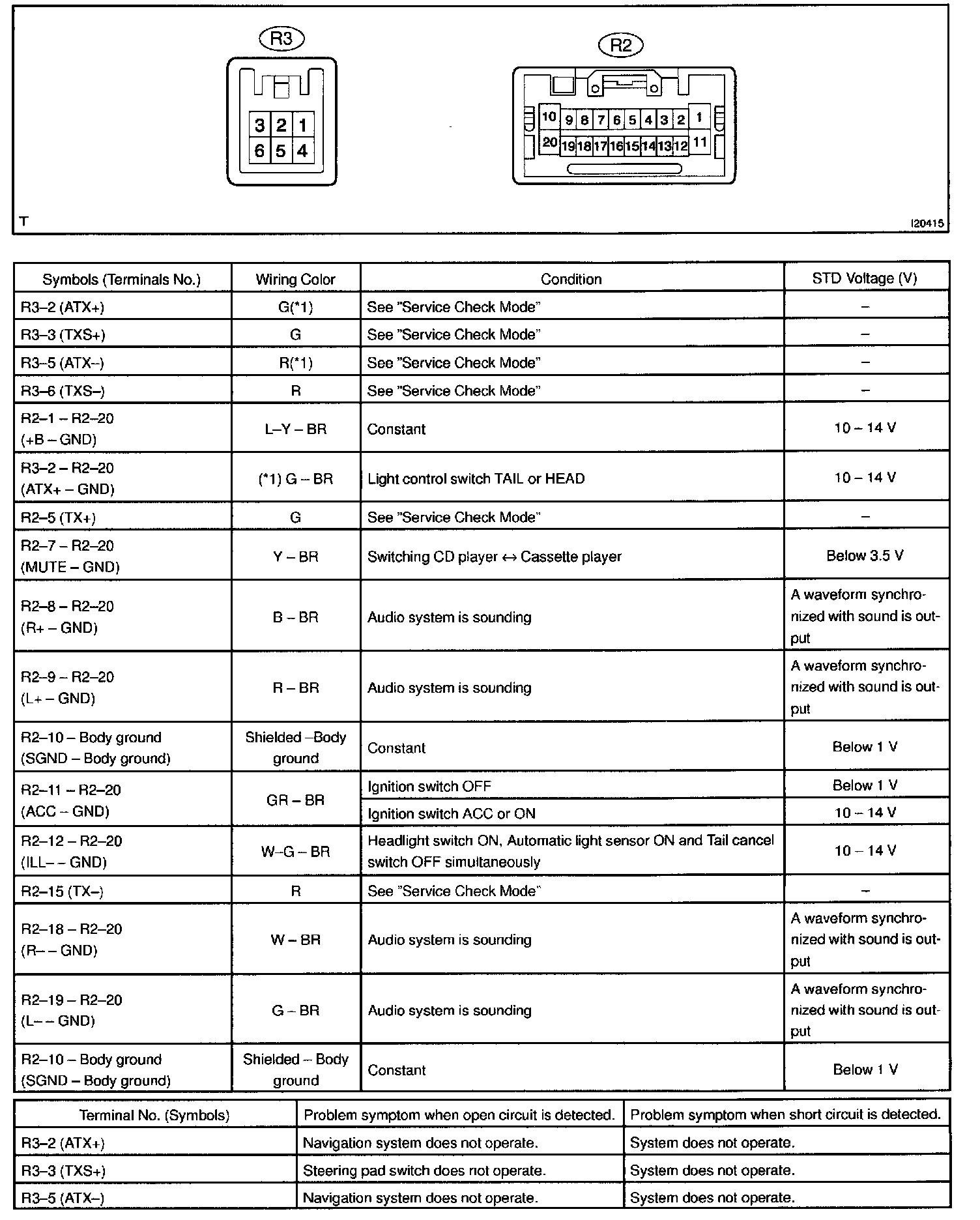

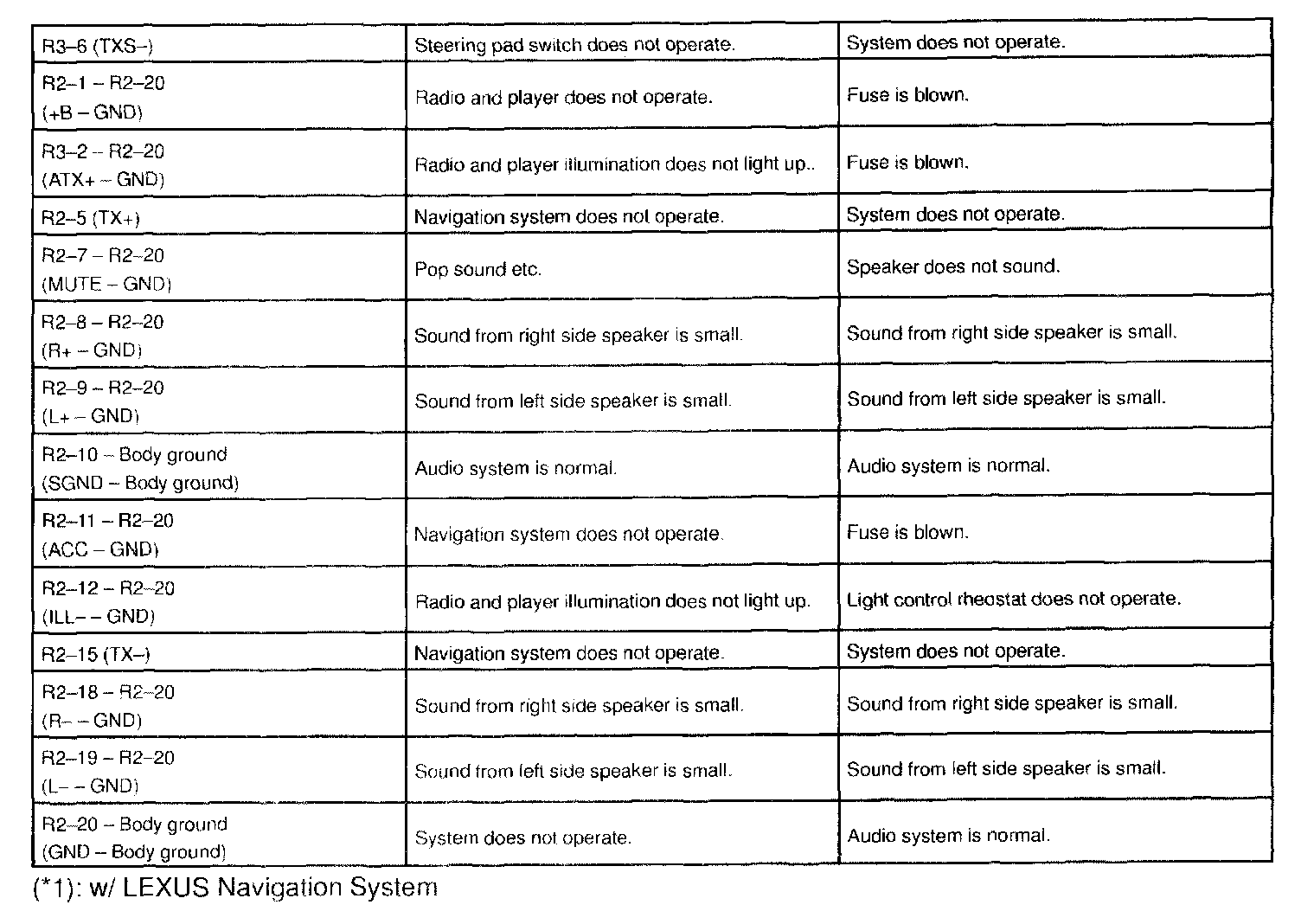

Radio And Player
Terminals Of ECU/Pinouts Part 1:
Terminals Of ECU/Pinouts Part 2:
Terminals Of ECU/Pinouts - Stereo Component Amplifier Part 3:
Terminals Of ECU/Pinouts Part 5:

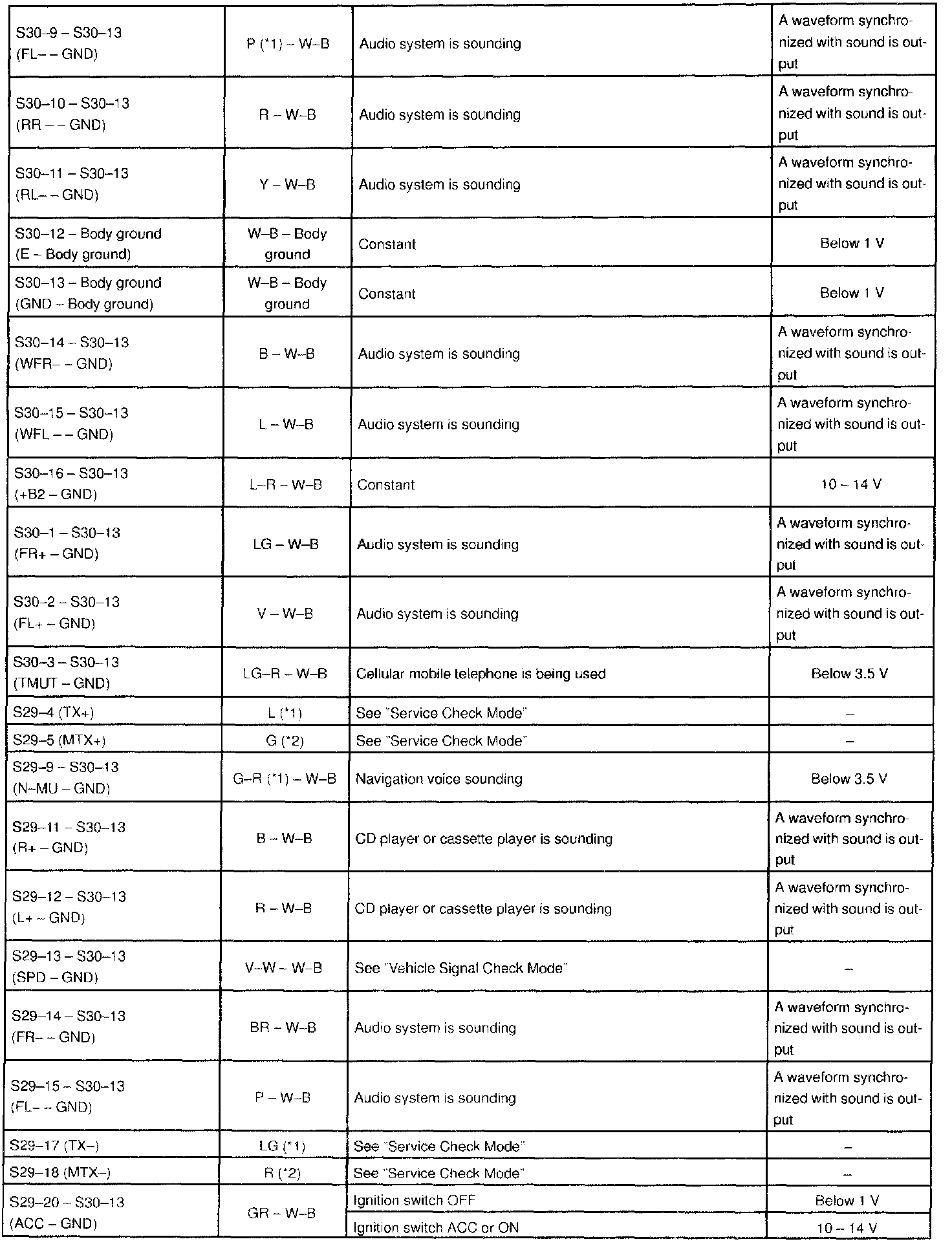

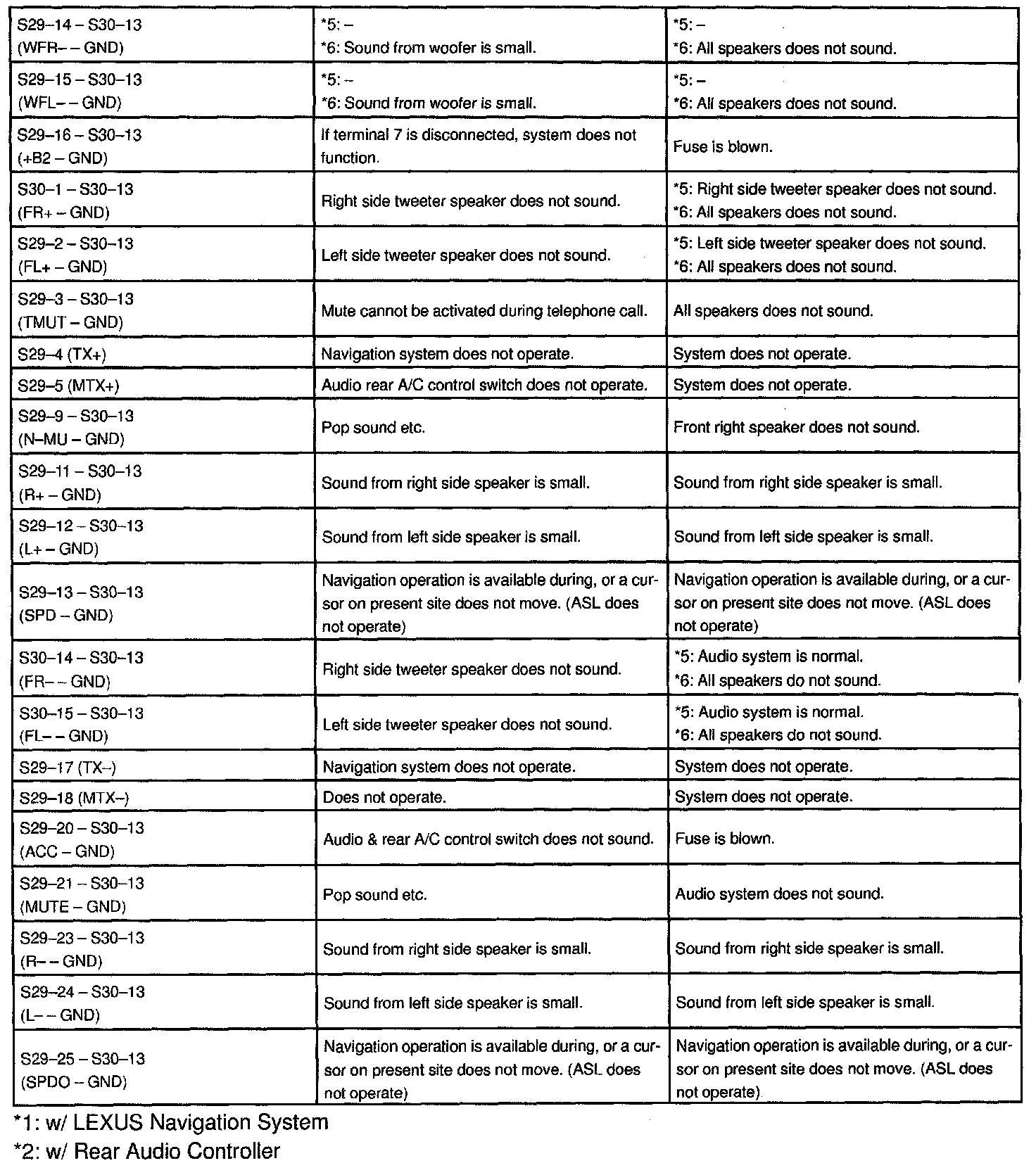

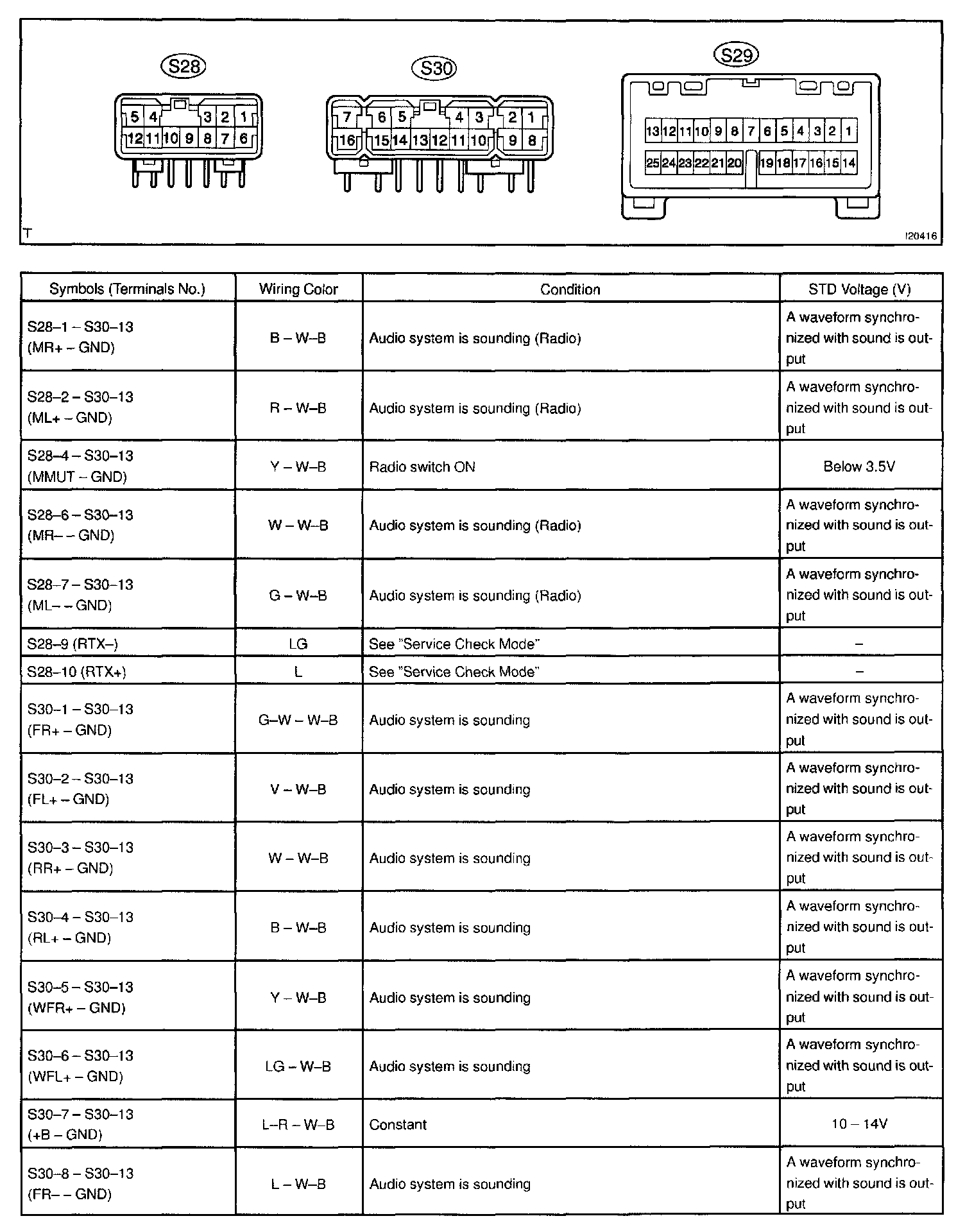

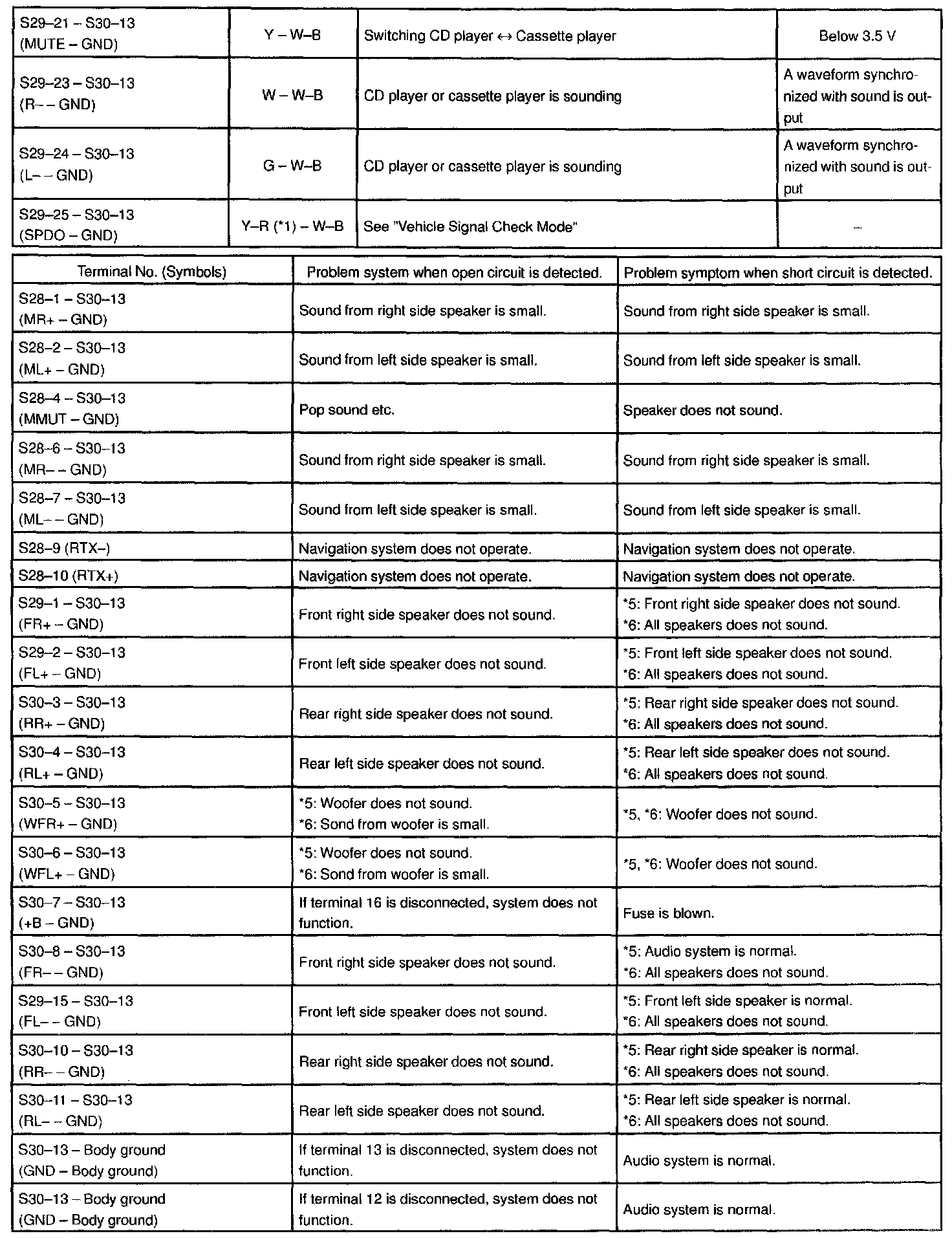

Stereo Component Amplifier
Terminals Of ECU/Pinouts Part 1:
Terminals Of ECU/Pinouts Part 2:

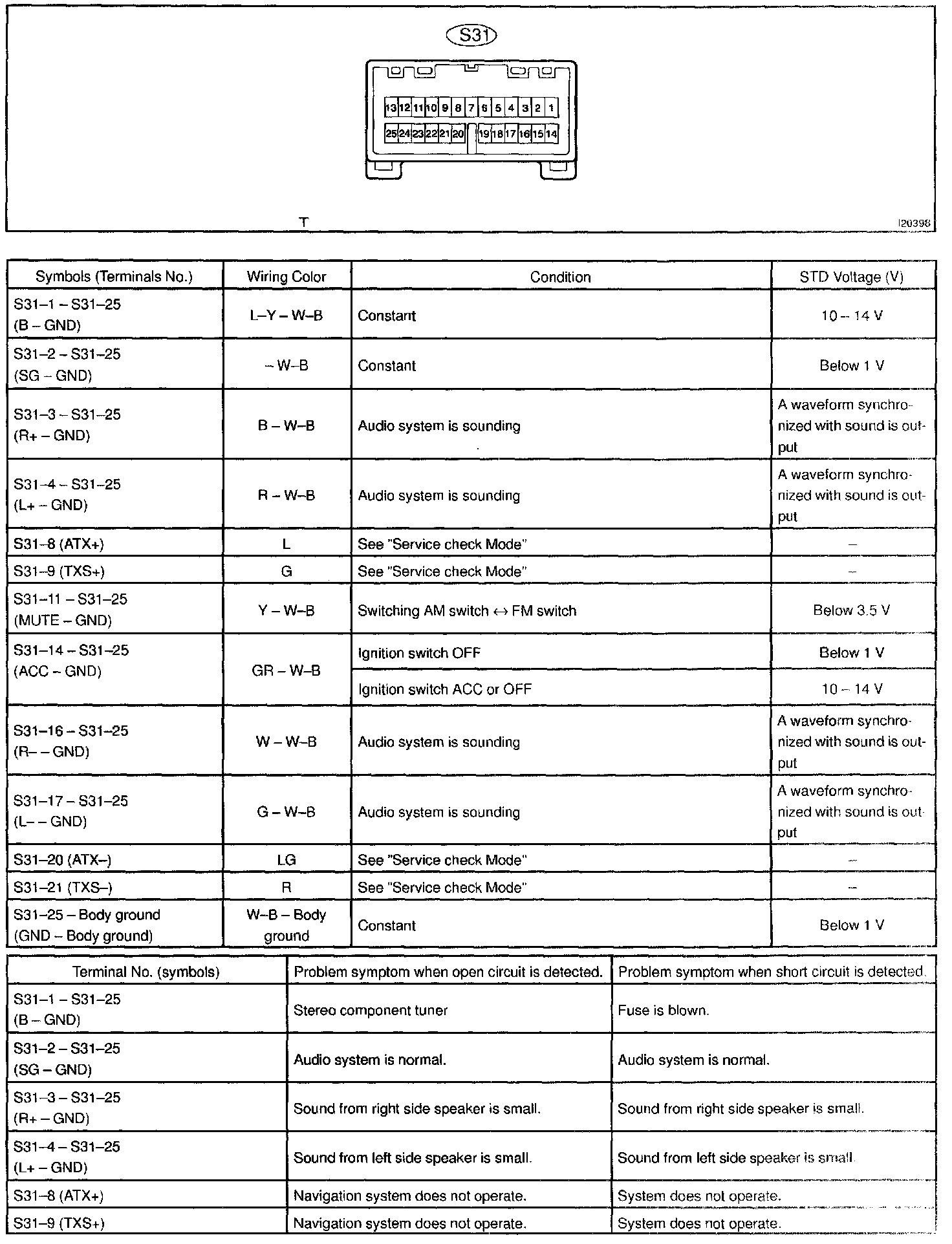

Stereo Component Tuner
Terminals Of ECU/Pinouts:

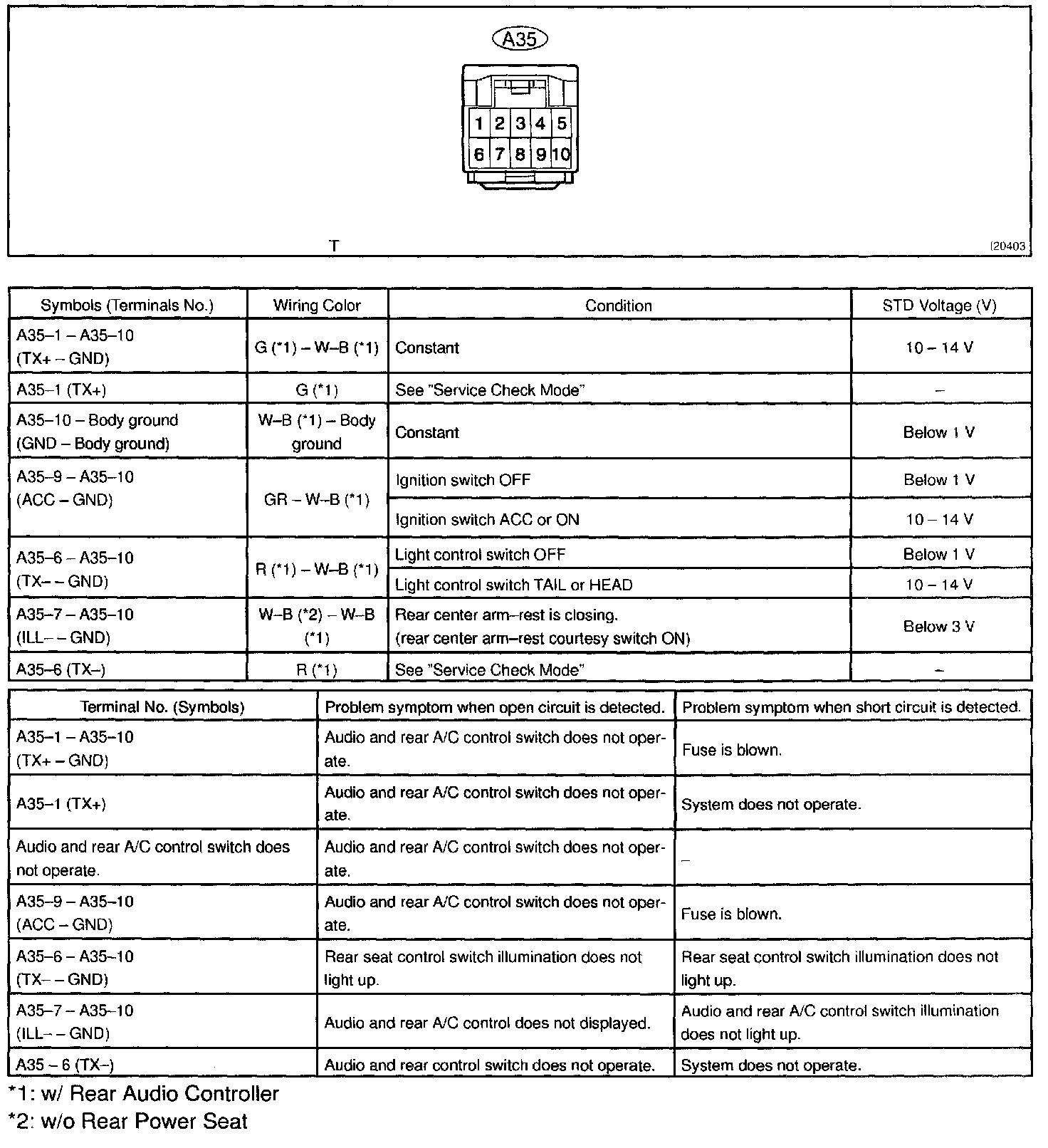

Audio And Rear A/C Control Switch
