Home >> Lexus >> 2003 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Global Positioning System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> The Line Condition With LEXUS Link Center Is Not Good

The Line Condition With LEXUS Link Center Is Not Good

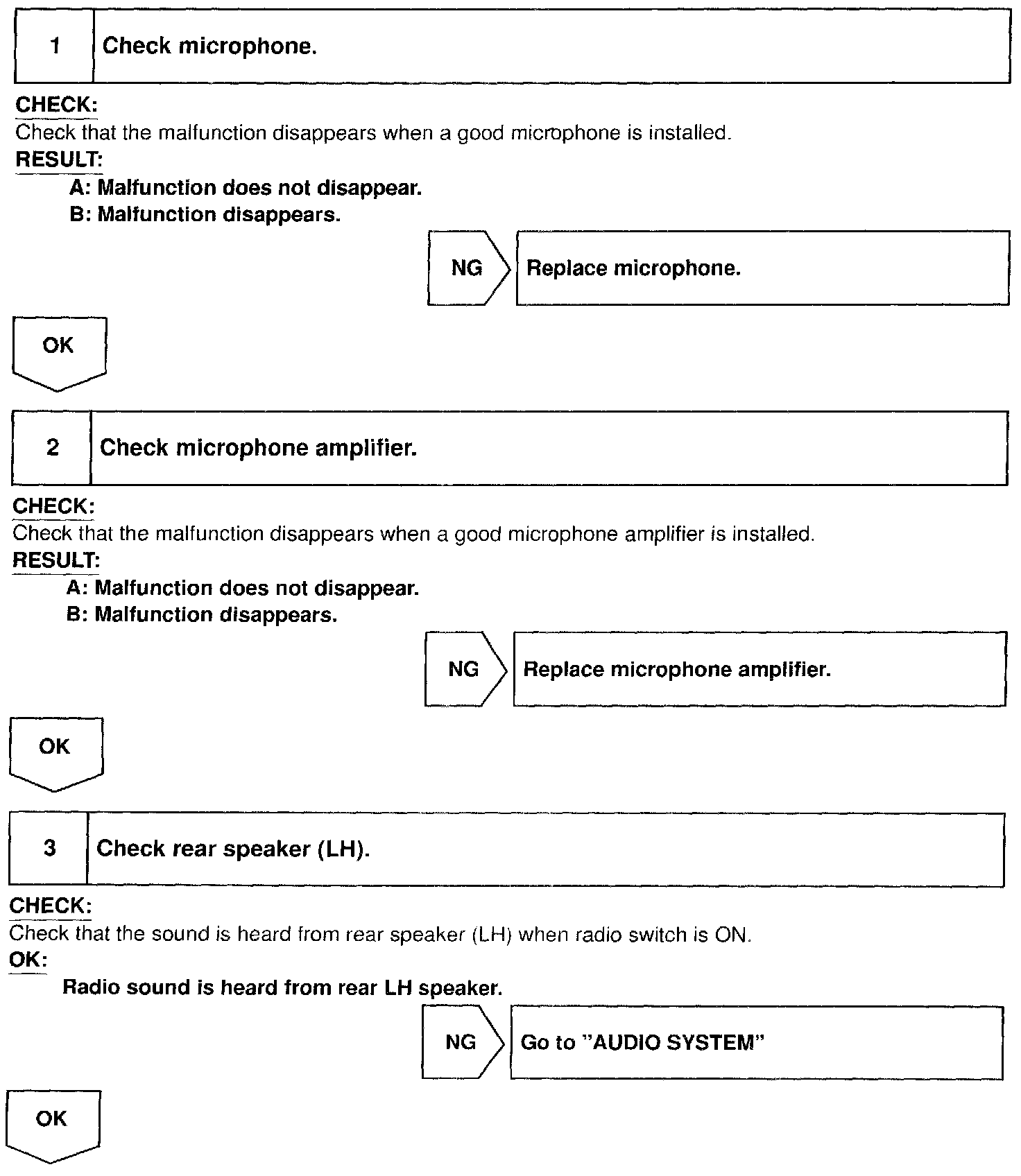

Step 1 - 3:




Step 4 - 5:




INSPECTION PROCEDURE
