Connection to LEXUS Link Center Cannot Be Made or Is Cut Off

When "Service Button" is working the connection to LEXUS Link Center cannot be made or is immediately cut off.

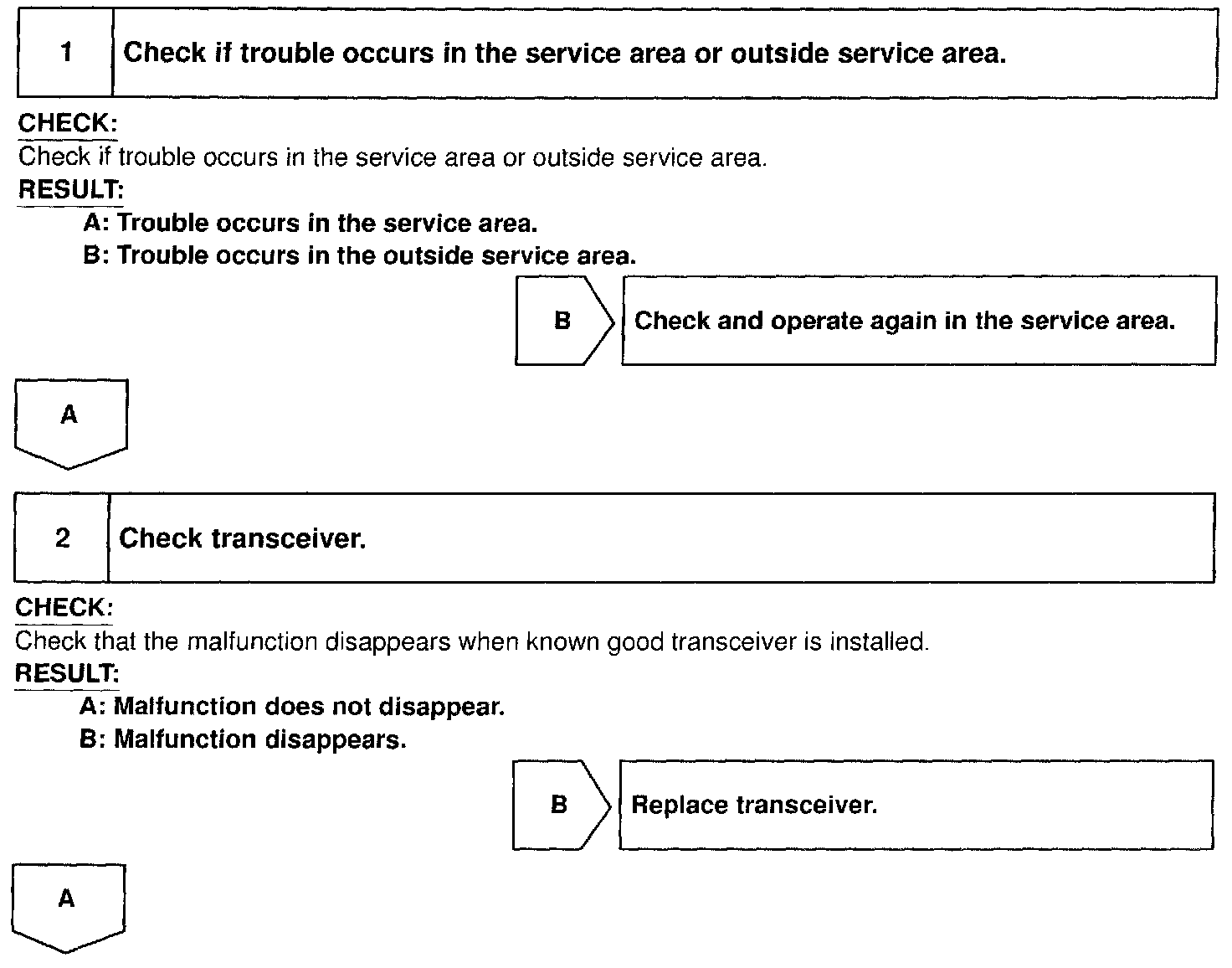

Step 1 - 2:

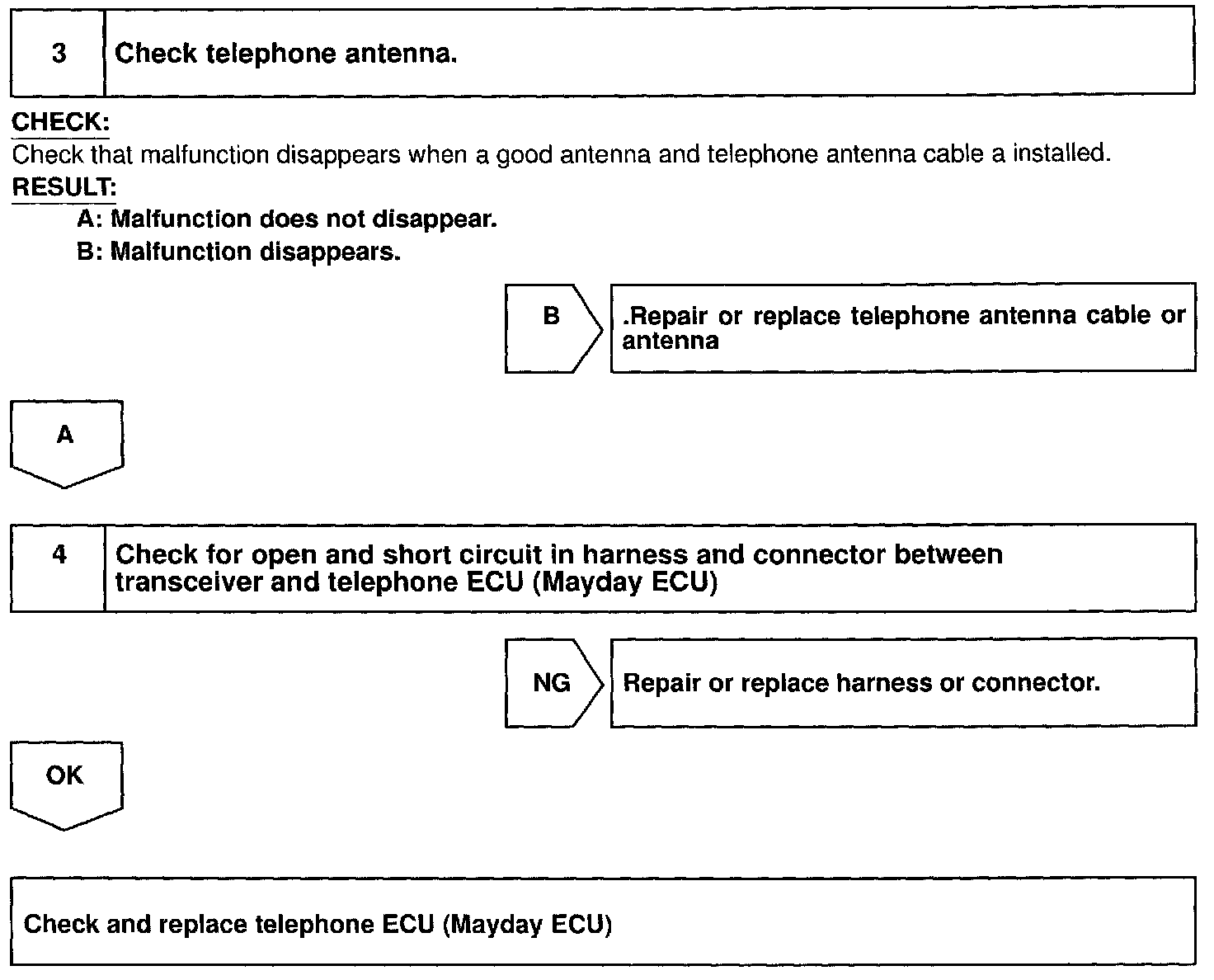

Step 3 - 4:




INSPECTION PROCEDURE
