Wireless Buzzer Volume and ON/OFF Switch Circuit

CIRCUIT DESCRIPTION

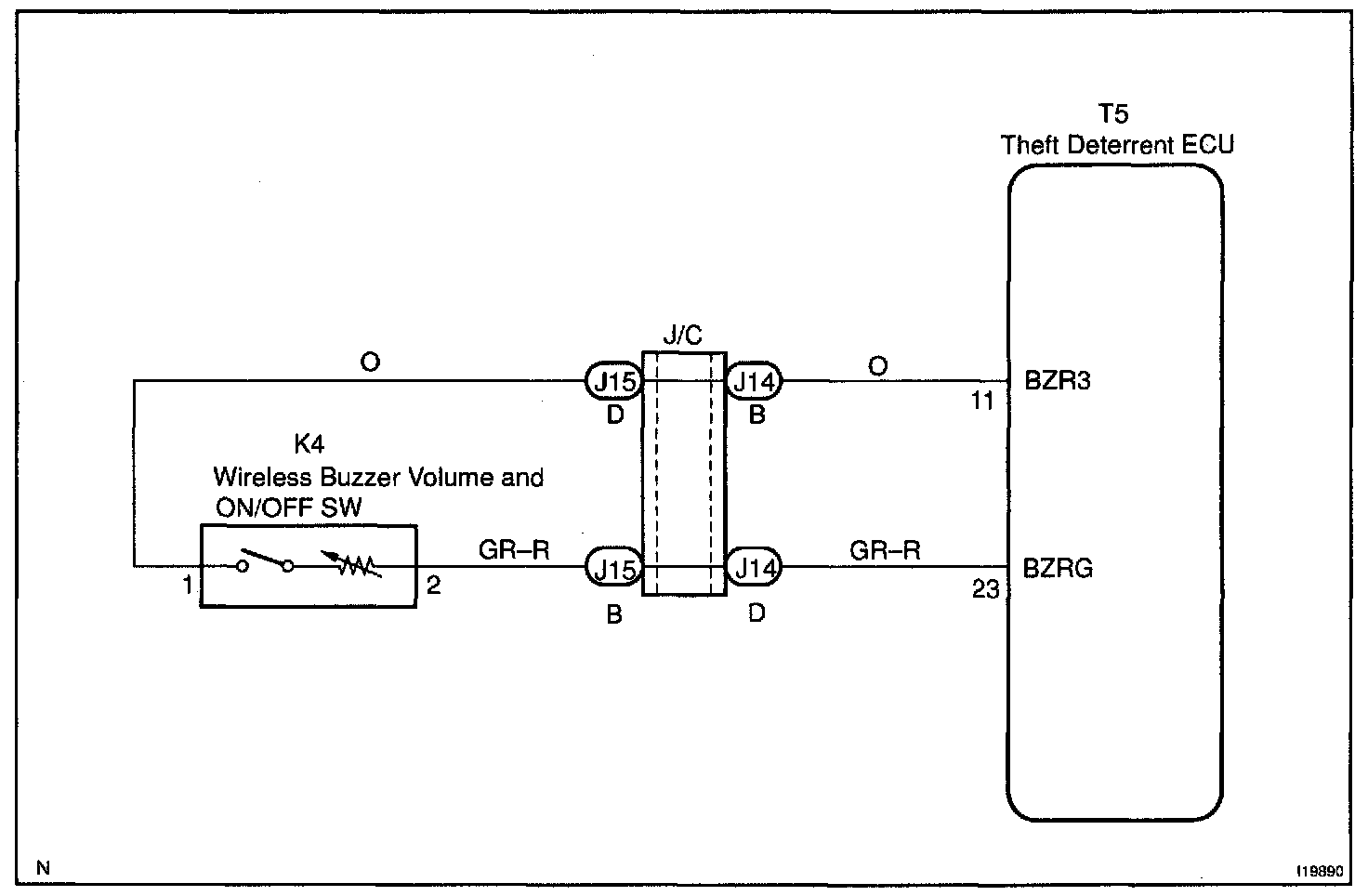

Wiring Diagram:

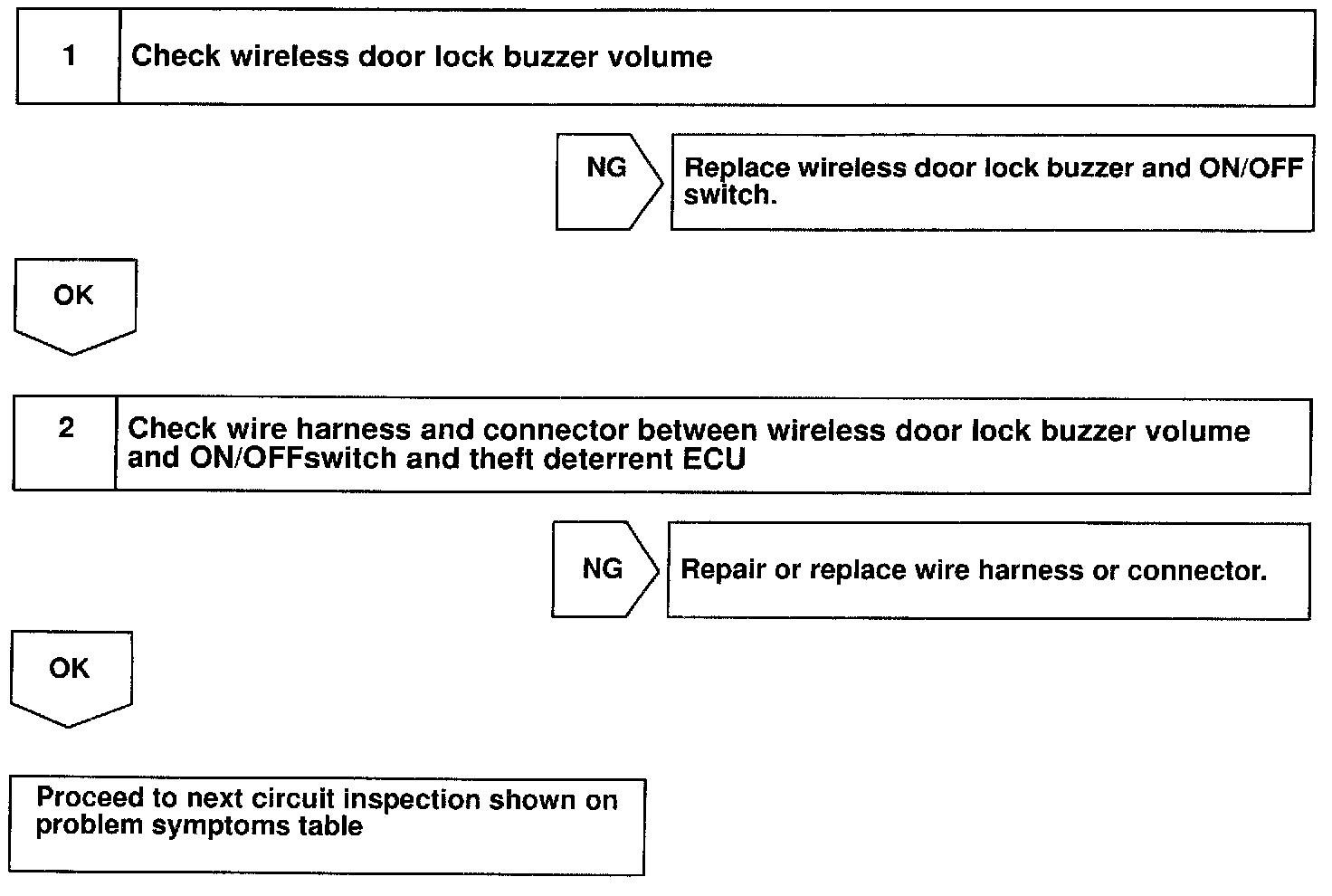

Step 1 - 2:




INSPECTION PROCEDURE
