Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

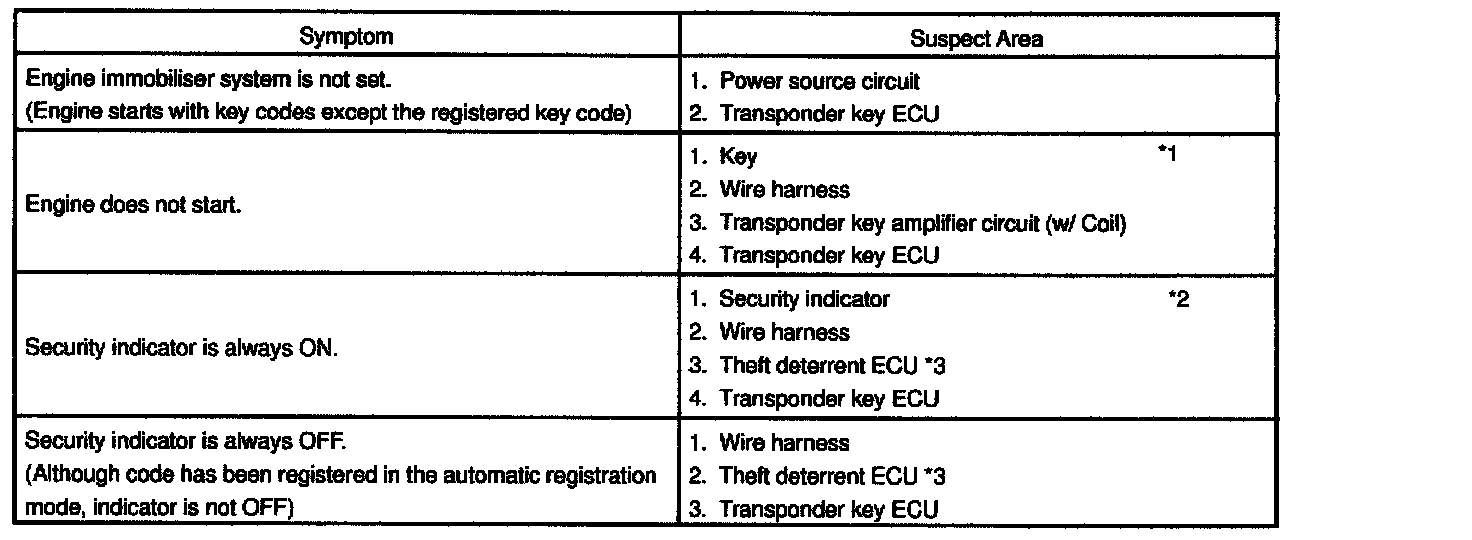

Problem Sysmptoms Table:

*1 : Check whether or not the key which did not start the engine has been registered and that it is possible to start with other already registered keys.
*2 : Finish the automatic registration mode because the mode might still remain.
*3 : The security indicator gives blinking signals of the immobiliser when the Transponder Key ECU sends a command through BEAN to the Theft Deterrent ECU to activate the security indicator.
