DTC 69

DTC 69 Brake system malfunction

CIRCUIT DESCRIPTION

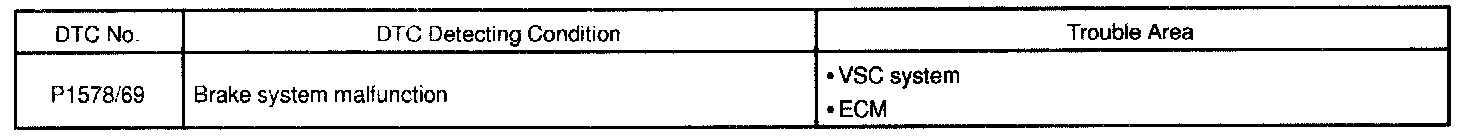

Dtc Detection Condition:

Also, responding to the brake control request from the distance control ECU, the skid control ECU activates the brake actuator.

Step 1 - 3:

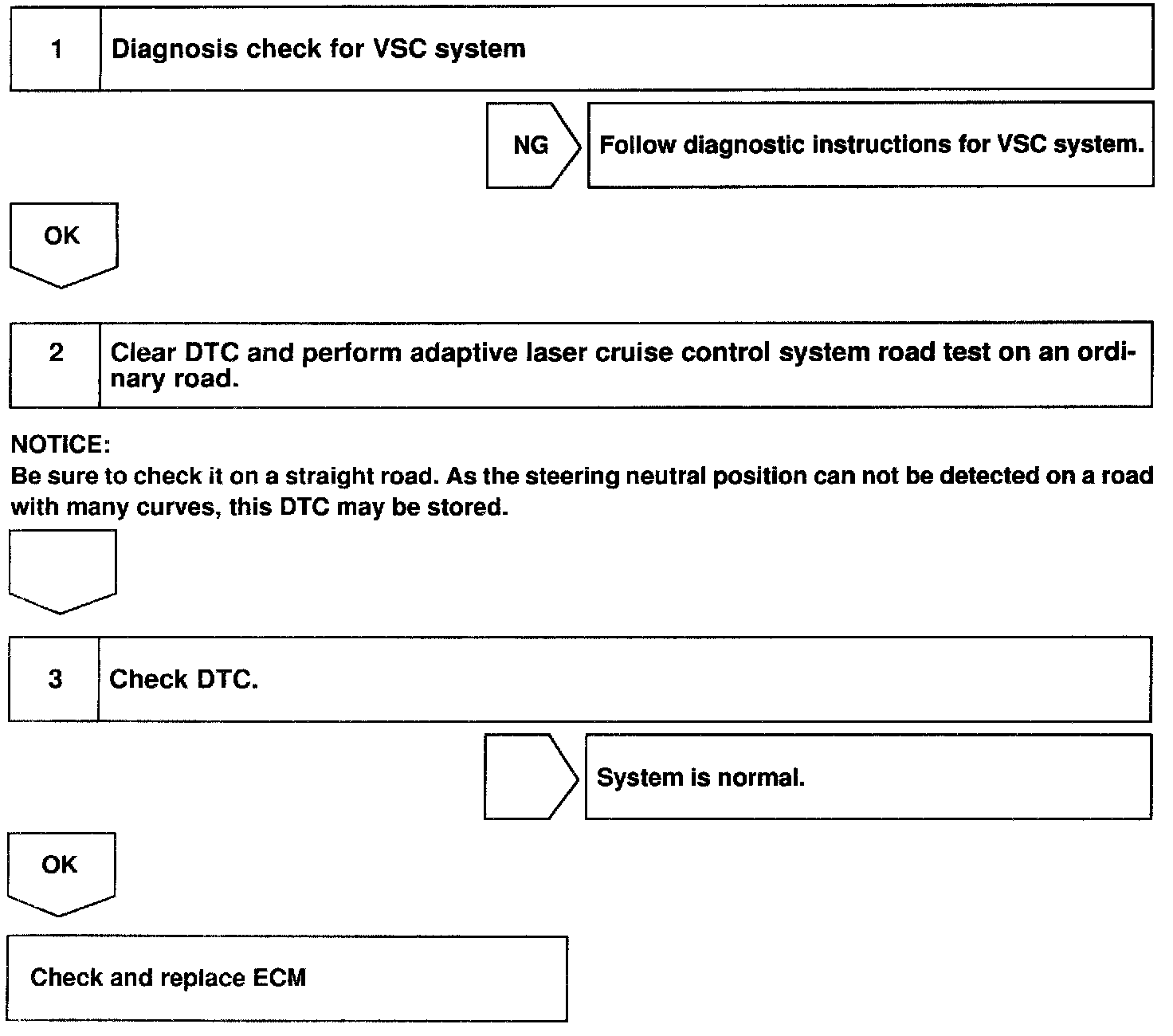

INSPECTION PROCEDURE
