DTC 62

DTC 62 Communication error from ECM to Distance Control ECU

CIRCUIT DESCRIPTION

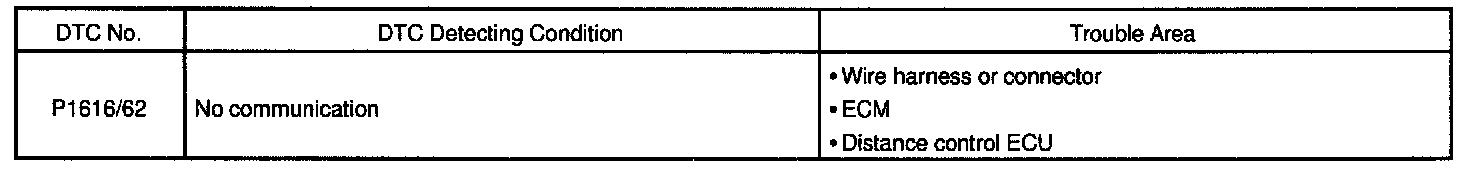

Dtc Detection Condition:

ECM and Distance control ECU always communicate the data for vehicle general control and diagnosis function each other via communication line.

This is detected when the distance control ECU responds to the ECM to instruct that the information sent from the distance control ECU to ECM is abnormal.

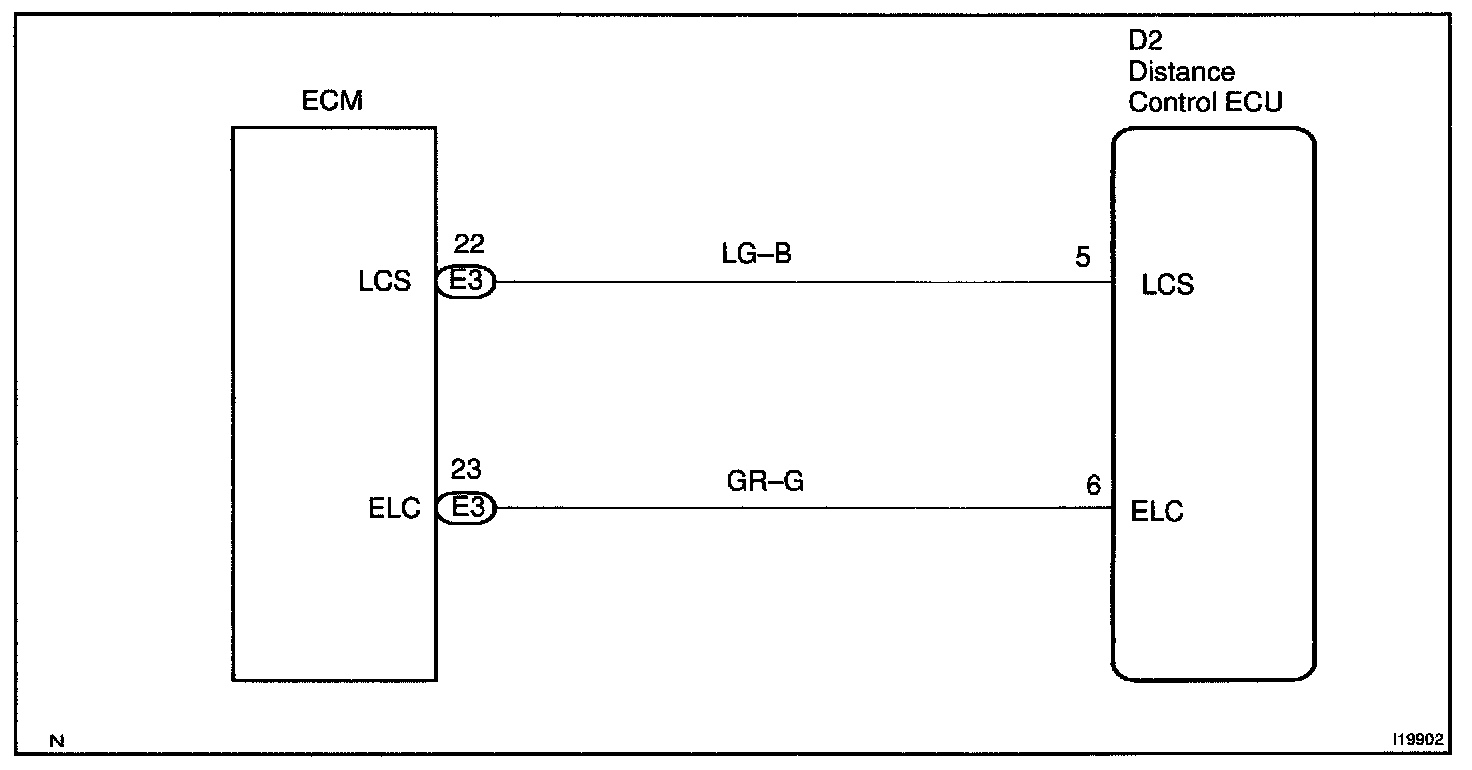

Wiring Diagram:

Step 1 - 2:

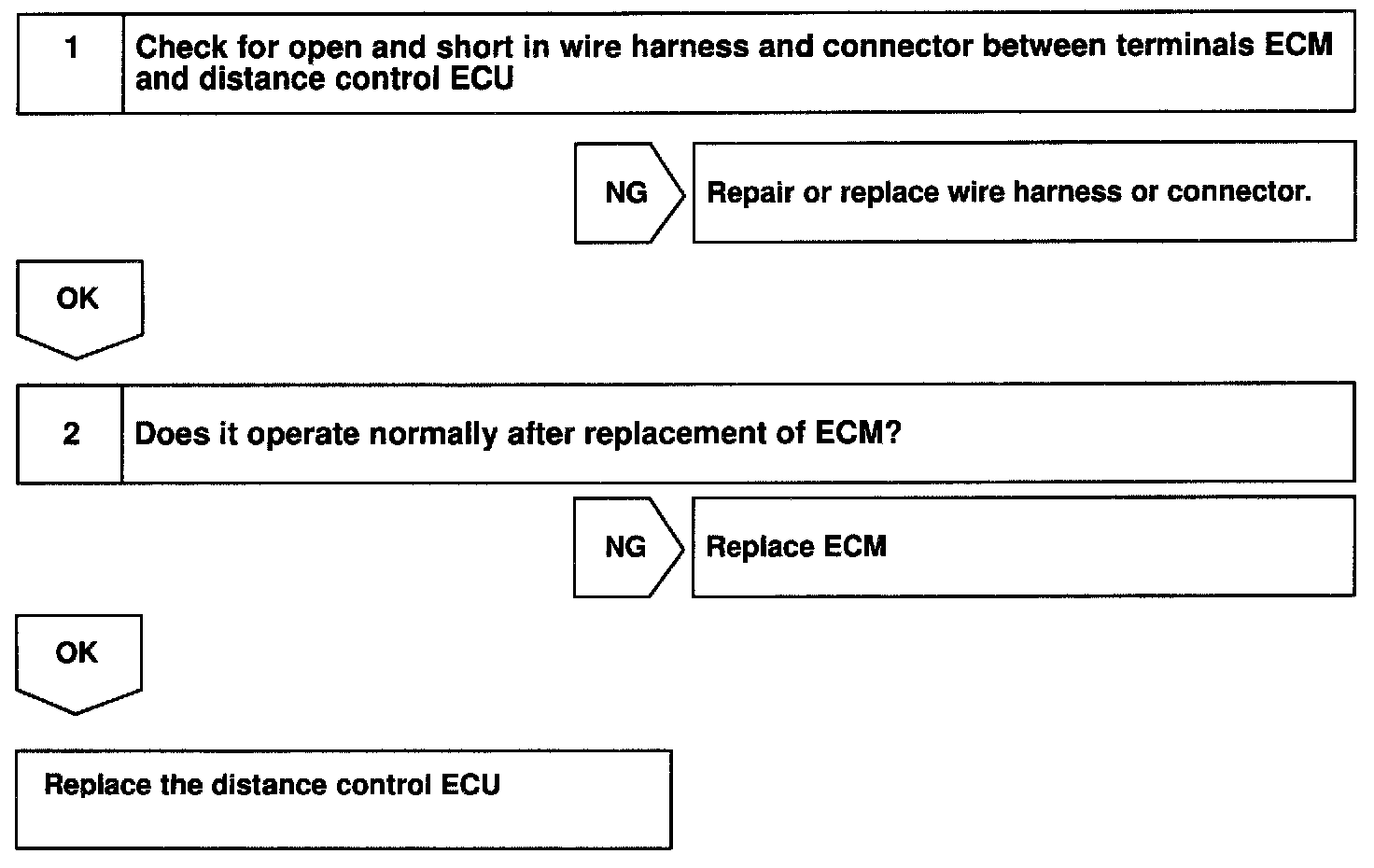

INSPECTION PROCEDURE
