TC Terminal Circuit

CIRCUIT DESCRIPTION

By connecting terminals Tc and CG of the DLC3 the airbag sensor assy center is set in the DTC output mode.

The DTCs are displayed by blinking the SRS warning light.

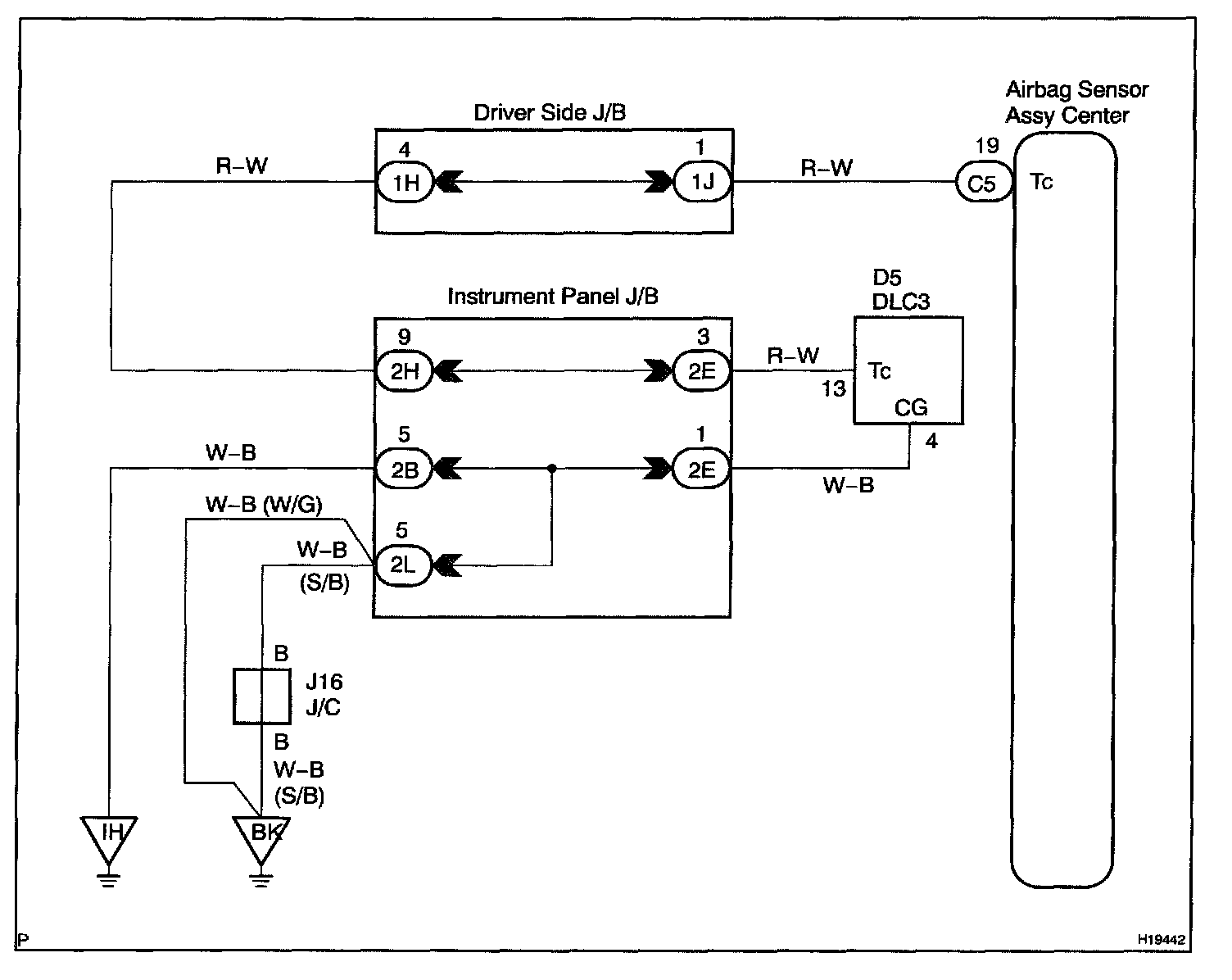

Wiring Diagram:

INSPECTION PROCEDURE

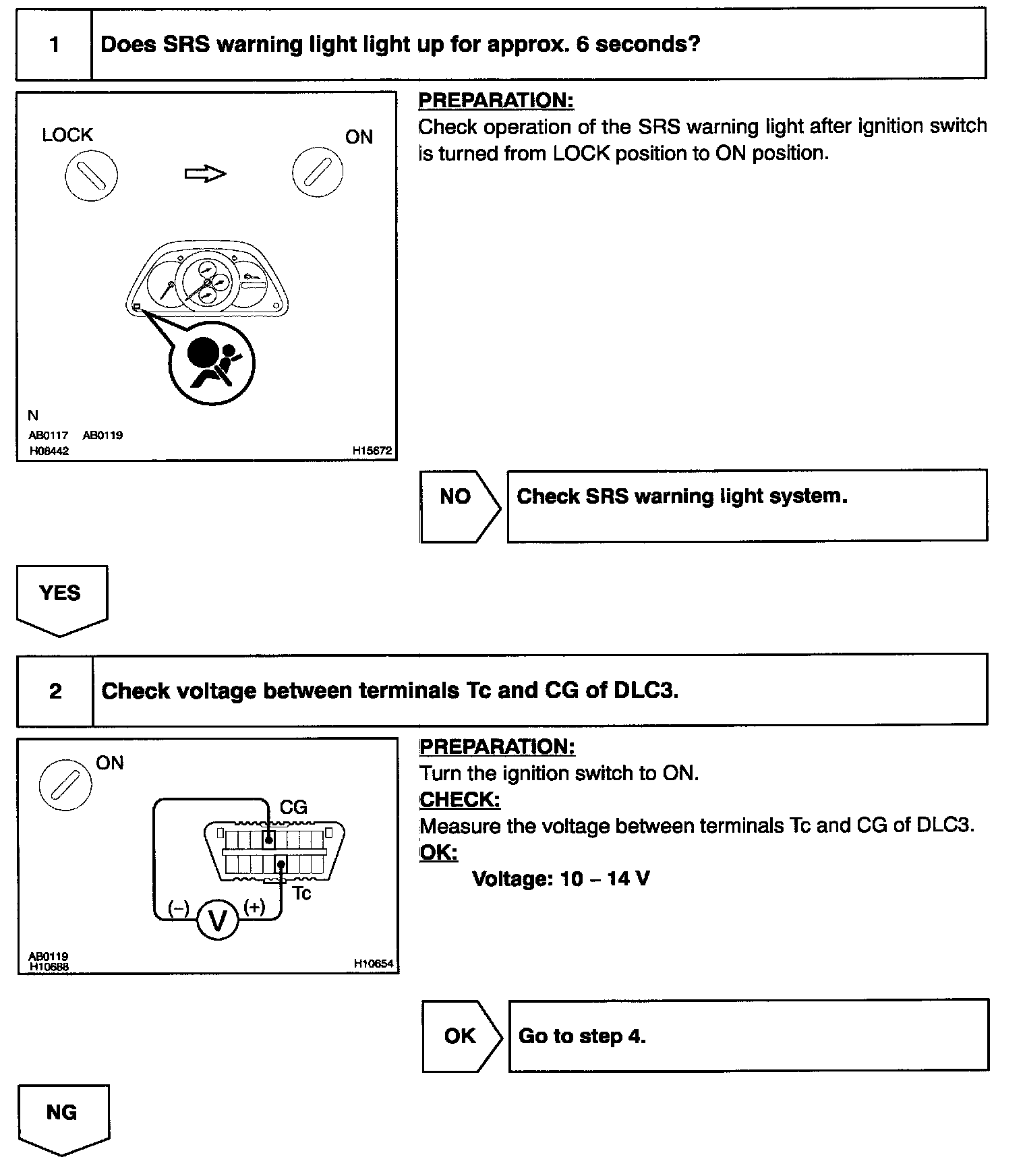

Step 1 - 2:

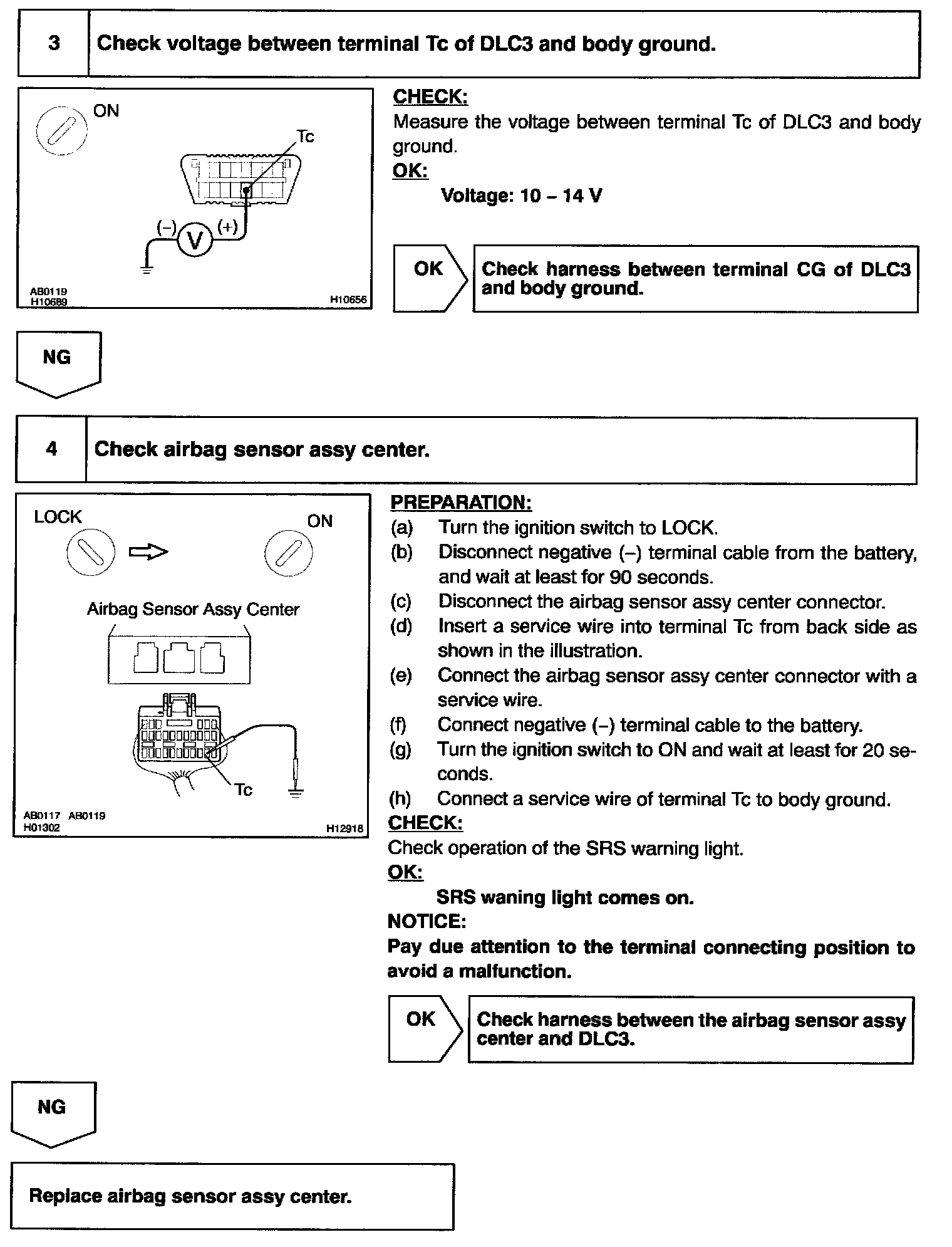

Step 3 - 4:

If the DTC is not displayed, do the above troubleshooting.

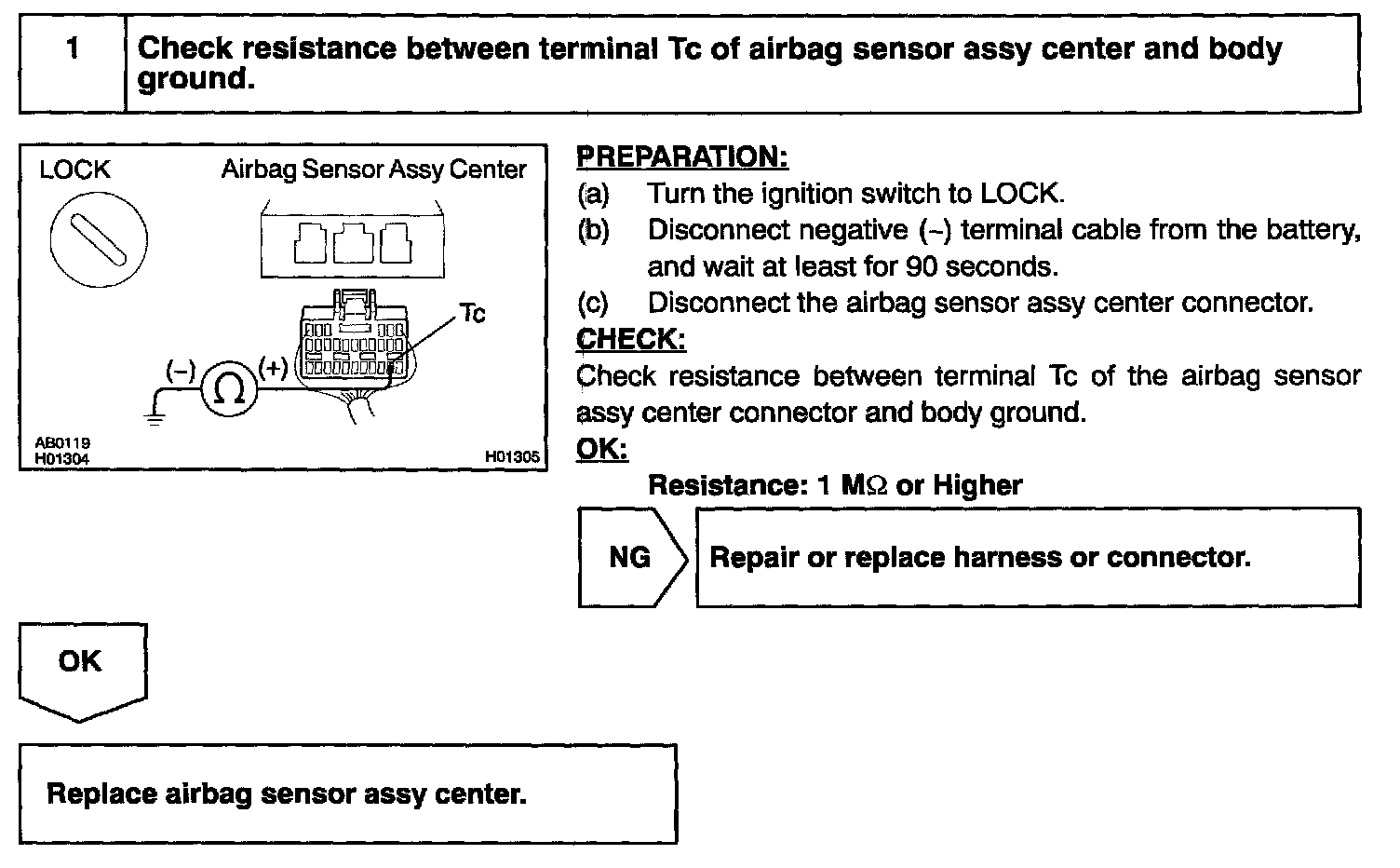

Step 1:

If the DTC is displayed without a DTC check procedure, perform the above troubleshooting.
