Always On - Malfunction In ECU ABS Warning Light Circuit

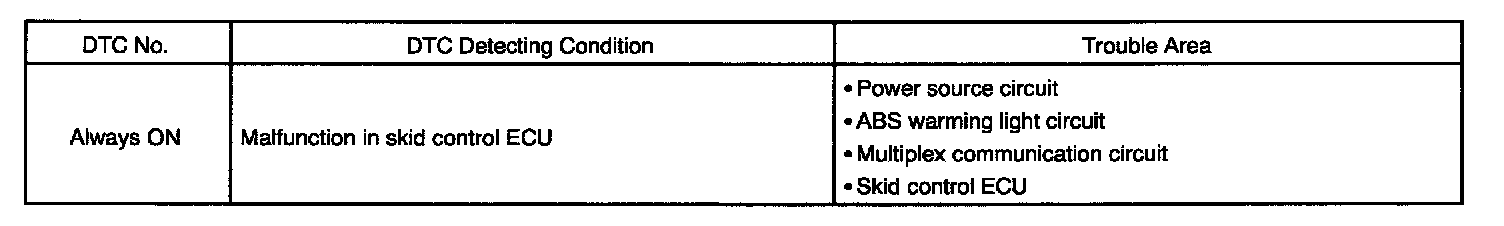

DTC Detecting Condition:

CIRCUIT DESCRIPTION

HINT: In some cases the hand-held tester cannot be used when the skid control ECU is abnormal.

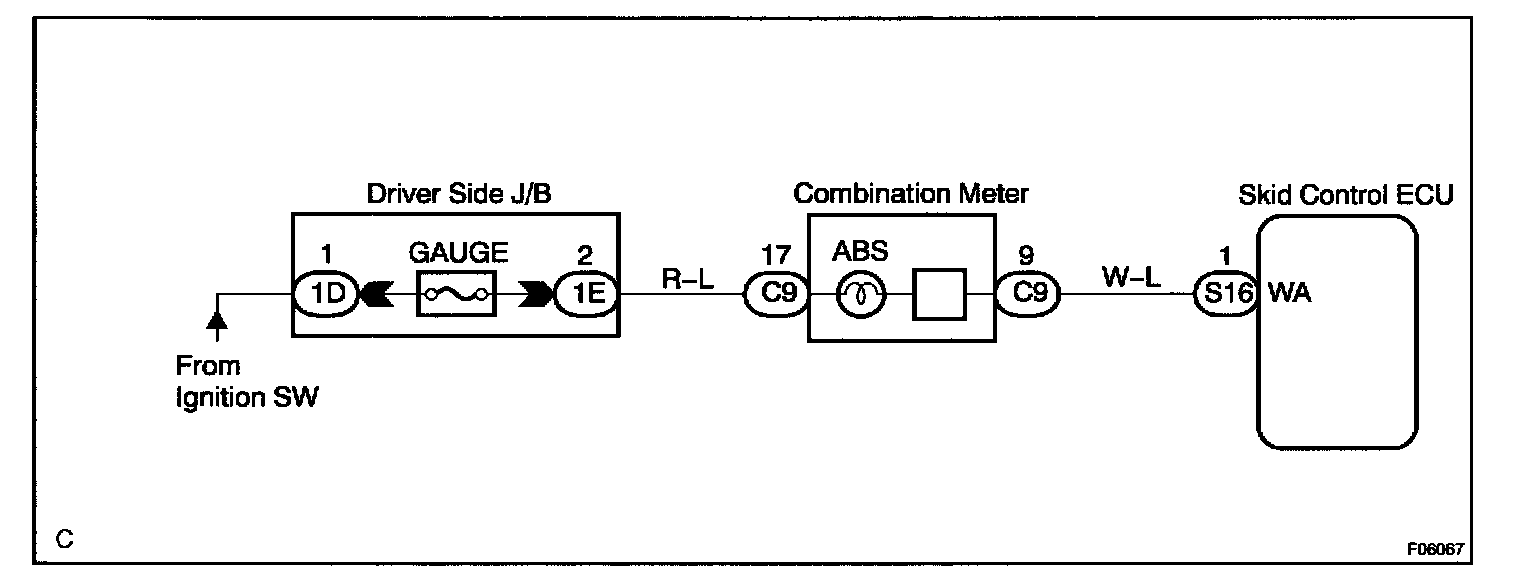

Wiring Diagram:

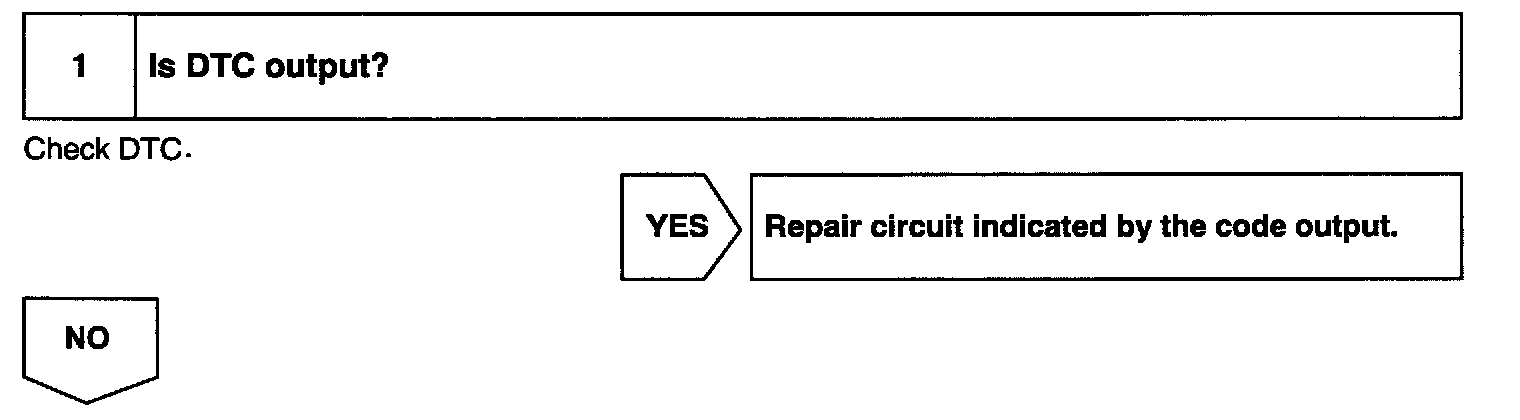

Step 1:

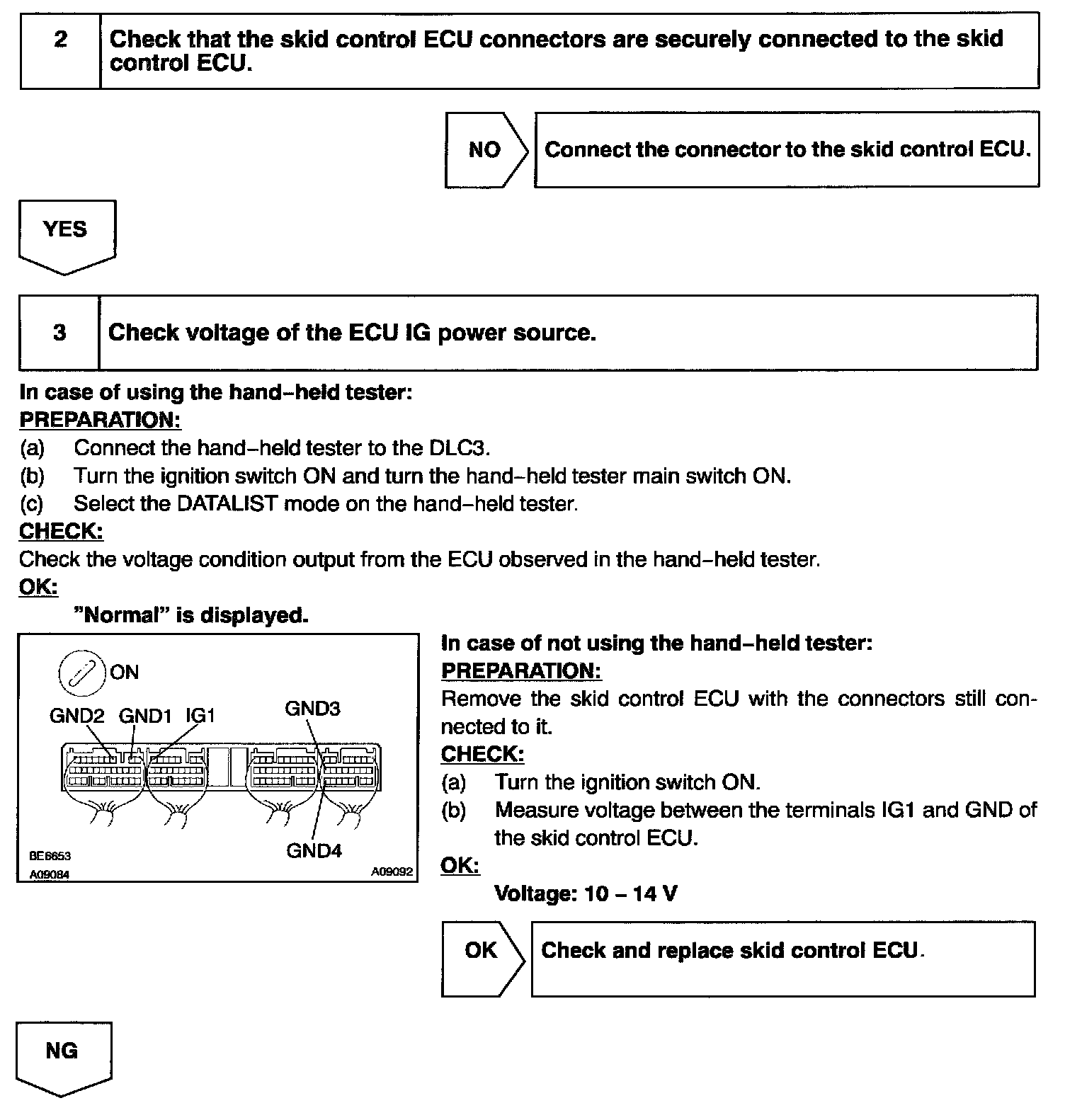

Step 2 - 3:

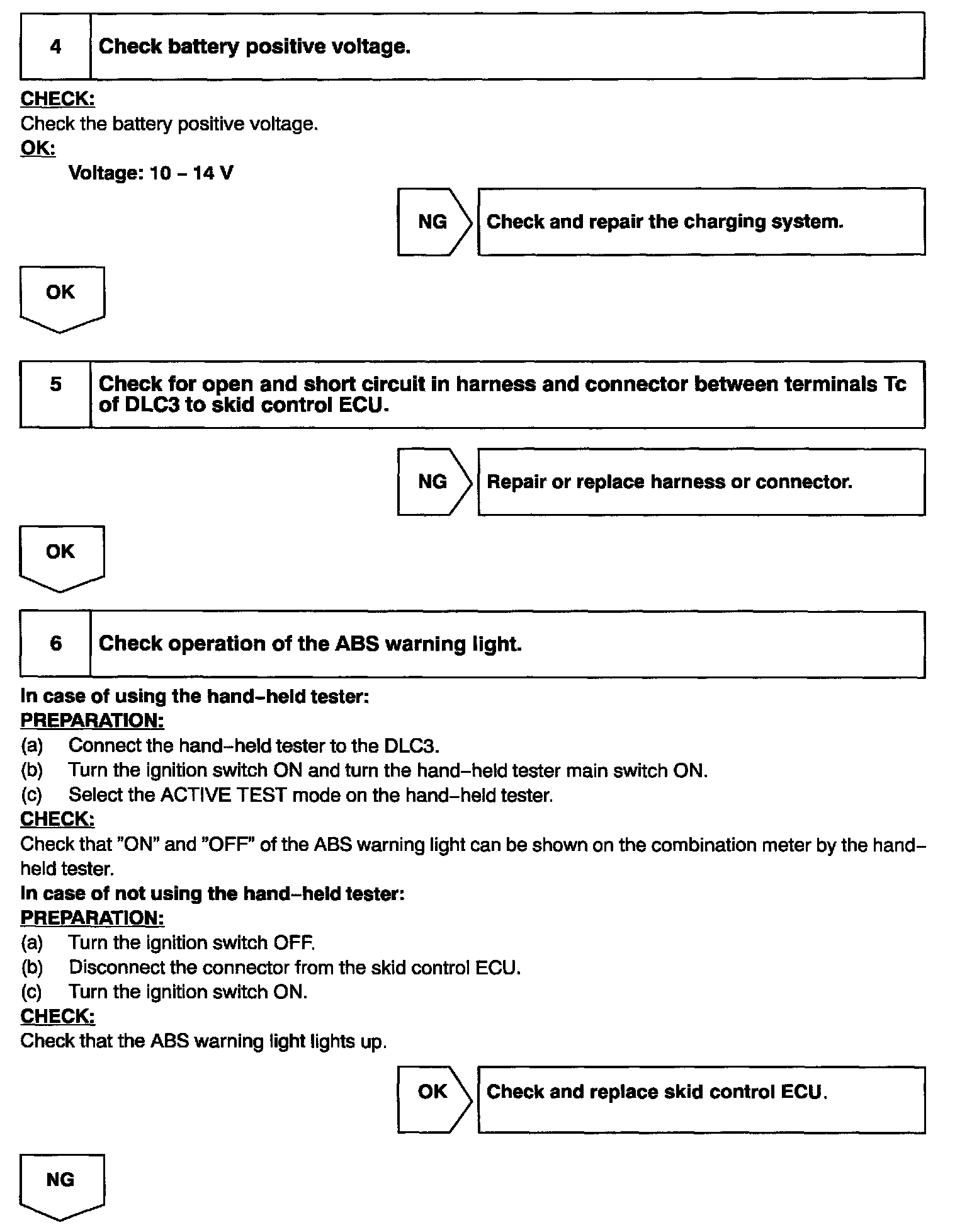

Step 4 - 6:

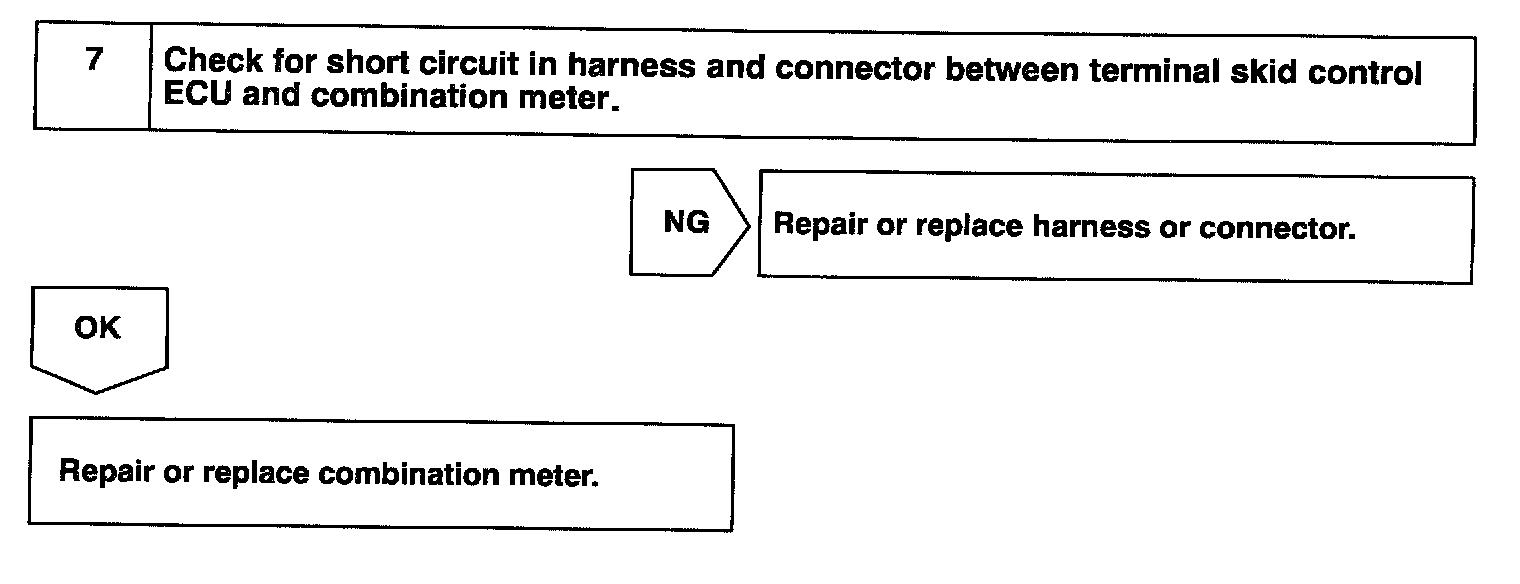

Step 7:

INSPECTION PROCEDURE
