Without Scan Tool

a. Release the parking brake lever.
b. Check the indicator.

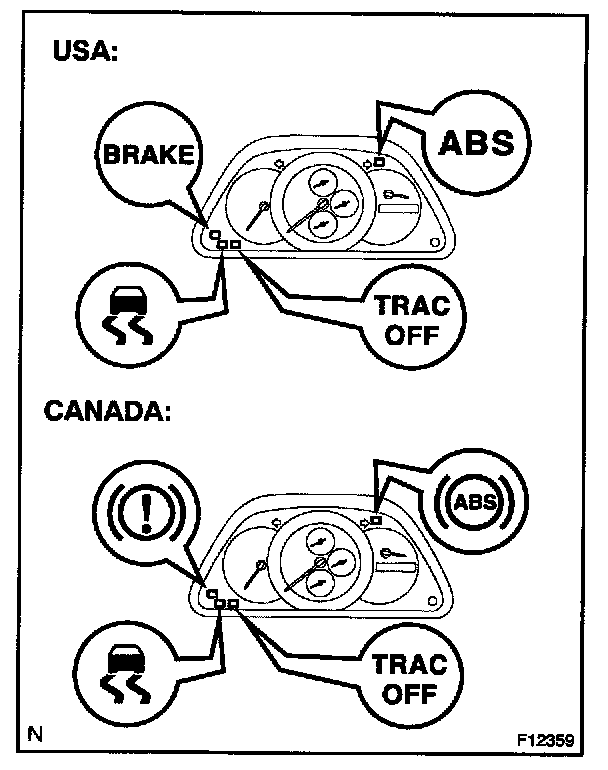

When the ignition switch is turned ON, check that the ABS warning light, BRAKE warning light, TRAC OFF indicator light and SLIP indicator light go on for 3 seconds.

HINT:
- When the parking brake is applied or the lever of the brake fluid is low, the BRAKE warning light is lit.
- If the indicator check result is not normal, proceed to troubleshooting for the ABS warning light circuit, BRAKE warning light circuit, TRAC OFF indicator light circuit and SLIP indicator light circuit.

Trouble Area
ABS warning light circuit
BRAKE warning light circuit
TRAC OFF indicator light circuit
SLIP indicator light circuit




c. In case of not using hand-held tester:
Check the DTC.

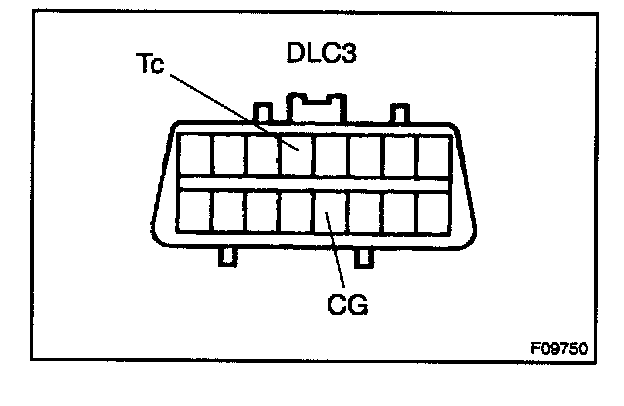

1. Using SST, connect terminals Tc and CG of DLC3.

SST 09843-18040

2. Turn the ignition switch ON.
3. Read the DTC from the ABS warning light and TRAC OFF indicator light on the combination meter.

HINT:
- If no code appears, inspect the ABS warning light circuit or TRAC OFF indicator light circuit.

Trouble Area
ABS warning light circuit
TRAC OFF indicator light circuit

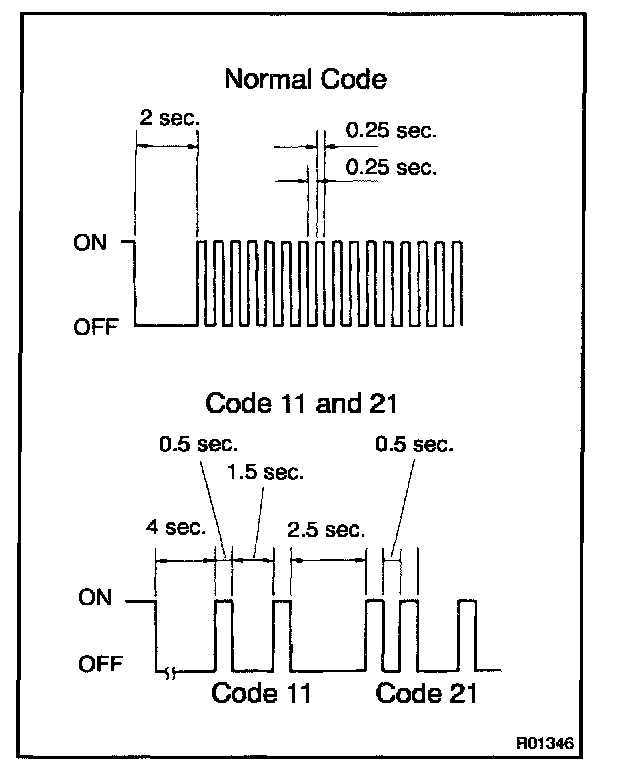

- As an example, the blinking patterns for normal code and codes 11 and 21 are shown.

4. Codes are explained in the code table .
5. After completing the check, disconnect terminals Tc and CG of DLC3 and turn off the display.

If 2 or more malfunctions are indicated at the same time the lowest numbered DTC will be displayed 1st.
