Without Scan Tool

a. Inspect the battery positive voltage.
Battery positive voltage: 10 - 14 V

b. Check the warning lights and indicator lights.

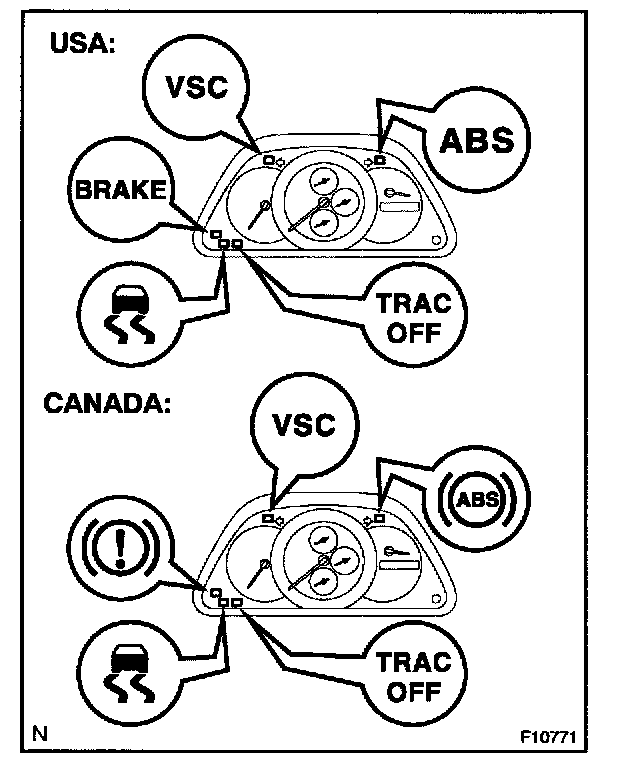

1. Release the parking brake lever.
2. When the ignition switch is ON, check that the ABS warning light, BRAKE warning light, TRAC OFF indicator light and SLIP indicator light go on for 3 sec.

HINT:
- If the ECU stores DTC, VSC warning light, ABS warning light and TRAC OFF indicator light BRAKE warning light, are ON.
- If the check result is not normal, proceed to troubleshooting for the light circuit.

Trouble Area
ABS warning light circuit
BRAKE warning light circuit
VSC warning light circuit
TRAC OFF indicator light circuit
SLIP indicator light circuit

c. In case of not using the hand-held tester:
Check the DTC of ABS system.

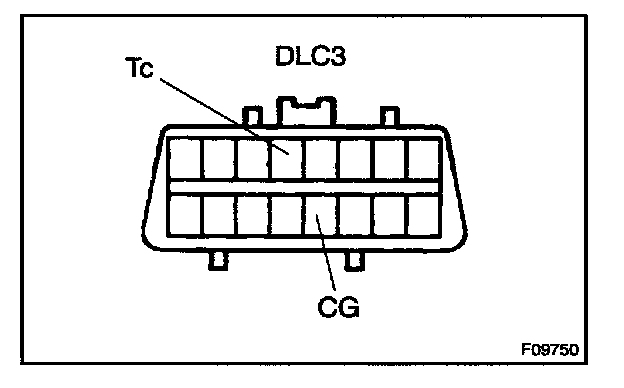

1. Using SST, connect terminals Tc and CG of DLC3.

SST 09843-18040

2. Turn the ignition switch ON.
3. Read the DTC from the ABS warning light and VSC warning light on the combination meter.

HINT:
- If no code appears, inspect the ABS warning light circuit and VSC warning light circuit.

Trouble Area
ABS warning light circuit
VSC warning light circuit

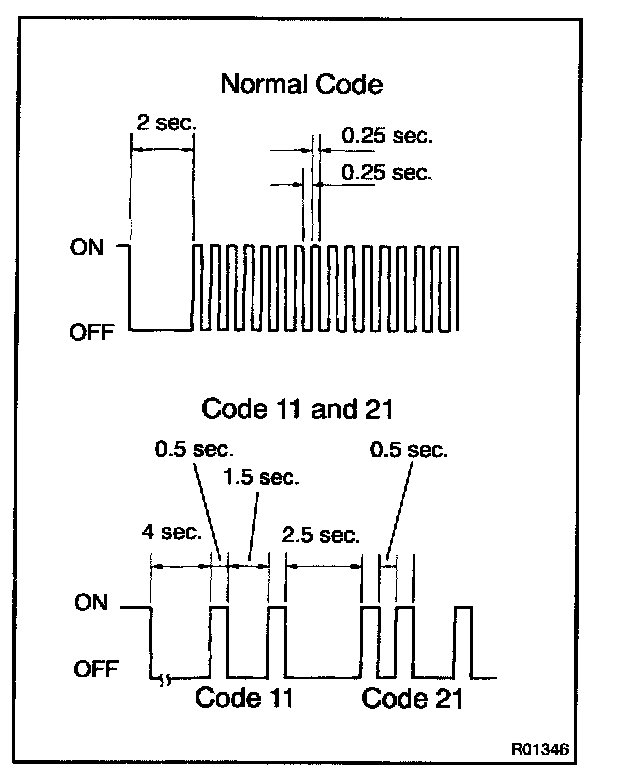

- As an example, the blinking patterns for the normal code and codes 11 and 21 are shown.

4. Codes are examples in the code table.
5. After completing the check, disconnect terminal Tc and CG of DLC3, and turn off the display.

If 2 or more malfunctions are detected at the same time, the lowest numbered DTC will be displayed 1st.
